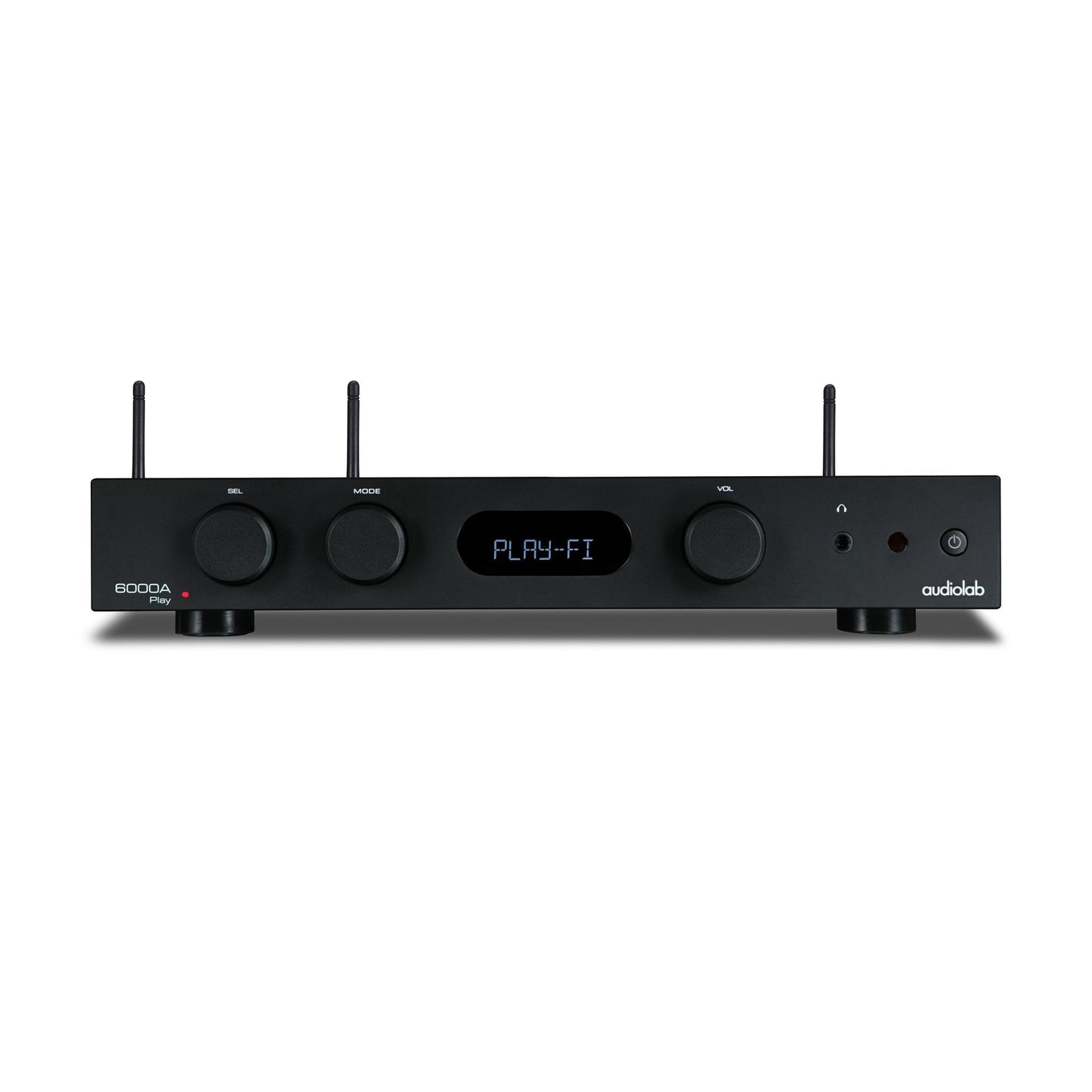

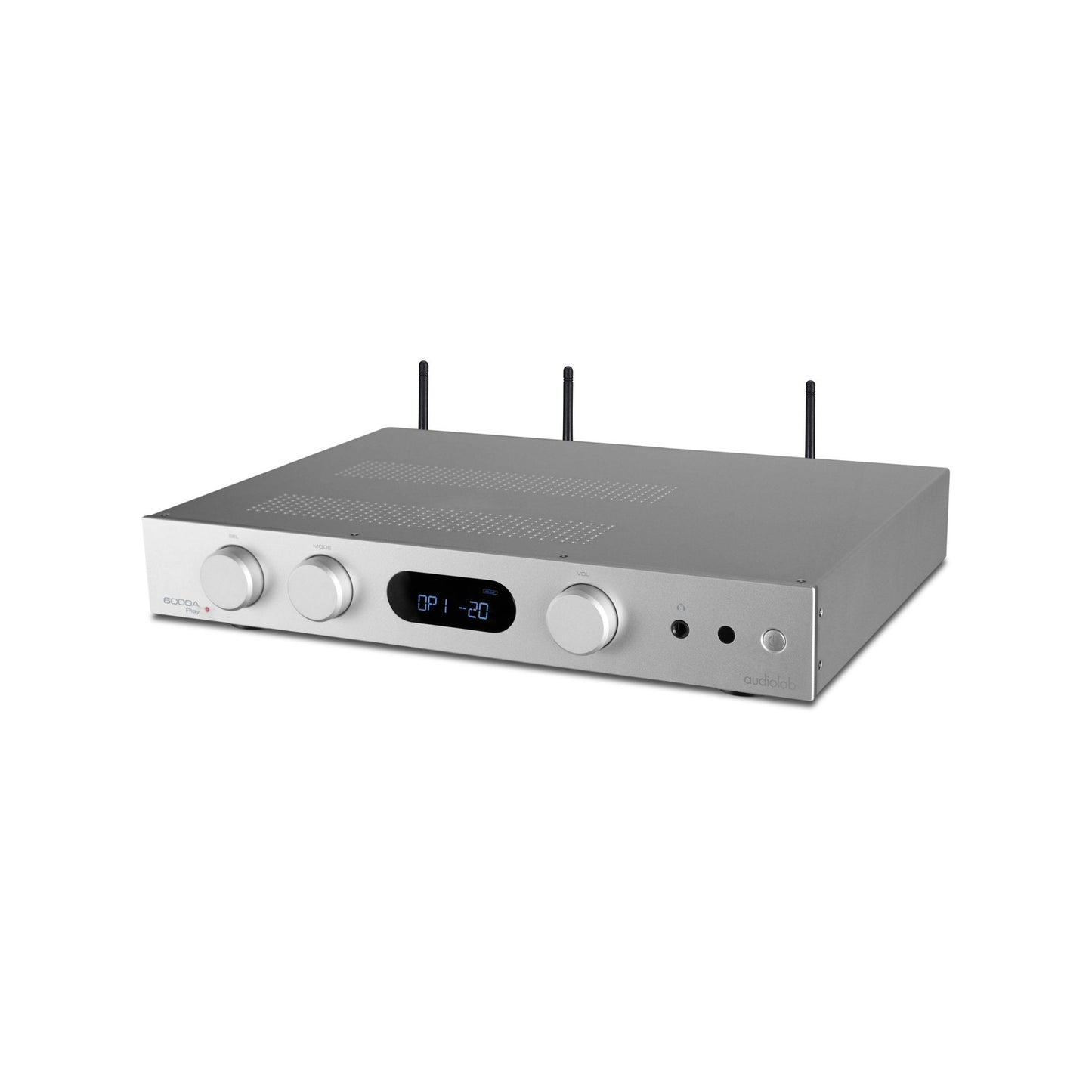

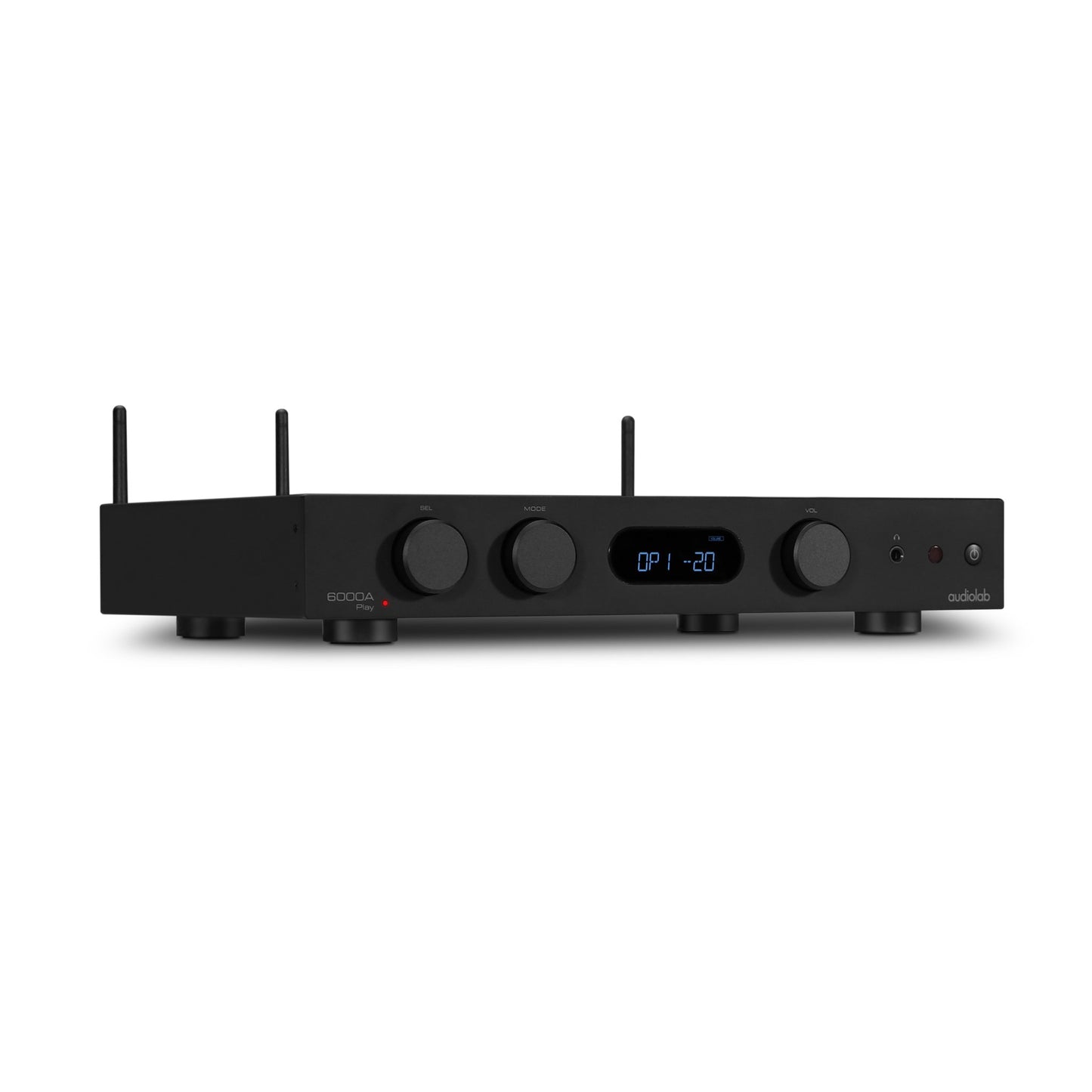

Audiolab 6000A Play Wireless Audio Streaming Player

Audiolab



Audiolab 6000A Play Wireless Audio Streaming Player

The amp that does it all – and does it brilliantly

From hi-res Wi-Fi streaming to pure analogue audio, Audiolab’s 6000A Play integrated stereo amplifier delivers the best of all worlds

Audiolab ’s new 6000A Play combines two multi-award-winning audio components in a single chassis to create a just-add-speakers streaming amplifier that handles all your analogue requirements, too. From internet radio and streaming over Wi-Fi and Bluetooth to making the most of a turntable or CD player, this amp has it covered – and with Audiolab ’s quintessential sonic excellence to boot.

In a single chassis, the 6000A Play takes the circuitry from the 6000A stereo amplifier and marries it with the streaming architecture of the 6000N Play, What Hi-Fi?’s reigning Product of the Year in the music streamer category. The result of such a formidable fusion: a fully integrated, highly versatile, multi-room-capable streaming amplifier that delivers everything a modern music lover could ask for in captivating style.

The ideal amp for every music source

The 6000A Play ’s Wi-Fi networking is powered by DTS Play-Fi: an app-controlled platform enabling high-quality, whole-home wireless audio, capable of streaming hi-res music up to 24-bit/192kHz and supported by a greater range of established audio brands than any other wireless platform.
The free Play-Fi app (available for iOS, Android and Kindle Fire devices, Windows PCs and Apple and Android smartwatches) is an intuitive gateway to a wealth of music services, including Spotify, Tidal, Amazon Music, Deezer, Qobuz, HDtracks, TuneIn, iHeartRadio and SiriusXM. It is also your trusty music butler, able to serve up a streaming library stored on any DLNA-compatible NAS drive or media server on the same home network.

Favourite playlists and radio stations can be assigned as shortcut ‘presets’ within the app, while Works With Alexa support enables voice-controlled playback when the 6000A Play is paired with any Amazon Alexa-equipped device.

Play-Fi supports a wide variety of file formats, including MP3, MP4A, AAC, FLAC, WAV and AIFF. In standard mode, which is optimised for multi-room bandwidth, audio is streamed at up to 16-bit/48kHz – akin to CD-quality. By engaging Play-Fi’s Critical Listening Mode, hi-res audio up to 24-bit/192kHz may be streamed to the 6000A Play over Wi-Fi or Ethernet cable, without transcoding or down-sampling.

There are ways to stream music wirelessly to the 6000A Play other than via the Play-Fi app. Users can play directly from the Spotify app thanks to Spotify Connect, and stream from smartphones and tablets without connecting to the local Wi-Fi network using aptX Bluetooth.

The 6000A Play is not all about streaming, however. Those with physical music collections on CD and vinyl are equally well catered for, thanks to four stereo RCA inputs – three line-level and one MM phono input. The phono stage is a high-quality, low-noise design with precise RIAA equalisation, engineered especially for the 6000A Play to make the most of the music nestling within an LP’s grooves. There are five digital inputs, too – a pair of optical and a pair of coaxial sockets to hook up digital sources without wireless connectivity (Audiolab ’s 6000CDT CD transport, for example), as well as an Ethernet port for those who prefer network connection via cable rather than Wi-Fi.

High-quality audio engineering – unfettered and uncompromised

All this versatility would be worth little if it came at the cost of genuine hi-fi sound quality. True to its roots, Audiolab has refused to compromise on performance by drawing on the sonic know-how that earned ample accolades over the years. The 6000A Play ’s digital stage incorporates the ES9018K2M DAC chip from the Sabre32 Reference family, applying the benefits of ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator to deliver ultra-low noise and high dynamic range.

Though technically excellent, Sabre32 Reference DAC chips can be challenging to implement effectively. If the circuitry that surrounds them is not of a sufficient standard, the resulting sound can seem a little on the ‘cool’ side; but treat them right and the level of musical expression that these chips dig from the digital signal is captivating.

Audiolab ’s original, universally acclaimed M-DAC was one of the very first home audio components to incorporate an ES9018 chip back in 2011, and the company has been honing its implementation ever since. One particularly critical element is the post-DAC active filter; the Audiolab design team has paid great attention to this circuit, using op-amps selected for their synergy with the ES9018K2M.

Whether received via cable, Wi-Fi or Bluetooth, all forms of digital audio benefit from three user-selectable digital filters: ‘Fast Roll-Off’, ‘Slow Roll-Off’ and ‘Minimum Phase’. These settings allow the user to optimise the response to suit the source file and bandwidth of the partnering equipment.

The 6000A Play ’s Class AB power amp sports a discrete circuit design and delivers 50W per channel into eight ohms, with a maximum current delivery of 9 Amps into difficult loads. The output stage uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. A substantial 200VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.

The preamp section is kept as simple as possible to maintain signal purity, with line input signals passing to a precision analogue volume stage. The latter covers the range from -80dB to +8dB in steps of 2dB and 1dB (step resolution increases with volume position).

Much effort has gone into the physical layout of the 6000A Play ’s circuitry, protecting the sensitive preamp section from noise interference. This, plus the use of independent low-noise power supplies for critical stages, helps to deliver a performance that rivals considerably more expensive analogue amplifiers, even before taking the 6000A Play ’s impressive digital streaming credentials into account.

As well as performing its primary function as a fully integrated amp, other user-selectable modes enable separation of the preamp and power amp stages – so, for example, the 6000A Play can operate as a power amp connected to a separate preamp or processor, or as a streaming DAC/preamp to feed an external power amp. This additional flexibility reflects Audiolab tradition, as well as the discrete nature of the 6000A Play ’s internal architecture, enabling it to adapt to its owner’s evolving requirements.

Anyone who uses headphones as well as speakers is catered for by a built-in headphone amp with dedicated current-feedback circuitry. Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types – more boxes ticked for this most integrated of integrated amplifiers.

Putting the music first

Deep, well-defined bass; expressive and expansive midrange; crisp, sweet treble – the 6000A Play delivers an adroitly balanced performance with all kinds of music, without favouring one style over another. From a Spotify stream to a vinyl record, it delivers an open window on the music being played, as all great hi-fi should, engaging the listener with natural, unforced energy that is fully reflective of the source material.

Specification summary

• Hi-res wireless streaming and multiroom connectivity • Network connection via Wi-Fi or Ethernet cable
• aptX Bluetooth streaming
• ESS Technology Sabre32 Reference DAC

• Three user-selectable digital filters
• Class A post-DAC active filter
• Low-noise MM phono stage
• Class AB power amplification: 2x50W into 8 ohms; 2x75W into 4 ohms
• Three operational modes: Integrated Mode; Pre-Power Mode; Pre Mode • Dedicated current-feedback headphone amp

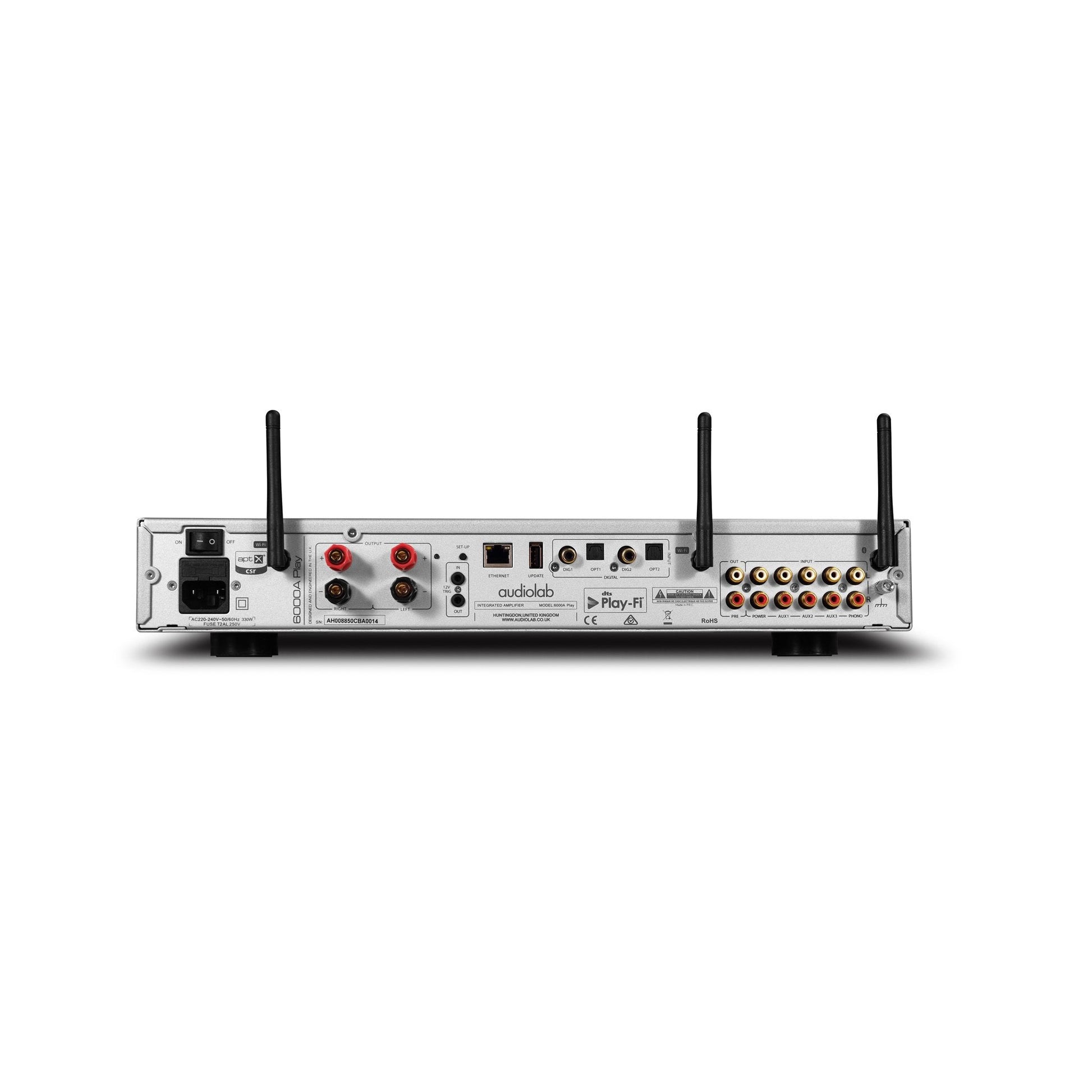

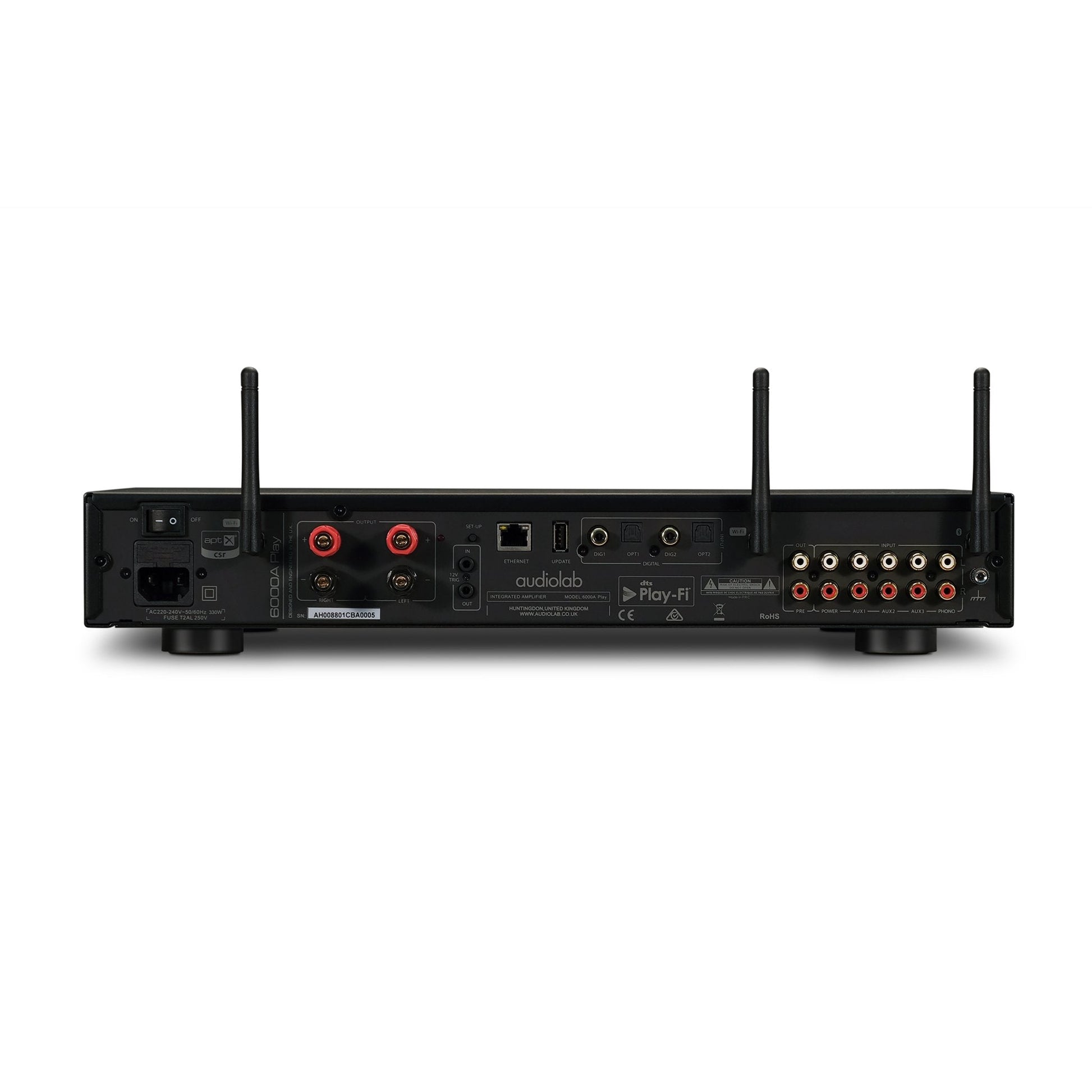

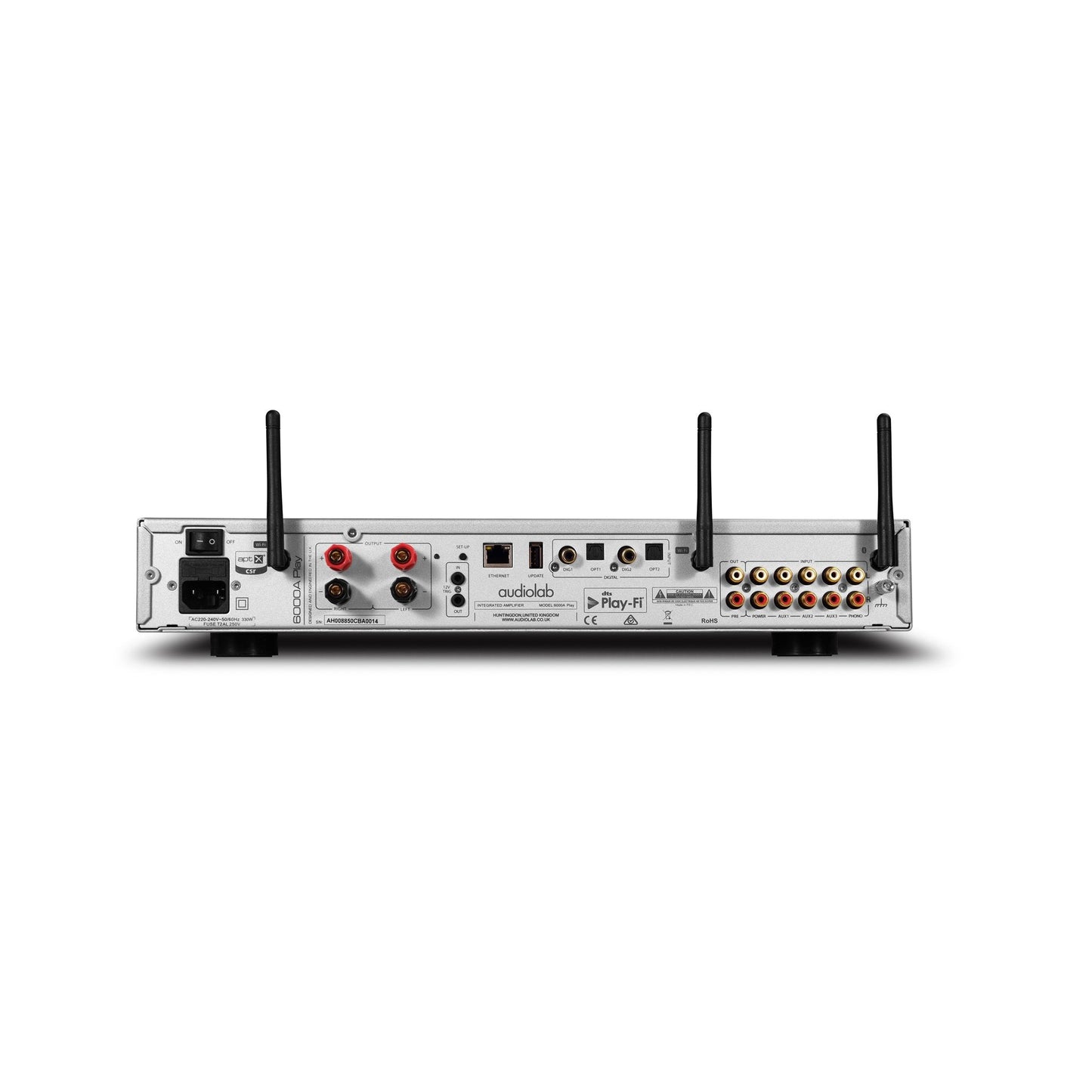

Cable inputs

• 5x digital audio (2x optical; 2x coaxial; 1x Ethernet) • 4x analogue audio (3x line level; 1x MM phono)
• Power amp input
• USB for firmware updates

• 12V trigger

Cable outputs

• Speaker binding posts • Headphone output
• Preamp output
• 12V trigger

Model 6000A PLay
DTS Play-Fi Technology

IEEE 802.11a/b/g/n/ac


Supports global, popular streaming content (Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, Pandora, SoundMachine, Qobuz, QQmusic )


Supports Speaker Groups


Supports Android/iOS/Kindle Fire/Windows PC Control

Analogue Inputs

3xAUX,1xPhono(MM),1xPowerIn

Digital Input

2 x Coaxial, 2 x Toslink Optical, Bluetooth (aptX/aptX LL)

Analogue Output

1x RCA Pre Out

Gain

+8dB (Line)
+55dB (Phono MM)

Input Sensitivity

720mV (Line, Volume = 0dB)
3.1mV (Phono MM, Volume=0dB)

Input Impedance

10K (Line)
47K//100pF (Phono MM)

Total Harmonic Distortion (THD)



< 0.0004% (1KHz @ 2V, Volume = 0dB)

Frequency Response

20Hz-20kHz (+/-0.1dB)

Output Voltage

2.3V max. (Volume=0dB)

Output Impedance

120 ohm

Signal-to-Noise Ration (S/N)

> 110dB (Line, A-weighted)
> 76dB (Phono MM, A-weighted)

D To A Converter

ES9018K2M

Total Harmonic Distortion (THD)

< 0.0006% (1KHz @ 0dBFS)

Output Level (0dBFS, 1KHz)

2.05V

Max. Sampling Frequency

192KHz

Signal-to-noise ratio (S/N)

> 112dB (A-weighted)

Digital Filters

Fast Roll-off , Slow Roll-off , Minimum Phase

Gain

+29dB

Rated Max. Power Output

2 X 50W (8 ohm, THD<1%)
2 X 75W (4 ohm, THD<1%)



Frequency Response


20Hz-20kHz (+/-0.3dB)



Input Sensitivity




720mV (Volume=0dB)




Total Harmonic Distortion (THD)




< 0.003% (1kHz @ 40W/8ohm)




Signal-to-Noise ratio (S/N)




> 110dB (A-weighted)




Max. Output Current




9A




Total Harmonic Distortion (THD)


< 0.01% (1kHz, 10mW into 20ohm)




Output Impedance




2.35 ohm




Load impedance




20-600 ohm




Standby Power Consumption


< 0.5W



Power Requirements

(depending on region)




220-240V ~ 50 - 60Hz
100-120V ~ 50 - 60Hz




Dimensions (mm) (W x H x D)




445 x 65.5 x 300




Carton Size (mm) (W x H x D)




512 x 467 x 155


Weight






7.9kg (Net)
10kg (Gross)


 Finish


Black/Silver



"Meticulously faithful to music, whether it’s playing a Spotify stream or vinyl record, rock and roll or rhythm and blues, the 6000A Play is a does-it-all amplifier that is simple to use and beautiful to hear."

Read the full review by What HiFi here.
