B&W CCM664 SR

Bowers & Wilkins

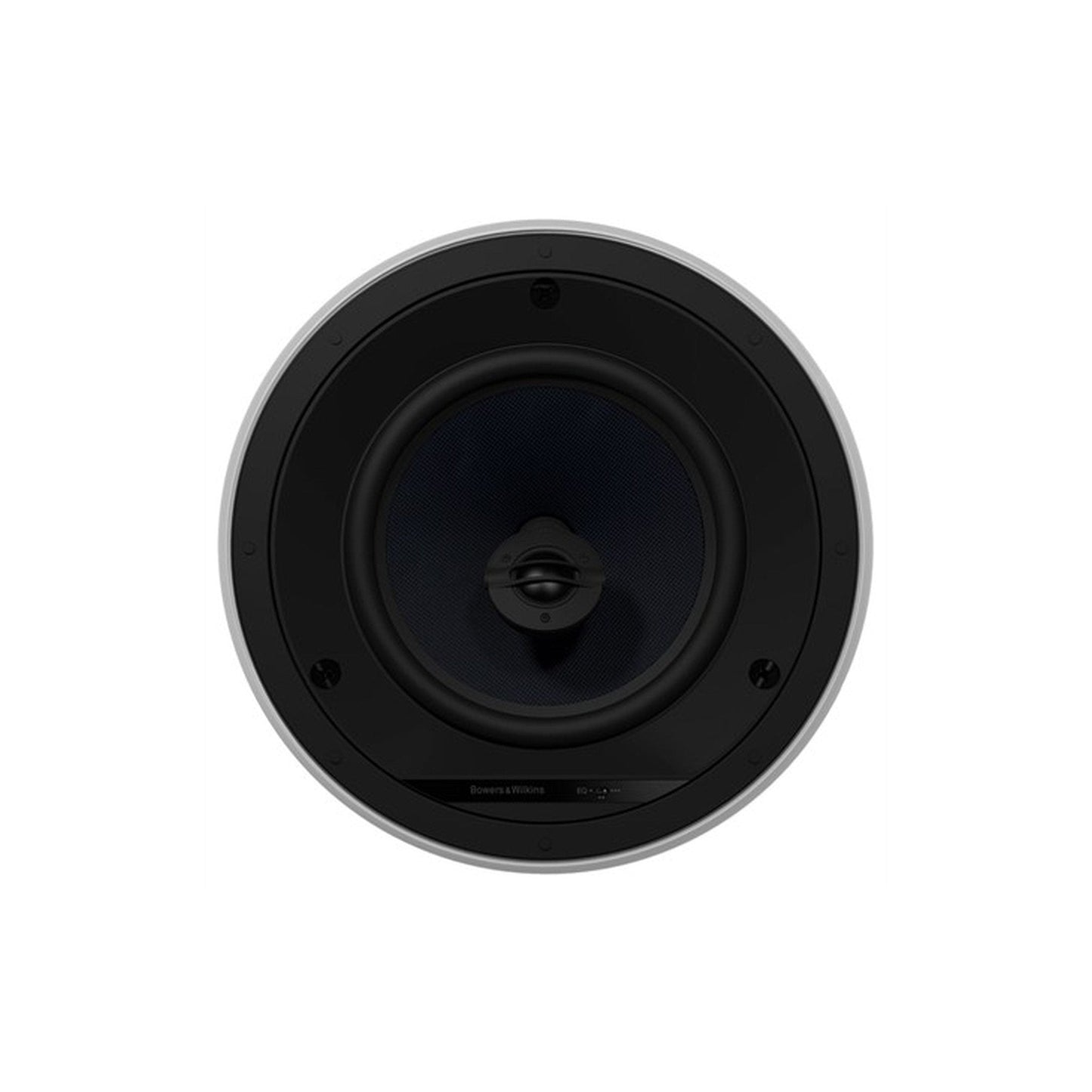

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm(6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogsTM and plug-and-play functionality it is quick and easy to install.

Download the Manual here

Description

2-way dual channel in-ceiling system

Drive Units

2x ø20mm (1in) soft dome tweeter
1x ø150mm (6in) black glassfibre cone bass/midrange

Frequency Range (-6dB)

48Hz – 30kHz

Recommended Amp Power

25 – 80w (per channel)

Sensitivity SPL (2.83V, 1m)

82dB (per channel)
88dB (both channels driven)


Impedance Nominal (min)

8Ω (4Ω) (per channel)

Frame diameter



240mm (9.5in)

Cut-out diameter

202mm (8in)

Depth behind surface

133mm (5.2in)

Protrusion

4mm (0.2in)

Pre-mount Kit

C8

Back Box

6C
