Bowers & Wilkins | B&W ASW610 Active Subwoofer

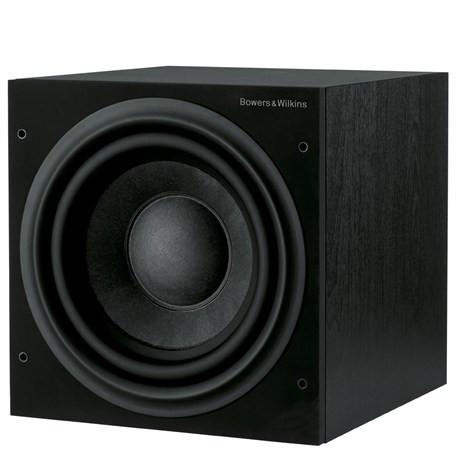

Bowers & Wilkins ASW610 Active Subwoofer
The ASW610 subwoofer presents a very happy medium between the more diminutive ASW608 and the all-out power of the ASW610XP. Its long-throw 250mm driver allows the ASW610 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the compact unit running cool, even when the music or movie action is whipping up a storm.
In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
|Description||Active closed-box subwoofer system|
|Drive unit||ø250mm (10 in) paper/Kevlar® cone long-throw|
|Frequency range||-6dB at 20Hz and 25/140Hz adjustable (EQ at A)|
|Frequency response||±3dB 27Hz – 40/140Hz adjustable (EQ at A)|
|Bass Extension||-6dB at 20Hz (position A)
-6dB at 25Hz (position B)
-6dB at 30Hz (position C)
|Rated power consumption:||40W / 0.5W standby|
|Signal / noise:||>90dB|
|Functions:||Input level (line in)
Input level (speaker in)
Low-pass filter bypass
Bass roll-off alignment
Auto sense on/standby
|Inputs:||Line In (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Active 4th-order, variable cut-off frequency
|Dimensions||Height: 310mm (12.2 in) not including feet
Width: 310mm (12.2 in)
Depth: 375mm (14.8 in) including grille and controls
|Net weight||12.5kg (27.6 lb)|
