Bowers & Wilkins

ASW610XP Active Subwoofer

ASW610XP Active Subwoofer

Regular price $2,199.00
Regular price $0.00 Sale price $2,199.00
Sale Sold out
Shipping calculated at checkout.
No reviews yet

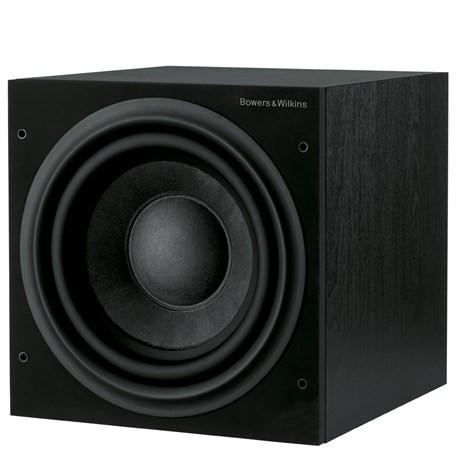

Bowers & Wilkins ASW610XP Active Subwoofer

The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the unit’s 500W amplifier, long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry, the unit remains cool and efficient under pressure.

In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.

Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.



Specifications
Crossover Tuning
Mushrooms
Description Active closed-box subwoofer system
Drive unit ø250mm (10 in) paper/Kevlar® cone long-throw
Frequency range -6dB at 18Hz and 25/140Hz adjustable (EQ at A)
Frequency response ±3dB 25Hz – 40/140Hz adjustable (EQ at A)
Bass Extension -6dB at 18Hz (position A)
-6dB at 23Hz (position B)
-6dB at 28Hz (position C)
Amplifier Power output: 500W
Rated power consumption: 98W / 1W standby
Input impedance: 33kΩ
Signal / noise: >90dB
Functions: Input level (line in)
Input level (speaker in)
Low-pass filter frequency (line in only)
Low-pass filter bypass
Bass extension
Bass roll-off alignment
Auto sense on/standby
Phase switch
Inputs: Line In (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Low-pass filter
Active 4th-order, variable cut-off frequency
Dimensions Height: 325mm (12.8 in) not including feet
Width: 325mm (12.8 in)
Depth: 375mm (14.8 in) including grille and controls
Net weight 15.5kg (34.4 lb)
Finishes Black
White



View full details
