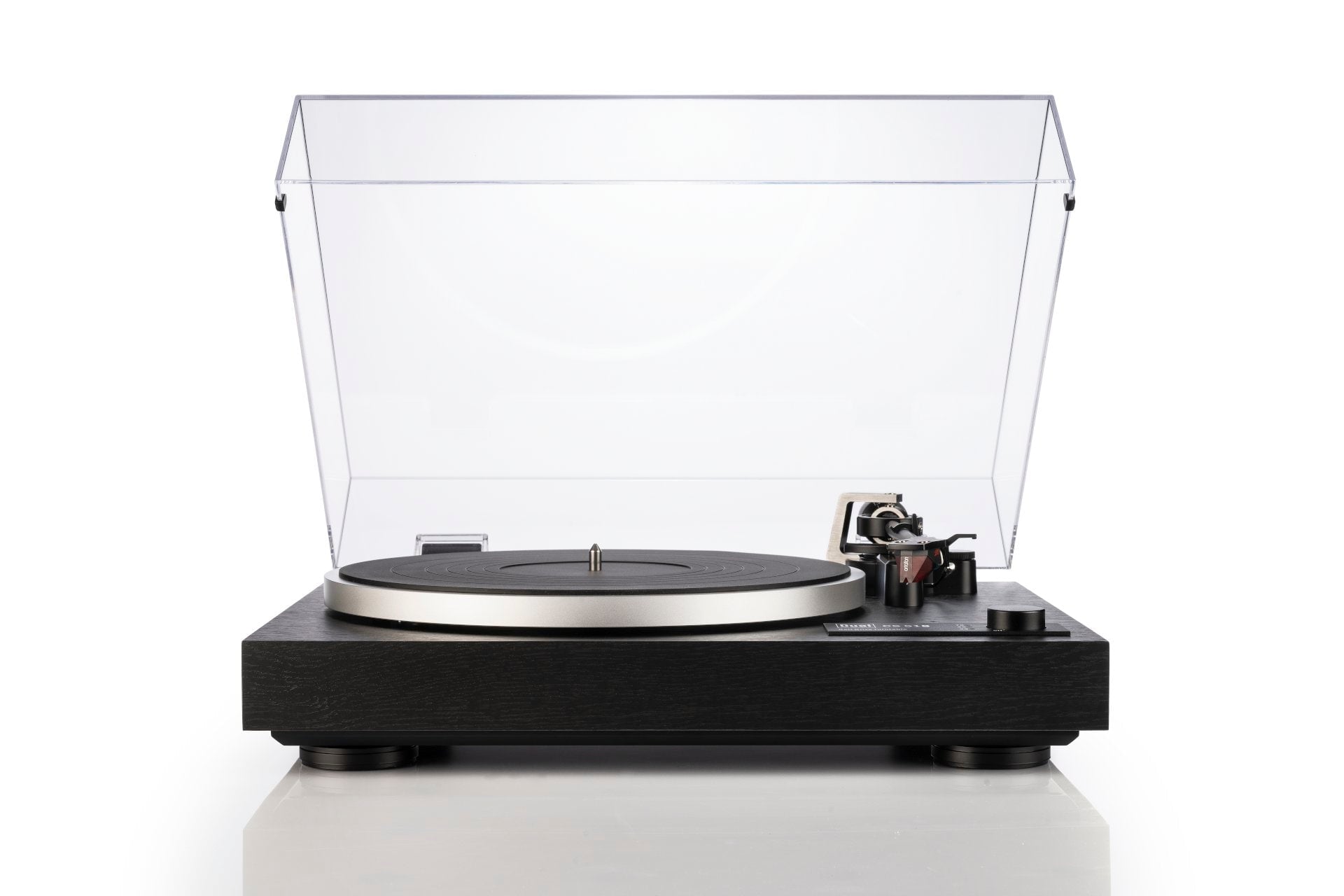

Dual CS 518 Twin Gimbal Turntable
Dual CS 518 Twin Gimbal Turntable
Couldn't load pickup availability
WITH FULL CARDAN TONEARM
For the true Vinyl Enthusiast, the CS 518 is equipped with a twin gimbal tonearm design using pivot ball-bearings for optimal precision.
This superior tonearm has the ability to guide even high end pickups with the greatest degree of precision and reliability.
The Ortofon 2M Red pickup and a switchable MM-phonopreamplifier are an integral part of this ready to run package.
Specifications:
Motor:
Drive: Belt
Speed settings: 33/45/78
Wow & Flutter: < ±0,1 % (DIN WTD)
Tonearm:
Bearing: 4 x Pivot ball-bearing / twin gimbal mounting
Effective length: 221,5 mm
Offset Angle: 25,6°
Overhang: 19 mm
Type: statically balanced
Stylus Pressure Range: 0 g bis 4 g
Cartridge Weight Range: 5 g bis 9 g
Factory installed pick up: Ortofon 2M Red
Platter:
Material: Aluminium die-cast
Mat: Rubber 2,5 mm
Bearing: Hardened steel spindle Brass bushing:
Diameter: 305 mm
Weight (incl. Mat): 850 g
Plinth:
Material: MDF, folded
Surface finish: Vinyl veneer / Black
Feet: Ø 62 mm / Elastomer

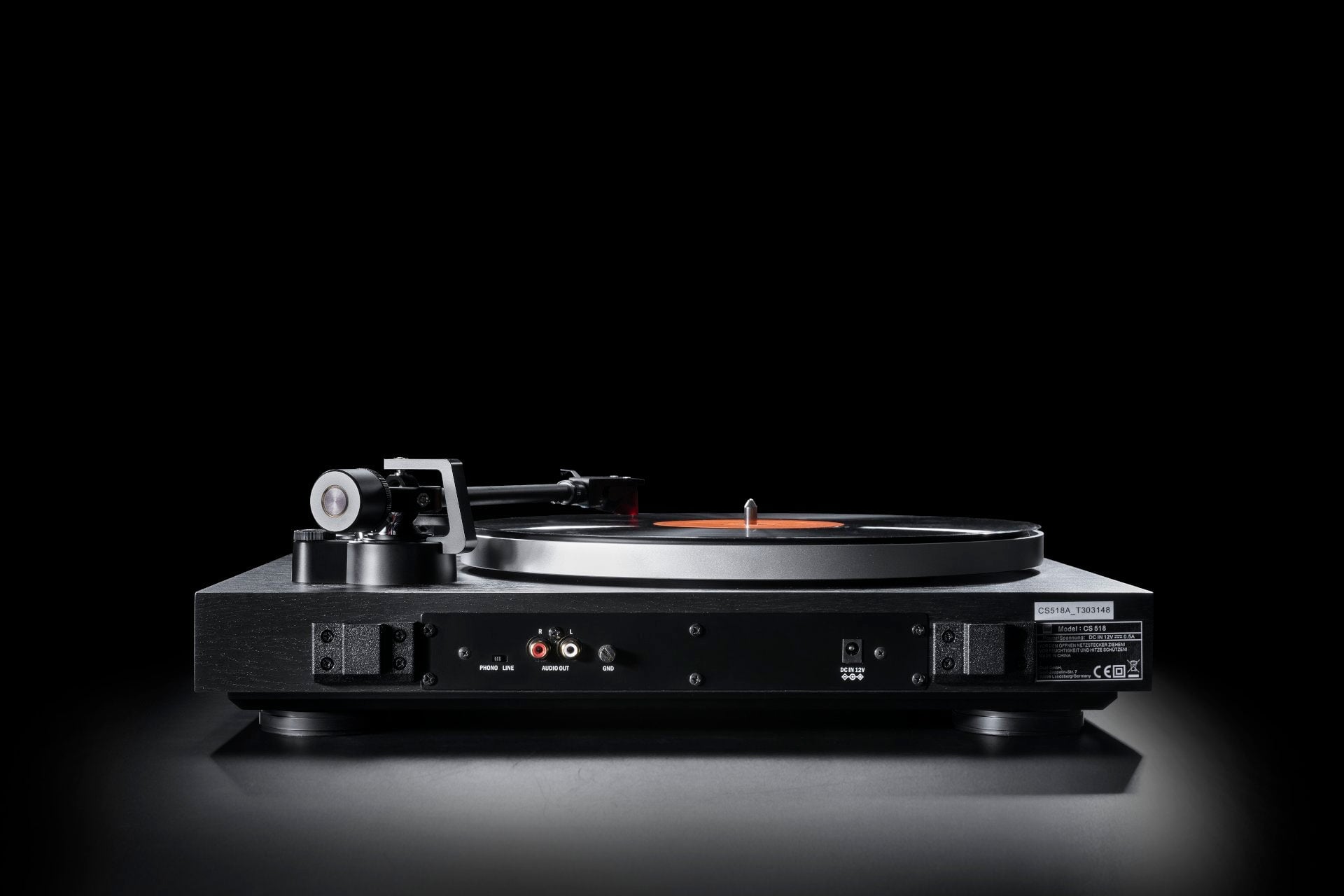

Connection: RCA socket
Connection to Phono Input: ✓
Connection to Line Input: ✓
Digital Output: ✕
Dimension, closed dustcover: 435 x 367 x 145 mm
Dimension, open dustcover: D: 415 mm / H: 400 mm
Weight: 5,9 kg
Power plug AC / DC: External power supply
DETAILS:
Plinth: Solid MDF
- Folded MDF construction with a black vinyl veneer
- Elastomer vibration absorber integrated inside the feet

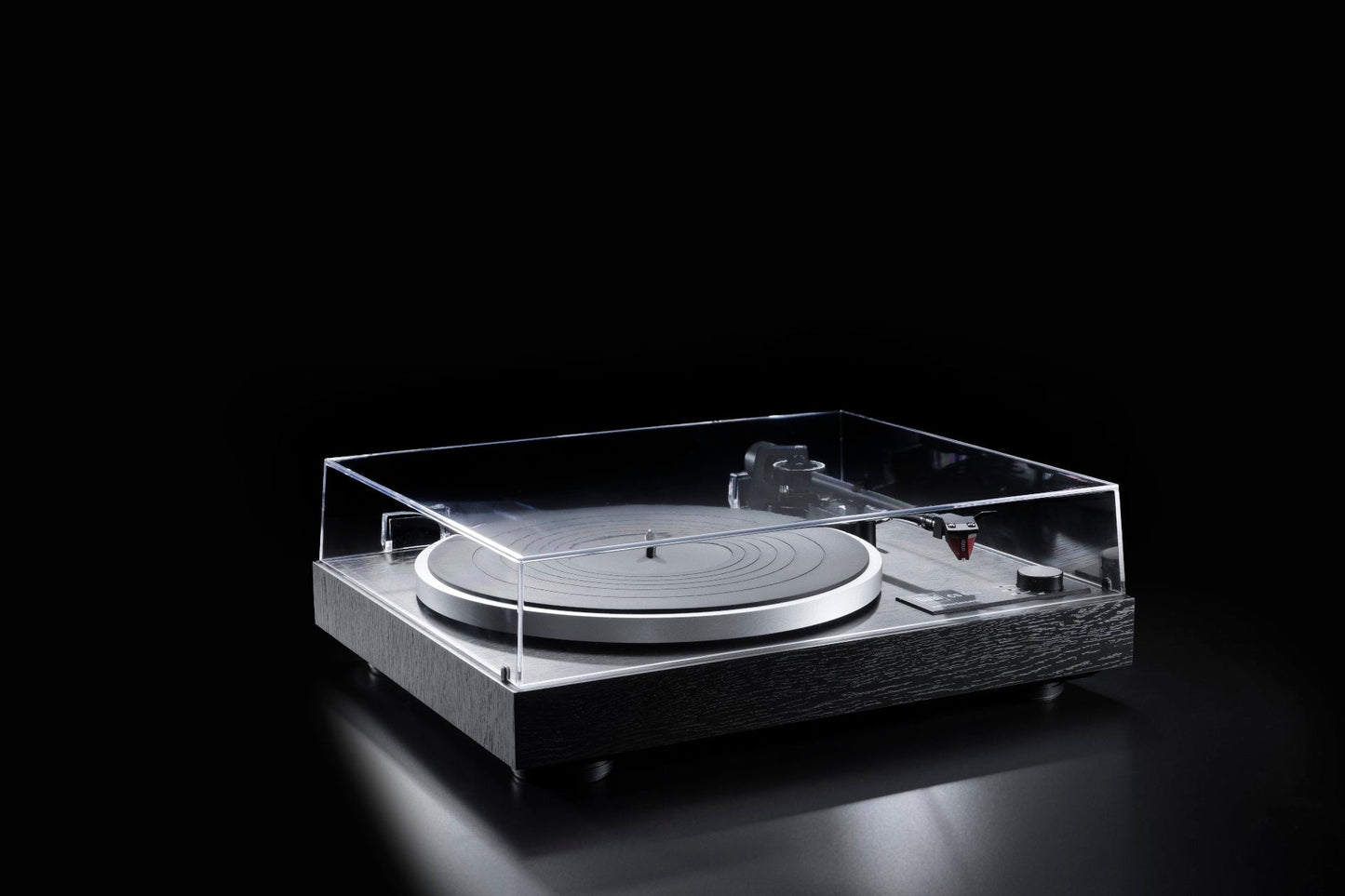

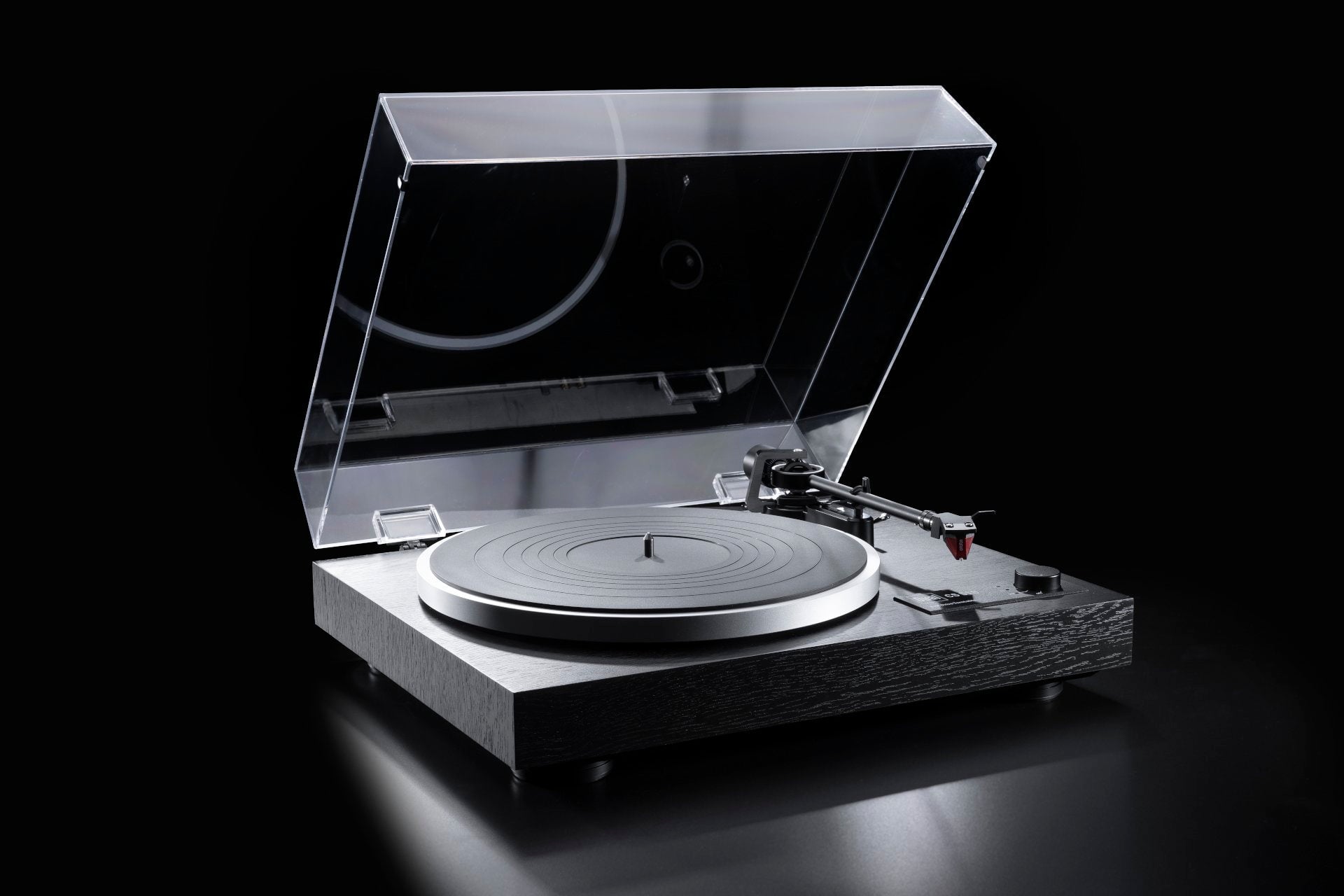

- Removable dust cover
Platter: Aluminium Die-cast
- Precise aluminium die-cast
- Heavy rubber mat for resonance damping

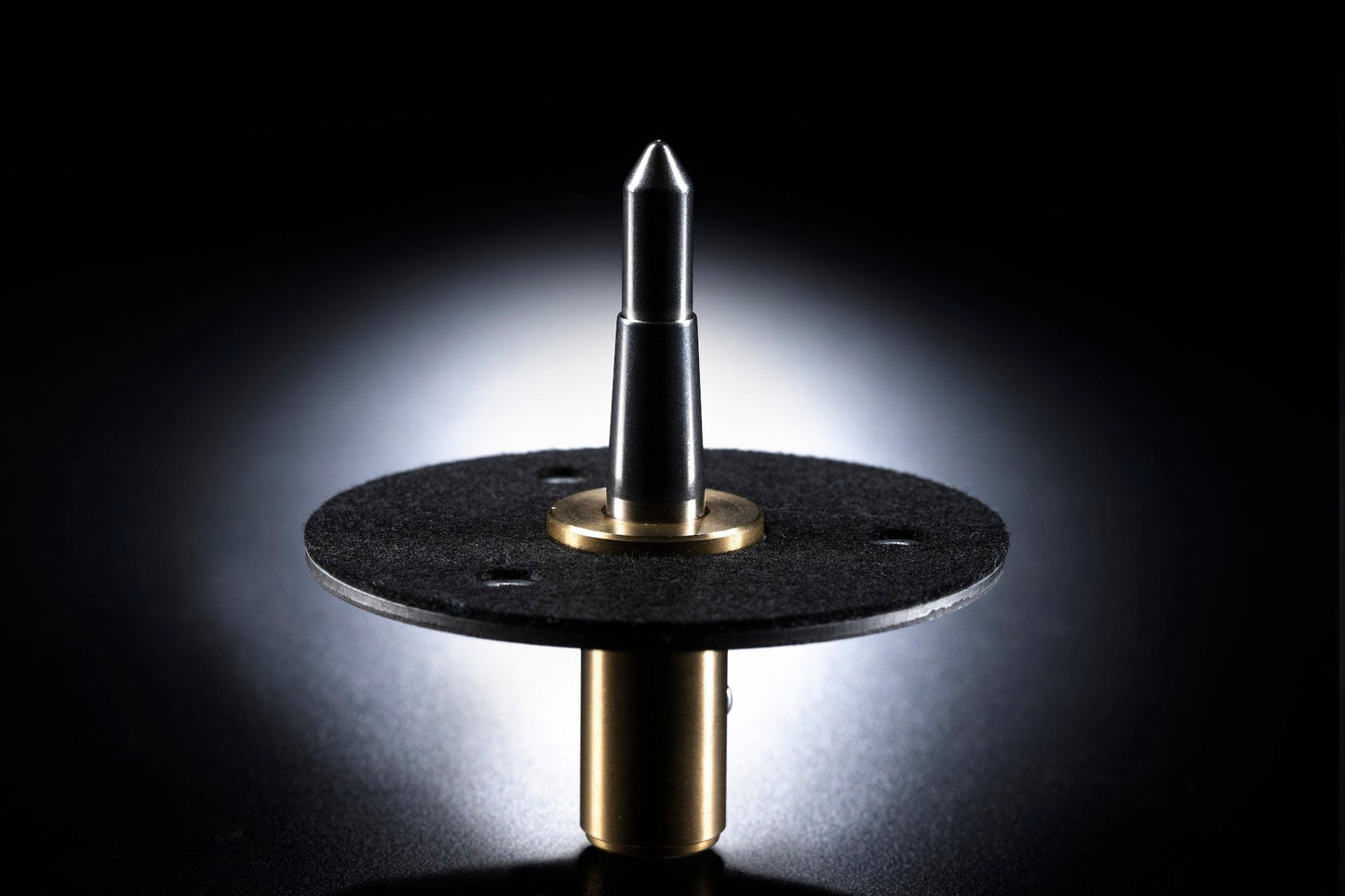

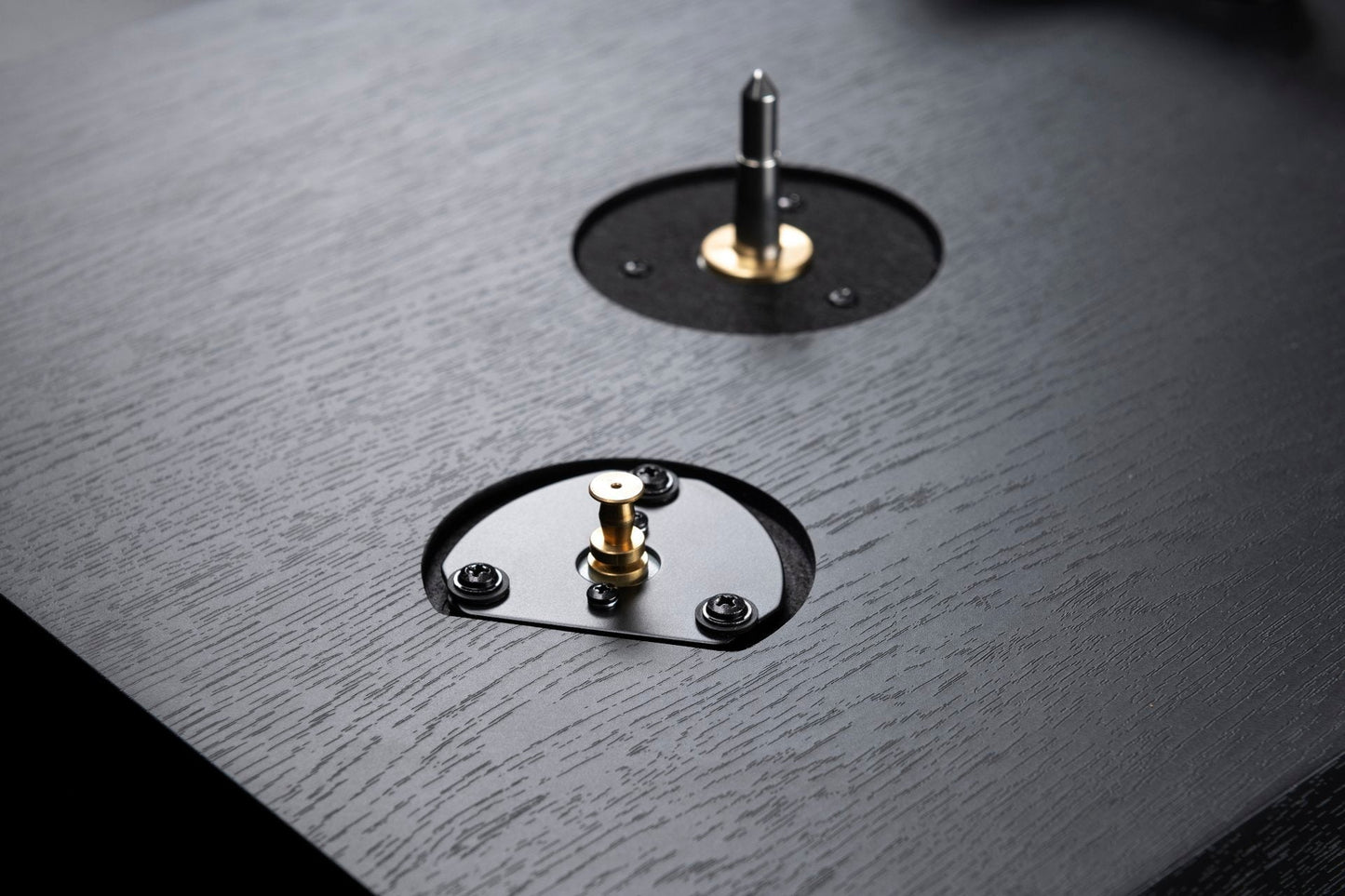

- Solid platterbearing with a hardened steel spindle in a brass bushing

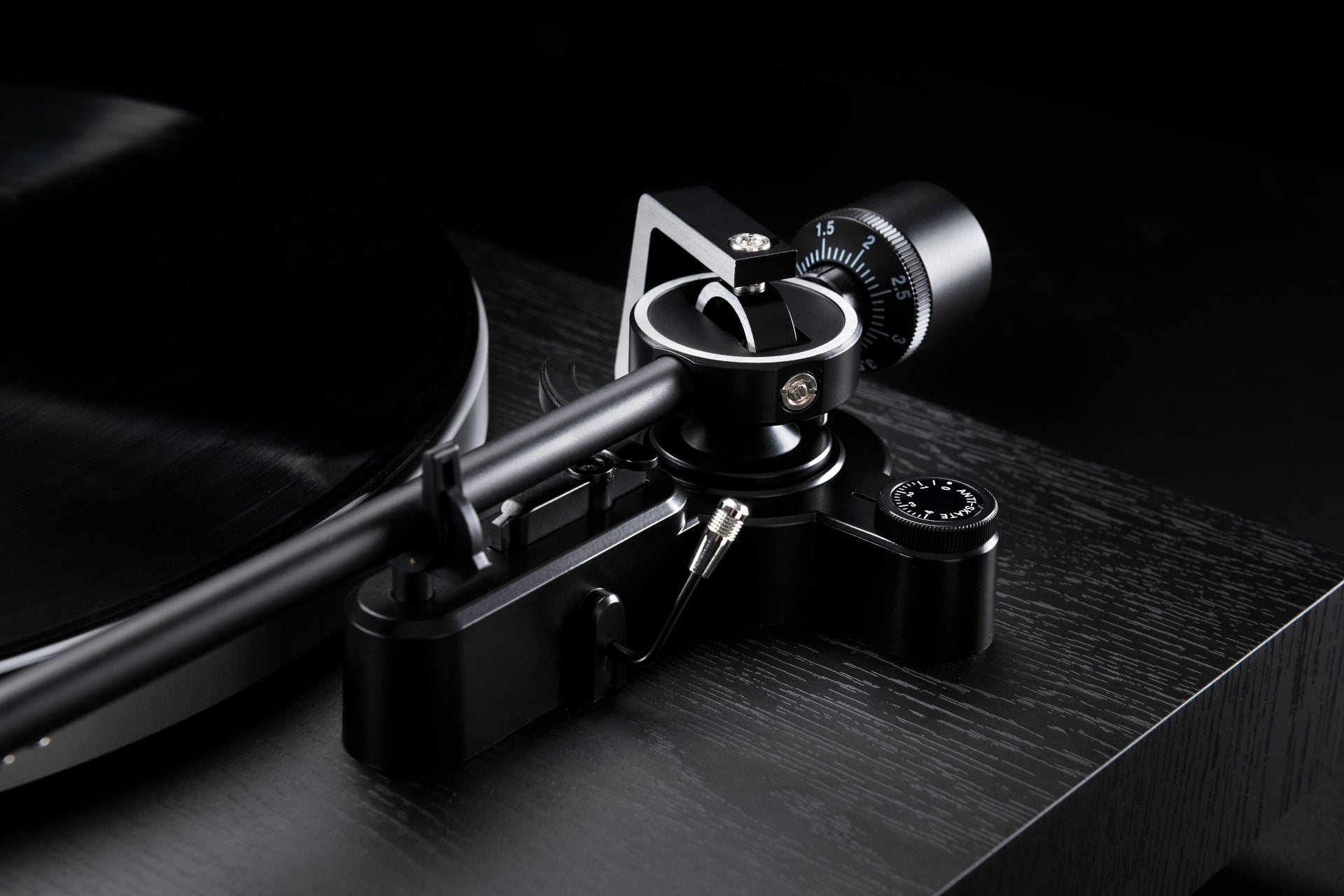

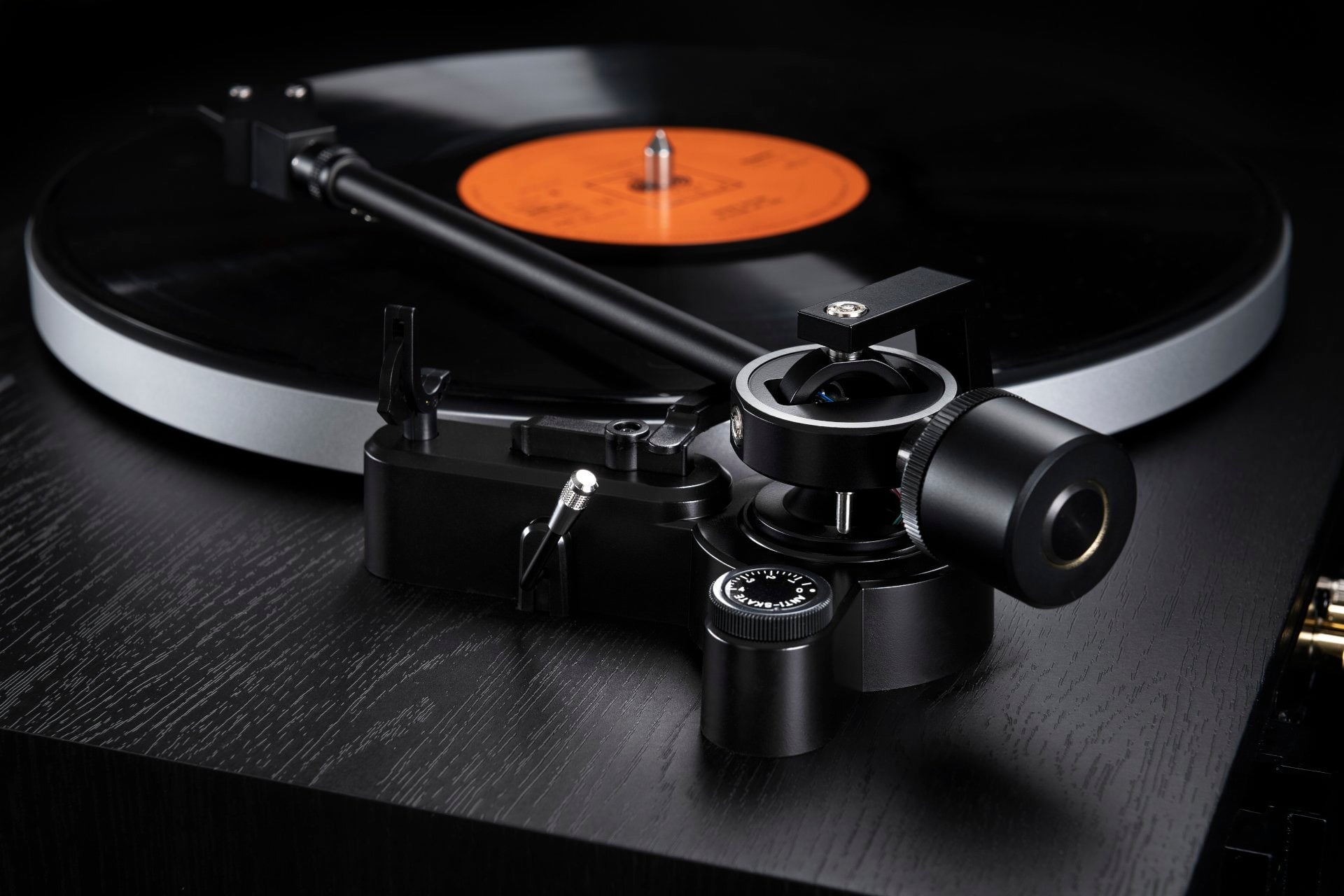

Tonearm: Twin Gimbal Design
- Straight, statically balanced
- Solid aluminium construction with precision pivot ball-bearing
- Adjustable trackingforce and antiskating

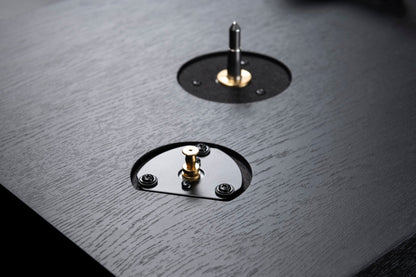

Drive: DC- Motor / Belt
- Low vibration DC-Servo-Motor
- Rubber mountings for vibration decoupling
- Precision cut belt for lower wow & flutter
-
