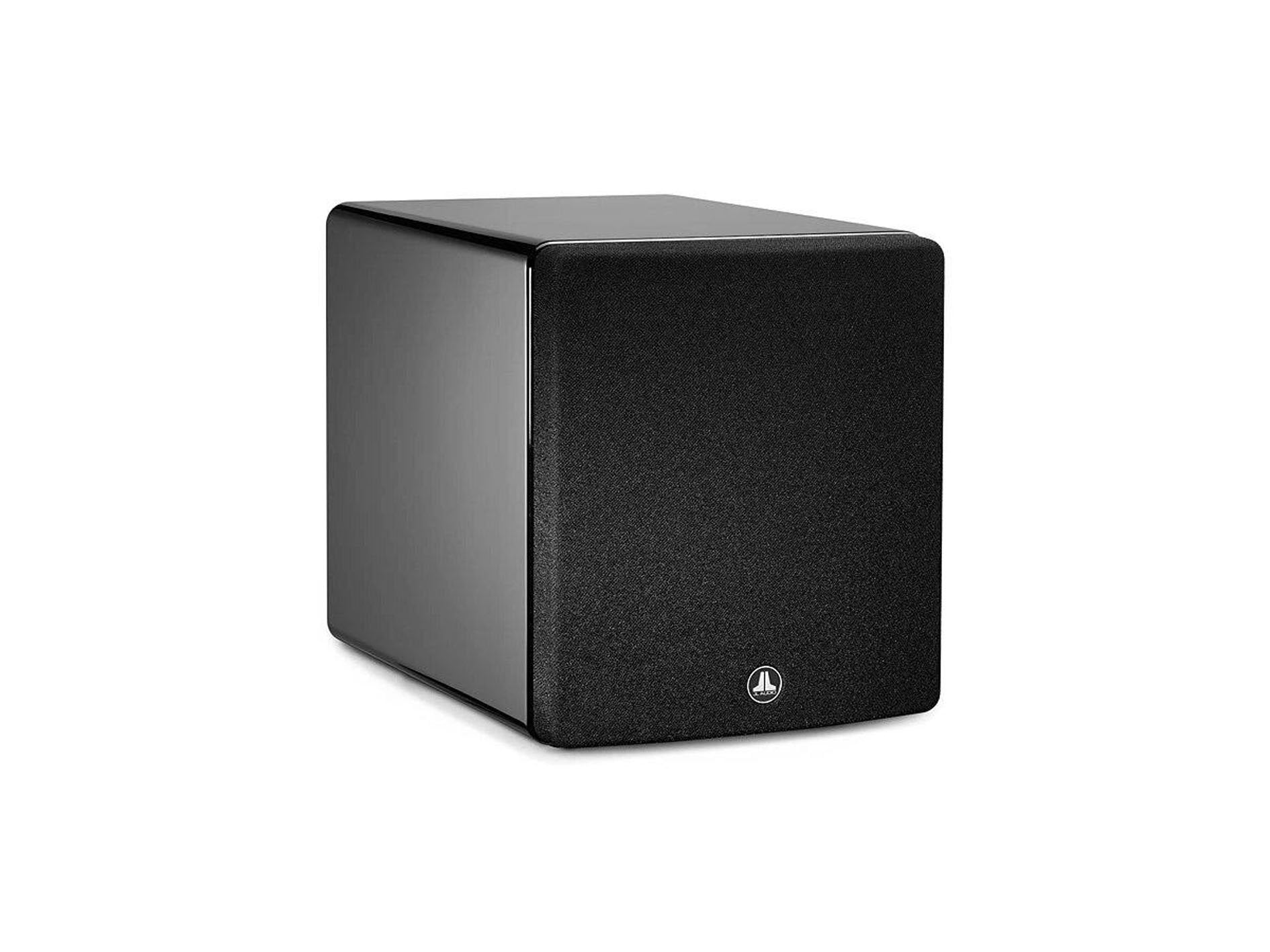

The Fathom f110v2 is the most compact subwoofer in the Fathom lineup but is fully capable of delivering stellar performance in smaller spaces. The combination of an ultra-long throw W7 10-inch driver and a very powerful switching amplifier give it the kind of output normally associated with far larger subwoofer systems.
Because it is built with the same driver and amplifier technology as our flagship Gotham®, the f110v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.

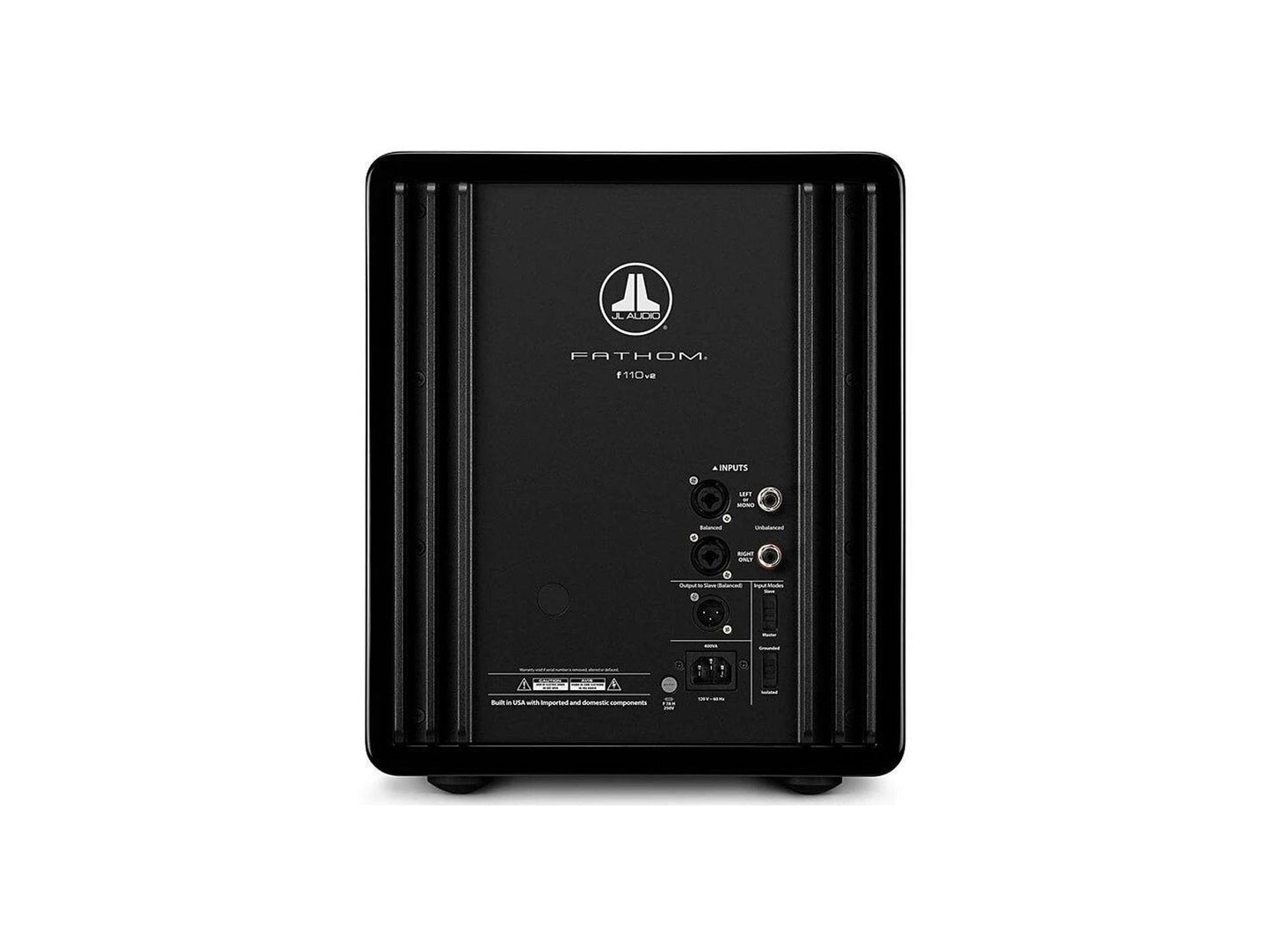

A complete set of signal processing features is easily accessible on the front surface of every Fathom. These include a highly flexible low-pass filter, variable phase, switchable polarity, e.l.f. trim and our powerful Digital Automatic Room Optimization (D.A.R.O.) system. A calibrated microphone is included for the D.A.R.O. system. Input connections are made via unbalanced RCA connections or balanced Neutrik® combo XLR/TRS jacks. Also included is an XLR output to connect a second Fathom® as a slave unit.
JL Audio's exclusive D.A.R.O. technology uses a powerful on-board DSP to automatically optimize the subwoofer's in-room frequency response. This leads to a superb listening experience, no matter where the subwoofer is placed.
Finish: Gloss Black
Grille finish: Black fabric
Enclosure Construction: MDF
|Frequency Response (Anechoic)
|27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 120 Hz
-10 dB at 19 Hz / 155 Hz
|Effective Piston Area (Sd)
|60 sq in / 0.0387 sq m
|160 cu in / 2.6 L
|1.1 kW RMS short-term
|Off, On or Automatic (Signal-Sensing)
|Off, On or Dim
|Stereo or Mono (two RCA jacks)
|Stereo or Mono (two female XLR jacks)
|Isolated or Grounded
|Master or Slave
|Reference (fixed gain) or Variable, from full mute to +15dB over reference gain
|Filter Frequency Range
|30 Hz - 130 Hz
|Filter Defeat Function
|0 or 180 degrees
|Variable, 0 - 280 degrees
|Extreme Low Frequency (E.L.F.) Trim
|Variable, -12 dB to +3 dB at 28 Hz
|Output to Slave
|Balanced (one male XLR jack)
|Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone
12.92 in / 328 mm
|15.64 in / 397 mm
|17.27 in / 439 mm
|69 lb / 31 kg
|Note: Height dimensions include feet.
"The JL f110v2 is a mighty mite of a sub, conceding little to its larger brothers. Placing it up front in a stereo system, crossed over to the main speakers and, most crucially, matched to the room with D.A.R.O., it can extend and clarify the bass response of your system."
"Every Impact was realistic, with a visceral quality that I felt in my chest."
"I have reviewed many fine subwoofers and although I enjoyed my time with many of them, I felt no tinge of regret when returning them. The f112s are different. They are not going anywhere as they have now become part of my reference system, until something better (which I can afford) comes along, which I suspect will not be for quite some time. Kudos JL Audio, your f112 combined with your CR-1 gives music lovers a means to integrate superior subs with main speakers in a way that delivers deep, visceral, accurate and distinctively tuneful bass performance in a manner that will give anyone with a heartbeat, many goose bump inducing musical moments."
