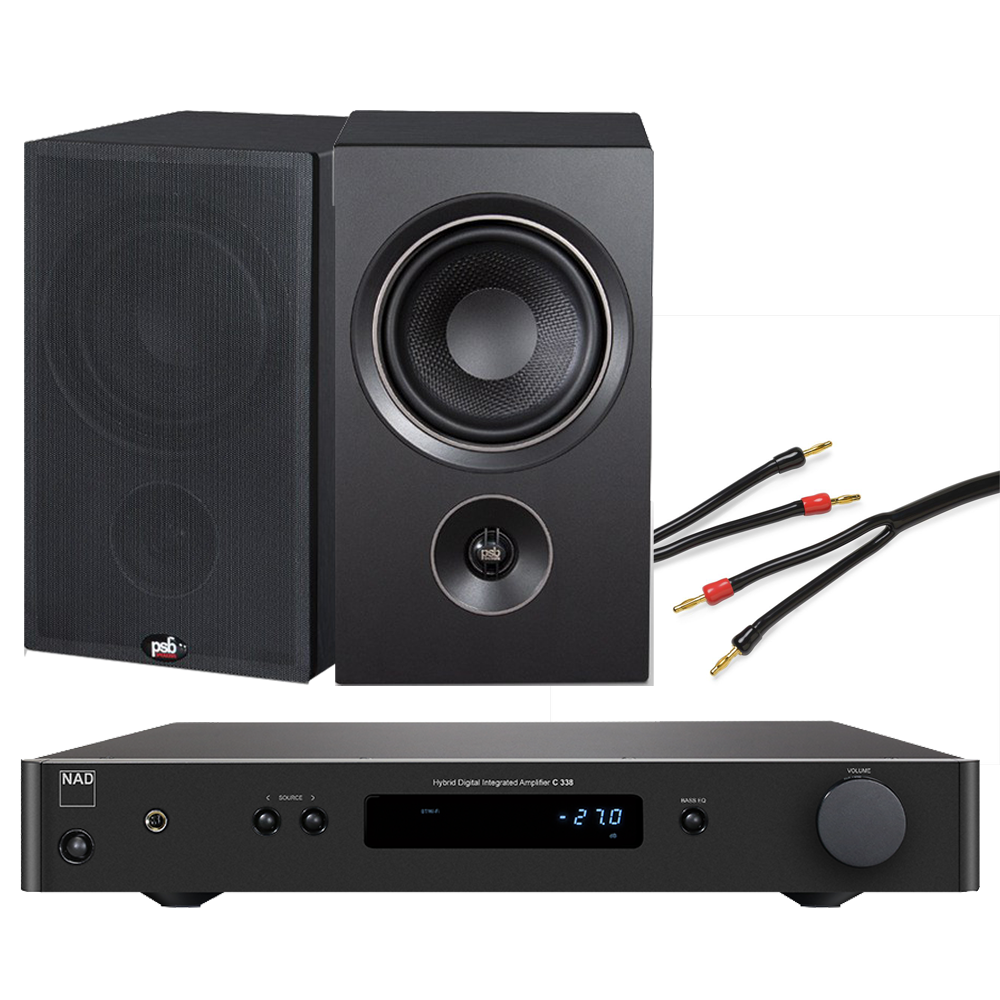

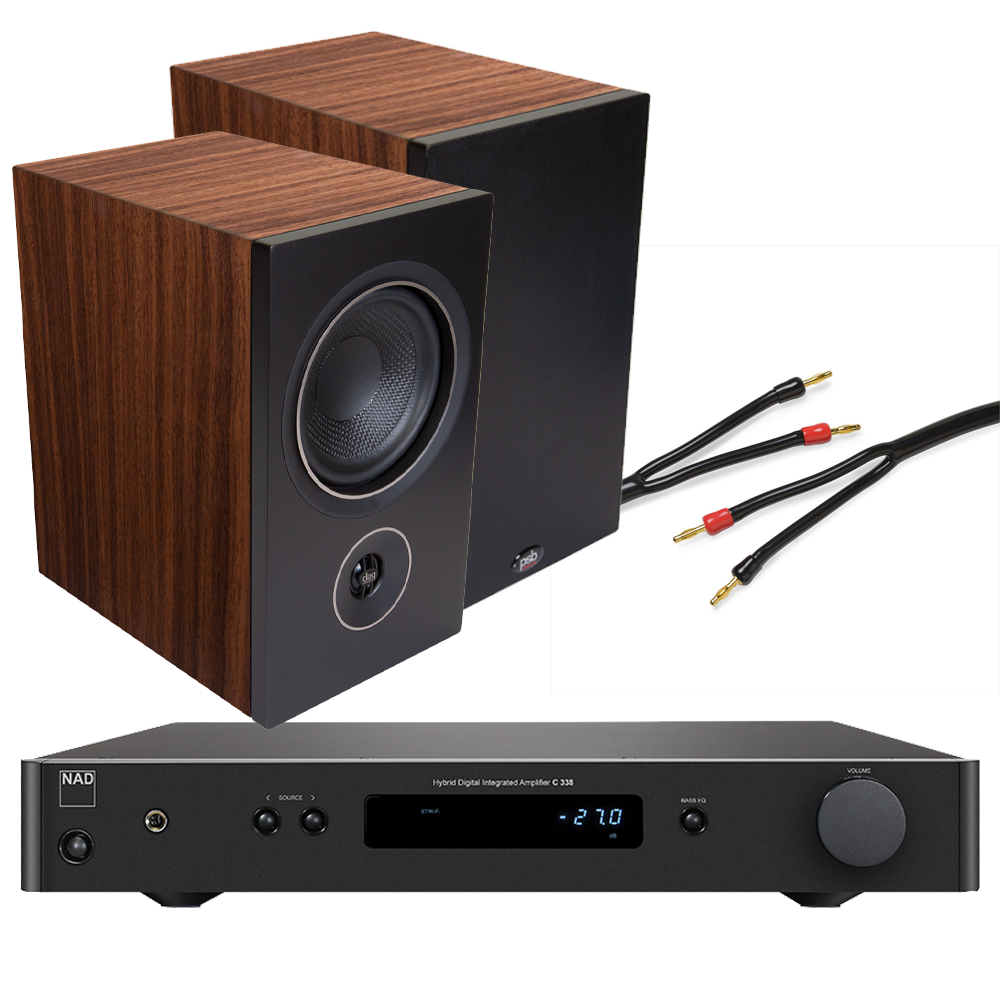

NAD C338 + PSB Alpha P5 Stereo System

NAD C338 + PSB Alpha P5 Stereo System

$2,027.00
$2,253.00 $2,027.00
Sale Sold out
Shipping calculated at checkout.
No reviews yet

Includes FREE Transparent Audio HARDWIRED Speaker Cable (2.4m) worth $155, Limited time only! While stocks last, ends September 30th 2023.

The perfect introduction to HiFi!

Bringing three powerhouse brands together in a super value for money stereo audio system suitable from a beginner enthusiast to music aficionado.

Specifications

NAD C338

Key Features

  • 50W x 2 Continuous Power into 8 or 4 Ohms
  • 90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
  • First hi-fi amplifier to feature Chromecast built-in
  • Integrated Bluetooth® for added music streaming flexibility
  • Built-in Phono Preamp for Turntables
  • Stereo Line, Optical Digital and Coax Digital inputs
  • NAD Remote App support for tablet and smartphone
  • Dedicated Headphone Amplifier
  • Subwoofer Output

Preamplifier

Line In, Subwoofer Out

  • THD (20Hz-20kHz)
  • <0.005% at 2V out
  • Signal/Noise Ratio
  • >106dB (IHF; A-weighted, 500mV out, unity gain)
  • Input Impedance (R and C)
  • 56 kilohm + 100pF
  • Maximum Input Signal
  • >4.5Vrms (ref. 0.1% THD)
  • Output Impedance
  • Source Z + 200 Ohm
  • Input Sensitivity
  • 50mV (100Hz ref. 500mV out, Volume maximum
  • Maximum voltage output – IHF load
  • >4.5V (ref. 0.1% THD)

Line In, Headphone Out

  • THD (20Hz-20kHz)
  • <0.005% at 1V out
  • Signal/Noise Ratio
  • >105dB (IHF; A-weighted, 32 Ohm loads, ref. 2V out, unity gain)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Channel Separation
  • >56dB at 1kHz
  • Output Impedance
  • 0.5 Ohm

General Specifications

Line In, Speaker Out

  • Continuous Output Power into 4 Ohms and 8 Ohms (Stereo)
  • >50W (at rated THD, 20-20kHz, both channels driven)
  • IHF Dynamic Power
  • 8 Ohm 80W
    4 Ohm 150W
    2 Ohm 210W
  • THD (20Hz-20kHz)
  • <0.03% (250mW to 50W, 8 Ohm and 4 Ohm
  • Signal/Noise Ratio
  • >98dB (A-weighted, 500mV input ref. 1W out in 8 Ohm)
  • Clipping power
  • >60W (at 1kHz 0.1% THD)
  • Peak output current
  • >18A (in 1 Ohm, 1 ms)
  • Damping Factor
  • >300 (ref. 8 Ohm, 20Hz to 6.5kHz)
  • Frequency Response
  • ±0.3 dB (20Hz-20kHz)
  • Channel Separation
  • 1kHz >75dB
    10kHz >65dB
  • Input Sensitivity (For 50W in 8 Ohm)
  • Line In: 380mV, Digital In: 18% FS
  • Sample Rate
  • Up to 24 bit/192kHz

Phono In, Speaker Out

  • THD (20Hz-20kHz) (Stereo)
  • <0.3% at 50W out
  • Signal/Noise Ratio
  • >82dB (200 Ohm source, A-weighted, ref. 500mV out)
    >76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
  • Input Sensitivity
  • 4.1mV (ref. 50W 1kHz 4 Ohm out, Volume maximum)
  • Frequency Response
  • ±0.3dB (20Hz-20kHz)
  • Input Impedance
  • 47 kilohm + 100pF
  • Maximum Input Signal
  • >80mVrms (ref. 0.1% THD)

Power Consumption

  • at ECO Standby mode
  • 0.4 Watts*
  • at Control Standby mode
  • 1.8 Watts**
  • OFF mode (Power switched OFF)
  • 0 Watts



* – After 20 minutes of no user interface interaction and no active source input
** – With established wireless Bluetooth connectivity and 20 minutes of no user interface interaction and no active source input

NOTE: Bluetooth connectivity can be enabled or disabled via press and hold of PLAY button of AMP 3 remote control

Weight & Dimensions

  • Gross Dimensions (W x H x D)*
  • 435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
  • Net Weight
  • 4.85kg (10.7lb)
  • Shipping Weight
  • 5.85kg (12.9lb)



PSB Alpha P5 Bookshelf Speakers

Frequency Response

On Axis @ 0° ±3dB 55-21,000Hz
On Axis @ 0° ±1 1/2dB 65-20,000Hz
Off Axis @ 30° ±1 1/2dB 65-10,000Hz
LF Cutoff -10dB 37Hz

Sensitivity

Anechoic Chamber 87dB
Listening Room 89dB

Impedance

Nominal 8 Ohms
Minimum 4 Ohms

Input Power

Recommended 10 - 90 Watts
Program 60 Watts

Acoustic Design

Tweeter (Nominal) 3/4” (19mm)
Black Anodized Aluminium Dome with
Ferrofluid and Neodymium Magnet
Woofer (Nominal) 5 1/4” (133mm)
Textured Polypropylene Cone
with Rubber Surround
Crossover 2.500Hz, L4
Internal Volume 0.29 cu ft (8.3L)
Design Type Tuned Port Bass Reflex,
2” (49mm) Rear Port

Dimensions / Weights / Finish

Size (W x H x D) 6 3/4” x 11 3/8” x 9 1/2”*

(170 x 290 x 240mm)
Weight 10.15lb (4.6kg)/each

22.8lb (10.4kg)/pr
Finish** Black Ash

Walnut
Notes * Non-metric measurements are approximate.

** Some finishes may not be available in all models and/or all countries.

All specifications are subject to change without notice.
