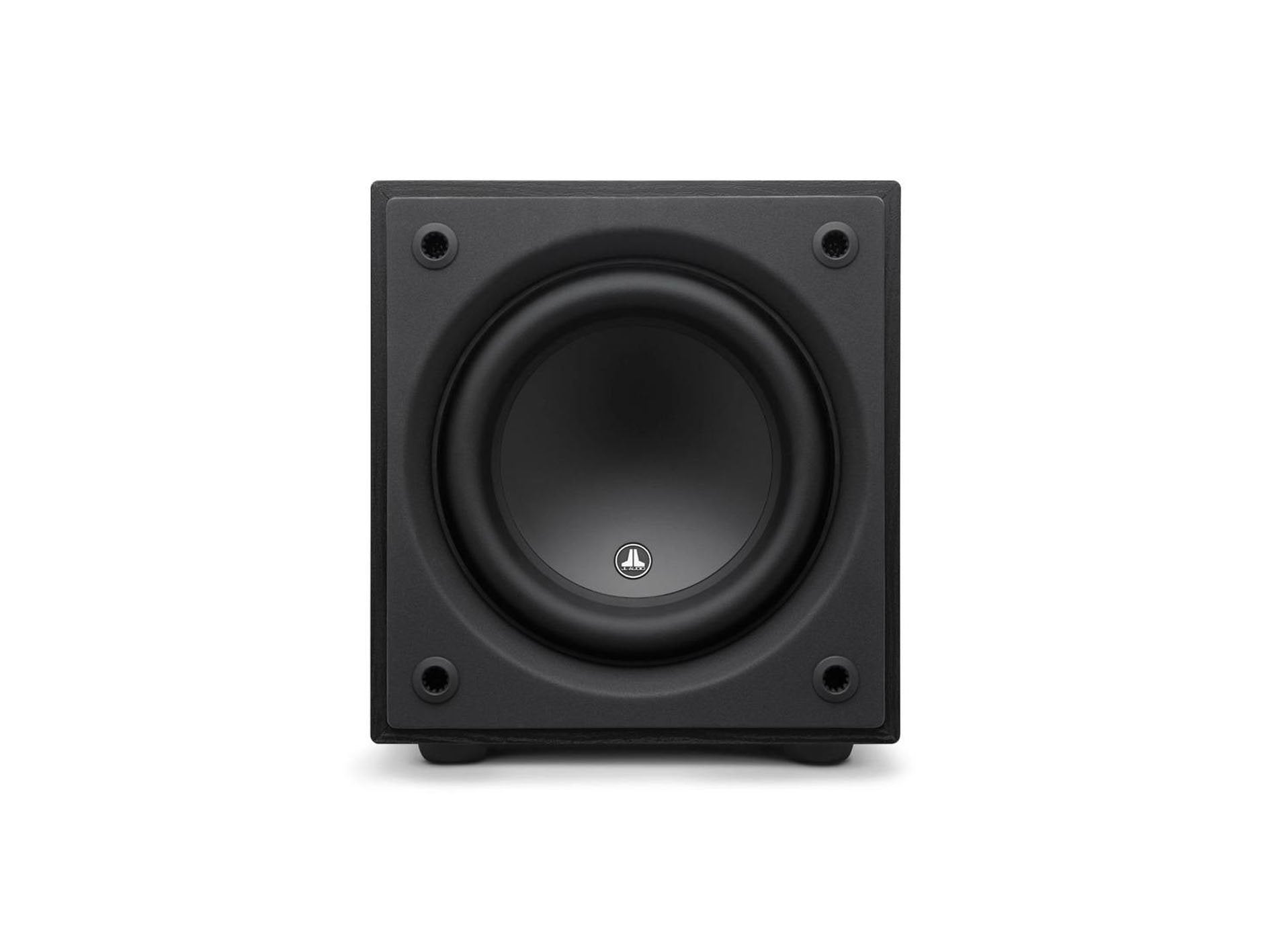

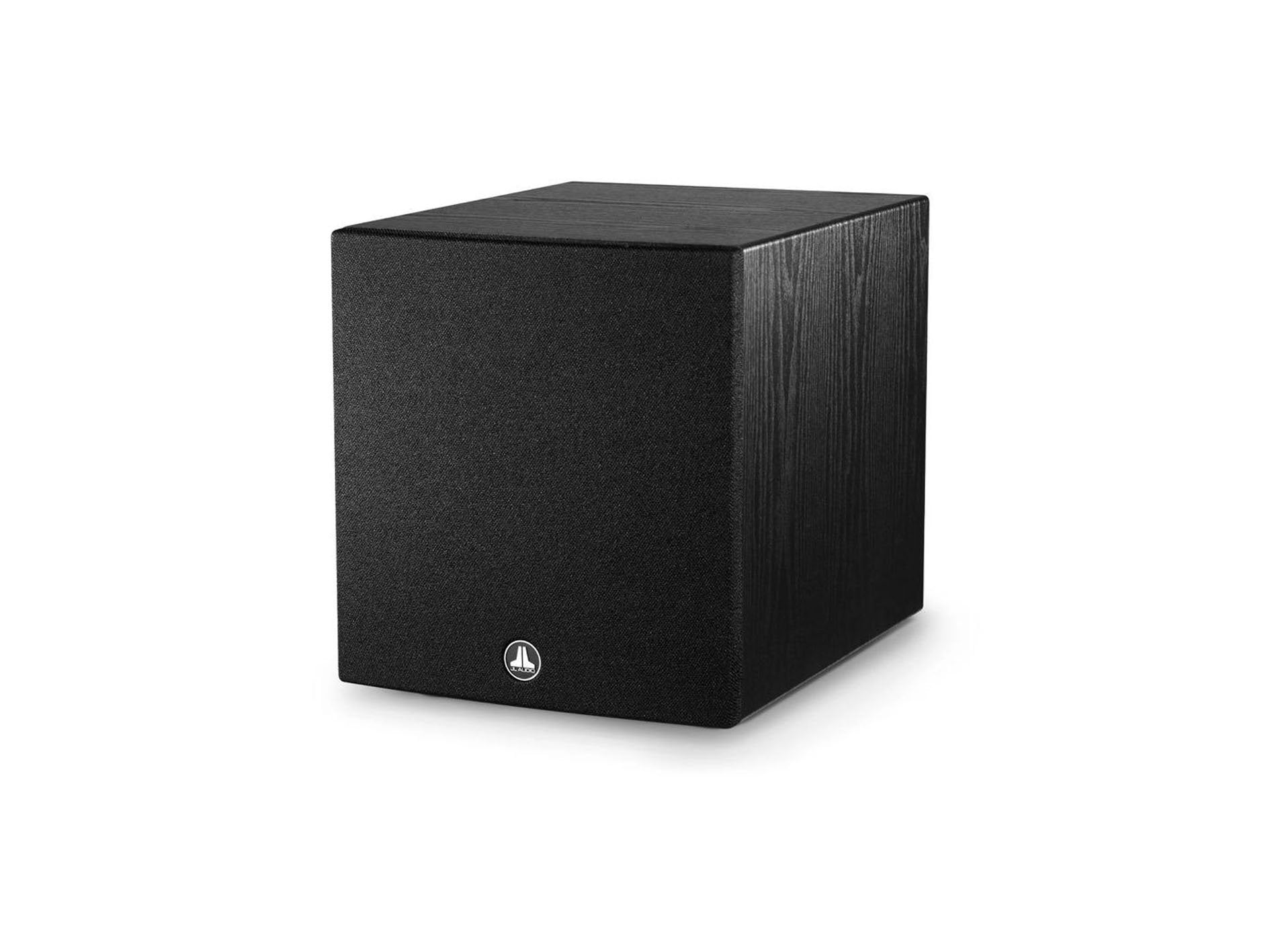

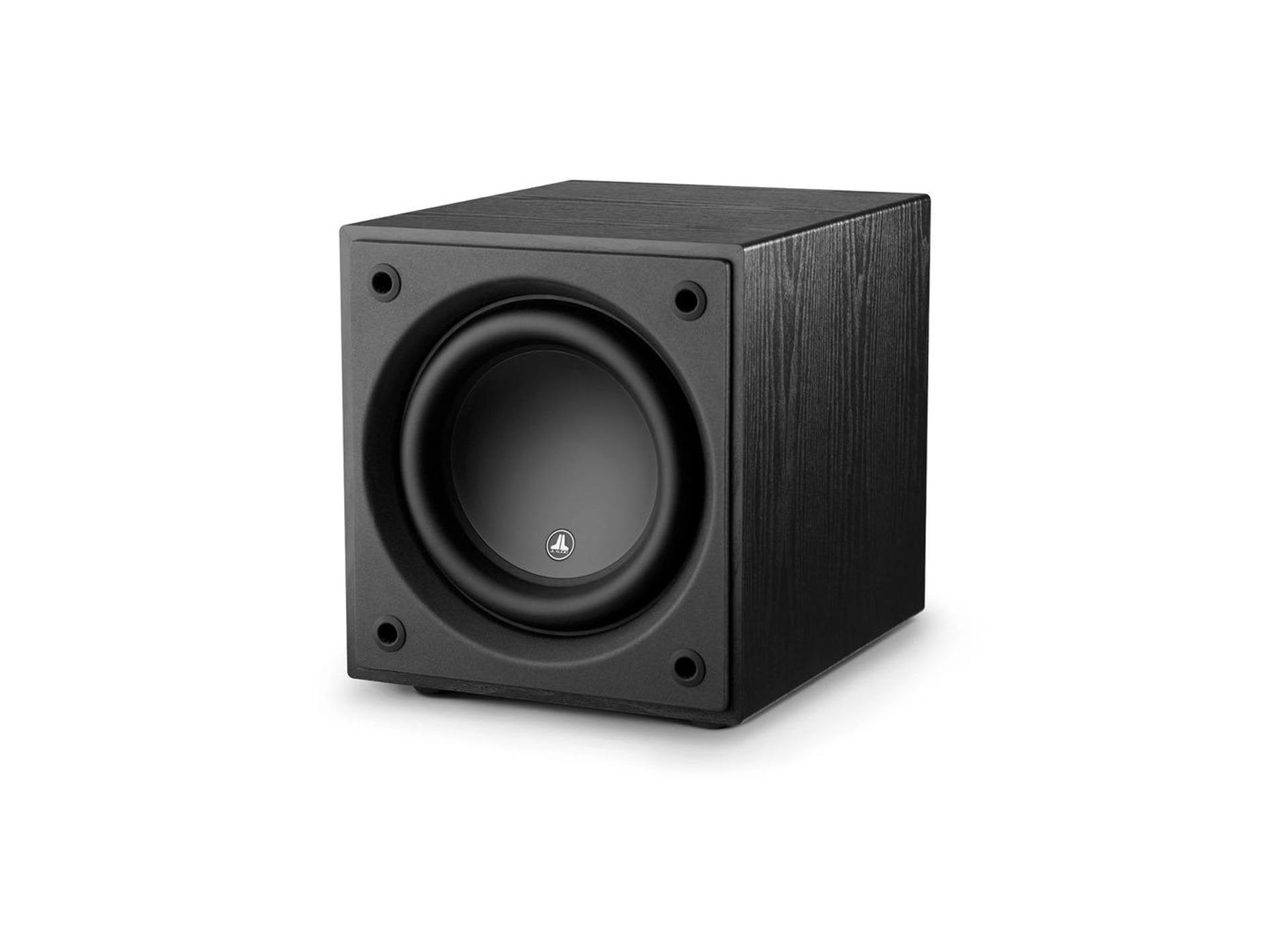

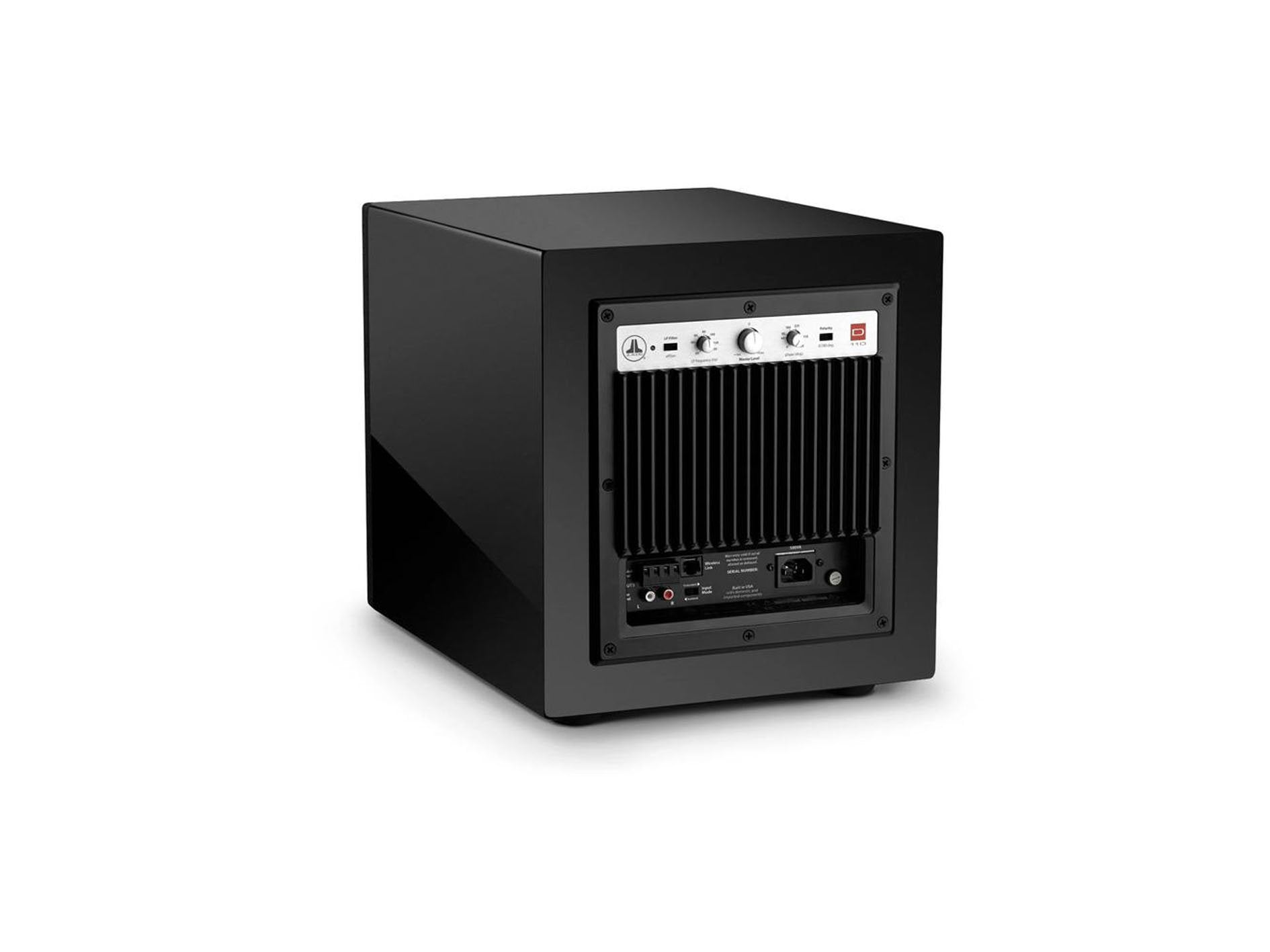

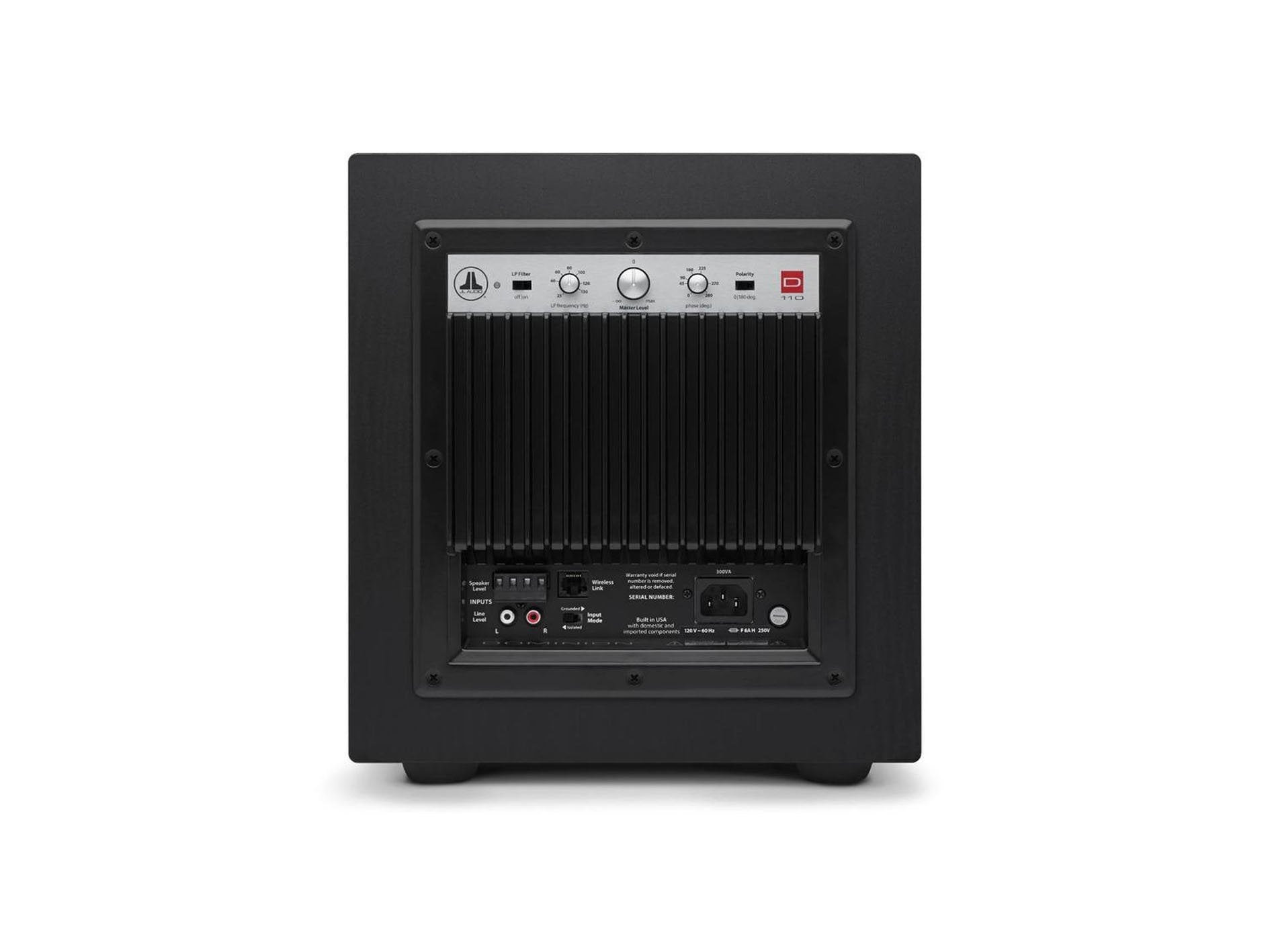

JL Audio Dominion® 10-inch (250 mm) Powered  Subwoofer (D110-ASH-240V)

Born from JL Audio’s vast collection of advanced technologies, Dominion® powered subwoofers combine a state-of-the-art Subwoofer and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion® driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion® subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.

Dominion® amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion® powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

With a host of signal processing features included, Dominion® powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion® almost anywhere, up to 100 feet (30 meters) away from your source unit.

To contain the immense pressures created by the Dominion® driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion® powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.

Finish: Black Ash

Grille Finish: Black Fabric

Enclosure Construction: MDF

Download the Catalogue Sheet here.

Specification

General Specification

Signal Processing

Physical Specification

Width (W)	12 in / 305 mm
Height (H)	13.4 in / 340 mm
Depth (D)	15.86 in / 403 mm
Net Weight	38.2 lb / 17.3 kg
Note: Height dimensions include feet. Depth dimensions include grilles.

Review

"The d110s surprised me with their exploding-bomb bass. The room filled with energy, and I could feel the explosions through the subfloor due to the kinetic energy from the dual subwoofers. Solid performance, indeed."

Read the full review on Sound & Vision by David Vaughn here.

"It stands among the best of a large class of highly able competitors, and might even be the very best of that small bunch."

Read the full review on Sound Stage! Access here.
