Anthem MCA 325 Gen 2 Power Amplifier

Reference 3-Channel Power Amplification Meets State-of-the-Art Canadian Engineering

Inspiration drawn from uncompromising cinematic and audiophile performance meets ultra-modern multi-channel audio innovation. The Anthem MCA 325 Gen 2 is a high-performance 3-channel Class AB power amplifier, designed to deliver high-current power for demanding front soundstages (Left, Center, Right) in reference home theater configurations.

Housed in a sleek black chassis featuring a modernized front panel designed to aesthetically match Anthem’s AVM series processors, the MCA 325 Gen 2 pairs refined Canadian craftsmanship with Anthem's most advanced amplifier topology.

Engineering Marvel: Unprecedented Signal Purity, Massive Current Reserves

Don't let its clean exterior deceive you. Under the hood, the MCA 325 Gen 2 features 8 high-current bipolar output devices per channel powered by a custom low-noise, low-flux toroidal transformer. Re-engineered to eliminate excess internal cabling, it provides a direct signal path with an ultra-quiet 120 dB signal-to-noise ratio and exceptional dynamic headroom.

Key Performance & Technological Innovations

3-Channel High-Current Output: Delivers 225 Watts continuous per channel into 8 Ohms, 400 Watts into 4 Ohms, and up to 600 Watts into demanding 2 Ohm loads.

8 Bipolar Devices Per Channel: Spreads thermal and electrical load across multiple devices to drastically reduce stress, yielding lower distortion and improved long-term reliability.

Next-Gen ALM™ (Advanced Load Monitoring): Actively monitors internal temperature, current, and voltage without placing fuses directly in the signal path, keeping your amplifier and speakers protected without altering sound quality.

Massive Low-Flux Toroidal Transformer: Features high rail voltages and minimal stray magnetic field radiation for an ultra-quiet noise floor and rapid transient response.

Seamless Turn-On Modes: Flexible trigger-in/out, signal sensing, or manual power options with eco-friendly 1–2W standby power consumption.

Custom Oversized Binding Posts: Heavy-duty audiophile binding posts ensure maximum contact area and a secure grip on heavy-gauge speaker cables.

Audition the Anthem Experience at Brisbane HiFi

Sound this visceral, detailed, and dynamic needs to be heard and felt in person. From the lightning-fast speed of dynamic soundtrack peaks to the delicate, dead-silent noise floor required for high-resolution audio, the MCA 325 Gen 2 sets a benchmark for power amplification.

At Brisbane HiFi, our dedicated audition spaces offer the ideal setting to experience the Anthem MCA 325 Gen 2. Whether you are expanding a high-power cinema system or pairing it with an Anthem AVM processor, our expert audio team is here to guide your audition.

Experience Living Art: Visit the Brisbane HiFi showroom to hear the Anthem MCA 325 Gen 2 in person, or speak with our team about custom home theatre design and system integration.

Product Specifications

Power Output (Continuous RMS, 20 Hz – 20 kHz, <1% THD): 225 W @ 8 Ω | 400 W @ 4 Ω | 600 W @ 2 Ω

Signal-to-Noise Ratio (SNR): 120 dB (IEC-A, ref. 225 W)

Total Harmonic Distortion (THD): 0.0010% @ 100W (1 kHz) | 0.015% @ 100W (20 kHz)

Frequency Response: 20 Hz to 20 kHz ($\pm 0.1\text{ dB}$)

Power Bandwidth: 90 kHz (-3 dB at 200 W into 8 ohms)

Slew Rate: $30\text{ V/}\mu\text{s}$

Damping Factor: 300 (20 Hz to 1 kHz)

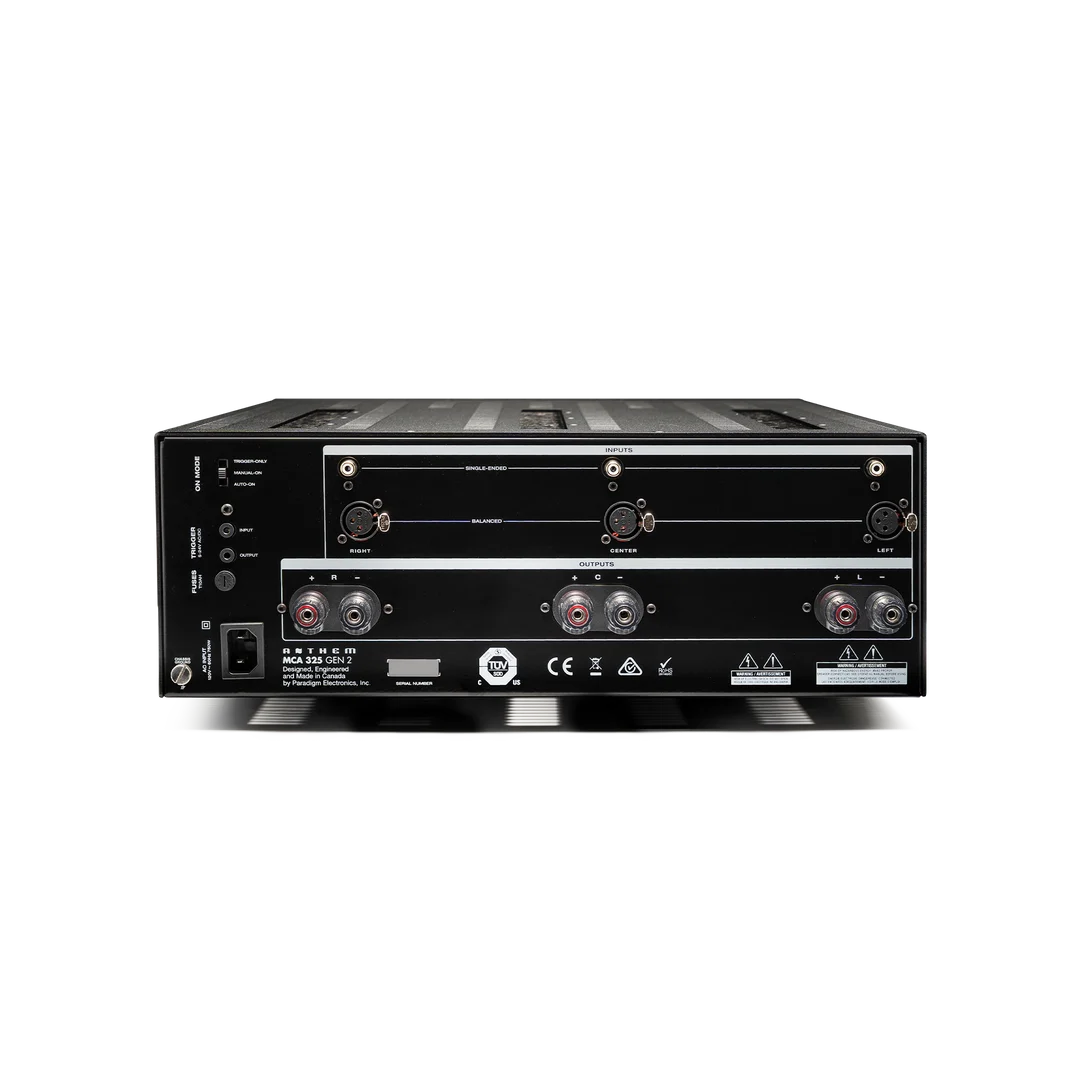

Inputs: 3 x Balanced XLR Inputs, 3 x Unbalanced RCA Inputs, 1 x 3.5mm Trigger In

Outputs: 3 x Oversized Speaker Binding Post Pairs, 1 x 3.5mm Trigger Out

Power Consumption: 1.0W (Standby), 45W (Idle), 350W (Typical), 750W (High Output)

Dimensions (W x H x D): 439mm x 169mm x 460mm (4U Rackmount compatible)

Weight: 19.5 kg

What’s in the Box?

1 x Anthem MCA 325 Gen 2 Power Amplifier

1 x 3.5mm Trigger Cable

1 x Power Cable (Australian Mains)

Quick Start & Safety Documentation
