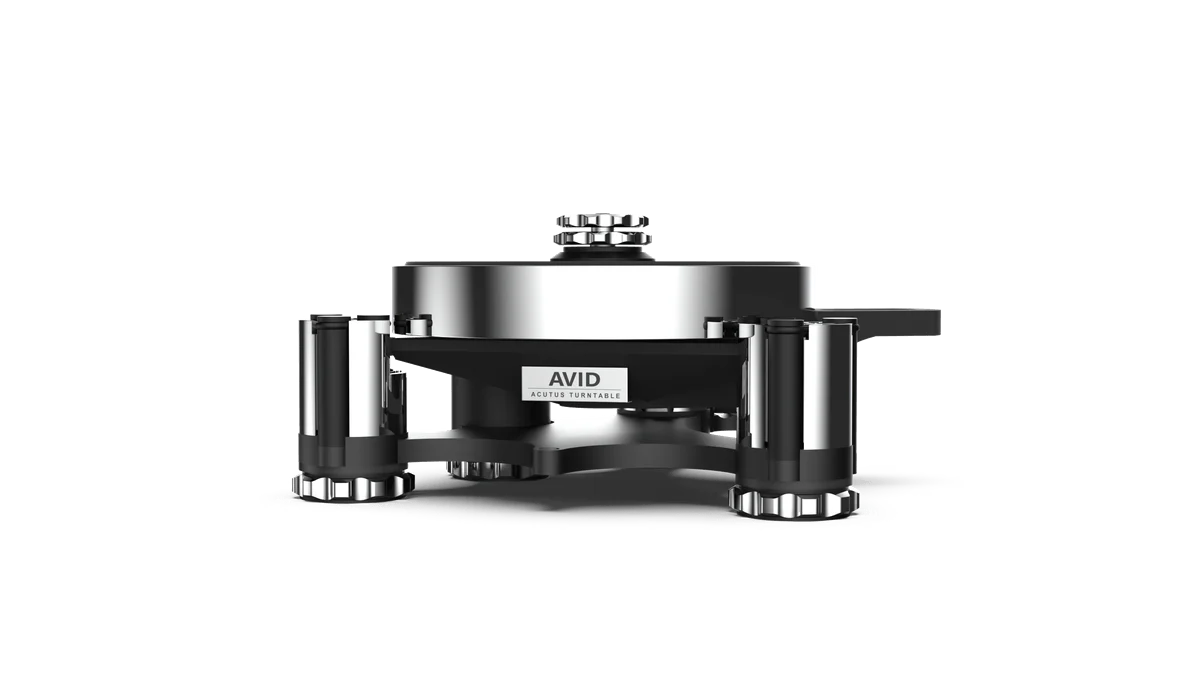

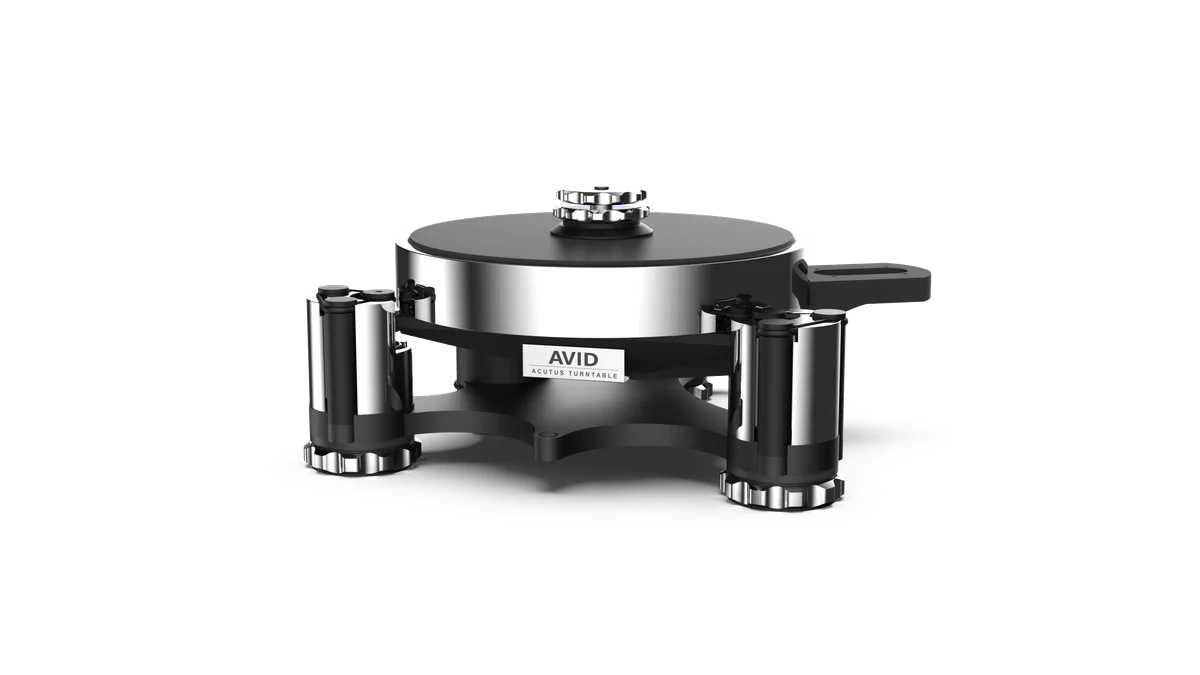

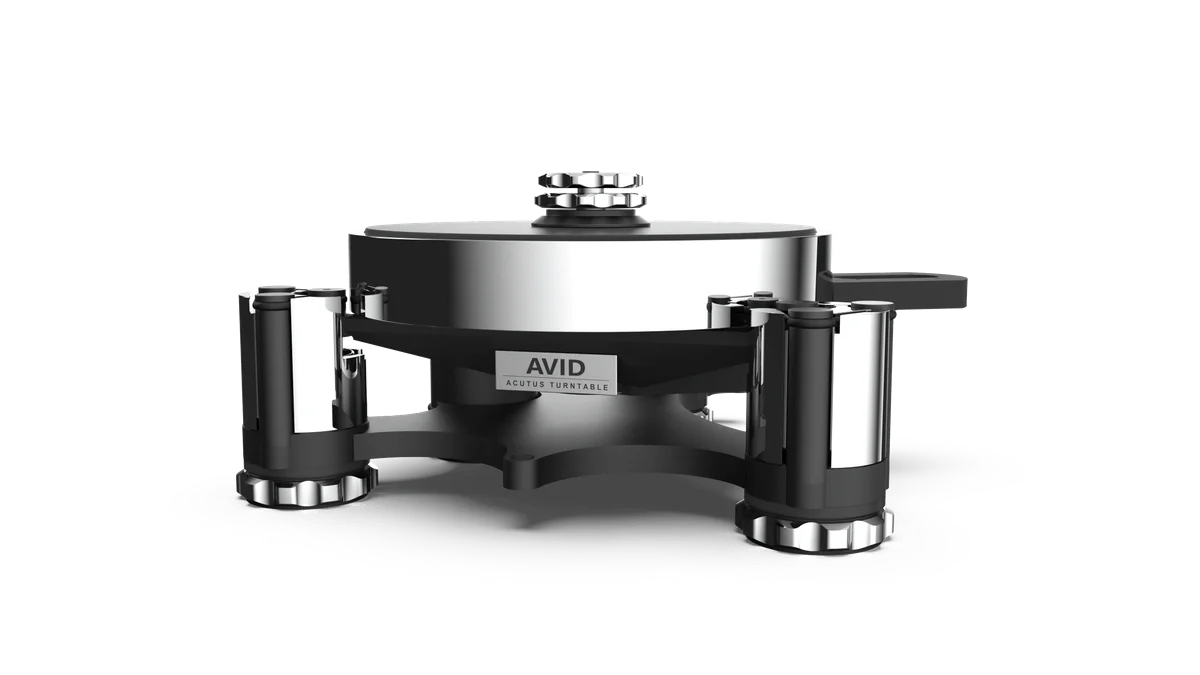

AVID ACUTUS™ Classic - Chrome Turntable

Avid

The AVID Acutus SP Turntable is a pinnacle of high-fidelity engineering, delivering unmatched sound clarity and precision. Its layer-damped 10kg aluminium platter and dual-stage clamping system eliminate distortion, providing pure audio reproduction with breathtaking dynamics. Powered by a hand-built 24V synchronous motor and twin belt drive system, the Acutus exerts dominating control over the platter for exceptional bass grip and rhythmic precision. The vibration-tuned sub-chassis and frequency-adjustable suspension isolate external noise, enhancing the turntable's ability to produce a vast, detailed soundstage. Ideal for audiophiles, the Acutus redefines vinyl playback with its unparalleled performance. (Tonearm & Cartridge not included)

Acutus Classic Turntable Brings Precision Craftsmanship to Vinyl Listening

The Acutus Classic Turntable is a revolutionary product rooted in AVID’s relentless pursuit of audio perfection. With over two decades of design refinement, this high-fidelity turntable is celebrated for its unparalleled engineering and ability to bring out every nuance captured in vinyl recordings. The Acutus Classic’s precision-crafted components—ranging from a unique sapphire bearing to a meticulously damped subchassis—are designed to remove distortion, amplify dynamic range, and deliver pristine sound quality.

Layer-Damped Platter Elevates Sound Fidelity and Detail

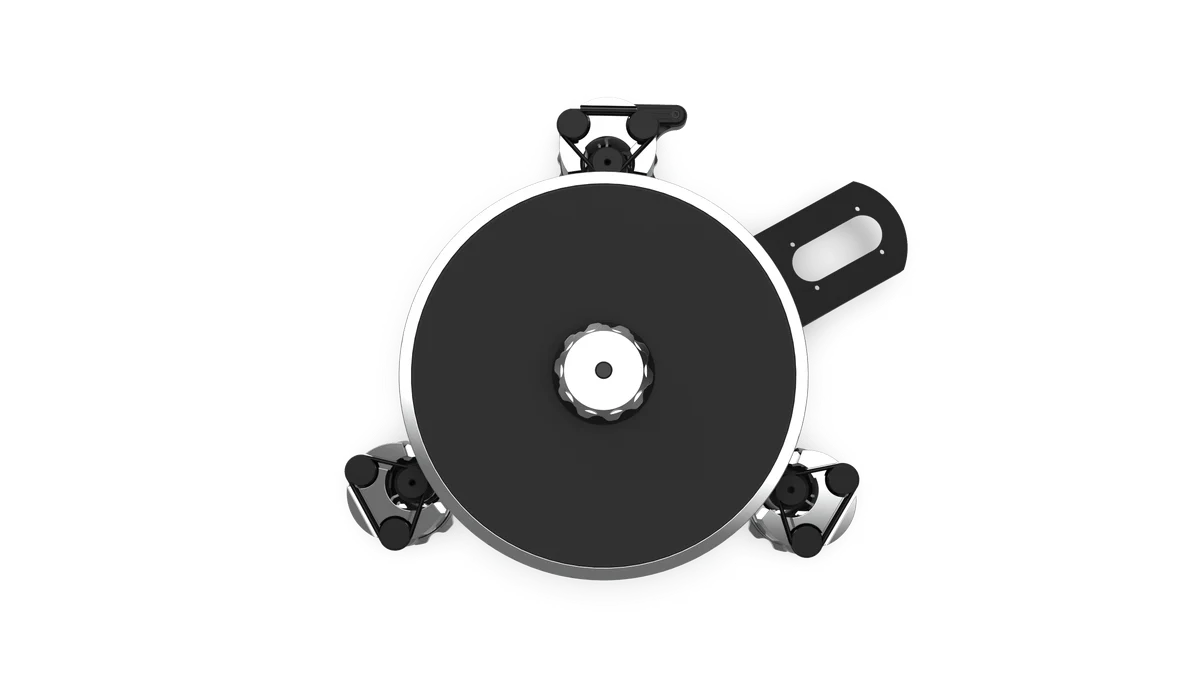

The Acutus Classic is built around a 10 kg aluminium platter that forms the turntable’s foundation, ensuring sound fidelity and remarkable detail. Chrome-plated with eight fixed points, this massive platter optimises the record-to-platter interface, significantly reducing vibration and energy loss. The integrated resin mat reflects most of the vibration back into the vinyl itself, ensuring that the sound remains undistorted and true to the original recording. This carefully constructed mat also compresses high frequencies into the platter body, which are then naturally absorbed by the nickel and chrome layers, creating a playback experience that feels precise, vibrant, and enveloping.

Unique Inverted Sapphire Bearing Reduces Noise and Enhances Longevity

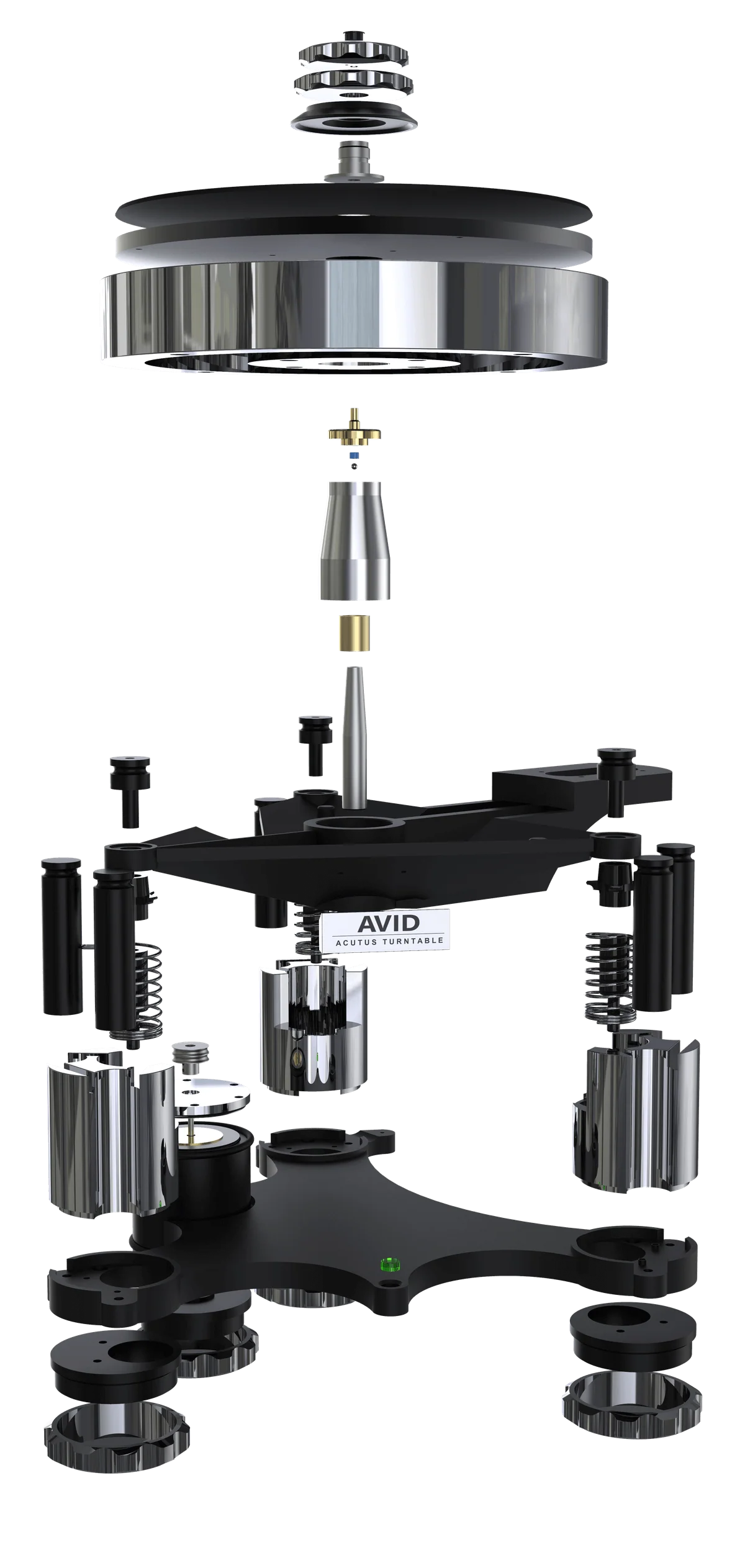

At the heart of the Acutus Classic lies an inverted bearing crafted with a tungsten carbide ball and sapphire contact point. This design eliminates lateral movement and minimises bearing rumble, a common issue with standard bearings. With the longest spindle in AVID's line, the Acutus bearing ensures stability and a low centre of gravity for smooth playback. Its self-lubricating sleeve prevents metal-to-metal contact, offering a noise-free experience while guaranteeing maintenance-free operation over the turntable’s lifetime.

Dual-Stage Clamping System Ensures Optimal Contact and Noise Reduction

A standout feature of the Acutus Classic is its dual-stage clamping system. This sophisticated clamp grounds the record to the main bearing, allowing stylus-induced vibrations to travel into the subchassis rather than muddying the audio. In the second stage, the clamp flattens the record onto the platter’s surface, removing air pockets and eliminating any warping in the vinyl. These mechanisms lower the noise floor, elevating bass performance and enhancing sonic clarity across all frequencies.

Vibration-Tuned Subchassis Delivers Linear Sound Performance

Acutus’s multi-fold aluminium subchassis is expertly engineered to minimise vibration transfer. The one-piece casting maintains rigidity where necessary while offering controlled flexibility in non-essential areas. Coated with a unique damping material of a precise thickness, this subchassis ensures that both high and low frequencies dissipate with uniform linearity. This structural design enables the turntable to offer a sound that is tonally neutral, balanced, and immersive.

Precision Suspension System Prevents External Disturbances

The Acutus Classic turntable includes an adjustable, frequency-tuned suspension system that locks the pickup cartridge in place, eliminating the risk of skipping. With an isolation frequency of 2.5 Hz, the three-point spring suspension system ensures that even the slightest movement from external sources does not impact the playback. The suspension design also supports the option of single or twin tonearms, up to a weight of 3 kg, allowing users to customise the setup based on their listening preferences.

High-Torque AC Motor Delivers Immediate and Stable Playback

At ten times the power of conventional turntable motors, the hand-built high-torque AC synchronous motor within the Acutus Classic drives the platter to speed within seconds. This powerful motor offers an unparalleled level of control and stability while maintaining silent operation. Utilising twin round-section drive belts, the motor minimises speed fluctuations and ensures consistent playback, free from the influence of vibrations or other interruptions.

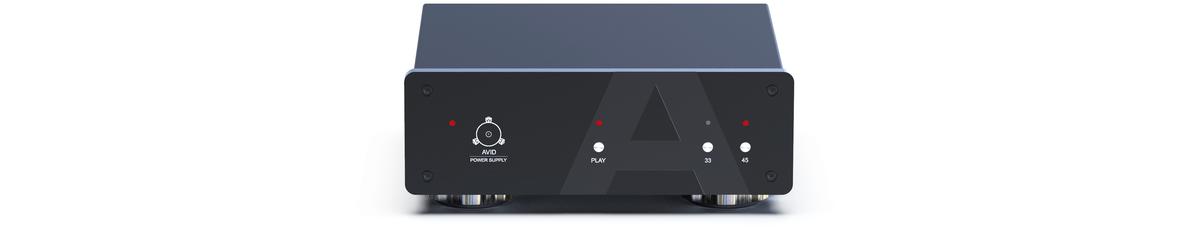

DSP Vari-Speed Power Supply Provides Precision Control

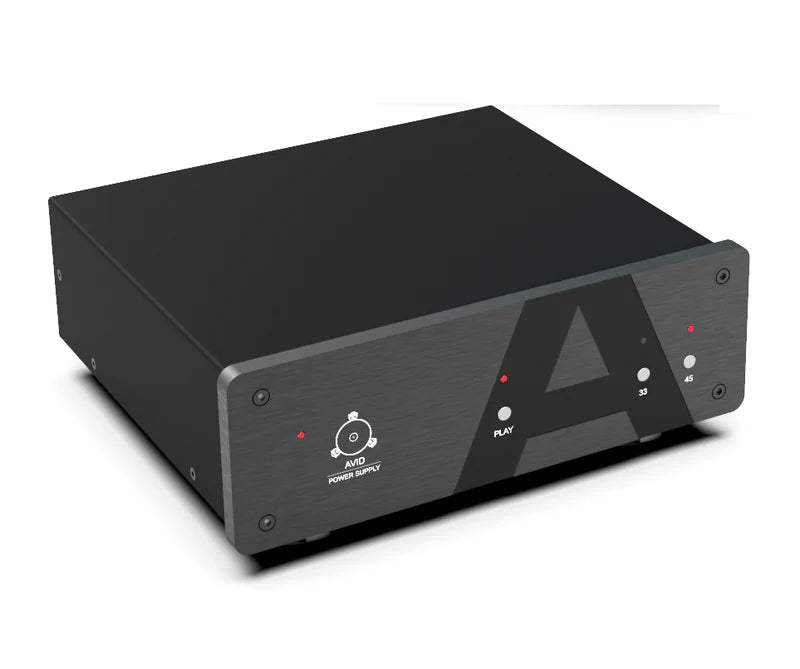

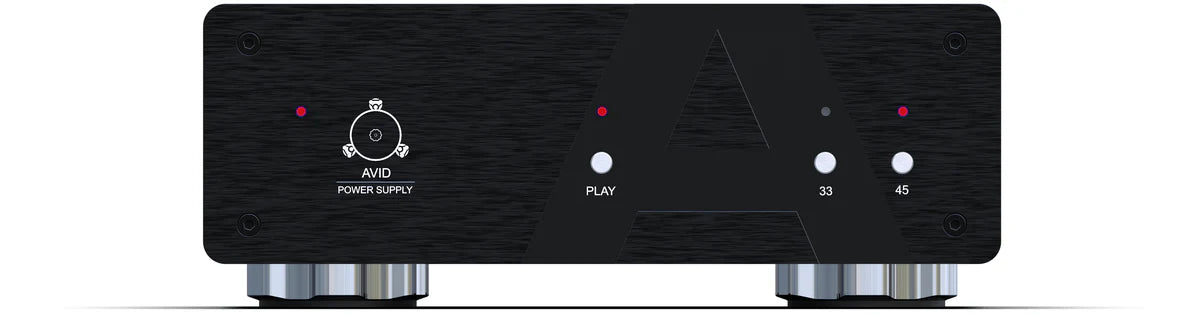

The Acutus Classic’s power supply includes a DSP-based speed control unit that generates a highly stable frequency, allowing precise adjustments for both 33.3 and 45.0 RPM speeds. This unit includes an 80VA mains transformer, acting as a dedicated amplifier that delivers consistent output to the twin coils of the high-torque motor. This digital control of speed guarantees accuracy and stability, allowing vinyl enthusiasts to experience recordings at their absolute best, free from any speed or pitch irregularities.

Technical Excellence That Enhances Every Listening Session

From its meticulously designed subchassis and bearing system to its innovative clamping mechanism and powerful motor, the Acutus Classic turntable is an extraordinary blend of engineering and artistry. This turntable not only preserves the integrity of original recordings but enhances them, inviting both purists and new listeners to experience vinyl in its truest form. With each feature working harmoniously, the Acutus Classic provides a listening experience that captures the full depth and complexity of music, transforming any vinyl collection into a profoundly enjoyable audio journey.

Specification
