Ultra High Speed 48Gbps Active Optical 8K/10K HDMI Cable | Brisbane HiFi Audio Specialist
The Chord Company Clearway HDMI AOC is a high-performance active optical HDMI cable designed for long-distance, high-bandwidth home cinema and AV installations. Combining optical fibre transmission with copper auxiliary conductors, the Clearway HDMI AOC is designed to maintain reliable HDMI 2.1 signal transmission over extended cable runs.
With support for 48Gbps bandwidth, 8K/60Hz, 4K/120Hz, eARC, Dynamic HDR, Dolby Vision, VRR, and ALLM, the Clearway HDMI AOC is suited to long connections between AV processors, projectors, displays, gaming systems, and other high-bandwidth HDMI equipment.
The optical data path provides strong immunity to electromagnetic and radio-frequency interference, making the cable particularly suitable for dedicated home cinema installations and long projector runs.
Key Features & Audio/Video Engineering Highlights
-

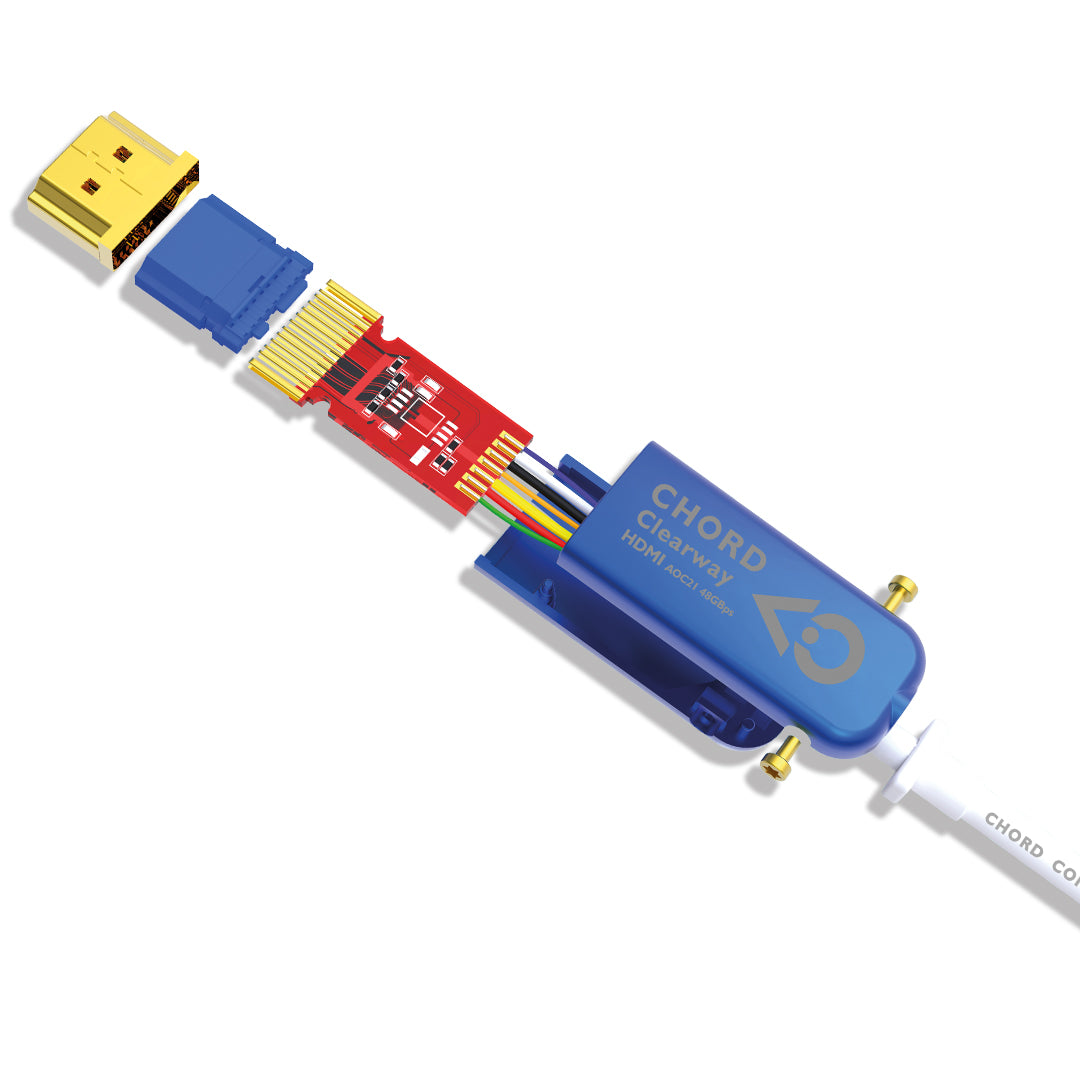

Active Optical Hybrid Architecture: Combines optical fibre data transmission with copper conductors for power, control, and compatible HDMI functions.
-
Ultra High Speed 48Gbps Bandwidth: Designed for high-bandwidth HDMI 2.1 applications, including compatible 8K/60Hz and 4K/120Hz video.
-
Strong EMI & RFI Immunity: Optical transmission provides excellent immunity to external electromagnetic and radio-frequency interference along the primary data path.
-
eARC & High-Resolution Audio: Supports compatible eARC/ARC applications and high-resolution multichannel audio formats.
-
Next-Generation Gaming Support: Supports VRR, ALLM, QFT, QMS, and SBTM on compatible source and display equipment.
-
Dynamic HDR Compatibility: Supports Dynamic HDR, HDR10+, Dolby Vision, and HLG where supported by connected equipment.
-
Gold-Plated HDMI Terminations: Quality HDMI contacts provide reliable electrical connection and long-term durability.
-
Chord Company Lifetime Warranty: Backed by Chord Company's lifetime warranty against material and manufacturing defects.
Product Specifications
| Specification | Technical Detail |
|---|---|
| Cable Type | Hybrid Active Optical Cable (AOC) HDMI 2.1 |
| Max Bandwidth | Ultra High Speed 48Gbps+ |
| Max Resolution Support | 8K / 60Hz, 4K / 120Hz, up to 10K / 30Hz |
| Primary Conductors | 4 OM3 Optical Glass Fibres + 7 Copper Auxiliary Conductors |
| Insulation / Dielectric | Low-Loss Foam PE |
| Operating Distance | Up to 20 m without active signal loss or external power supplies |
| HDR Support | Dynamic HDR, HDR10+, Dolby Vision, HLG |
| Audio Format Support | eARC / ARC, Dolby Atmos, DTS, 24-bit/192kHz LPCM, 7.1 Multichannel |
| Gaming Features | VRR, ALLM, QFT, QMS, SBTM (Source-Based Tone Mapping) |
| Connectors | Gold-Plated Copper 19-Pin Type-A HDMI Plugs |
| Outer Jacket Colour | Translucent Royal Blue |
| Available Lengths | 1.5 m, 3.0 m, 5.0 m, 8.0 m, 10.0 m, 12.5 m, 15.0 m, 20.0 m |
| Application | Long-Run Ceiling Projectors, 8K Ultra HD Displays, AV Processors, PS5, Xbox Series X, High-End PC Rigs |
| Manufacturer Warranty | Chord Company Lifetime Warranty |
Why Choose Brisbane HiFi for Your Chord Cables?
-
Brisbane HiFi Showroom Experience: Explore the Chord Company HDMI range and discuss long-run solutions for home cinema and AV systems.
-
Custom Installation & Projector Support: Our specialists can assist with projector routing, cable lengths, HDMI 2.1 requirements, equipment positioning, and installation planning.
-
Australian Support: Brisbane HiFi supplies genuine Chord Company cables throughout Queensland and Australia with official warranty support and nationwide delivery.
What's Included in the Box?
-
1 × Chord Company Clearway HDMI AOC Active Optical Cable
-
Directional Connection Guide & Setup Notes
-
Chord Company Authenticity & Warranty Information Card
