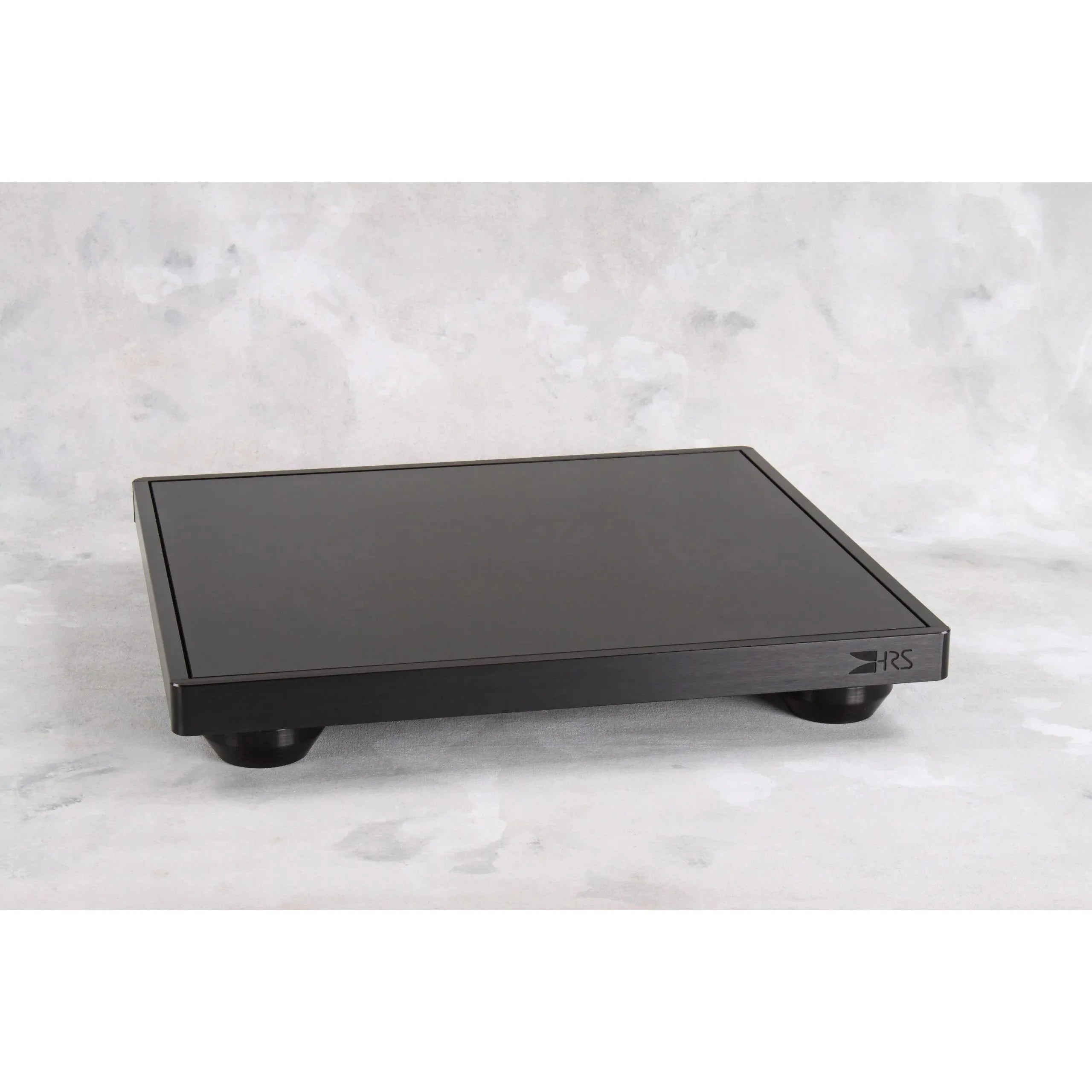

HRS R3X ISOLATION BASE
The R3X Isolation Base is a highly innovative design that eliminates noise, revealing a new level of musical performance. The R3X is manufactured from five different materials including a proprietary resonance control stage and billet-machined aircraft aluminium trim. The R3X Isolation Base is initially configured at HRS to optimize the performance of a specific component and can be changed in your home to optimize the performance of a different component at any time.

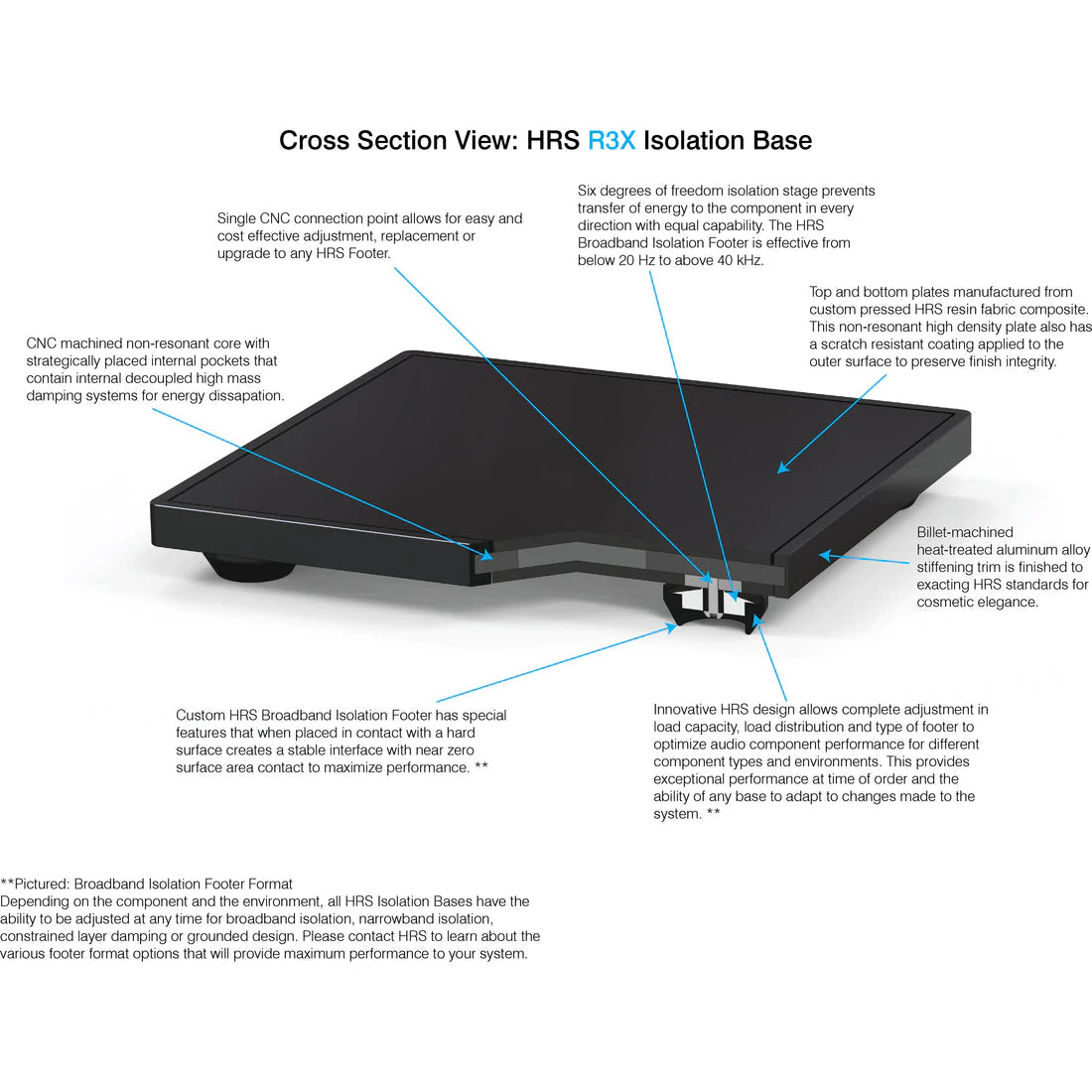

The R3X Isolation Base is constructed with a CNC machined non-resonant core with strategically placed internal pockets that contain internal decoupled high mass damping systems for energy dissipation. The top and bottom plates are manufactured from custom pressed HRS resin fabric composite. The top surface of the high-density plinth also has a scratch-resistant coating applied to the outer surface to preserve finish integrity. Encompassing the R3X perimeter is a billet-machined heat-treated aluminium alloy stiffening trim which is finished to exacting HRS standards for cosmetic elegance. The low-profile (3-inch height) also minimizes space requirements and keeps the visual focus of your system on the components you have selected.
The R3X Isolation Base is produced in two standard sizes and is available in a black or silver finish. Each size can be purchased with any of our different footer options to optimize performance for all components.
- Broadband noise reduction systems maximize performance
- Highly effective on wide range of surfaces and structures
- Low-profile compact design minimizes space requirements
- Standard sizes ensure full system integration
- Can be used on any existing surface
- Integrates directly into all HRS Audio Stands without modification
- Easily modified to optimize performance for different component types

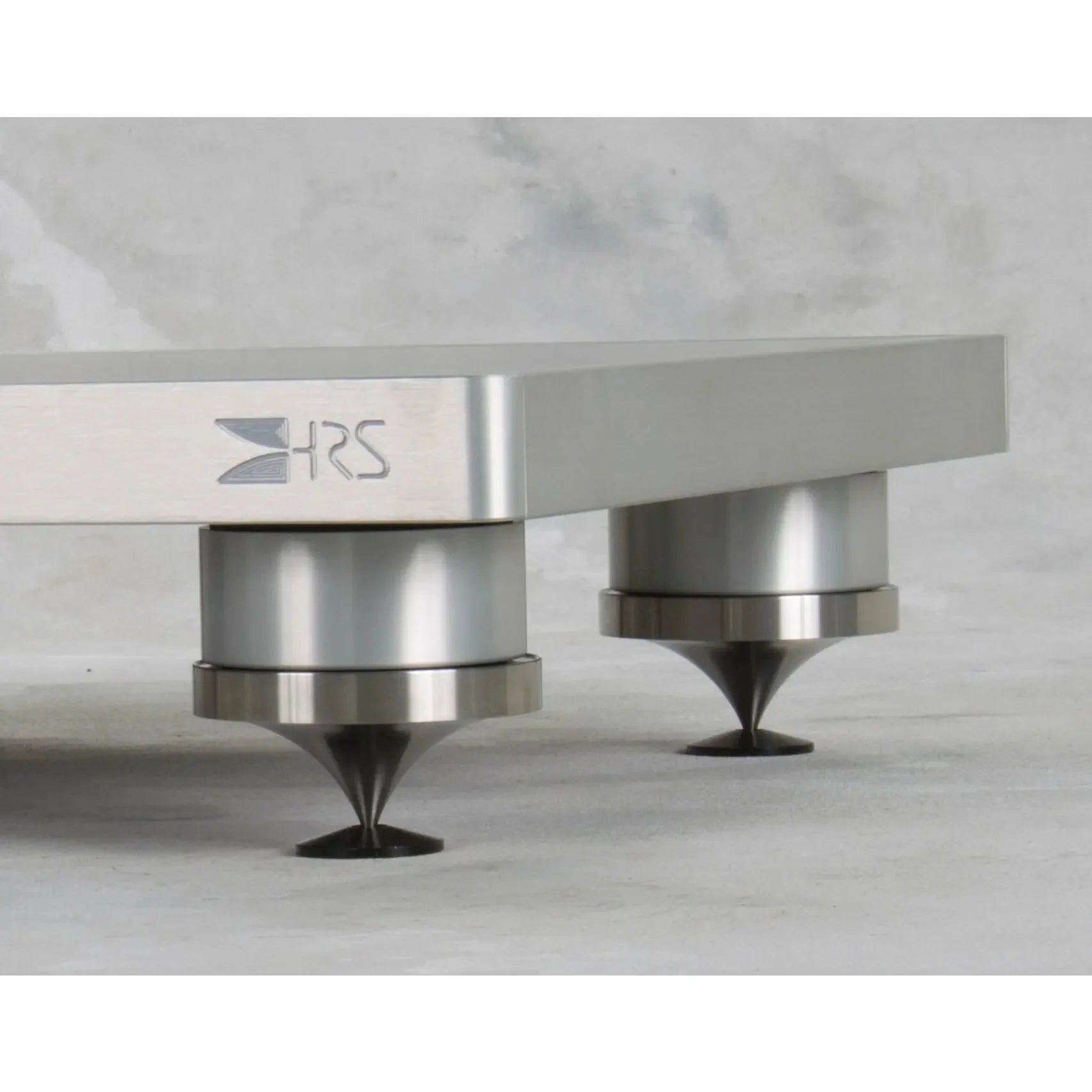

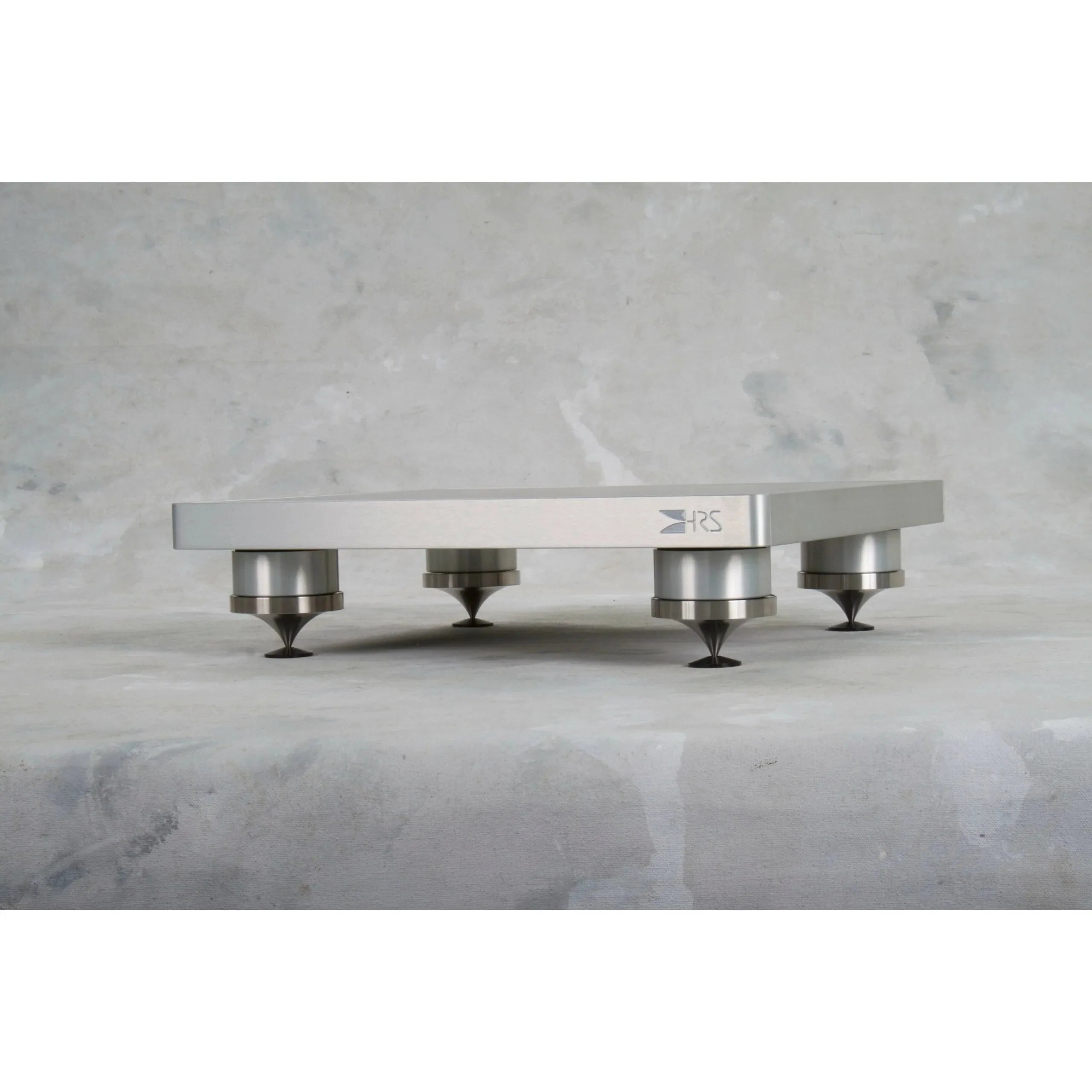

Every HRS Isolation Base model series can be set to either transfer and dissipate energy coming to and from the component or isolate the component from the supporting structure. Each HRS Isolation Base includes either our Broadband Isolation Feet (SF2 & SF3), our Extended Low Frequency Feet (LF2 & LF3), or our Bi-Directional Noise Reduction Feet (G7). The selection of the footer type is made to optimize the performance of each component. You can also adjust or change the footer type on each isolation base at any time to keep your system at peak performance.
SF2 / SF3: HRS Broadband Isolation Feet – Isolates components from below 20 Hz to above 40k Hz. Excellent starting point for tube amplifiers, tube pre-amplifiers, DAC’s, phono pre-amps, and many turntables. Select proper component range from chart below. For large amplifiers and turntables, please contact HRS for custom settings.
LF2 / LF3: HRS Low Frequency Feet – Isolates component from below 10 Hz to above 40k Hz. Use for non-suspended turntables and when subsonic content is present and presents a potential feedback issue with the system. Also used for custom applications where they provide sonic benefit. Custom setup required for each component.
G7: HRS Bi-Directional Noise Reduction Feet – Transfers and dissipates energy coming to and from the component. Used for solid-state power supplies, power conditioners, tape machines, vacuum pumps, solid-state amplifiers, and solid-state pre-amplifiers. These can also be used if you prefer to not deal with different load ranges or where the use of chassis noise reduction products is not desired or possible. The HRS G7 feet do not have any load limit and can be used for any component.
Introducing the G-Link: The G-Links act as an ideal interface between the HRS G7 Bi-Directional Noise Reduction Feet and any floor where you do not already have an HRS frame system. The G-Link will ensure excellent coupling of the G7 equipped HRS Isolation Base to a carpeted surface or an uneven floor.
Dimensions
| R3X-1719 -B (BLACK) -S (SILVER) |
19″ X 17″ X 3″ (48.3 X 43.2 X 7.6) |
24.5 LB 11.1 KG |
YELLOW (YL) 15 – 35 LB (6.8 – 16 KG) RED (RD) 36 – 60 LB (16.1 – 27.4 KG) GREEN (GN) 61 – 100 LB (27.5 – 45.6 KG) BLUE (BL) 101 – 180 LB (45.7 – 81.8 KG) |
| R3X-1921 -B (BLACK) -S (SILVER) |
21″ X 19″ X 3″ (53.3 X 48.3 X 7.6) |
30 LB 13.6 KG |
YELLOW (YL) 10 – 30 LB (4.5 – 13.8 KG) RED (RD) 31 – 55 LB (13.9 – 25.1 KG) GREEN (GN) 56 – 95 LB (25.2 – 43.3 KG) BLUE (BL) 96 – 175 LB (43.4 – 79.5 KG) |
