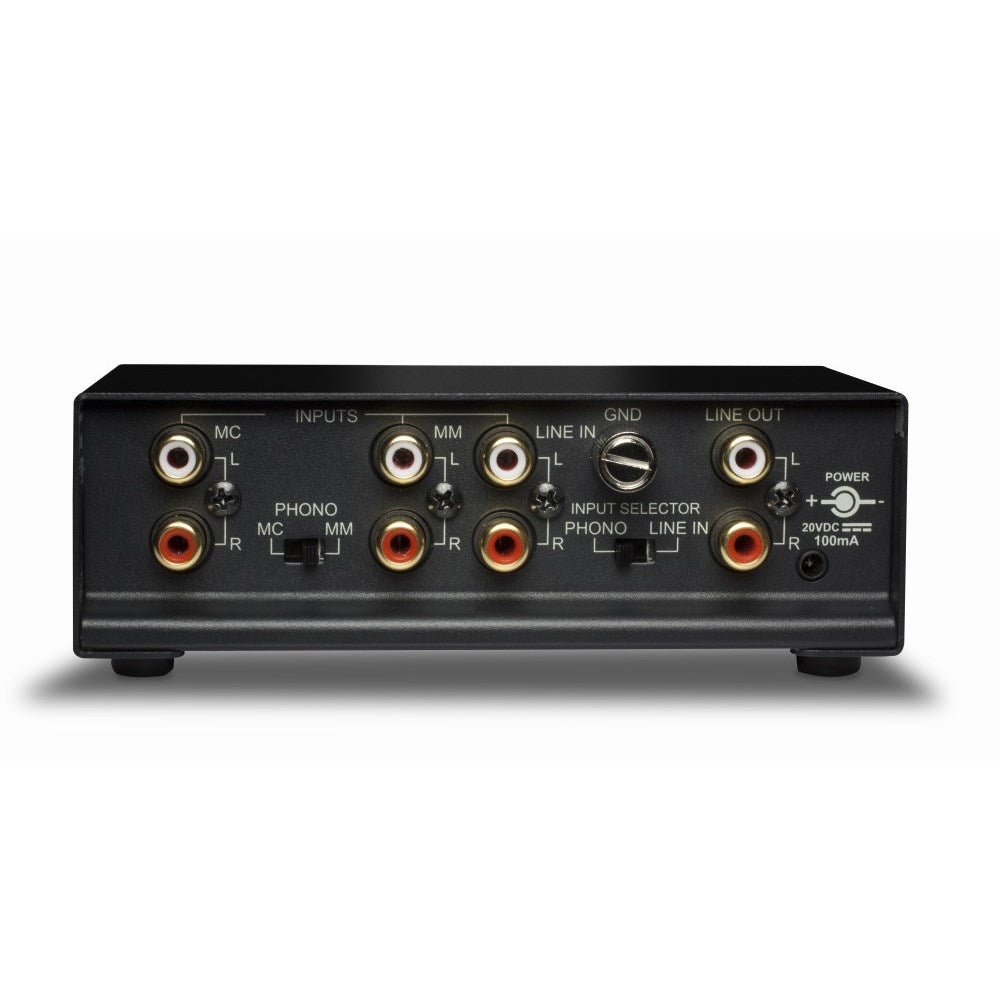

NAD PP4 Digital Phono USB Preamplifier

NAD PP4 Digital Phono USB Preamplifier

Κανονική τιμή $499.00
Κανονική τιμή Τιμή έκπτωσης $499.00
Έκπτωση Εξαντλήθηκε
Τα έξοδα αποστολής υπολογίζονται κατά την ολοκλήρωση της αγοράς.


With the addition of the PP 4 to your home system, the LPs you cherish the most come alive in the form of expansive and rich sound. Offering superb and measured sonic performance, NAD combines two simple solutions – the PP 4 Digital Phono and the USB Preamplifier – into one small device, making it easy to add phono to stereo amplifiers and AV receivers without a phono input. The PP 4 uses a shielded USB cable and recording level control, which reduces noise and improves the analogue-to-digital conversion process. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. It also has an Auto Power Down feature that saves energy by shutting off when not in use.

Digitise your vinyl collection
Offering superb measured and sonic performance, NAD’s two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today’s stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which reduces noise and improves the analogue-to-digital conversion process. The PP 4’s Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.

Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.

PP 4 VinylStudio Lite
The PP 4 (or the older PP 3) comes with Mac and PC compatible version of AlpineSoft’s VinylStudio Lite ripping software is included with your new PP-4. With VinylStudio Lite you can:

  • Rip LPs into WAV files
  • Split Tracks
  • Burn CDs
  • Record Disks
  • Look up Song Titles
  • Handle File Management



Specification

MC

  • Input Impedance (R and C)
    100 Ohm + 180pF
  • Gain at 1kHz
    58dB
  • Input sensitivity (ref. 200mV output)
    0.38mV
  • Signal to noise (A weighted, with cartridge connected)
    78dB
  • Input overload (20Hz/1kHz/20kHz)
    0.65/6.5/60mVRated Distortion (THD 20Hz – 20kHz)
    <0.03%
  • RIAA response accuracy
    ±0.3dB
  • Infrasonic filter
    -14dB (5Hz)
    -3dB (10Hz)
  • Digital output (USB)
    16 bit linear PCM
  • Sampling frequency
    48kHz
  • Dynamic range
    86dB

MM

  • Input Impedance (R and C)
    47 kilohm + 200pF
  • Gain at 1kHz
    35dB
  • Input sensitivity (ref. 200mV output)
    5mV
  • Signal to noise (A weighted, with cartridge connected)
    76dB
  • Input overload (20Hz/1kHz/20kHz)
    10/100/900mV
  • Rated Distortion (THD 20Hz – 20kHz)
    <0.03%
  • RIAA response accuracy
    ±0.3dB
  • Infrasonic filter
    -14dB (5Hz)
    -3dB (10Hz)
  • Digital output (USB)
    16 bit linear PCM
  • Sampling Frequency
    48kHz
  • Dynamic range
    89dB
  • Record Level
    0dB to -6dB
  • Gross Dimensions excl. Power supply (W x H x D)*
    135 x 49 x 72mm
    5 5/16 x 1 15/16 x 2 7/8″**

*Gross dimensions include feet, extended buttons and rear panel terminals.
**Non-metric measurements are approximate.

Line In

  • Input Impedance
    47 kilohm + 180pF
  • Rated Distortion (THD 20Hz – 20kHz)
    <0.008%
  • Signal to noise, A weighted
    -115dB
  • Maximum Input Level
    5.3V

Line Out

  • Output Impedance
    100 Ohm
  • Maximum Output Level
    5.3V
