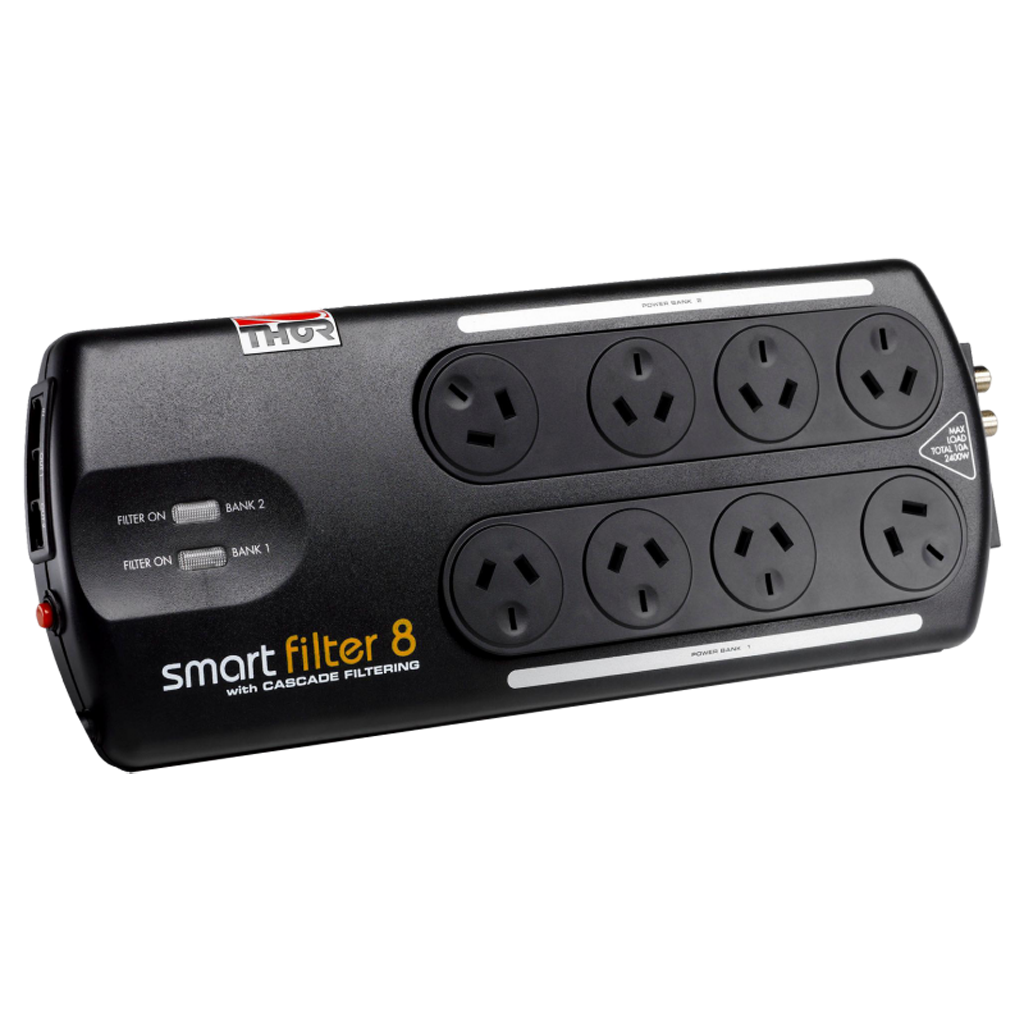

THOR Technologies Smart Filter 8 B8F Power Filter
Παραλαβή διαθέσιμη στο Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
Έτοιμο συνήθως σε 2-4 ημέρες
THOR Technologies Smart Filter 8 B8F Power Filter
Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
14 Trafalgar Street
202
Woolloongabba QLD 4102
Αυστραλία
Overview
Smart Filter 8 with its Unique Dual Bank Isolation Cascade™ circuitry provides maximum value protection for all your electronic equipment. 32 separate and discrete components working in both series and parallel provide a failsafe barrier against all categories of spikes and surges, so common with today’s power grids.
When it comes to minimising your equipment risk, we make no wild or glossy promises. Our products do what we say they do. The team at THOR Technologies have individually engineered each product to be the best in its class.
About THOR Technologies
Thor Technologies Pty Ltd manufactures a premium range of power protection and power filtration products that clean the sine wave, prevent line interference and protect against damaging voltages. In any digitally sensitive equipment this translates into product performance and longevity - getting the most out of your equipment for a long time.
The premium protection offered in THOR products is typically 7 times higher than the industry standard. Perhaps the biggest example is ‘Clamping Voltage’. If power should be 240V, 280V upwards blows components, fries circuitboards, power supplies etc. THOR has a clamping voltage of 275V, the industry standard is 710V, this means the industry standard will not do anything until 710V comes down the line – well and truly after the damage is done.
Examples of inconsistent and 'dirty' power include flickering lights, hums and hisses in speakers and system hangs and lockups. In the home and business environment, air conditioners, washing machines (changing cycles), kettles and florescent lights all contribute to damaging spikes and surges.
Specifications
Features
- Cascade Filter Technology for crisper brighter picture & crystal clear sound
- Two isolated surge protected banks with extra spacing for large adaptors
- Bank 1 = 4 outlet Bank 2 = 4 outlets
- 8 Outlets -all in the one compact board
- Data & Aerial Protection With Cable TV connection
- Fibre Optic And Broadband Compatible
- Multiple Application Identity Tags
- 6 Year Free Replacement Warranty
- Designed and Engineered in Australia
- 100% Australian Owned And Compliant
Specifications
| Supply Voltage | 240/Vac 50/Hz |
| Maximum Current Rating | 10amps/2400 W (Va) |
| Clamping Voltage | 275Vac |
| Reaction Time | Less than 1 Nano Sec |
| Maximum Transient Spike Impulse Current (AMPS) | 196,000 amps. Equivalent to 49,000 amps using UL1449 Std |
| Maximum Energy Dissipation (Joules) | (Joules) 4890 Joules. Equivalent to 1750 Joules using UL1449 Std |
| Protection Modes (all 8 outlets Protects on all 3 conductors) | Active/Neutral, Active/Earth, Neutral/Earth |
| EMI/RFI Noise Reduction Filter Type | Incorporating 38 separate protection components in 3 cascading circuits |
| Number of Multi-Stage Filter Banks | 2 |
| Number of Isolated Banks | 2 |
| Number of dedicated Outlets | 4+4 |
| Total Number of Protected AC Outlets | 8 protected outlets |
| Incoming Telephone Line Protection (DC) with Inline Splitter (1 in - 2 out) RJ | 1 Line in /2 lines out, RJ45 Broadband/Network ready |
| Incoming Television Aerial protection (DC) | 1 Line in /1 line out |
| Cable TV 'F' type connection | yes |
| Earth Potential Rise Protection | yes |
| Earth leakage Range | Less than 1 milli amp |
| Operating conditions | Indoor / AC Mains |
| Operating Temperatures | - 10C/+60C |
| Safety Approval No | RCM5287 |
| Model No | B8F |
| Cable length | 1.8m |
