NAD

CS1 ENDPOINT NETWORK STREAMER

CS1 ENDPOINT NETWORK STREAMER

Precio habitual $599.00
Precio habitual Precio de oferta $599.00
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.


CS1
ENDPOINT NETWORK STREAMER

NAD’s affordable CS1 Endpoint Network Streamer lets you add music streaming capability to any stereo or home-theatre system. Or you can configure a low-footprint music system for your den or home office by connecting the CS1 to a pair of powered speakers. The CS1 supports the most popular network streaming and casting protocols, including Apple AirPlay 2, Chromecast, Spotify Connect, Tidal Connect, DLNA mobile and computer apps*, and Roon, so you can control playback with the music apps you use every day. The CS1 employs audiophile-grade components and can play high-resolution audio, up to 24-bit/192kHz.

FEATURES & DETAILS

  • Compact, minimalist design
  • Built-in Bluetooth
  • Dual-band Wi-Fi plus LAN Ethernet port
  • Stereo analogue, optical digital, and coaxial digital outputs
  • Premium differential DAC design based on Texas Instruments PCM5141 DAC, with support for 24-bit/192kHz high-resolution audio
  • High-resolution music streaming from Tidal
  • Apple AirPlay 2 support allows CD-resolution streaming from any audio app on an iPhone, iPad, or Mac
  • Chromecast support allows playback at up to 24-bit/96kHz resolution from any Cast-enabled app on a smartphone, tablet, or personal computer
  • Spotify Connect and Tidal Connect support lets users cue up music on a smart device, then transfer playback to the CS1
  • DLNA support allows streaming at up to 24-bit/192kHz resolution from any DLNA-capable music app.*
  • Roon subscribers can stream audio to the CS1 from their personal libraries and online services supported by Roon

More details

SPECIFICATIONS

AUDIO

  • THD + N (20 Hz – 20 kHz): <0.03% 20-20 kHz -1dBFS output
  • Signal-to-Noise ratio: -94dB (ref 2V)
  • Frequency response: 20-20 kHz +/-0.3dB; 50 kHz -3dB
  • Native sampling rate: Up to 192 kHz
  • Bit depth: 16-24
  • Supported audio file format: LPCM, MP3, AC3, Ogg Vorbis, HE-AAC, MQA & WMA decode capability
  • Supported 3rd party service provider: Spotify Connect, Tidal Connect, Apple AirPlay 2, Google Chromecast, DLNA, Roon
  • DAC: TI PCM5254
  • Processor: ARM® Cortex™ -A53, Quad-Core, 1.5GHz per core

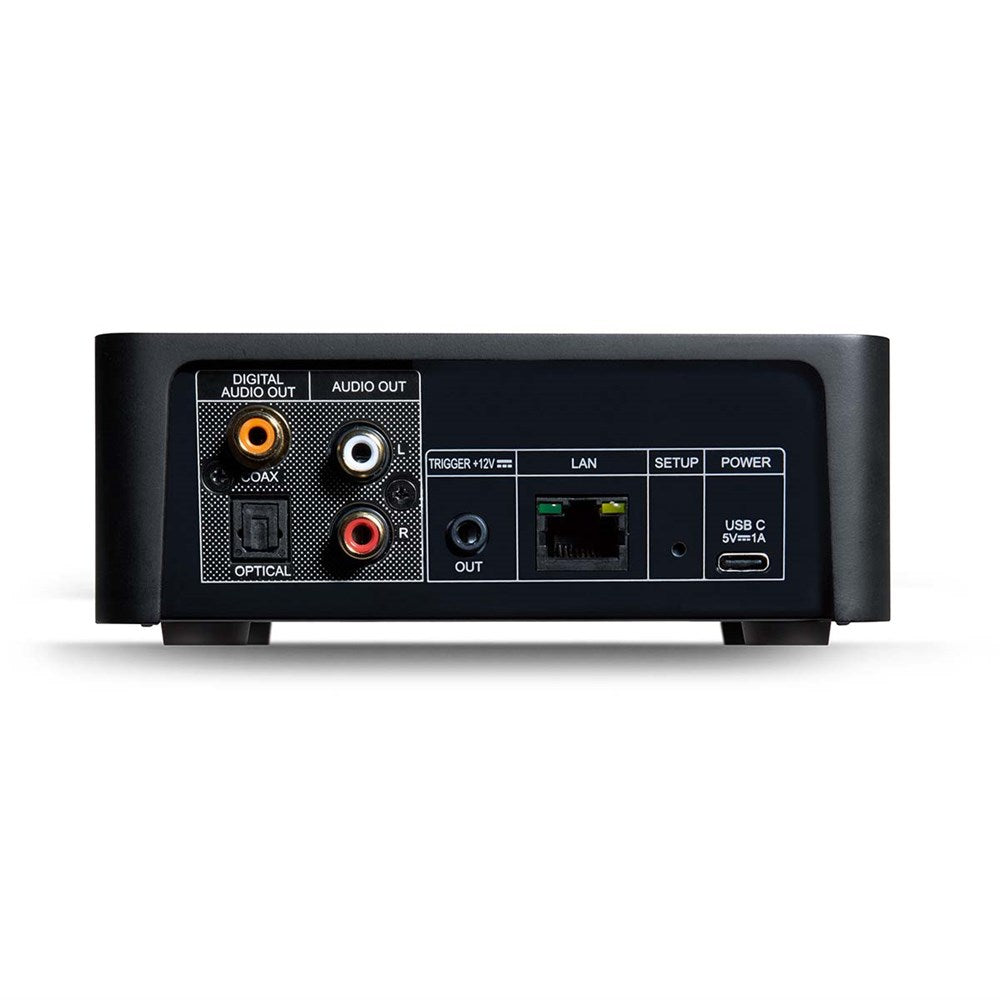

CONNECTIONS

  • Power:
    • AC adapter
    • Input: 100-240V AC 0.3A
    • Output: 5V DC 1A
  • Network connectivity:
    • Ethernet RJ45 100 Mbps
    • Wi-Fi 5 (802.11ac 2.4GHz/5 GHz)
    • DLNA/UPnp*
  • Bluetooth:
    • Bluetooth 5.0
    • BT Profiles: A2DP 1.2, AVRCP 1.3, SPP, HFP, HSP, HOGP
  • NFC: NFC for easy Bluetooth connection
  • 12V Trigger Out: 3.5mm Mini-jack x 1
  • Analog Out: RCA x 1
  • Coaxial Out: RCA 75 ohms
  • Optical Out: TOSLINK x 1
  • USB IN: USB C for AC adapter
  • * Certification in progress as of publishing date

GENERAL

  • Status Indicator: Front Panel LED
  • Function Button: Front Panel Function Button
  • Power Consumption: 0.5W Network Standby
  • Finish: Black

DIMENSION AND WEIGHT

  • Gross dimensions (W x H x D)**: 140 x 140 x 55 mm (5 1/2 x 5 1/2 x 2 1/16 inches)
  • Net Weight: 1.5 kgs / 3.3 lbs
  • Shipping Weight: 1.7 kgs / 3.8 lbs
  • ** Gross dimension includes feet and other extended front and rear panel terminals.
