Accuphase

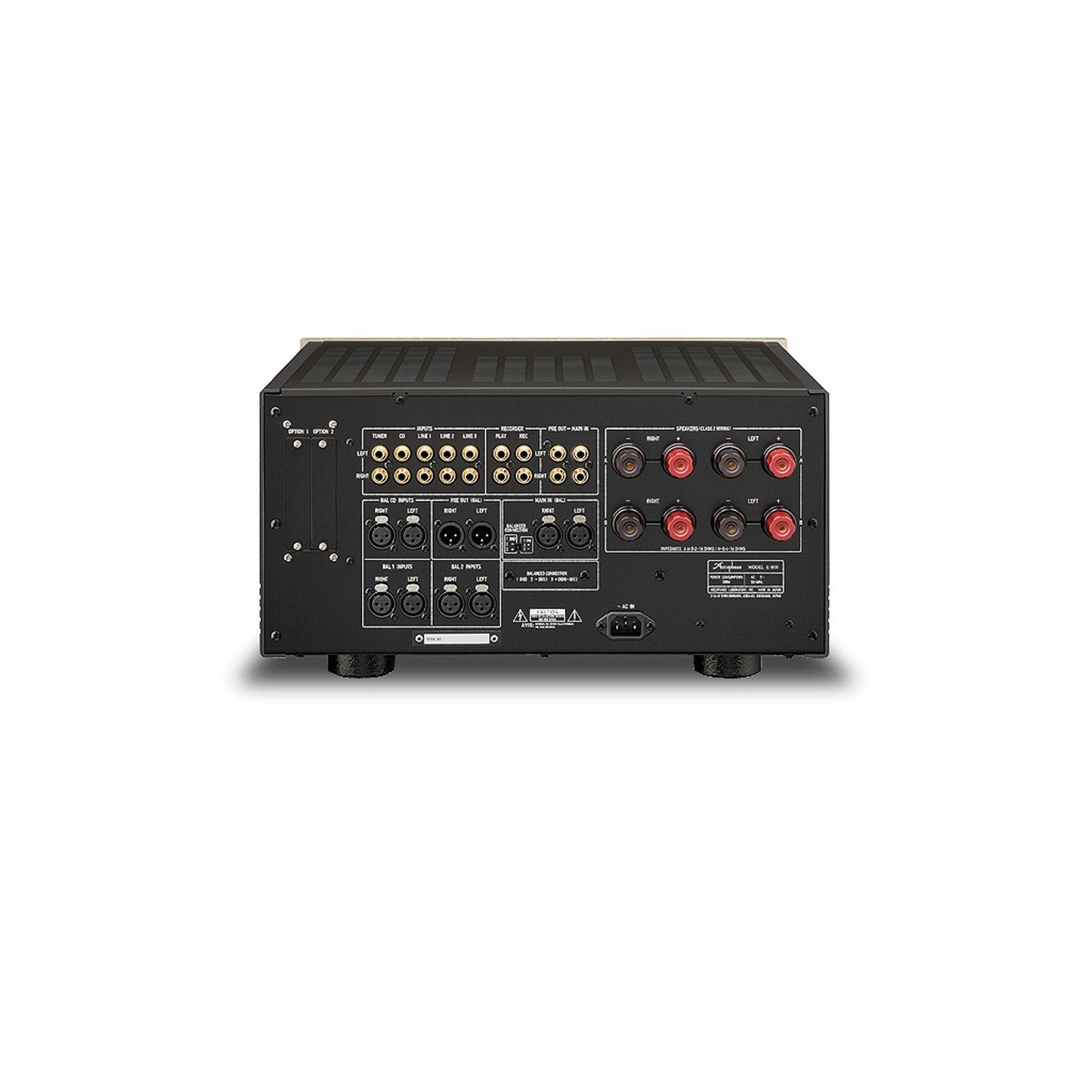

Accuphase E-800 Class A Precision Integrated Stereo Amplifier

Accuphase E-800 Class A Precision Integrated Stereo Amplifier

Made in Japan

JP



Accuphase

E-800 Class A Precision Integrated Stereo Amplifier

The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup of Accuphase. The preamplifier section features the impeccable Balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier using a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The resulting quality is on a par with high-class separate type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches to the very heart of the music.



  • Integrated amplifier with fully balanced configuration extending from input to output
  • Balanced AAVA type volume control
  • Power amplification stage configured as instrumentation amplifier
  • Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
  • Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
  • 300 W output into 1-ohm load (music signals)
  • High damping factor of 1000
  • Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
  • Protection circuitry using MOS-FET switches







Specification
Continuous Average Output Power (20 - 20000Hz)
(both channels driven)
1ohm load ( music signals) 300W
2-ohm load 200W
4-ohm load 100W
8-ohm load 50W

THD (20-20000Hz)
(both channels driven)
2-ohm load 0.05%
4 to 16 ohm load 0.03%
Intermodulation Distortion 0.01%
Frequency Response
HIGH LEVEL INPUT
* 20-20000Hz (+0,-0.5 dB)
MAIN IN
 * 20-20000Hz (+0,-0.2 dB)
At 1 watt output 20-20000Hz (+0,-0.3 dB)
Damping Factor 1000 (with 8-ohm load, 50Hz)
Input Sensitivity, Input Impedance
Input

Input Sensitivity

 For rated output For 1 Watt output (EIA)
 		 Input Impedance
HIGH LEVEL INPUT
100mV 14.2mV
20 kilohms
BALANCED INPUT
 100mV 14.2mV
40 kilohms
MAIN IN, LINE
976mV 113mV
20 kilohms
MAIN IN, BAL
 976 mV 113mV
40 kilohms
Output Voltage and Impedance
PRE OUTPUT
LINE 796mV 50 ohms
BAL 796mV 50 ohms

Gain
HIGH LEVEL INPUT -> PRE OUTPUT 18dB
MAIN IN -> OUTPUT 28dB
Tone Controls
Turnover frequency and adjustment range
Bass : 300 Hz +- 10dB ( 50Hz)
 Treble: 3 kHz +- 10dB (20kHz)

Loudness Compensator
 +6B (100 Hz)
 Attenuator -20dB
S/N Ration
Input

Input shorted (A weighting)

 S/N ratio at rated output
S/N ratio
HIGH LEVEL INPUT 104dB 97dB
BALANCED INPUT 104 dB 97dB
MAIN IN 119 dB 101dB
Bar graph meters Represents output voltage value ( dB) using 30 points ( with on/off switch)
Output Load Impedance
(terminals A or B driven) 2-16 ohms (1-ohm load permissible with music signals only)
(terminals A and b driven simultaneously) 4-16 ohms (2-ohm load permissible with music signals only)
Stereo Headphones Suitable impedance: 9 ohms or higher
Power Requirements 120V, 220V, 230V AC (voltage as indicated on the rear panel), 50/60 Hz
Power Consumption
Idle 180W
In accordance with IEC 60065 390W
Maximum Dimensions

Width: 465mm (18.31")

Height: 239mm (9.41")

Depth: 502mm (19.76")
Mass
Net 36.0 kg (79.4lbs)
In shipping carton 45.0kg (99.2lbs)
