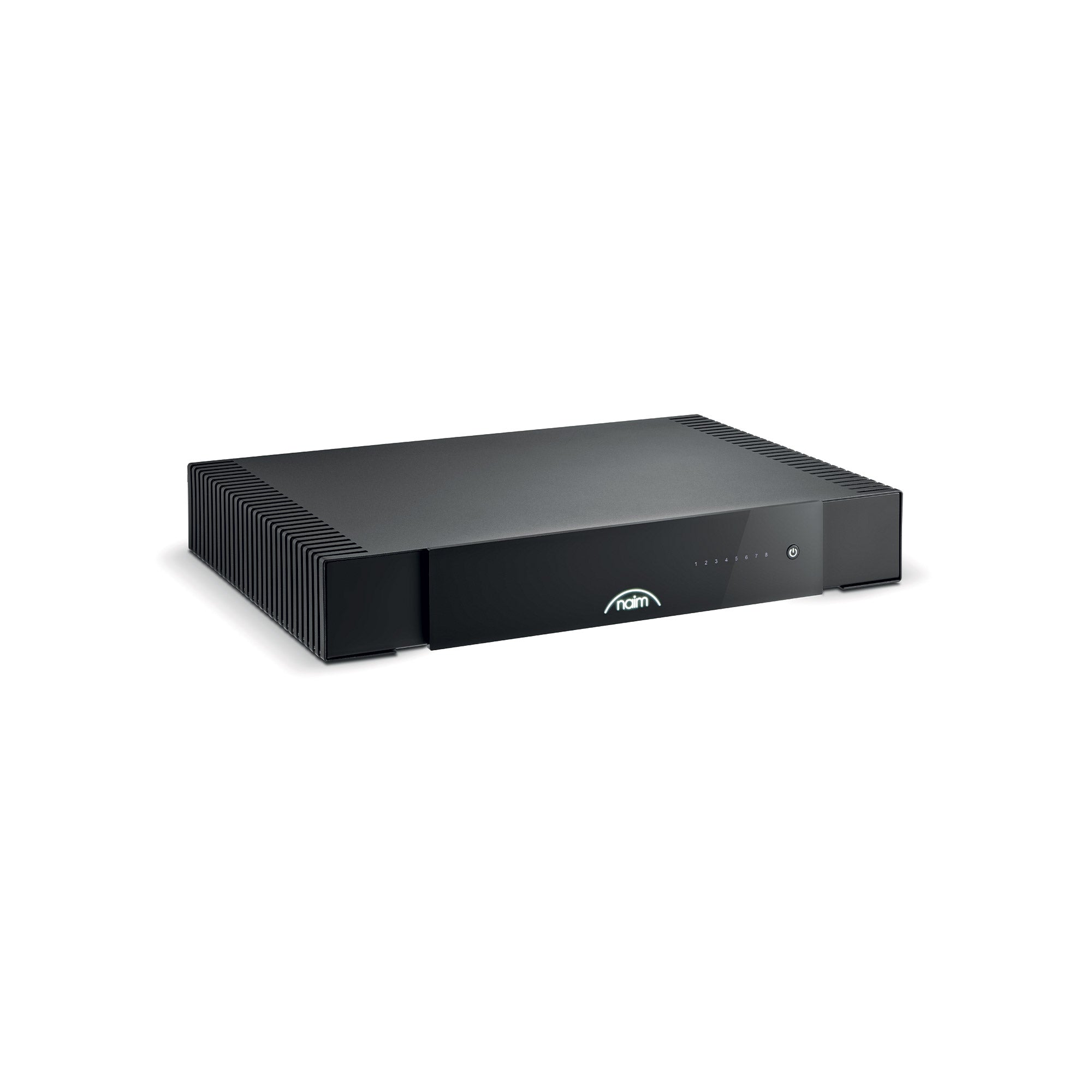

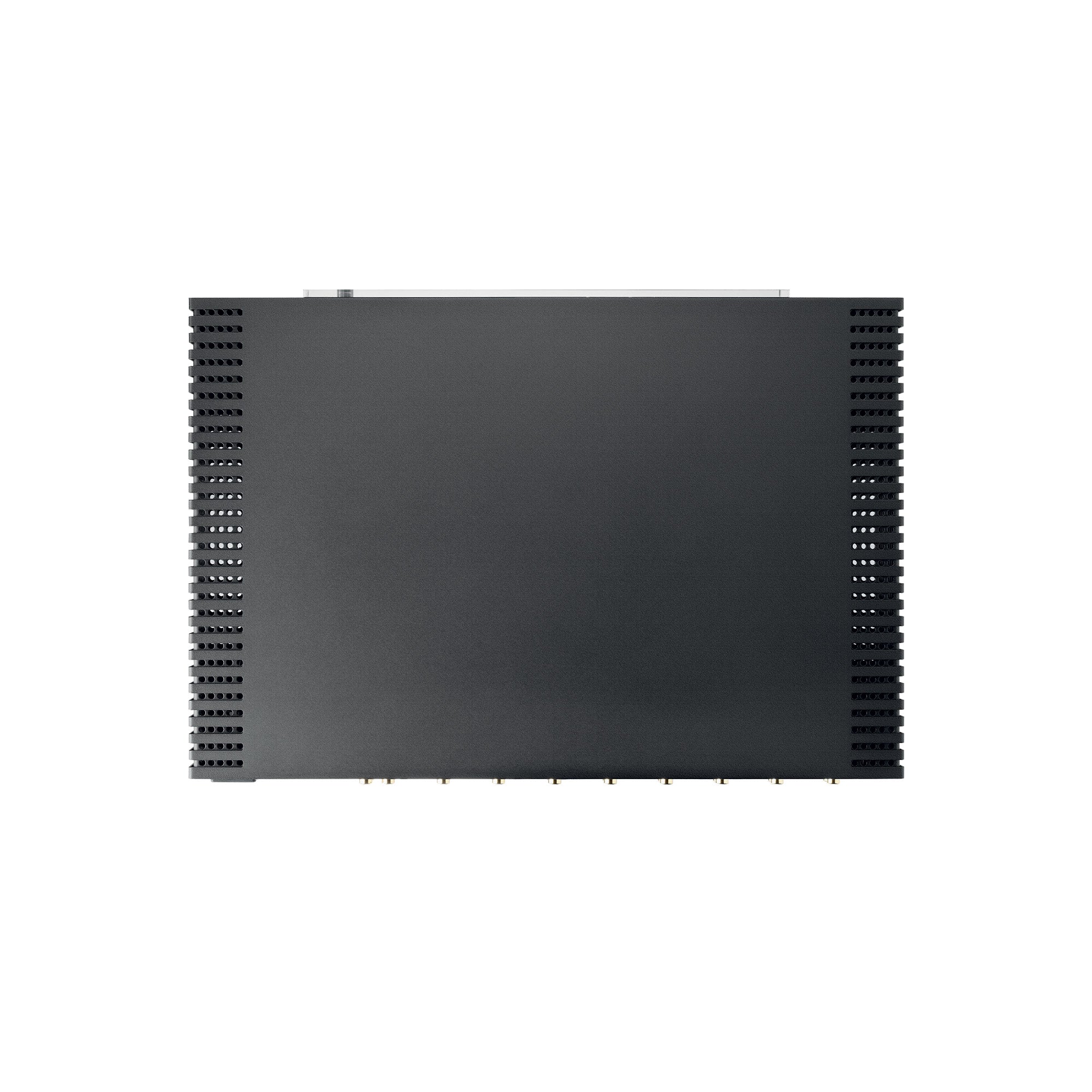

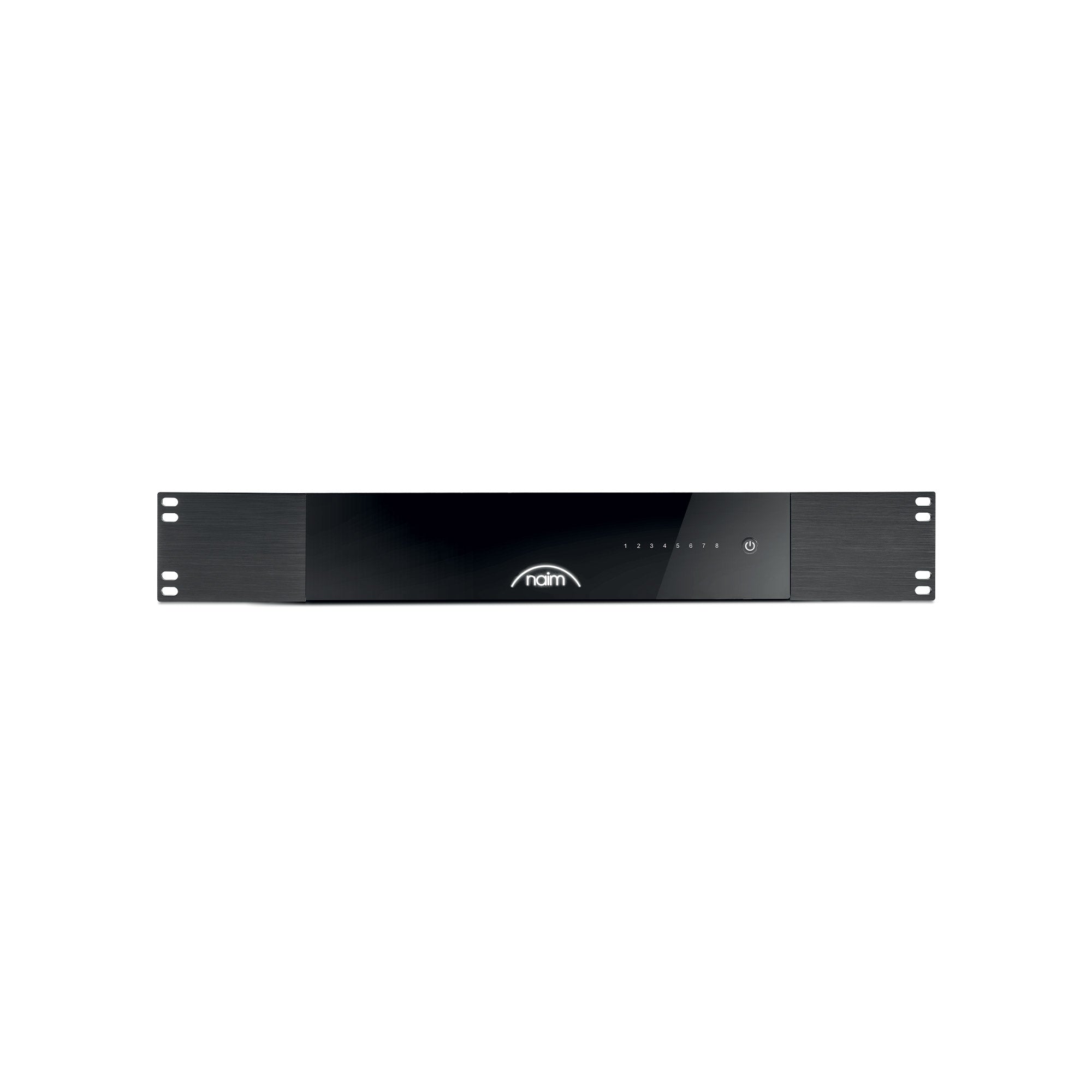

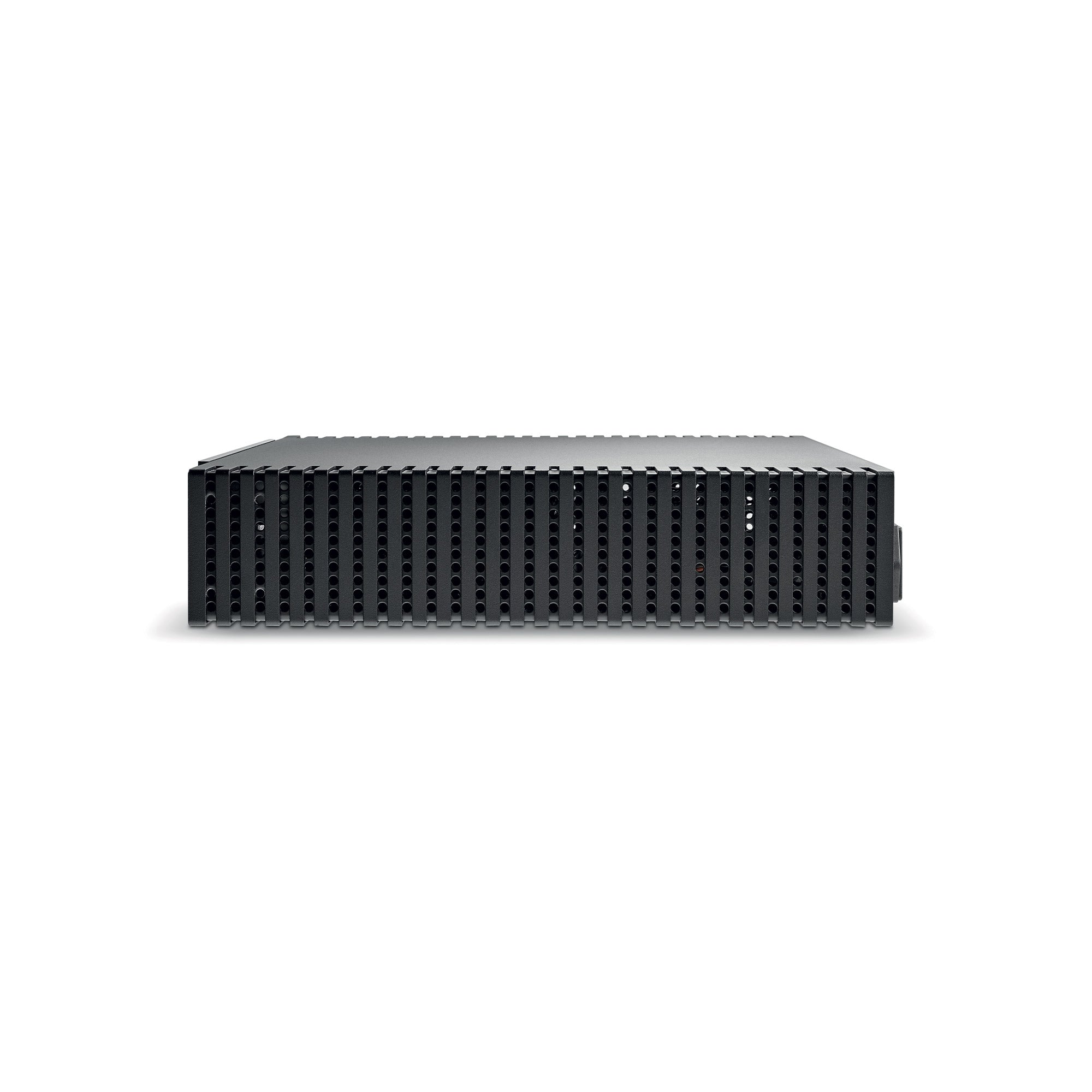

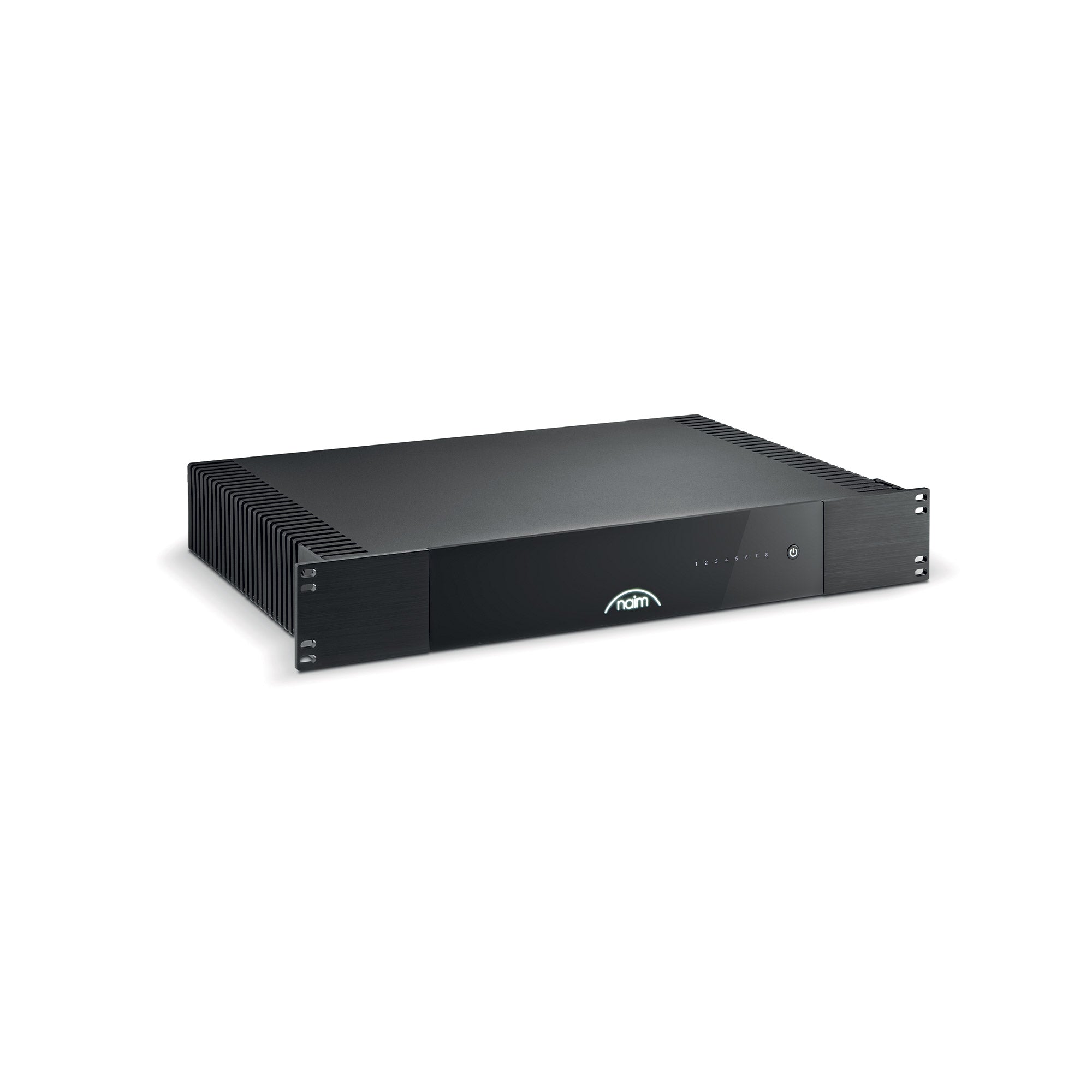

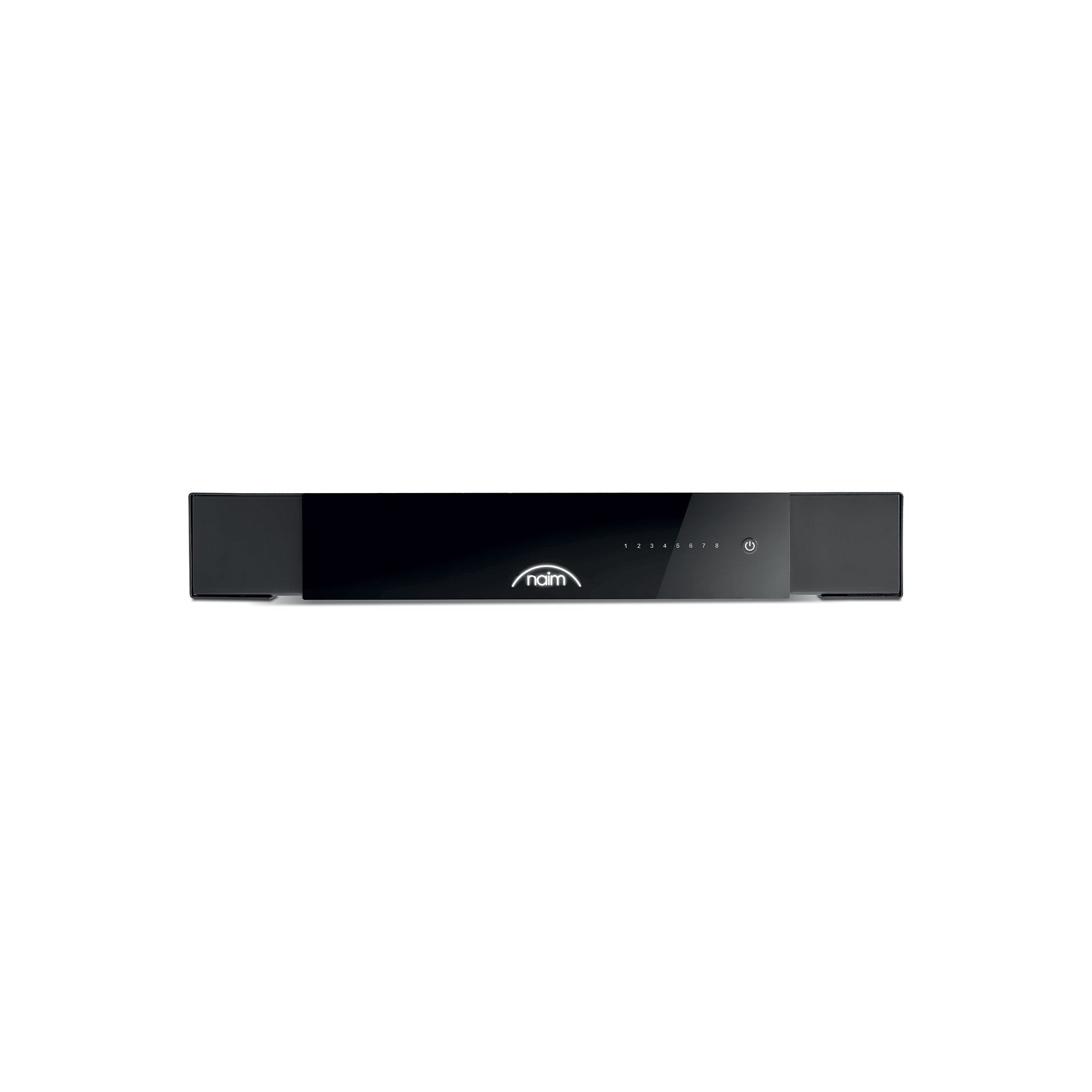

Naim CI-NAP 108 8-Channel Power Amplifier
Recogida disponible en Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
Normalmente está listo en 2 a 4 días
Naim CI-NAP 108 8-Channel Power Amplifier
Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
14 Trafalgar Street
202
Woolloongabba QLD 4102
Australia
High-Density Rack-Mount Power for Custom Multi-Room & Architectural Audio Systems
Designed specifically for custom integration in homes, commercial spaces, and marine installations, the Naim CI-NAP 108 is an 8-channel, rack-mountable power amplifier engineered to drive architectural loudspeakers without sacrificing Naim’s signature musical refinement.
Occupying a compact 1.5U chassis, the CI-NAP 108 provides robust amplification for up to 8 independent audio streams or high-density speaker zones, making it the ideal partner for the CI-Uniti 102 network streamer or high-end AV processors.
Key Features & Performance Innovations
High-Power Audiophile Output: Delivers 150 Watts RMS per channel into 8 Ohms and 260 Watts RMS into 4 Ohms, effortlessly driving demanding in-wall, in-ceiling, or outdoor speakers.

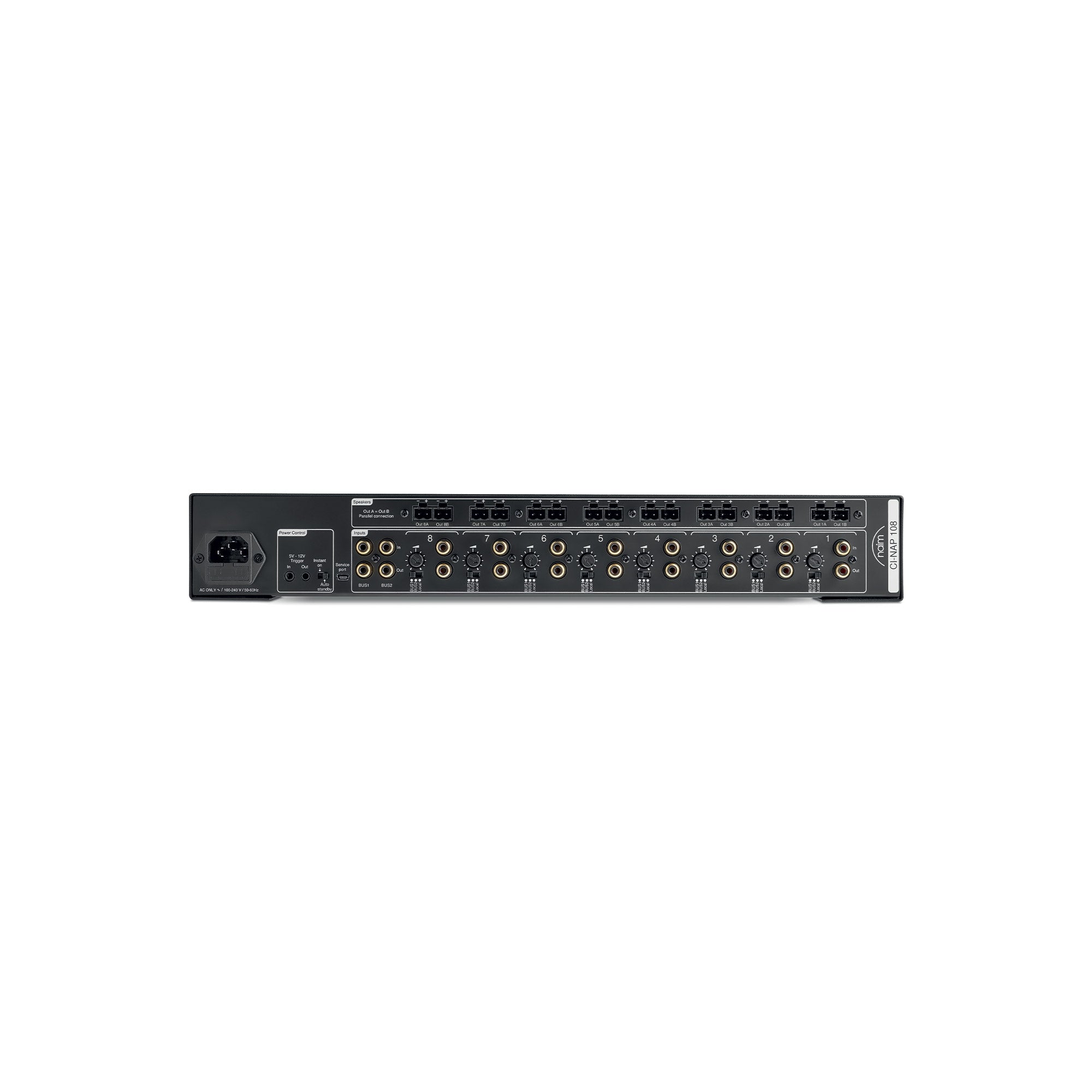

Versatile Routing Architecture: Equipped with 10 stereo RCA analogue inputs (8 dedicated local zone inputs plus 2 global L/R bus inputs) and 10 loop-out RCA outputs for easy daisy-chaining to additional power amplifiers.
Simplified Euroblock Wiring: Features dual Euroblock speaker terminals per channel, allowing fast, parallel speaker wiring in custom installation racks.
Precise Gain Calibration: Includes independent rear-panel gain level controls for each zone, ensuring ideal volume matching across various room sizes and speaker sensitivities.
Energy-Efficient Operation: Employs music-sensing auto-standby functionality (engaging after 20 minutes of silence) to drop power draw down to just 0.5 Watts.
Temperature-Controlled Cooling: Features a near-silent internal fan system designed to maintain thermal stability in enclosed rack environments.
Product Specifications
| Feature | Specification |
| Channels | 8 Channels |
| Power Output ($8\,\Omega$) | $150\text{ W}$ RMS per channel |
| Power Output ($4\,\Omega$) | $260\text{ W}$ RMS per channel |
| Frequency Response (-3dB) | $3\text{ Hz} \text{ to } 70\text{ kHz}$ |
| Total Harmonic Distortion (THD+N) | $<0.006\%$ (@ 1kHz) |
| Signal-to-Noise Ratio (SNR) | $105\text{ dB}$ (A-weighted) |
| Analogue Inputs | 8 x Dedicated Zone RCA, 2 x Global Bus RCA |
| Analogue Outputs | 10 x Daisy-Chain Line RCA, 8 x Dual Euroblock Speaker Out |
| Control & Automation | 12V Trigger In/Out, Music-Sensing Auto-Standby |
| Rack Height | 1.5U Rack-Mountable Chassis |
| Dimensions ($\text{H} \times \text{W} \times \text{D}$) | $6.66\text{ cm} \times 44.0\text{ cm} \times 30.0\text{ cm}$ |
| Weight | $7.7\text{ kg}$ ($17.0\text{ lbs}$) |
What’s in the Box?
1 x Naim CI-NAP 108 8-Channel Power Amplifier
1 x Complete Set of Euroblock Speaker Connectors
1 x Rack-Mounting Hardware Kit
1 x Regional Mains Power Cable
Quick Start Guide & Safety Documentation
