Description

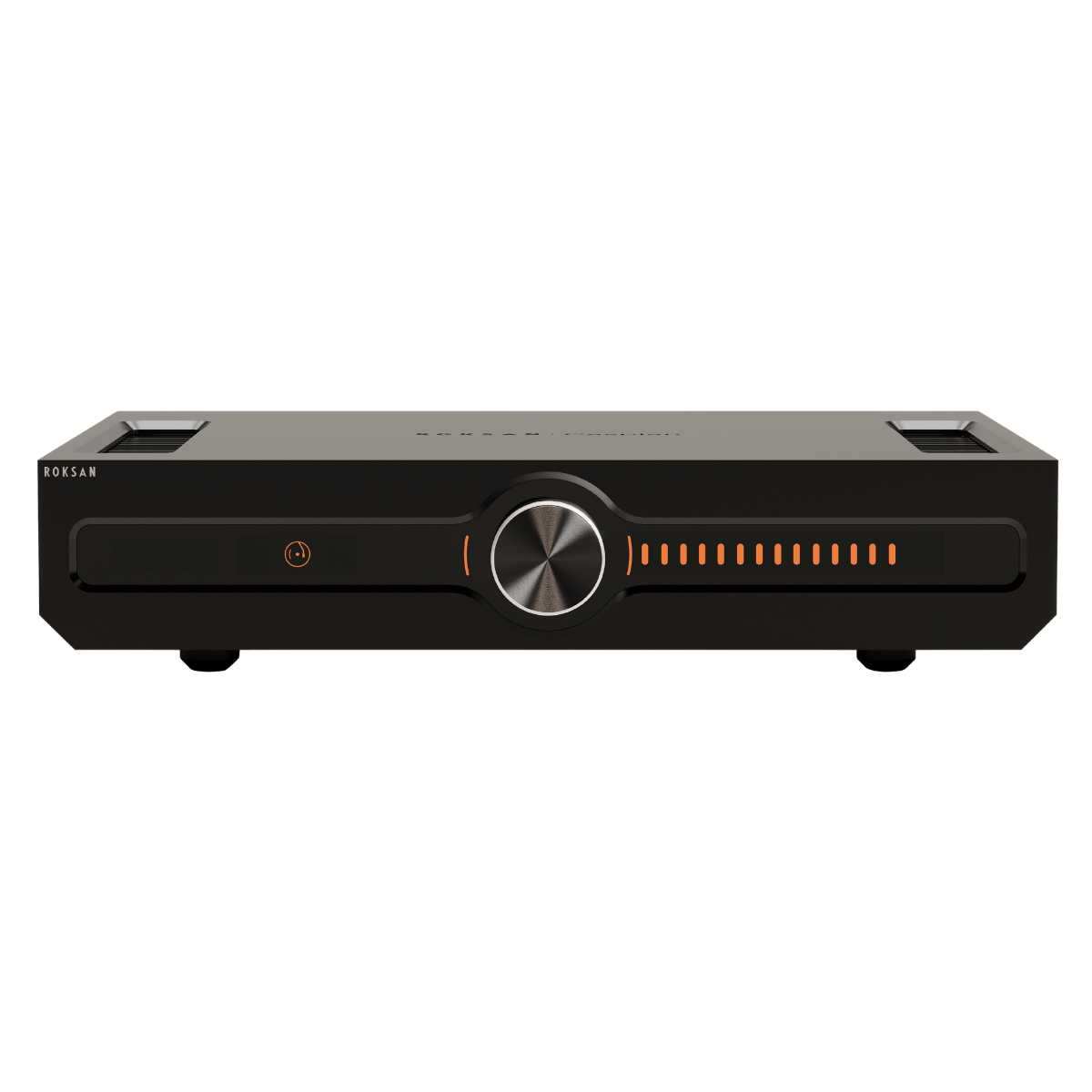

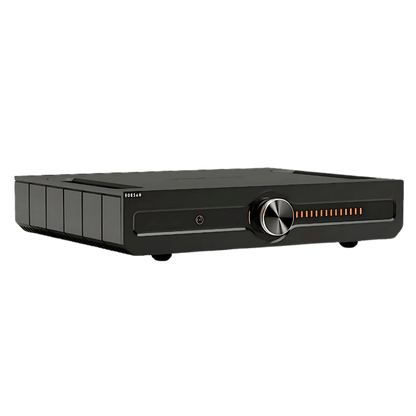

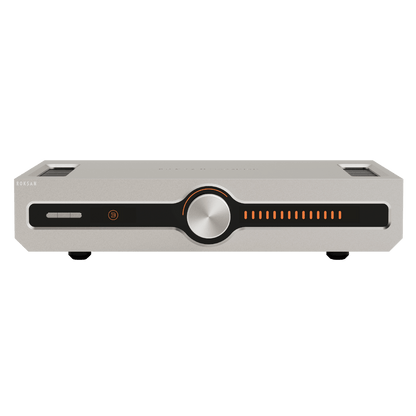

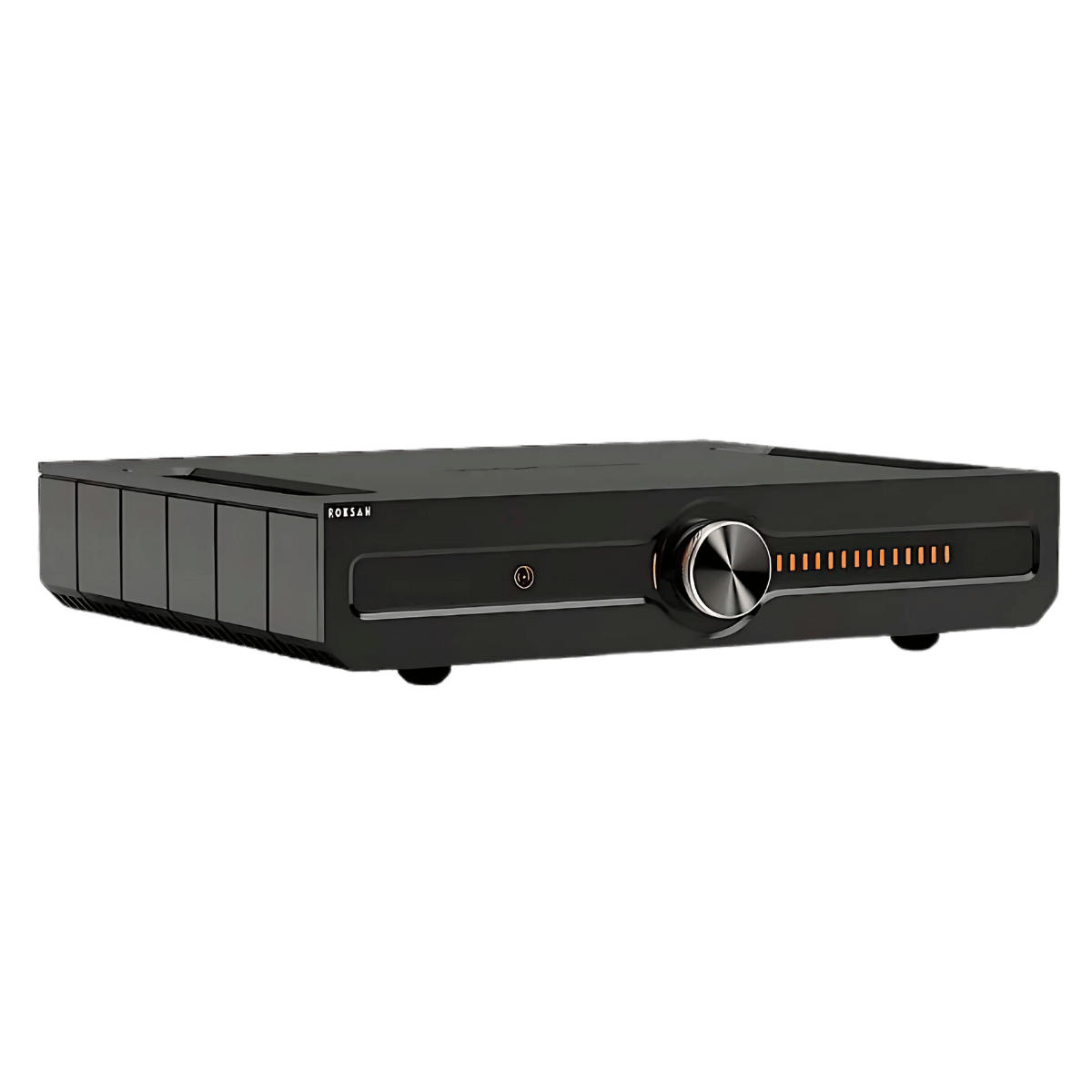

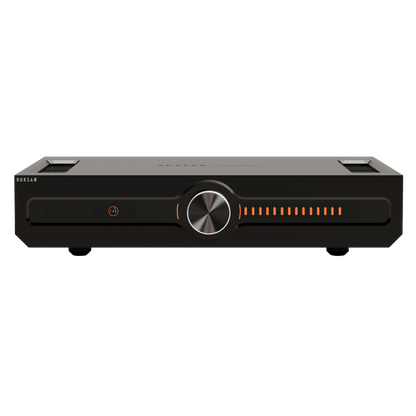

Caspian 4G Integrated Amplifier

The Caspian Integrated Amplifier delivers total performance through its innovative Euphoria amplification architecture and advanced analogue connections, offering a flawless presentation of music via any source. The evolutionary Rapture DAC technology, for improved digital to analogue signal conversion, allows for a near perfect signal transfer, and ensures that the Euphoria dual amplification architecture delivers total performance from whatever source a user connects.

• The integrated high-performance DAC, developed in-house, guarantees pristine audio conversion, ensuring every detail of your music is accurately reproduced for an exceptional listening experience.





  User-Friendly Interface

  The one-touch dial control is designed for simplicity and ease of use. With haptic feedback and a graphical interface, selecting the volume or source is straightforward and responsive.





  Versatile Connectivity

  With a variety of digital and analogue connections, including Bluetooth®, you can easily connect your Hi-Fi, TV, games console, phone, and more. Stream services from your smart device effortlessly via the custom long-range Bluetooth antenna.



  Turntable Ready

  The built-in phono stage allows you to connect a turntable directly without needing additional boxes or accessories, making it easier to enjoy your vinyl collection with high-quality sound.



  Powerful Amplification

  Delivering a robust 130W per channel, this amplifier ensures your speakers perform at their best, providing clear, powerful sound whether you're listening to music, watching TV, or gaming.



  MaestroUnite App Compatibility

  The MaestroUnite app enables quick and simple over-the-air updates and device pairing, ensuring your system is always up-to-date and operating seamlessly. It combines your devices into a unified Roksan system, enhancing usability and convenience.









  Specifications

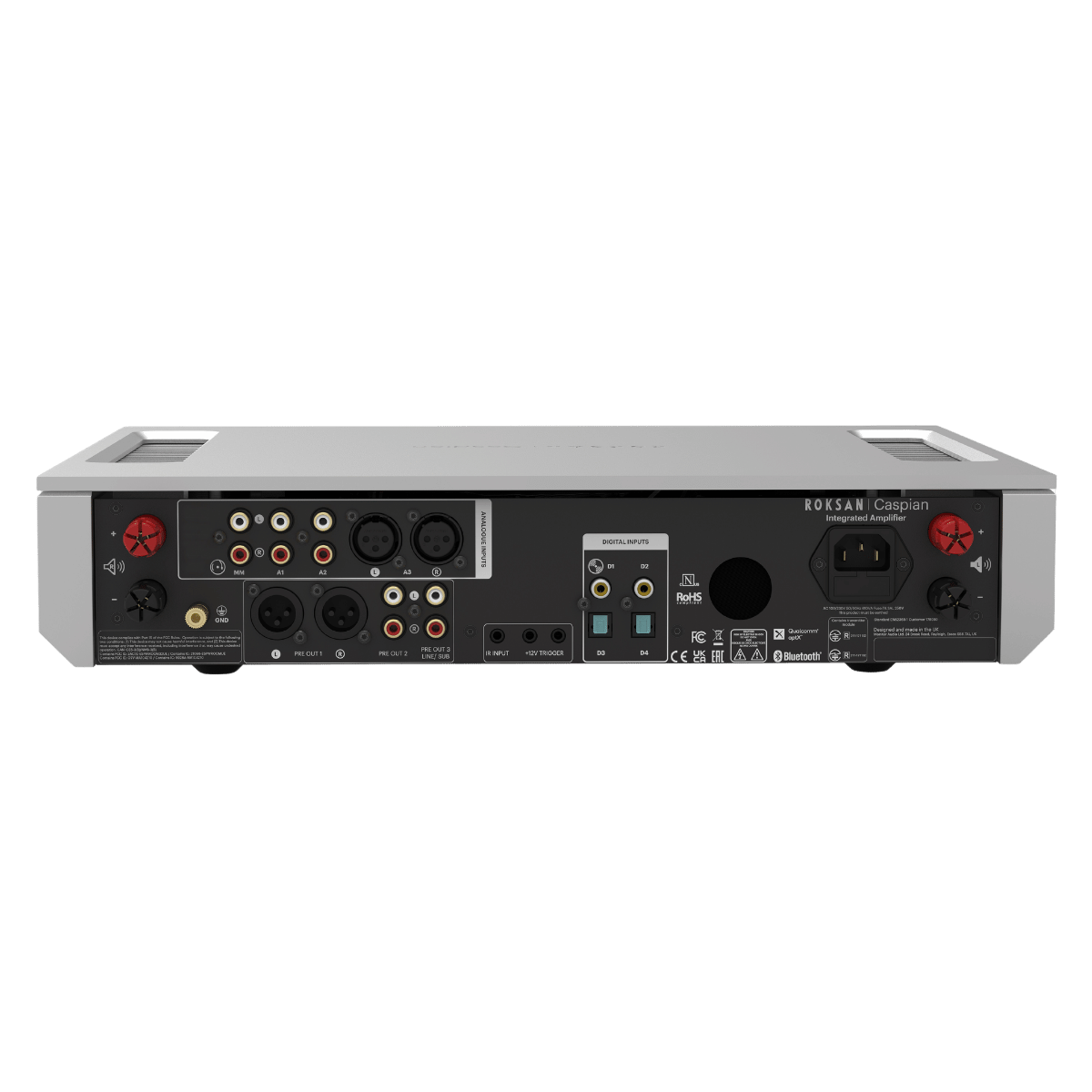

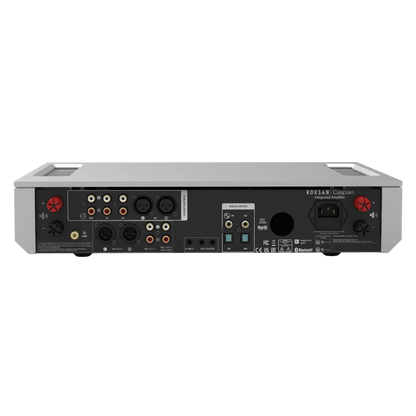

  Connectivity

  Analogue Inputs:  2 × RCA Stereo (A1, A2)
                               1 × Balanced XLR (A3)

  Digital Inputs:  2 × Coaxial (D1, D2)
                          2 × Optical (D3, D4)
                          Bluetooth Audio

  Analogue Outputs: 1 × Balanced XLR (Pre1)
                                  1 × RCA Stereo (Pre2)
                                  1 × RCA Stereo (Pre3)

  Other I/O: Wi-Fi 4, BLE
                    12V Trigger
                    Wired IR

  Power: IEC C14, Fused 6.2AT

  User Interface

  Primary: Dynamic Control Dial with haptic feedback (volume, inputs, power)

  Secondary: None

  Remote: Black 15-button IR remote (anodised aluminium)

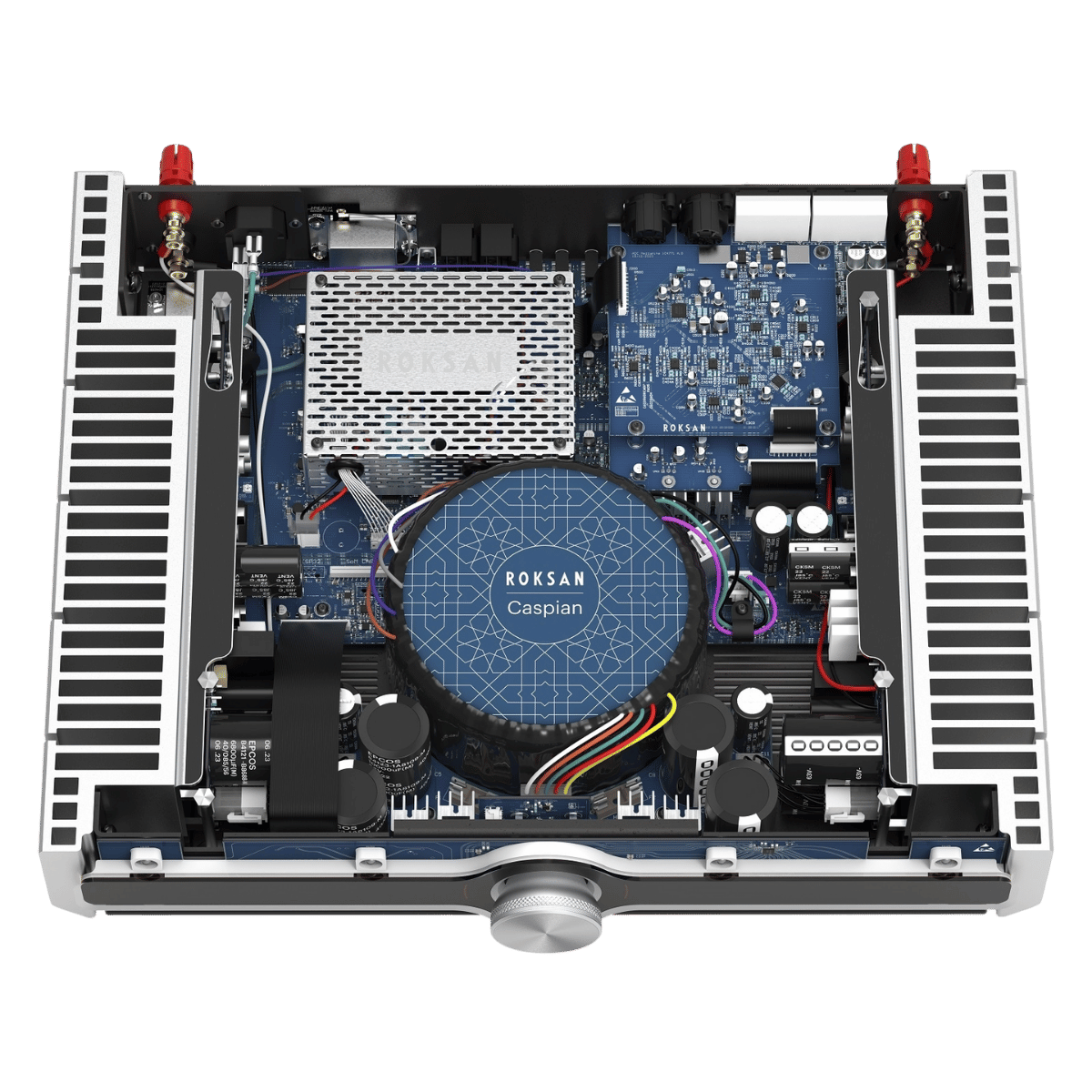

  Power Amplifier Section

  Technology: Dual Mono Euphoria Amplifier

  Class: AB

  Output Power: 105W per channel (8Ω, 1% THD)
                           200W per channel (4Ω, 1% THD)

  THD+N: <0.007% (1W @ 1kHz, both channels)

  Gain: 29 dB

  SNR: >85 dB (1W/8Ω, 2Vrms A1)

  Gain Matching: <0.5 dB

  Frequency Linearity: ±0.25 dB (20 Hz–20 kHz)

  Power Supply: 600VA / 36,400 μF per rail

  Phono Section

  Type: MM

  Gain: 53 dB

  Gain Adjustment: Low (-6 dB), Mid (0 dB), High (+6 dB)

  Input Impedance: 47kΩ / 100 pF

  RIAA Accuracy: ±0.3 dB (20 Hz–20 kHz)

  Rapture DAC

  Technology: Rapture DAC, Dual Mono Balanced

  Format Support: PCM

  Sampling Rate: Up to 24-bit / 192 kHz

  Pre-Amplifier (Pre1 & Pre2)

  Volume Control: Hybrid Digital-Analogue

  Matching: <0.25 dB

  THD+N: <0.0008% (3.9 Vrms, A-weighted)

  SNR: >108 dB

  Max Output: 3.9 Vrms

  Features: Pre-Output, Fixed Line-Level Output,  Subwoofer Output (low-pass filtered),   Intelligent DSP

  Pre-Amplifier (Pre3)

  Volume Control: Digital

  Matching: <0.25 dB

  THD+N: <0.003%

  SNR: >108 dB

  Max Output: 3.9 Vrms

  Bluetooth

  Profile: A2DP

  Codecs: SBC, aptX, AAC

  Range: >15 m

  Digital Inputs

  Coax (D1, D2): Up to 24-bit / 192 kHz

  Optical (D3, D4): Up to 24-bit / 192 kHz

  HDMI ARC/eARC: No

  Analogue Inputs

  Max Input Level: 6.7 Vrms

  Music Sense: A2 input

  AV Mode: A2 input

  Maestrounite

  Supported: Yes

  Connectivity: Bluetooth LE, Wi-Fi 4 (OTA updates only)

  App: iOS & Android

  OTA Updates: Supported

  Other Features

  Wired IR: 5–14V, 3.5mm mono

  12V Trigger: 5–14V

  12V Trigger Passthrough: Yes

  Auto Mains Voltage: 100–120VAC & 220–240VAC

  Power Consumption: Max: 610VA

  Standby: 0.5W

  Network Standby: 2W (Standby Plus)

  Mechanical

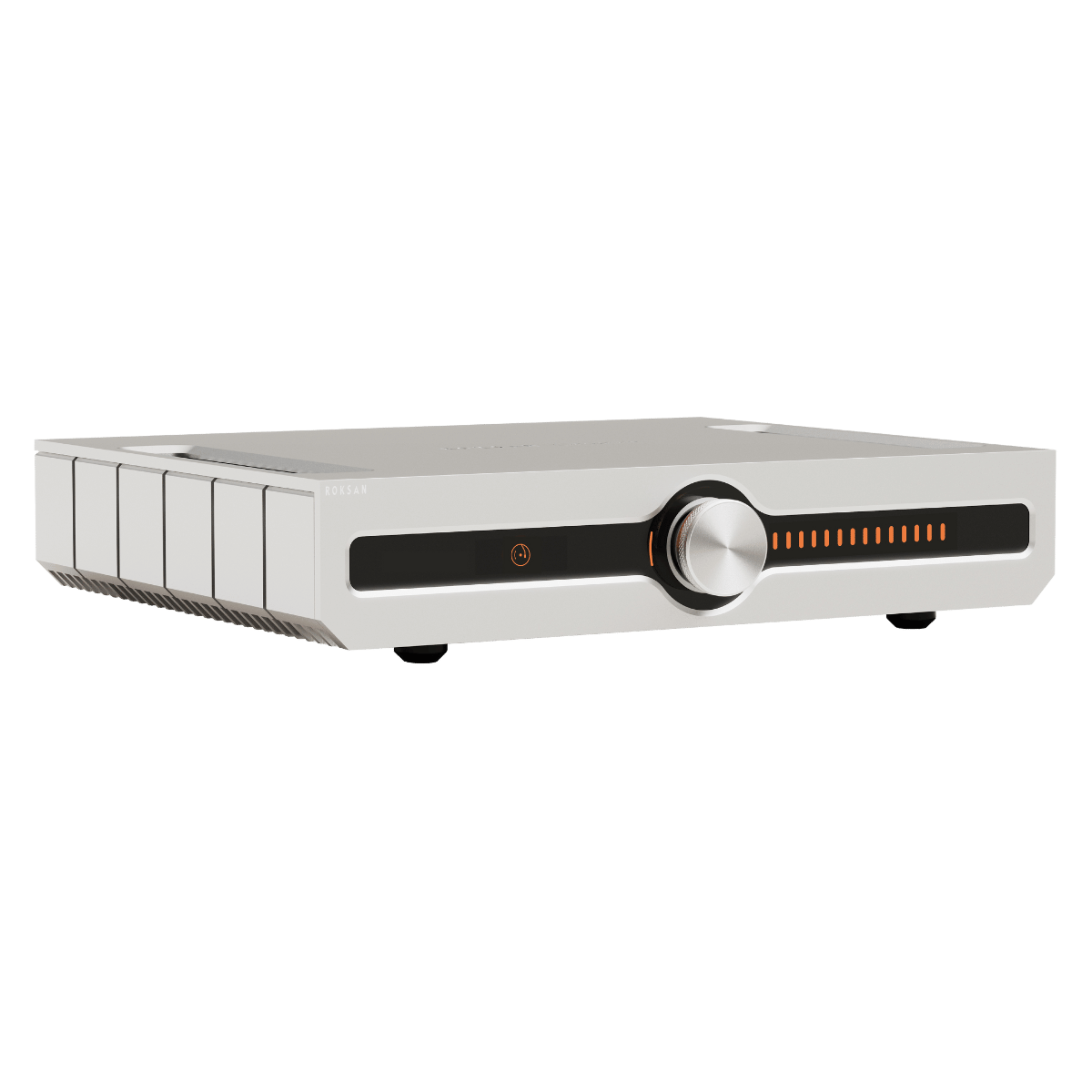

  Finish: Silver or Black

  Construction: Extruded & machined aluminium

  Dimensions: 93 × 432 × 378 mm

  Weight: 15.2 kg

  Sold As: Single unit
