Naim NVC TT Reference Phono Stage

Ultra-Low Noise Vinyl Preamplification for Moving Magnet & Moving Coil Cartridges

Inspiration drawn from 50 years of British analogue heritage meets modern high-precision component matching. The Naim NVC TT is Naim’s New Classic series phono preamplifier, engineered specifically to extract maximum detail, dynamic range, and musical nuance from vinyl record collections.

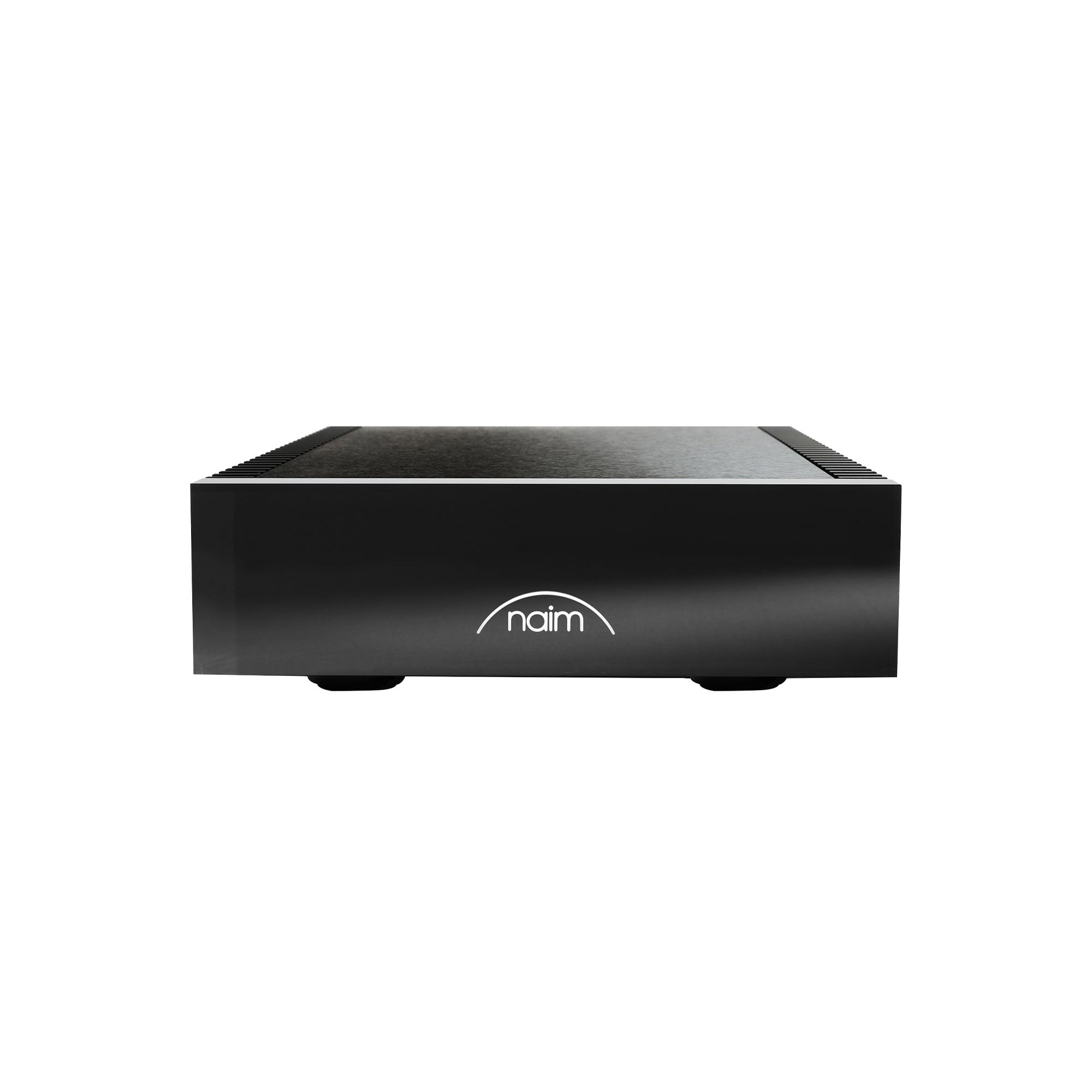

Housed in a compact, half-width (214mm) solid aluminum chassis, the NVC TT echoes the clean aesthetic of Naim’s flagship Statement amplifier while shielding delicate micro-volt turntable signals from electromagnetic and mechanical interference.

Engineering Marvel: Discrete Circuitry & Extensive Cartridge Matching

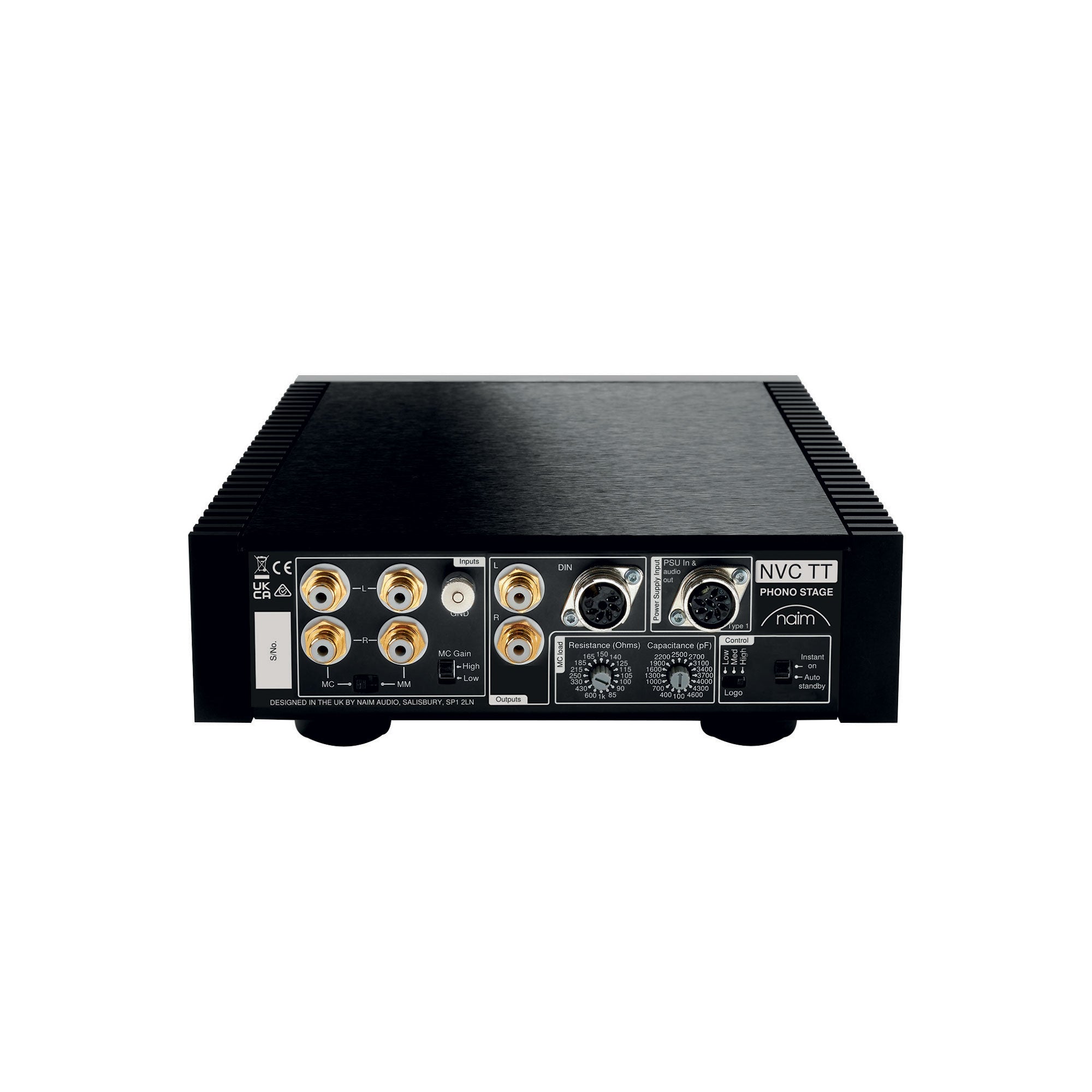

Under the hood, the NVC TT features a fully discrete transistor Class-A circuit topology. To ensure seamless synergy with virtually any Moving Magnet (MM) or Moving Coil (MC) cartridge, the rear panel provides rotary switches to independently adjust resistive and capacitive cartridge loads.

Key Performance & Technological Innovations

Dedicated MM & MC Stages: Incorporates separate input circuitry optimized individually for Moving Magnet ($47\text{ k}\Omega$) and Moving Coil cartridges.

16 MC Load Combinations: Dual rotary selectors on the rear panel offer 16 resistive values ($85\,\Omega\text{ to }1000\,\Omega$) and 16 capacitive values ($100\text{ pF}\text{ to }4600\text{ pF}$) for precise impedance matching.

Selectable MC Gain Control: Features a high/low gain switch ($61\text{ dB}\text{ or }67\text{ dB}$) to pair seamlessly with low-output or standard moving coil designs.

Versatile Power Options: Can be powered via the 8-pin DIN socket on New Classic preamplifiers (like the NAC 332 or NSC 222), or upgraded with the standalone NPX TT external power supply for an even lower noise floor.

Flexible Audio Connections: Offers stereo RCA, 5-pin DIN, and 8-pin DIN outputs for compatibility across New Classic, legacy Naim, and third-party audio systems.

Audition the Naim Experience at Brisbane HiFi

Pristine phono preamplification preserves the emotional warmth and timing that makes vinyl reproduction so compelling. From tracking delicate acoustic passages to handling explosive orchestral dynamics, the NVC TT delivers an immersive listening experience.

At Brisbane HiFi, our dedicated audition spaces offer the ideal setting to hear the Naim NVC TT in action. Whether you are pairing it with a New Classic preamplifier or exploring an upgrade with the NPX TT power supply, our expert audio team is here to guide your audition.

Experience Living Art: Visit the Brisbane HiFi showroom to hear the Naim NVC TT in person, or speak with our team about custom turntable and hi-fi system integration.

Product Specifications

Type: Switchable MM/MC Phono Preamplifier

RIAA Accuracy: $\pm 0.1\text{ dB}$

Gain Settings: MM: $42\text{ dB}$ | MC Low: $61\text{ dB}$ | MC High: $67\text{ dB}$

Signal-to-Noise Ratio (SNR): MM: $83\text{ dB}$ (ref $5\text{ mV}$ A-weighted) | MC: $84\text{ dB}$ (ref $0.5\text{ mV}$ A-weighted)

Total Harmonic Distortion (THD+N): $<0.005\%$ (ref $50\text{ mV}$ MM / $1.5\text{ mV}$ MC input)

MM Loading: $47\text{ k}\Omega$ and $100\text{ pF}$

MC Resistive Loading (16 values): $85\,\Omega, 90\,\Omega, 100\,\Omega, 105\,\Omega, 115\,\Omega, 125\,\Omega, 140\,\Omega, 150\,\Omega, 165\,\Omega, 185\,\Omega, 215\,\Omega, 250\,\Omega, 330\,\Omega, 430\,\Omega, 600\,\Omega, 1000\,\Omega$

MC Capacitive Loading (16 values): $100\text{ pF}$ to $4600\text{ pF}$

Audio Outputs: 1 x Stereo RCA Pair, 1 x 5-Pin DIN, 1 x 8-Pin DIN

Dimensions (W x H x D): $214\text{ mm} \times 70\text{ mm} \times 317\text{ mm}$

Weight: $3.4\text{ kg}$

What’s in the Box?

1 x Naim NVC TT Phono Preamplifier

1 x 5-Pin DIN to 5-Pin DIN Interconnect Cable

1 x Type 1 Power Supply Cable

Quick Start & Safety Documentation
