• Series Multi-Stage Protection provides the highest level of protection available.

• Linear Filtering Technology significantly reduces AC line noise.

• Auto-resetting Extreme Voltage Shutdown protects equipment from dangerous overvoltage conditions and automatically resets when voltage returns to safe levels.

• Retractable LED lamps illuminate a cabinet or rack full of equipment.

• Zero ground contamination circuitry protects critical digital components.

• Ultrasonic bi-filtering isolates digital and video circuits from analog components.

• Laboratory precision grade voltmeter displays incoming voltage.

• 4 pairs of HD ready cable/satellite isolated TVSS protected F-connectors.

• 16A capacity

The Furman Elite-16 PF E is engineered to provide today’s home theater systems with clean, ultra-low noise AC power to assure maximum performance. The Elite 16 PF E i’s Ultra-Linear Filtering reduces noise across an even greater bandwidth than Furman’s Linear Filtering Technology - in fact, the Elite-16 PF E i is so substantial in its ability to unmask critical signal content, its performance is surpassed only by the Furman Reference Series.

The essence of the Elite-16 PF E is Furman’s unique Power Factor Technology. The Elite-16 PF E has a current reserve of over 55 amps peak charge (4.5 amps RMS) for the most extreme peak power demands.

This technology enables power amplifiers and powered subwoofers to operate at maximum efficiency, reaching levels of performance previously unattainable.

Furthermore, the Elite-16 PF E’s 16A capacity provides sufficient current for large power amplifiers and other current-hungry components. The dual retractable front panel LED lights on the Elite-16 PF E is provide ideal, discreet illumination to a rack or cabinet full of equipment.

Specifications

AC Current Capacity	Input – 16 Amp capacity required Output – 13-16 Amps RMS (maximum, all outlets combined – continuous)
Linear Noise Attenuation	Transverse (Differential) Mode: > 40 dB from 5Khz. – 100 kHz. >80 dB from – 100 kHz. – 1GHz.Common Mode: >40dB from 10Hz. – 30 kHz. >20 from 40 kHz. – 1MHz. (Linear attenuation curve from 0.05 – 100 ohms line impedance)

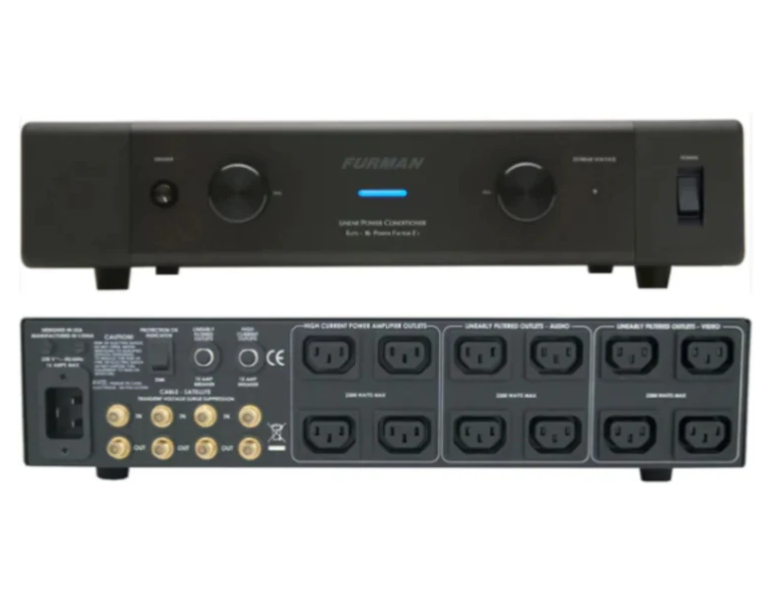

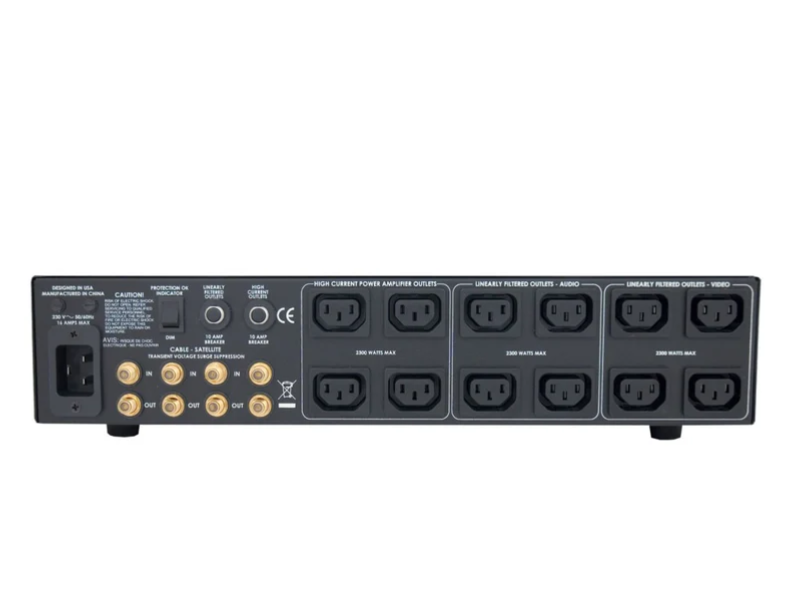

Outlets	4 (ultra-linear filtered outlets) 4 (ultra-linear filtered outlets with additional bi-directional ultrasonic filtering for each analog or video components bank) 4 (Power Factor Technology amplifier outlets – 9 amps RMS reserve – resistive load – 55 amps peak charge)
Transient Voltage Surge Suppression	230 VAC (Series Multi-Stage Protection, non-sacrificial with Zero Ground Contamination, 266V peak clamping @ 6000V 3000A input) Cable / Satellite (less than .1dB insertion loss)
Dimensions	101.6mm H x 431.79mm W x 374.65mm D (Standard 2 RU height without feet)
Weight	8.16 kg.
Power Consumption	12 Watts for display and control circuits independent of actual load.
