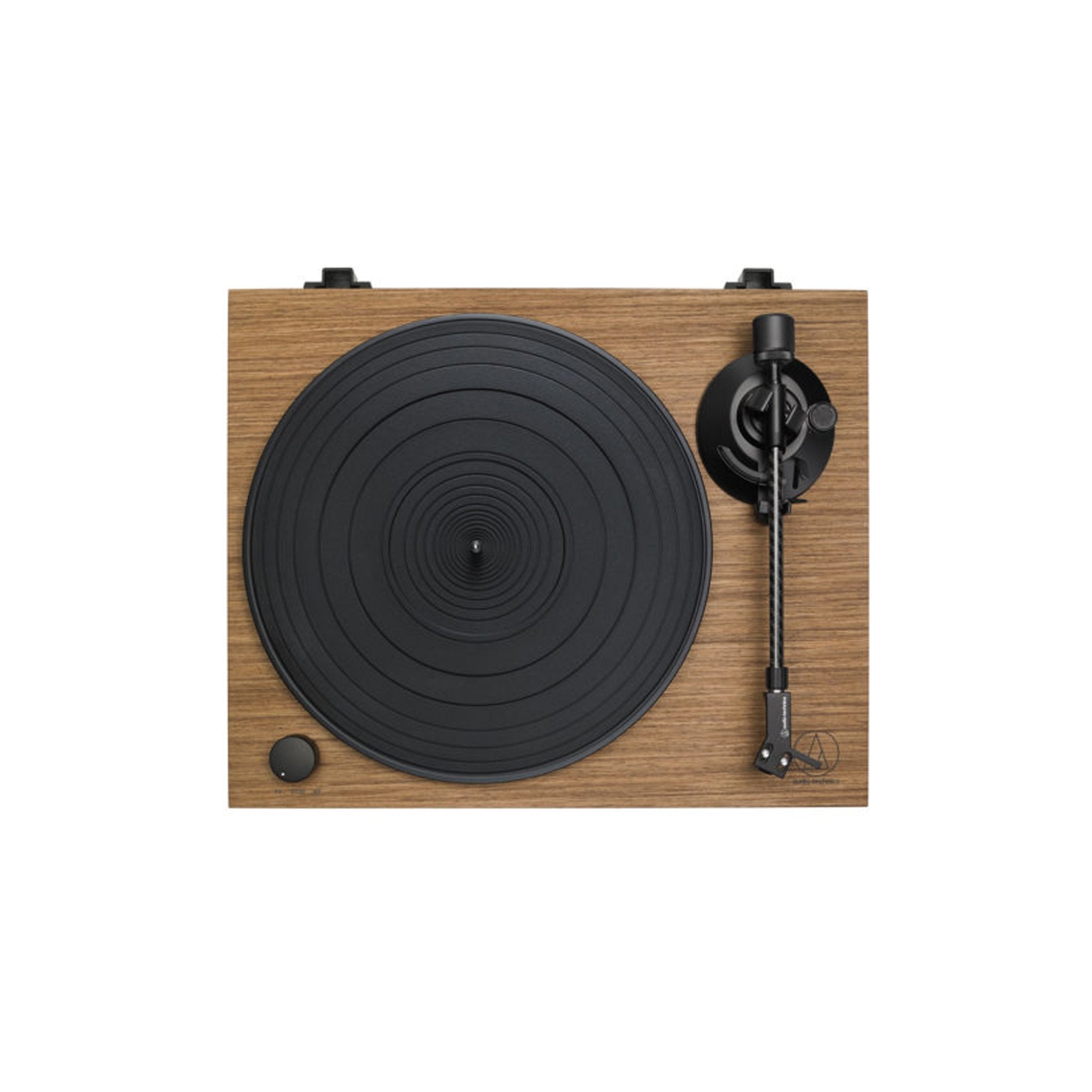

AT-LPW40WN Turntable
AT-LPW40WN Turntable
Fully Manual Belt-Drive Turntable
The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.
The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½”-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminium platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
Our team at Brisbane HiFi offers installation and guidance services.
Specification
Type |
2-speed, fully manual operation |
Motor |
DC servo motor w/speed stability control |
Drive Method |
Belt drive |
Speeds |
33-1/3 RPM, 45 RPM |
Turntable Platter |
Die-cast aluminium |
Wow and Flutter |
0.15% (WTD) @ 3 kHz (JIS) |
Signal-to-Noise Ratio |
>60dB |
Output Level |
Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec |
Phono Pre-Amp Gain |
35 dB nominal, RIAA equalized |
Power Supply Requirements |
100-240V AC, 60 Hz |
Power Consumption |
1 W |
Dimensions |
420.0mm W x 340.0mm D x 116.9mm H |
Weight |
4.7kg |
Accessories Included |
AT-VM95E phono cartridge; AT-HS4 headshell; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; rubber mat; dust cover; 45 RPM adapter |
Tonearm type |
Balanced straight tonearm with detachable headshell |
Effective arm length |
223.6mm |
Overhang |
18.6mm |
Tracking error angle |
<2 degrees |
Applicable cartridge weight |
12-17g |
Anti-skating range |
0-3g |
Replacement Stylus |
AT-VMN95E |
