LP120-USB Turntable

This professional stereo turntable features a high-torque direct-drive motor for quick start-ups and a USB output that connects directly to your computer. Other features include: forward and reverse play capability; cast aluminum platter with slip mat and a start/stop button; three speeds 33/45/78; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% or +/-20% adjustment ranges; and removable hinged dust cover. A selectable internal stereo phono pre-amplifier allows the turntable to plug directly to components with no dedicated turntable input. A USB cable and adapter cables are included along with Mac- and PC-compatible Audacity software to digitize your LPs.

Our team at Brisbane HiFi offers installation and guidance services.

Specifications

• USB output—connects directly to your computer for plug-&-play use
• Mac- and PC-compatible Audacity software digitizes your LPs
• Direct drive high-torque motor
• Selectable 33/45/78 RPM speeds
• Professional cast aluminum platter with slip mat

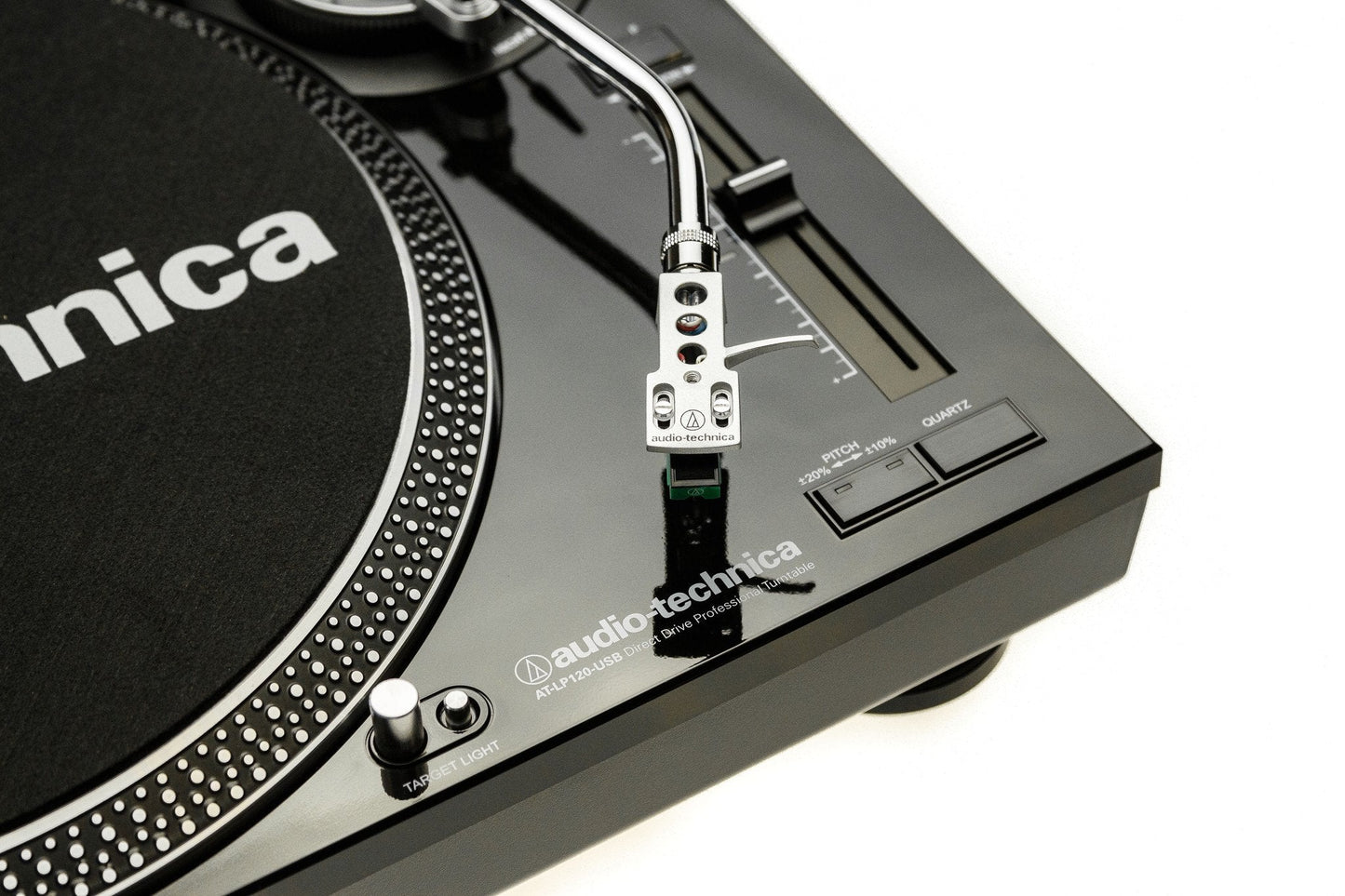

• Balanced tone arm with soft damping control
• Switchable built-in pre-amplifier with line-level RCA output cables
• Included cables connect to your stereo or powered speakers
• Stroboscopic platter speed indicator

Type
3-speed, fully manual operation

Motor
DC motor

Drive Method
Direct drive

Speeds
33-1/3 RPM, 45 RPM, 78 RPM

Pitch Variation
+/-10% or +/-20%

Turntable Platter
Die-cast aluminum

Starting Torque
>1.6 kgf-cm

Braking System
Electronic brake

Wow and Flutter
<0.2% WRMS (33 RPM)

Signal-to-Noise Ratio
>50 dB

Output Level
Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 150 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain
36 dB nominal, RIAA equalized

USB Function
A/D, D/A – 16 bit 44.1 kHz or 48 kHz USB selectable;
Computer interface – USB 1.1 Compliant Windows XP, Vista or MAC OSX

Power Supply Requirements
115/230V AC, 60/50 Hz

Power Consumption
11W

Dimensions
450.0 mm (17.72″) W x 352.0 mm (13.86″) D x 157.0 mm (6.1″) H

Weight
10.7 kg (23.5 lbs.)

Accessories Included
Headshell/cartridge; AC line cord; dual RCA (female) to 3.5 mm (1/8″) mini-plug (male) stereo adapter cable; dual RCA (female) to 3.5 mm (1/8″) mini-plug (female) stereo adapter cable; 45 RPM adapter; USB cable; recording software

Now available in silver and gloss black
