Iconic Suspended Belt-Drive Turntable | Brisbane HiFi Audio Specialist

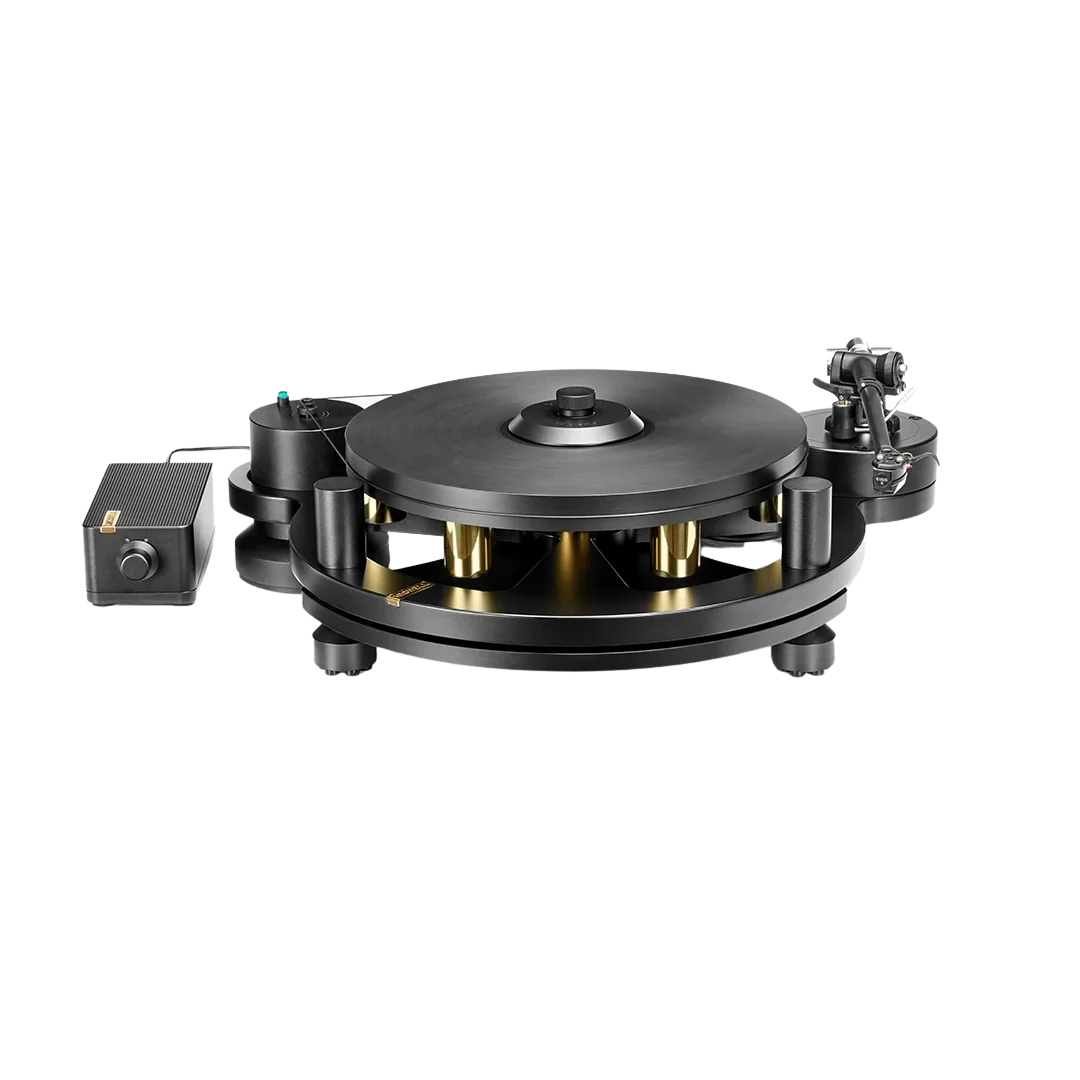

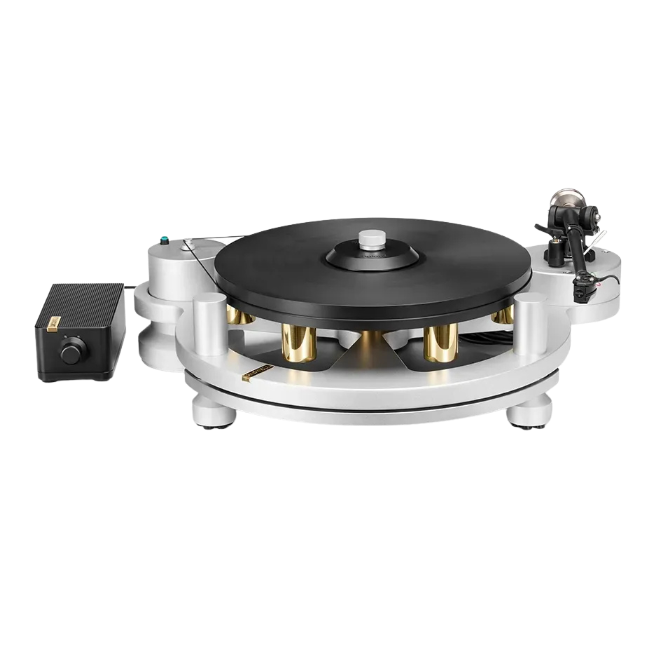

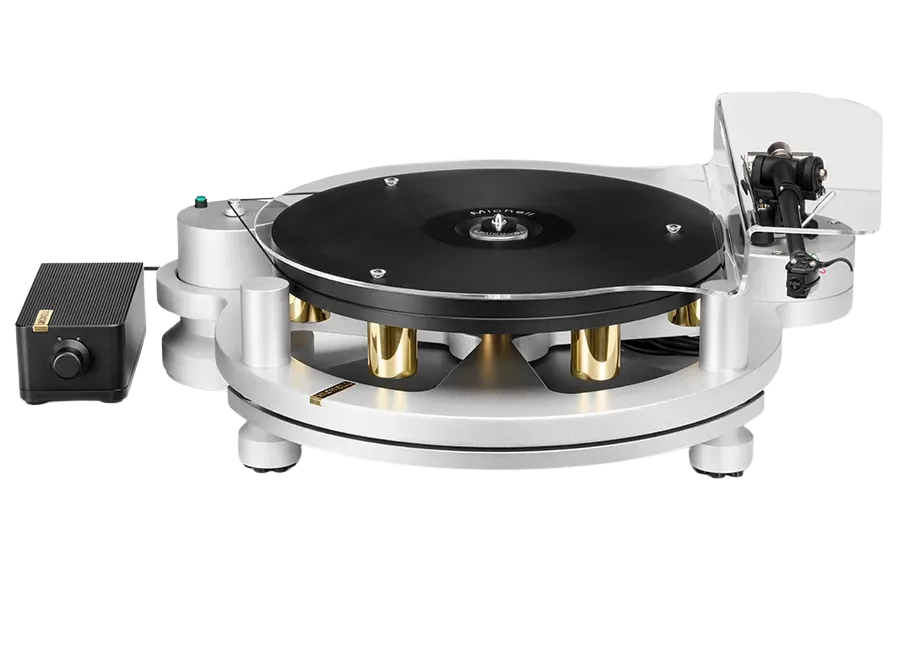

The Michell Gyro Reference Turntable is a precision-engineered British belt-drive turntable designed for serious vinyl playback. The Gyro's distinctive suspended architecture separates the platter, tonearm, motor, and support structure into carefully controlled mechanical elements, with the goal of reducing unwanted vibration and maintaining stable platter rotation.
The revised platform combines a 19 mm machined aluminium chassis, high-inertia platter, inverted oil-circulating bearing, suspended sub-chassis, isolated motor pod, and dedicated speed control.
At Brisbane HiFi, we recommend the Michell Gyro Reference for vinyl enthusiasts seeking a mechanically sophisticated analogue front end with strong speed stability, low mechanical noise, and a dynamic, neutral presentation.
Key Features & Mechanical Engineering Highlights
Precision-Machined Aluminium Chassis
The turntable uses a substantial 19 mm aerospace-grade aluminium tooling plate as its primary chassis.
Embedded brass damping elements are incorporated into the structure to help control unwanted vibrational energy and mechanical feedback.
High-Inertia Platter with Peripheral Weights
The platter incorporates peripheral brass weights to increase rotational inertia.
The increased mass at the platter perimeter helps the platter resist short-term rotational disturbances and supports stable speed during playback.
Inverted Double-Helix Oil-Circulating Bearing
The Gyro uses an inverted bearing architecture with a double-helix oil-pumping mechanism.
As the bearing rotates, the helical structure circulates lubricant around the thrust area, providing continuous lubrication and controlled mechanical operation.
Re-Tuned Suspended Sub-Chassis
A three-point spring suspension isolates the platter and tonearm assembly from external mechanical disturbances.
The suspension is tuned to approximately 3.5 Hz, with Equilibria lateral damping helping control horizontal movement.
This design is intended to reduce the effects of:
- Footfall vibration
- Floor-borne resonance
- Acoustic feedback
- External mechanical energy
Isolated Freestanding Motor Pod
The DC motor is physically separated from the main chassis and drives the platter via a belt.
The motor pod uses a machined aluminium housing and dedicated electronic speed control for:
- 33⅓ RPM
- 45 RPM
Separating the motor from the platter/tonearm structure helps reduce motor-borne mechanical vibration.
Sorbothane Isolation Base
The turntable is supported through a machined aluminium base structure incorporating Sorbothane isolation feet.
This provides another layer of mechanical isolation between the turntable and its supporting surface.
Product Specifications
| Specification | Michell Gyro Reference |
|---|---|
| Drive System | Belt-Drive via Freestanding Shielded Motor Pod |
| Motor Type | Standalone DC Motor in Machined Aluminium Billet Enclosure |
| Speeds | 33⅓ RPM and 45 RPM with Electronic Speed Control |
| Chassis | 19 mm Aerospace-Grade Aluminium Tooling Plate with Embedded Brass Dampers |
| Suspension | 3-Point Spring System, approximately 3.5 Hz, with Equilibria Lateral Damping |
| Main Bearing | Inverted Mono / Double-Helix Oil-Circulating Bearing |
| Platter | High-Inertia Platter with Peripheral Brass Weights |
| Tonearm Mounting | Universal Cut-Out for Compatible Tonearms |
| Isolation Feet | Precision Sorbothane Damping Feet |
| Dimensions (W × D × H) | Approx. 490 × 375 × 135 mm |
| Net Weight | Approx. 10–14 kg, configuration dependent |
Tonearm & Cartridge Integration
The Gyro Reference is designed to accommodate a range of compatible tonearms, making system matching an important part of the final installation.
Trimira Audio can assist with:
- Tonearm selection
- Cartridge matching
- Cartridge mounting
- Tracking-force adjustment
- Azimuth alignment
- Vertical tracking-angle setup
- Tonearm geometry
- Suspension calibration
The tonearm and cartridge are separate system components and should be selected according to the cartridge's compliance, mass, output, and phono-stage requirements.
Precision Turntable Setup
A suspended turntable can deliver its best performance when carefully levelled and calibrated.
Brisbane HiFi can assist with:
- Chassis levelling
- Suspension adjustment
- Motor-pod positioning
- Belt installation
- Cartridge alignment
- Tracking-force calibration
- Azimuth adjustment
- Tonearm geometry
- Phono-stage matching
Correct setup ensures the mechanical isolation system operates as intended and allows the cartridge to extract the maximum information from the record groove.
Why Choose Brisbane HiFi for Your Analogue Setup?
Brisbane HiFi Analogue Lounge
Visit the Brisbane HiFi showroom to experience the Michell Gyro Reference with carefully matched tonearms, cartridges, phono stages, and amplification.
Precision Setup & Calibration
Our analogue specialists can provide professional turntable setup, including cartridge alignment, tracking-force calibration, azimuth adjustment, tonearm geometry, and suspension tuning.
Australian Support
Brisbane HiFi supports vinyl enthusiasts throughout Queensland and Australia with specialist analogue-system advice, local warranty support, and carefully managed delivery.
What's Included in the Box?
- 1 × Michell Gyro Reference Turntable Assembly
- 1 × Freestanding Motor Pod
- 1 × Motor Connection Cable
- 1 × Outboard Electronic Power Supply
- 1 × Drive Belt
- User Manual
- Official Michell Audio Warranty Documentation
