Ortofon

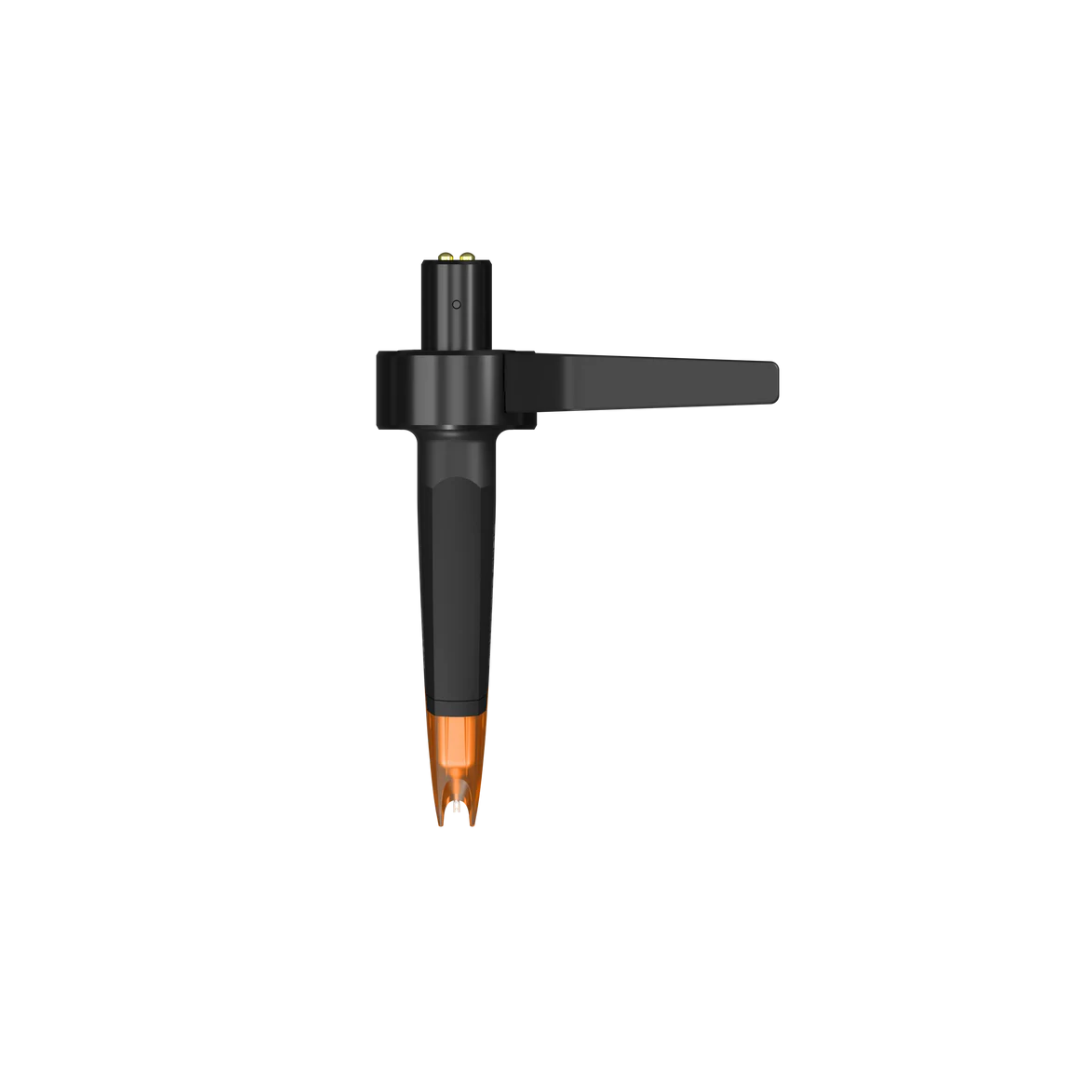

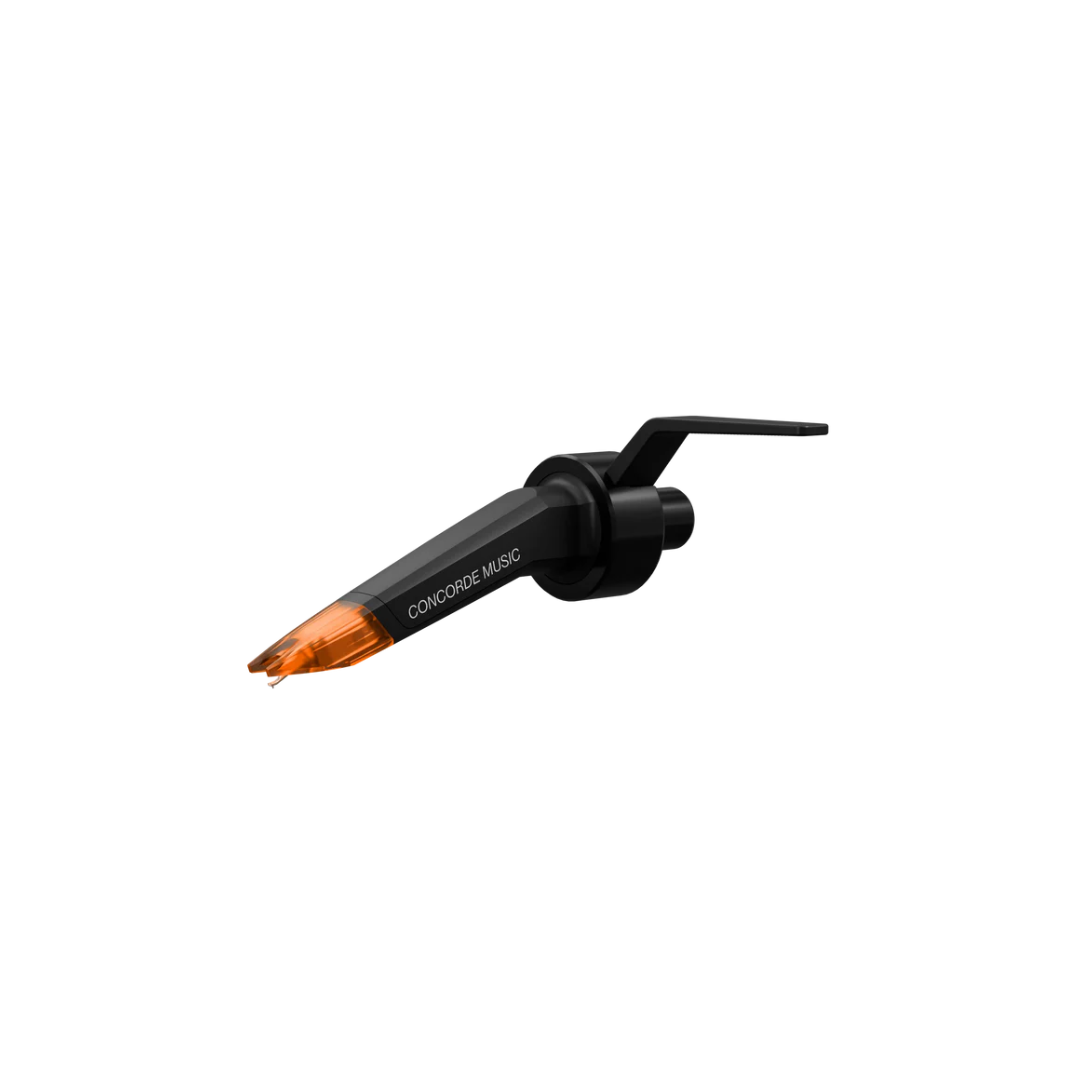

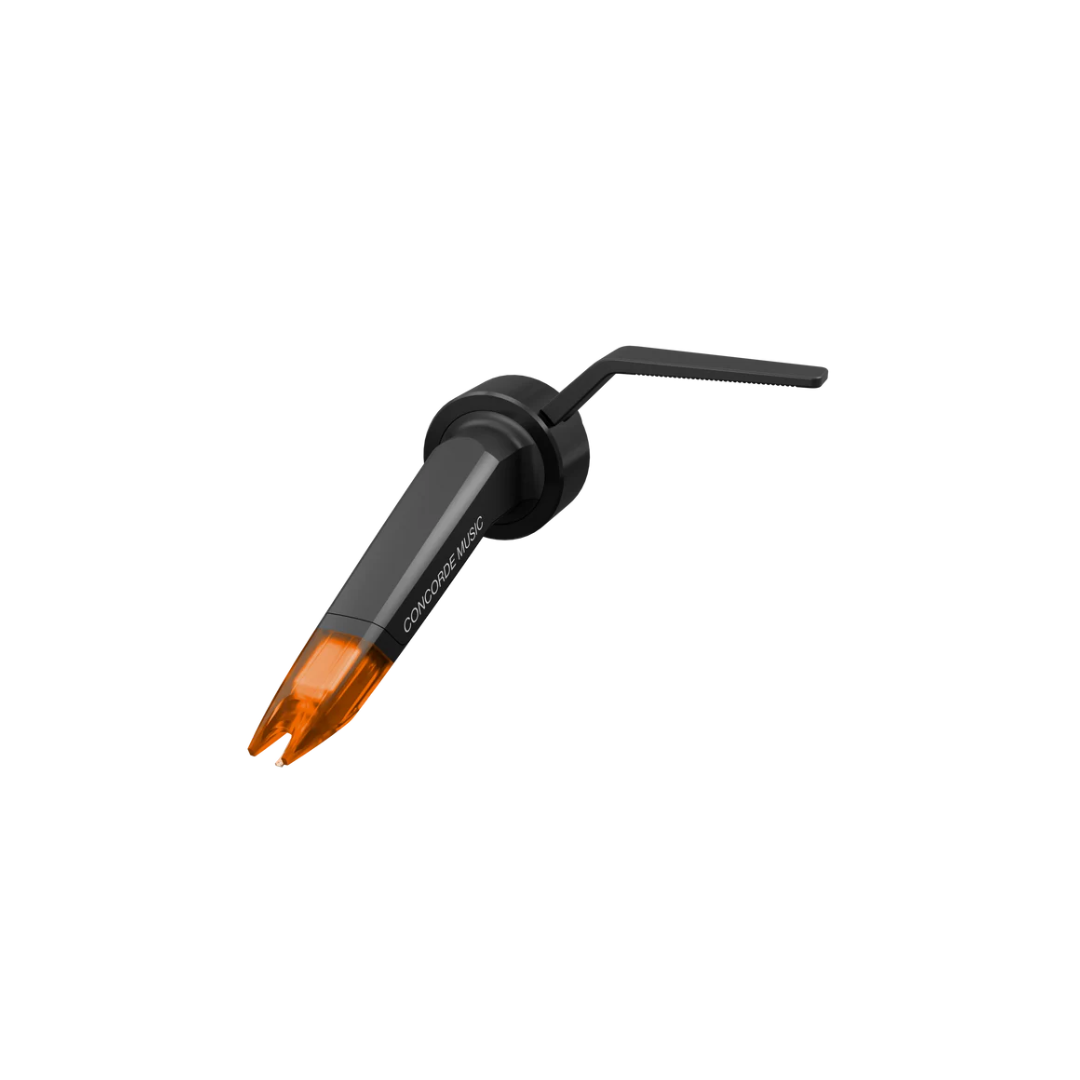

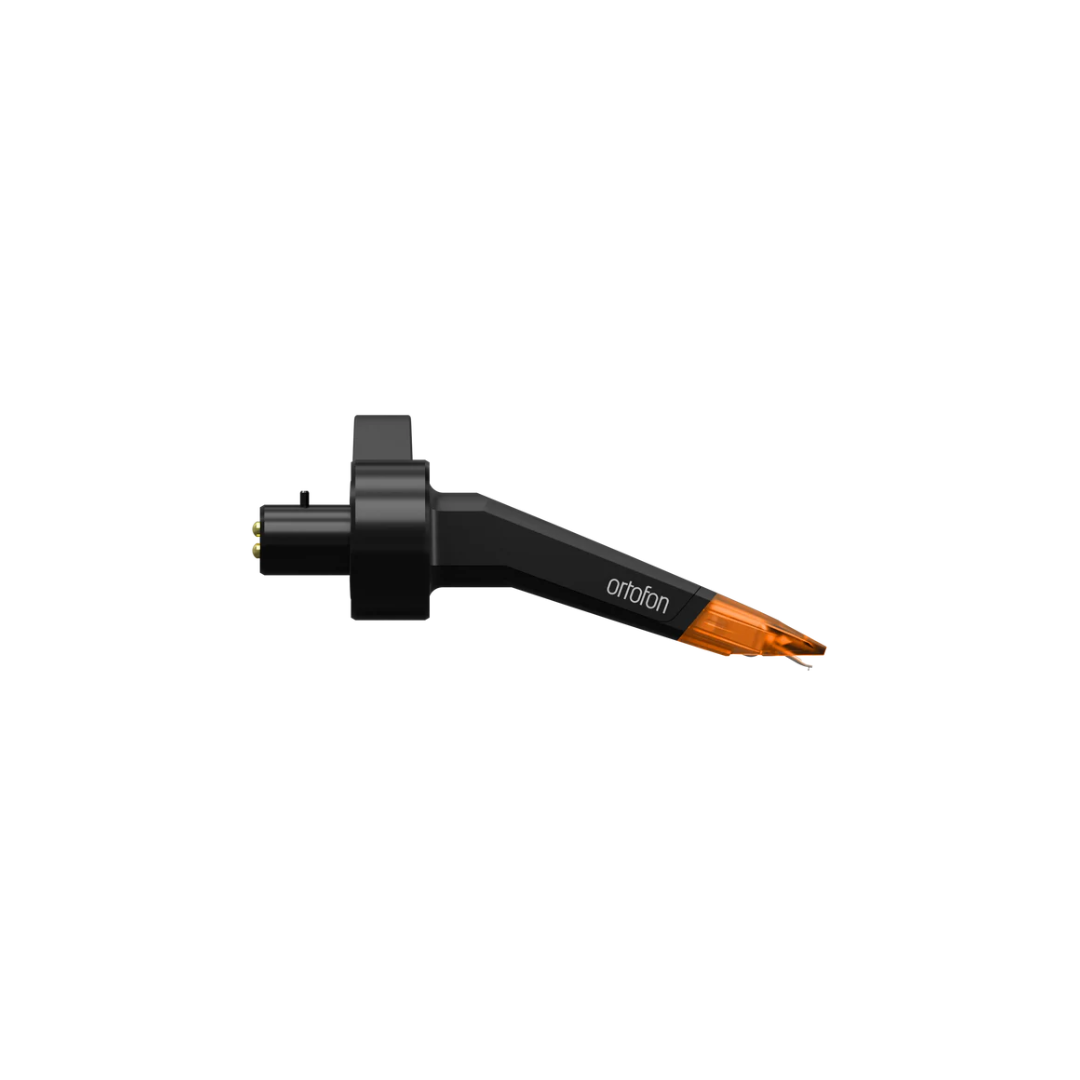

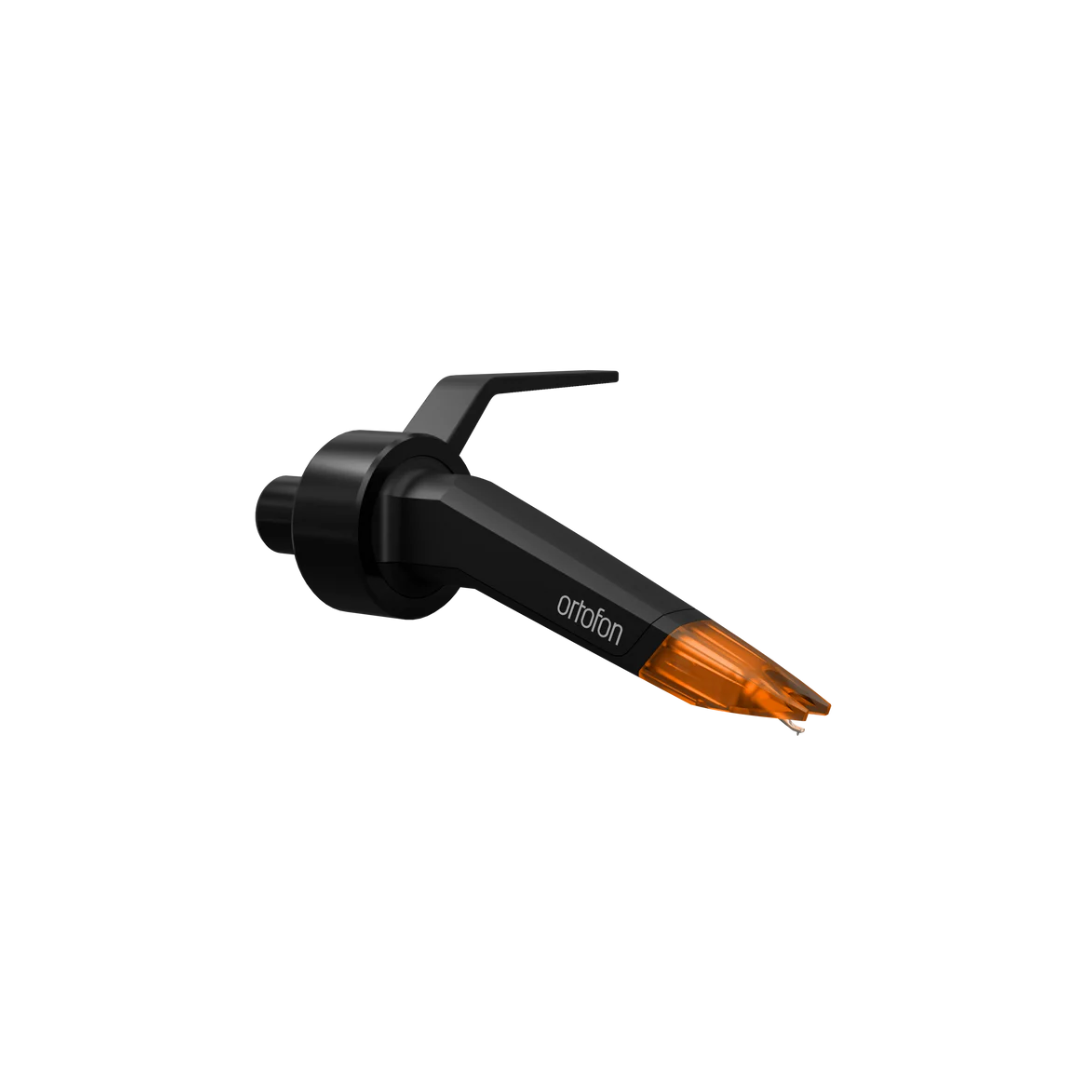

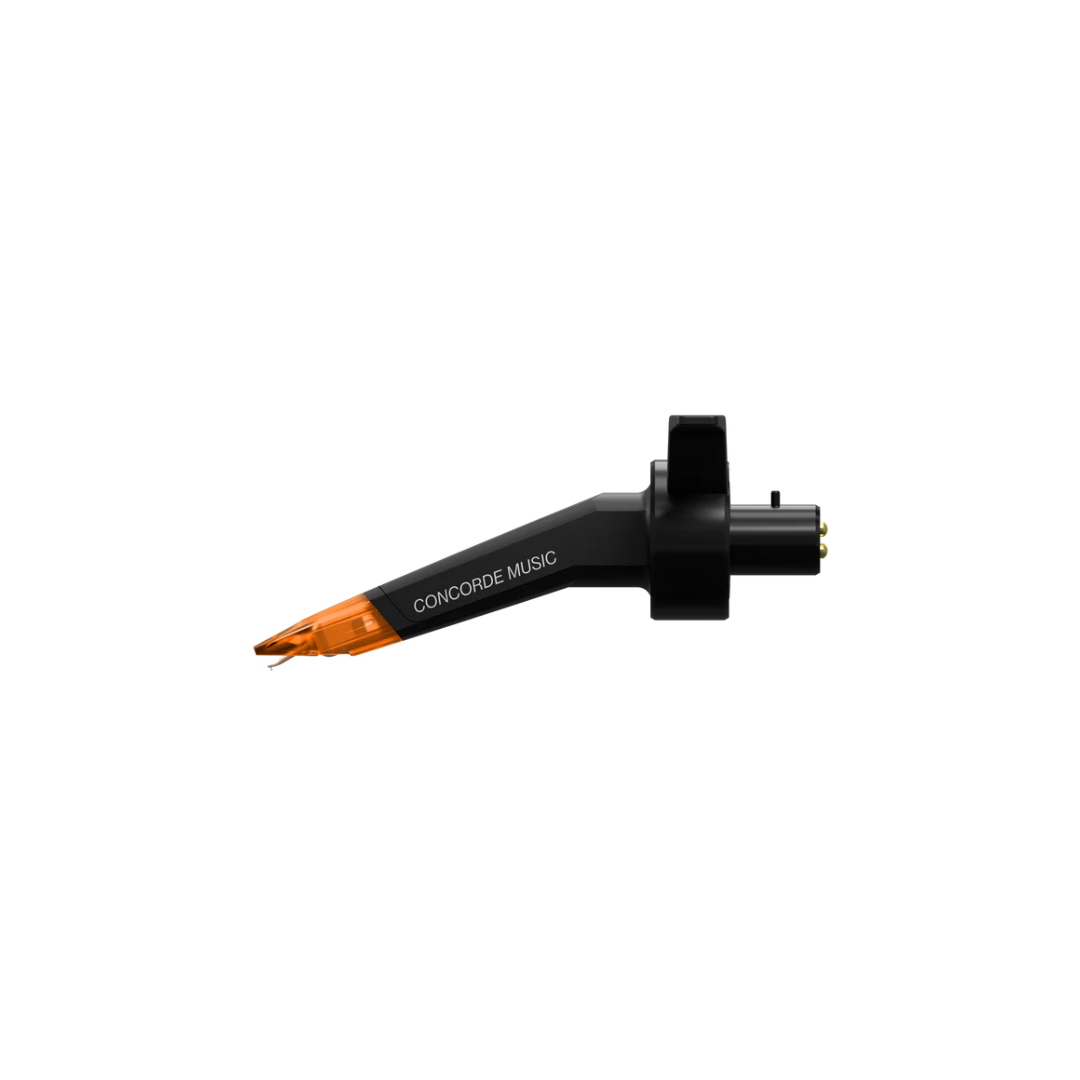

Concorde Music Bronze Moving Magnet Cartridge

Concorde Music Bronze

The Concorde Music Bronze features a Nude Fine Line stylus on Aluminium cantilever, offers an upgrade from the Concorde Music Blue. Enjoy seamless upgrades throughout the series, from your Concorde Music Bronze to the Concorde Music Black LVB 250, simply by replacing the stylus. Experience insightful, high-resolution sound reproduction!

The Concorde Music series

Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Iconic design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Stylus

The Concorde Music Bronze, featuring a Nude Fine Line stylus on an Aluminium cantilever, offers an upgrade from the Concorde Music Blue.

The shape of the Nude Fine Line diamond provides more faithful tracking of the groove. Unlike the Elliptical shape, the Fine Line has a narrower profile, yet its prolonged shape ensures sufficient contact with a wide area of the groove. Experience your music with a whole new dimension of precision.

Rubber suspension

A crucially important and vital part of a phono cartridge overall performance is the stylus rubber suspension.

Exclusive Ortofon rubber compounds are used for the stylus suspensions in the Concorde Music Blue, carefully produced at the inhouse rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.

Coil system

The Concorde Music features Ortofon's quad-coil generating system with four split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.

This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.

Compatibility

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.

Upgradeability

The Concorde Music Bronze can be replaced or upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.

Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.

Specifications:

• Channel balance at 1 kHz: 1 dB
• Output voltage at 1 kHz, 5cm/sec: 6mV
• Channel separation at 1 kHz: 26 dB
• Channel separation at 15 kHz: 17 dB
• Frequency response 20 Hz - 20 kHz: +2 / 0 dB
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 15 µm/mN
• Stylus type: Nude Fine Line diamond on Aluminium cantilever
• Stylus tip radius: r/R 8/40 µm
• Tracking force, recommended: 1.8 g
• Tracking angle: 20°
• Internal impedance, DC resistance: 1.27 kΩ
• Cartridge colour: Black/Bronze
• Cartridge weight: 18 g
• Recommended load resistance: 47 kΩ
• Internal inductance: 815 mH
• Recommended load capacitance: 150-300 pF
