Ortofon

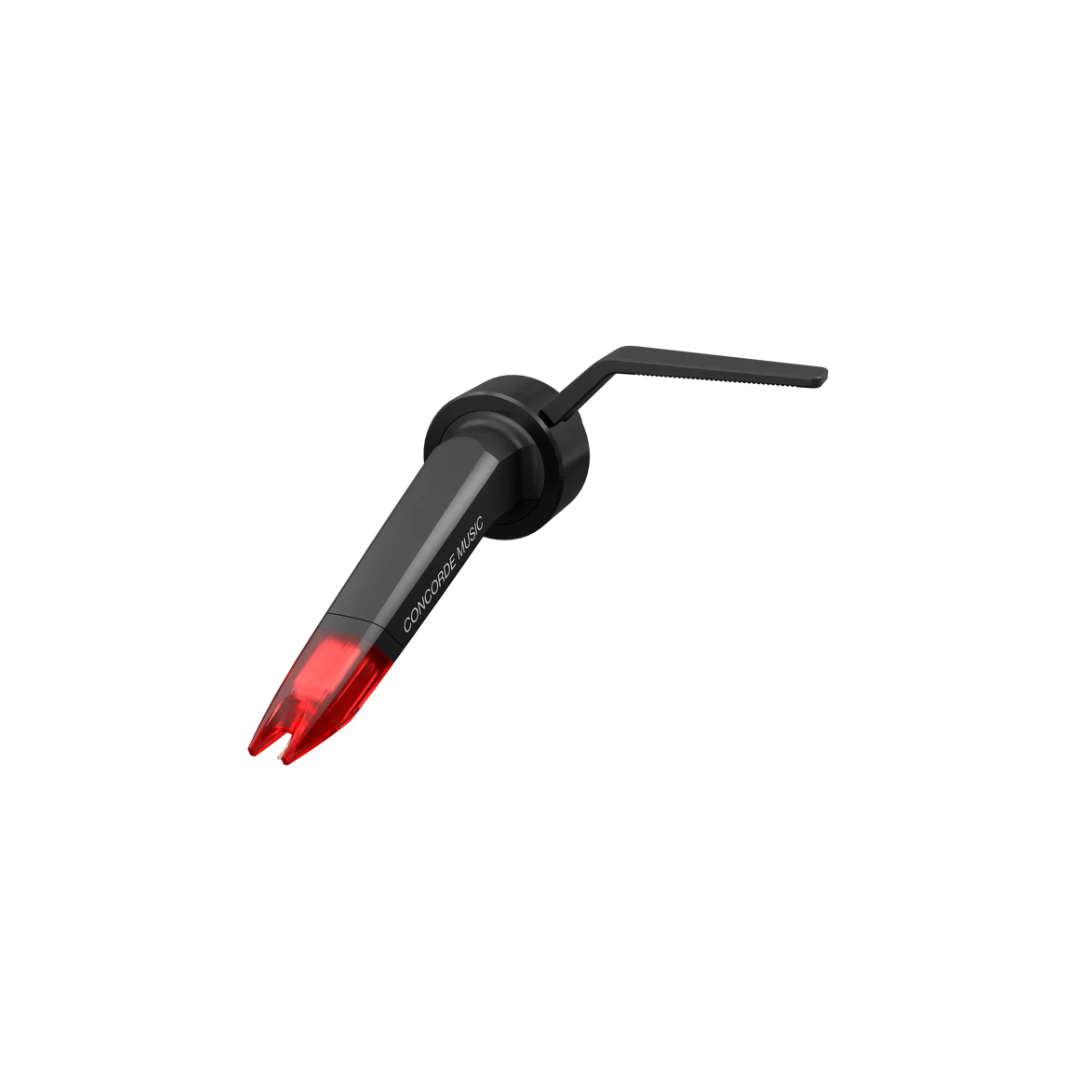

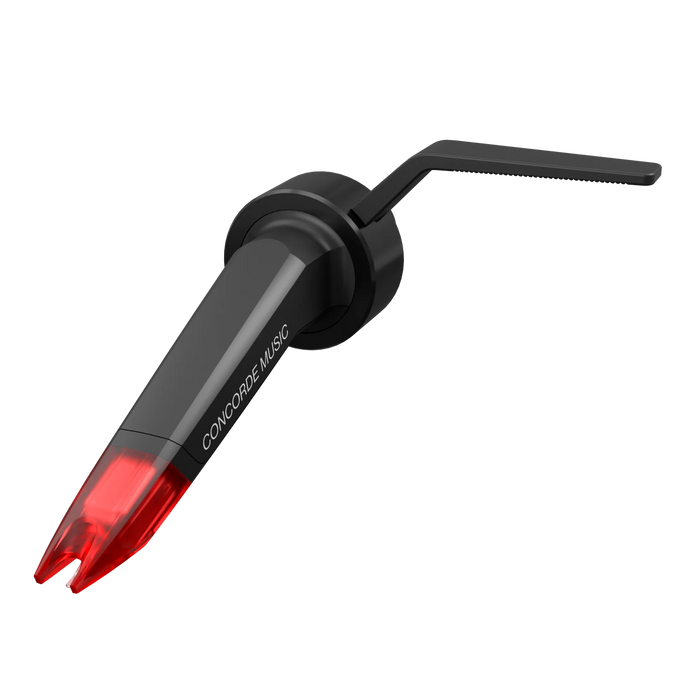

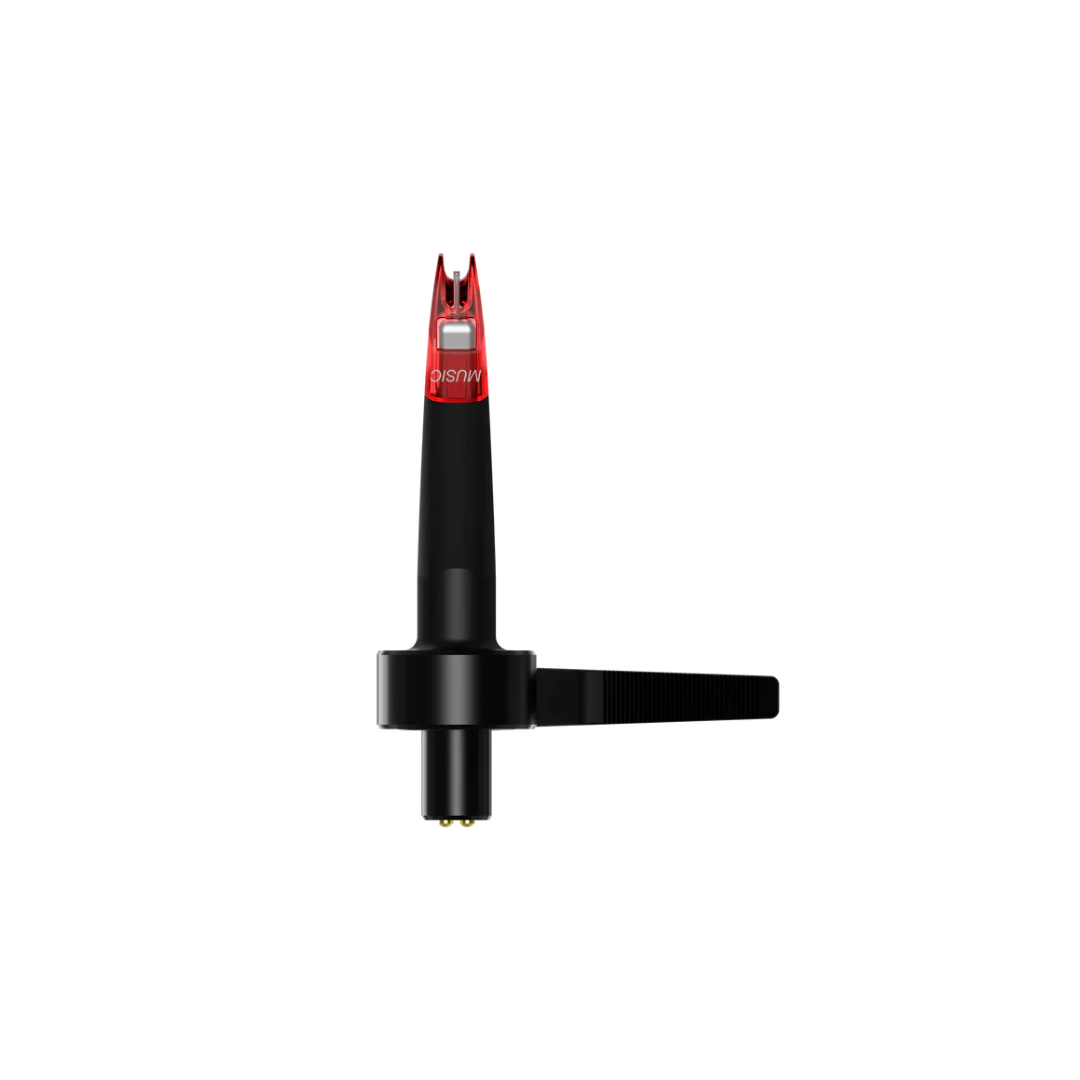

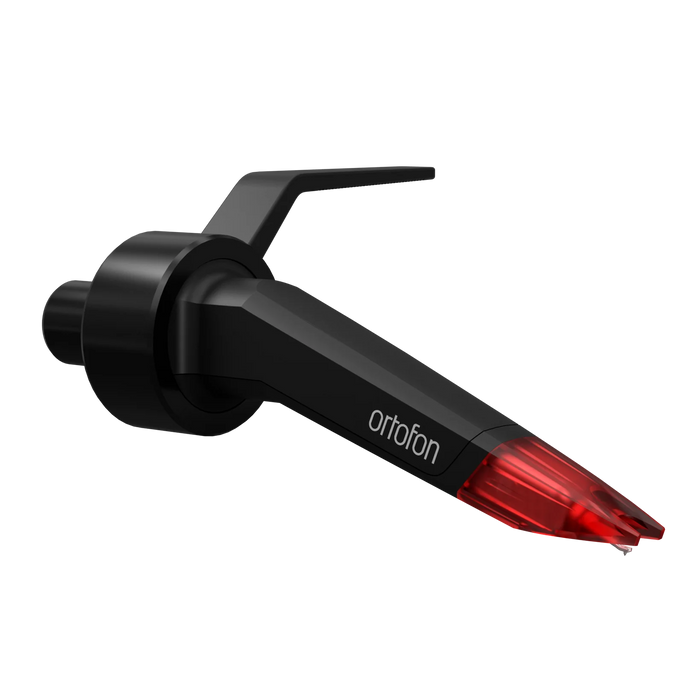

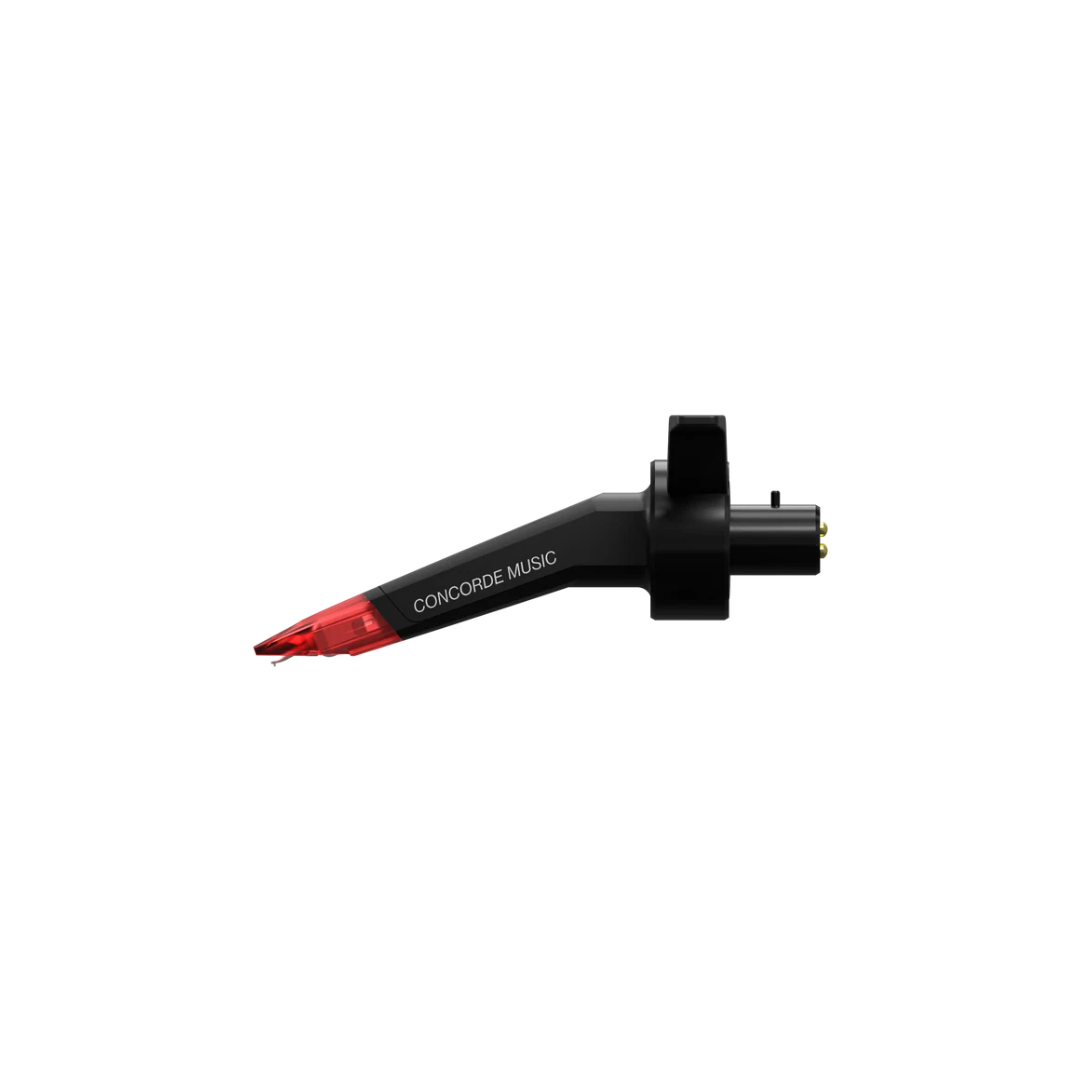

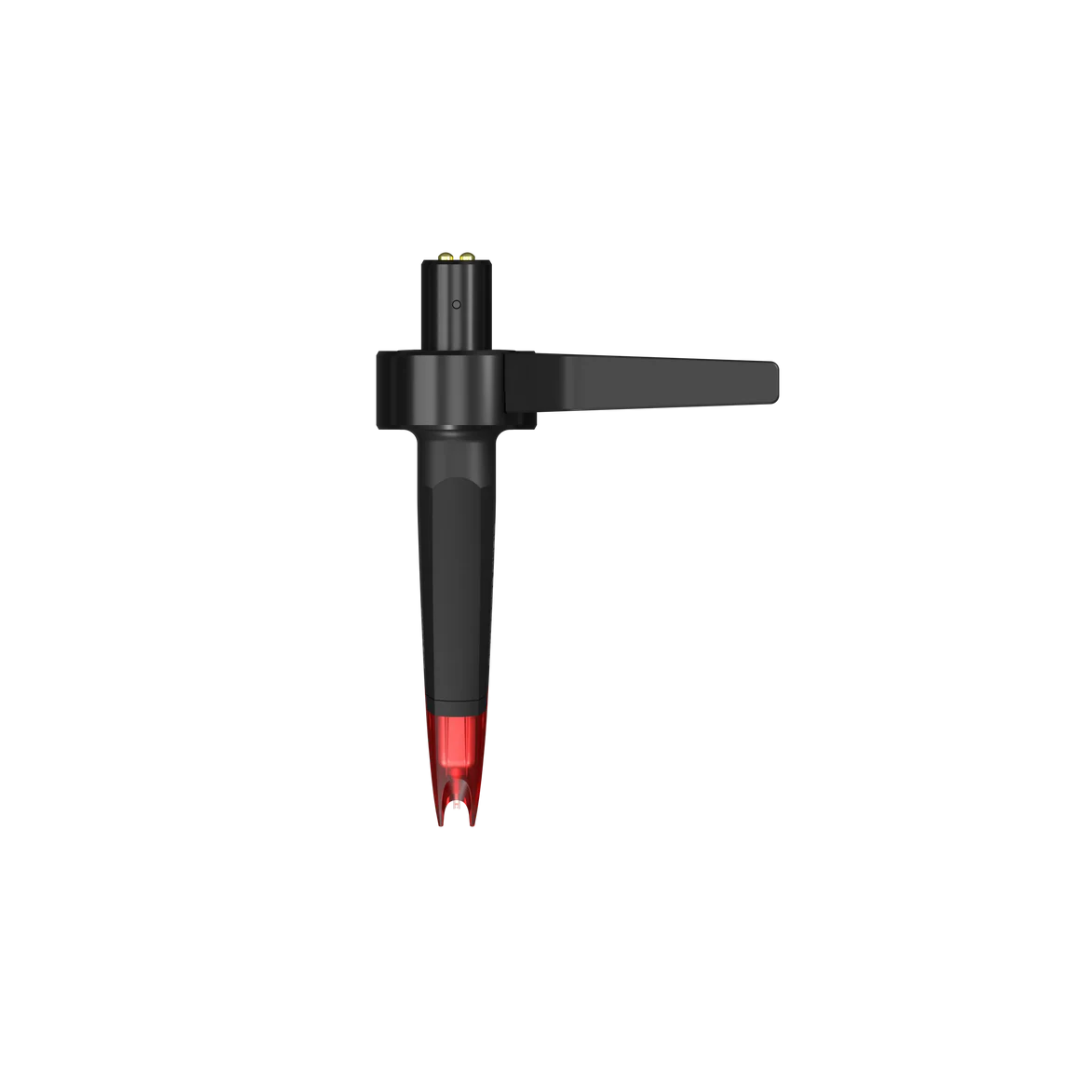

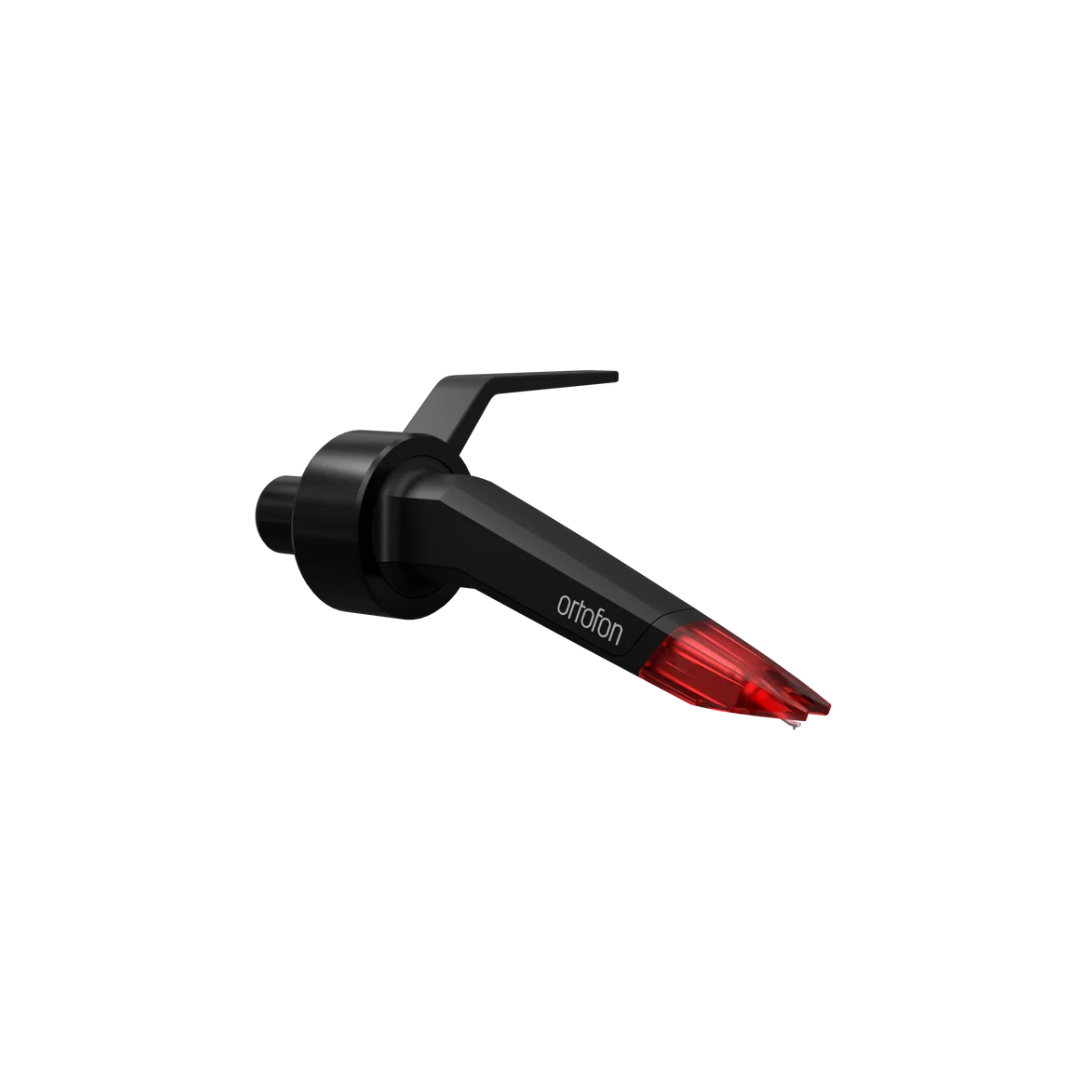

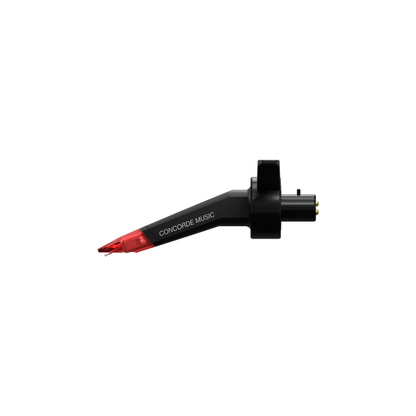

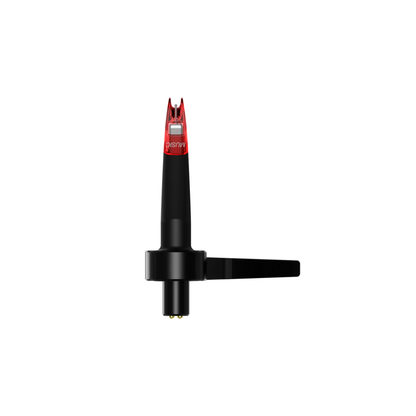

Concorde Music Red Moving Magnet Cartridge

Concorde Music Red

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

The Concorde Music series

Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Iconic design

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio.

Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Stylus

The Concorde Music Red features an Elliptical diamond polished to the highest standards of the industry, mounted on a premium aluminum cantilever. This ensures the best possible transmission of the vinyl record groove modulations picked up by the diamond.

Rubber suspension

A crucially important and vital part of a phono cartridge overall performance is the stylus rubber suspension.

Exclusive Ortofon rubber compounds are used for the stylus suspensions in the Concorde Music Blue, carefully produced at the inhouse rubber production, and developed by the research and engineering team at Ortofon for brilliant performance.

Coil system

The Concorde Music features Ortofon's quad-coil generating system with four split pole pins. Silver-plated oxygen-free copper is chosen for the quad-coil system, along with four Ortofon split pole pins.

This results in exceptional channel balance and separation, delivering precise and dynamic sound. With a 6 mV output, it offers lifelike sound with exceptional clarity and fidelity, capturing every detail.

Compatibility

Installing the Concorde Music cartridge on your turntable is easy and straightforward; no tools are required, making it hassle-free and convenient for all users. This is thanks to the bayonet connector, which makes it compatible with all S-shaped tonearms.

Upgradeability

The Concorde Music Red can be upgraded with all Concorde Music styli, enabling an upgrade path throughout the entire series up to the Concorde Music Black LVB 250.

Upgrading the stylus is a simple task; simply pull the stylus off and replace it with the new one. Remember to keep the stylus guard on when installing the new stylus to keep the needle safe.

Specifications:

• Channel balance at 1 kHz: 1.5 dB
• Output voltage at 1 kHz, 5cm/sec: 6mV
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency response 20 Hz - 20 kHz: +3 / -1 dB
• Tracking ability at 315Hz at recommended tracking force: 80 µm
• Compliance, dynamic, lateral: 15 µm/mN
• Stylus type: Elliptical diamond on Aluminium cantilever
• Stylus tip radius: r/R 8/18 µm
• Tracking force, recommended: 1.8 g
• Tracking angle: 20°
• Internal impedance, DC resistance: 1.27 kΩ
• Cartridge colour: Black/Red
• Cartridge weight: 18 g
• Recommended load resistance: 47 kΩ
• Internal inductance: 815 mH
• Recommended load capacitance: 150-300 pF

Reviews

"It’s a versatile choice for vinyl lovers at every stage, offering an easy introduction to premium sound while paving the way for future upgrades."

- Read The Audio Tailor review here.
