Ortofon

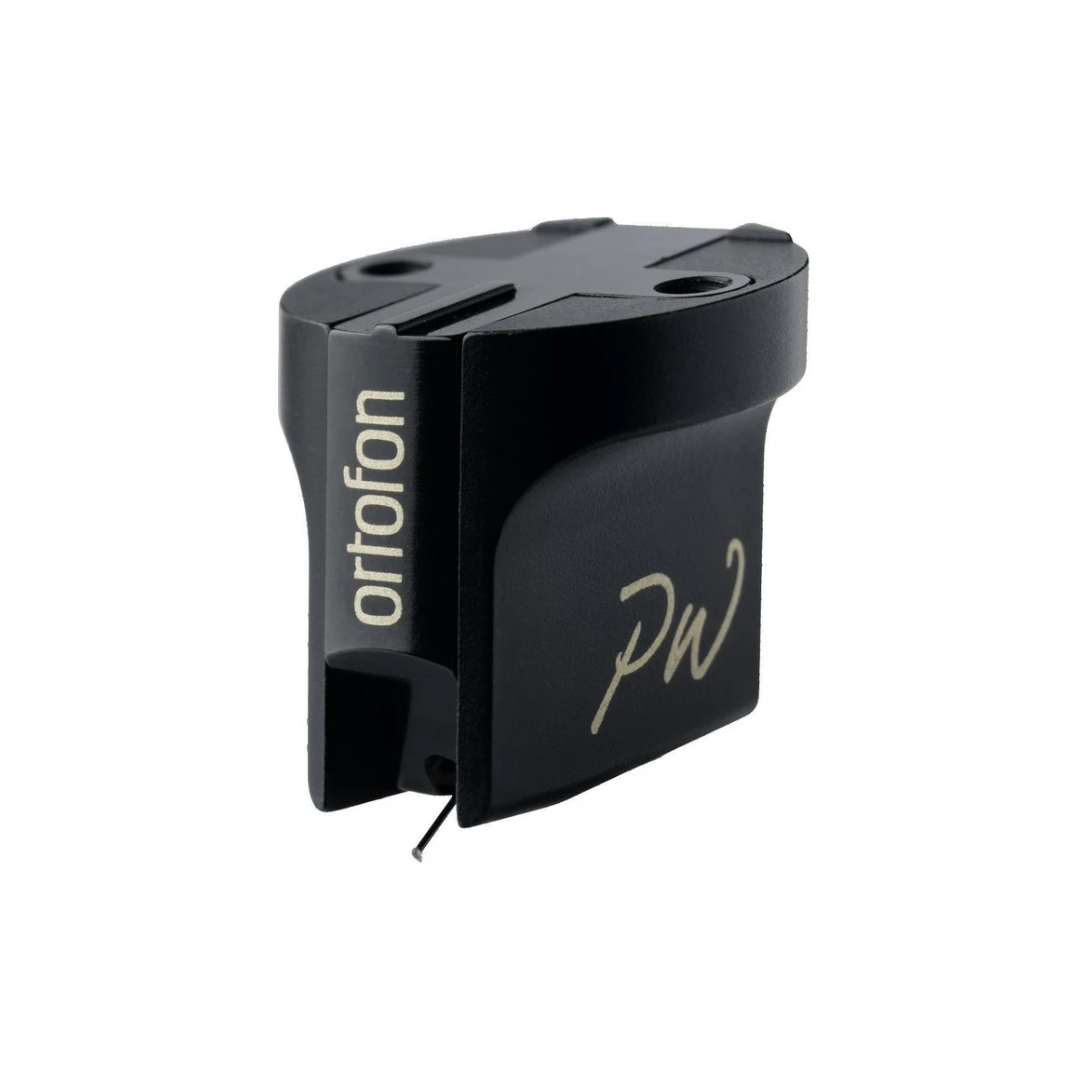

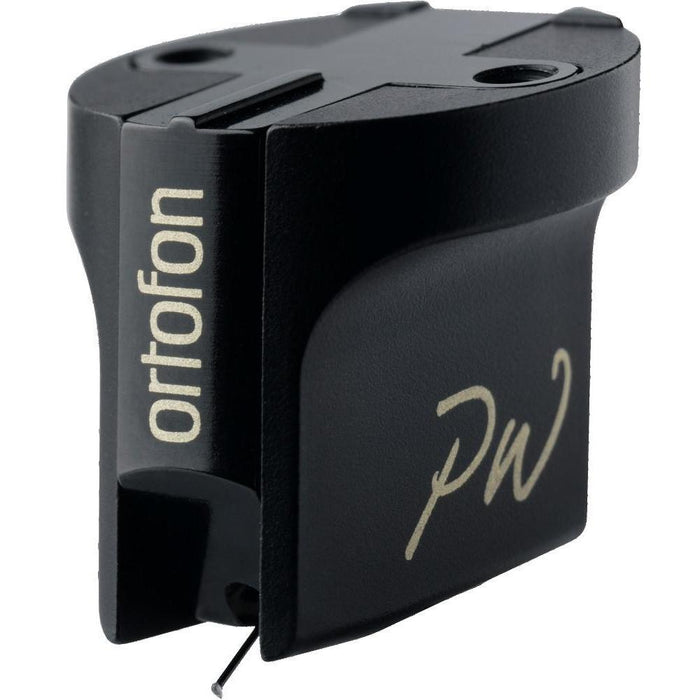

Ortofon MC Windfeld Cartridge
Ortofon MC Windfeld Cartridge
픽업 사용 가능 여부를 로드할 수 없습니다.
Ortofon
MC Windfeld Cartridge
Unveiling the Royal Jewel of Sound Technology: Ortofon MC Windfeld Cartridge
Experience music like never before with the Ortofon MC Windfeld cartridge. This flagship moving coil cartridge is designed to redefine your music experience, combining impeccable artistry with state-of-the-art technology. It is the result of Ortofon's continuous pursuit of excellence in sound reproduction and a true testament to the triumphant legacy of Per Windfeld, Ortofon's retiring development chief.

Key Features
- Optimum Performance: The MC Windfeld provides the ultimate sound experience with its advanced design and use of superior materials.
- Superior Materials: Featuring a carefully carved diamond, 99.999999% oxygen-free monocrystalline copper coils, a neodymium magnet with a Field Stabilising Element, and gold-plated initials of Per Windfeld.
- Innovative Design: Mechanical rigidity and freedom from resonance ensure perfect integration with the pickup arm for optimal sound quality.
- Zero-loss transmission: Seamless transmission of the diamond's movements to the Aucurum coils through the boron cantilever.
- Wide Frequency Range: Linear reproduction with a wide frequency range and optimal tracking performance.
- High Output: Low output impedance of 4 ohm and medium output voltage of 0.3 mV.
Benefits
- Upgrade your Listening Experience: Feel every beat and live every note with a profound auditory performance.
- Experience Perfection: Harmony between science and art achieved through superior materials and state-of-the-art technology.
- Assurance of Quality: Ortofon's long history and dedication to excellence guarantee utmost quality and reliability.
- High Performance: Greater dynamics and depth in sound thanks to unique features and advanced design.
- Enhanced Durability: Boron and a sturdy neodymium magnet ensure long-term durability.
- Versatility: Compatible with most step-up transformers and active MC pre-amps for easy integration with existing setups.
- Improve Record Tracking: Excellent record tracking accuracy for the best vinyl experience.
- High-End Aesthetic: Gold-plated initials add a touch of elegance to your sound system.
Specifications
| Specifications | Details |
|---|---|
| Product | Ortofon - MC Windfeld - Cartridge |
| Output voltage | 0,3 mV at 1000Hz, 5cm/sec |
| Channel balance | < 0,2 dB at 1 kHz |
| Channel separation | > 28 dB at 1 kHz; > 22 dB at 15 kHz |
| Frequency range | 10-80.000 Hz at -3dB |
| Frequency response | FIM distortion at recommended 20-20.000 Hz + / - 1 dB |
| Tracking ability | 100 µm at 315Hz at recommended tracking force |
| Compliance, dynamic, lateral | 16 µm/mN |
| Stylus type | Nude Ortofon Replicant 100, special polished |
| Stylus tip radius | r/R 5/100 µm |
| Tracking force range | 2,3-2,8 g (23-28 mN) |
| Recommended tracking force | 2,6 g (26 mN) |
| Tracking angle | 23° |
| Internal impedance, DC resistance | 4 Ohm |
| Recommended load impedance | > 10 Ohm |
| Cartridge body material | Stainless steel/special alloy |
| Cartridge colour | Black/Black |
| Cartridge weight | 13 gram |
Review
"The exceptional part of this cartridge is that the listener can play nearly every album in his catalog and not be bothered by any off-putting sins of commission that make music-listening uncomfortable."
Read full review by The Absolute Sound.
"..it makes no apologies or excuses as far as delivering a stunningly neutral, clean, and liquid sound."

-
