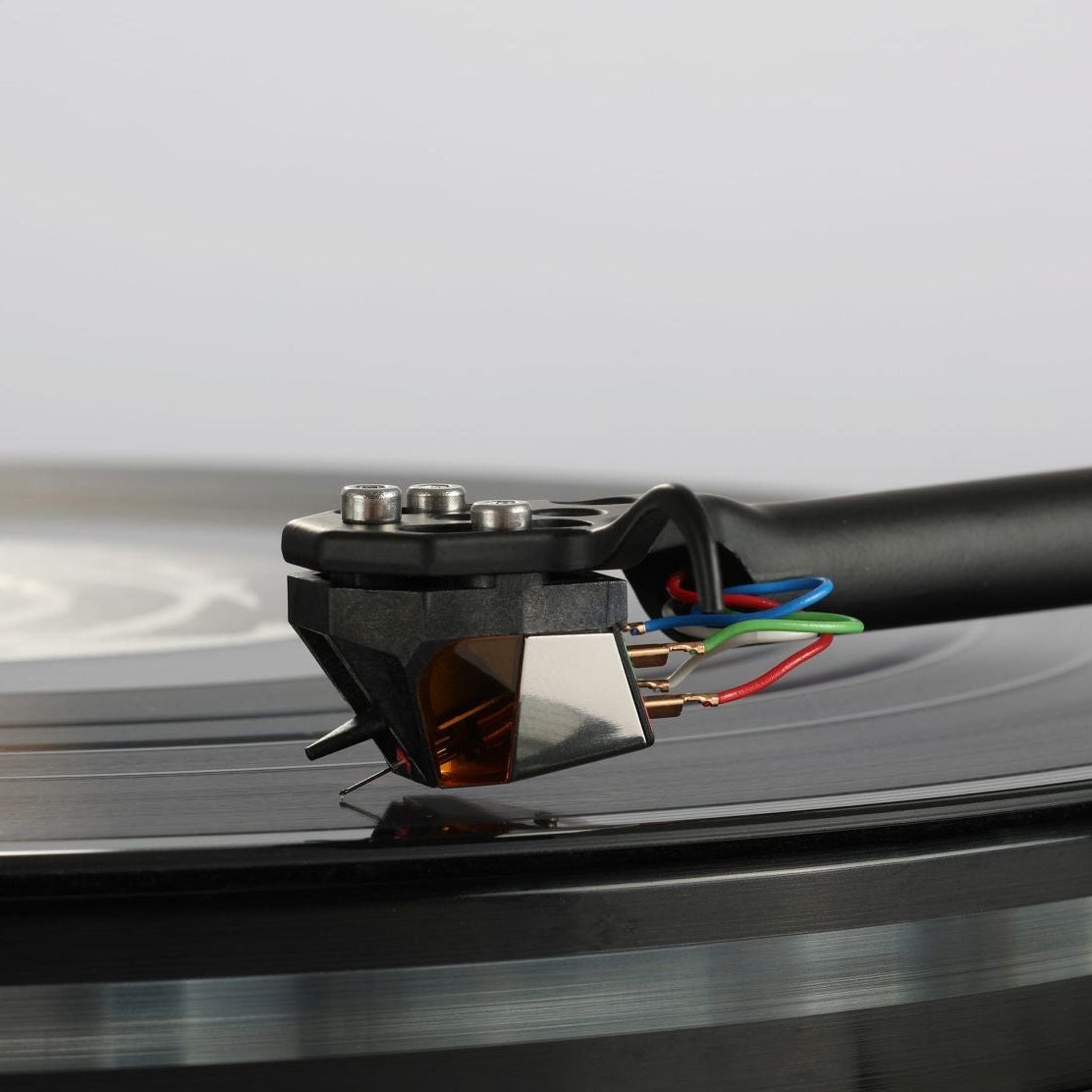

Nd9 Moving Magnet Cartridge

The Nd9 cartridge draws on decades of expertise in cartridge engineering and cantilever design to deliver the highest-performing moving magnet cartridge we have ever produced. The Boron cantilever offers exceptional stiffness and low mass, enabling ultra-fast response and outstanding playback accuracy.

Each Nd9 is meticulously hand-made by our highly skilled technicians. The Nd9 uses our most advanced “fine line” nude diamond profile, bonded to a Boron rod cantilever for maximum musical detail retrieval. This profile has an exceptionally small radii Monocrystalline manmade diamond with the minor radius being just 3µm (microns) as viewed from the top and 30µm in the vertical when viewed from the front. This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved. The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance.

The Nd9 also has an optimised pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with our commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

Key Features

Fine Line nude diamond profile
Boron cantilever
Neodymium magnet
Unique generator
Rega 3 point mounting system
Highly rigid PPS body
Handmade stereo cartridge
100% recyclable packaging
Available factory fitted on the Planar 8 turntable.
Lifetime warranty against manufacture defects

Specifications

Nominal Output Voltage

5-6mV

Stylus

Fine Line nude diamond profile

Cantilever

Boron

Fixing

3 point fixing (for Rega tonearms only)

Coils

Miniaturised parallel coils

Window Colour

Amber

Tracking Pressure

1.75g
