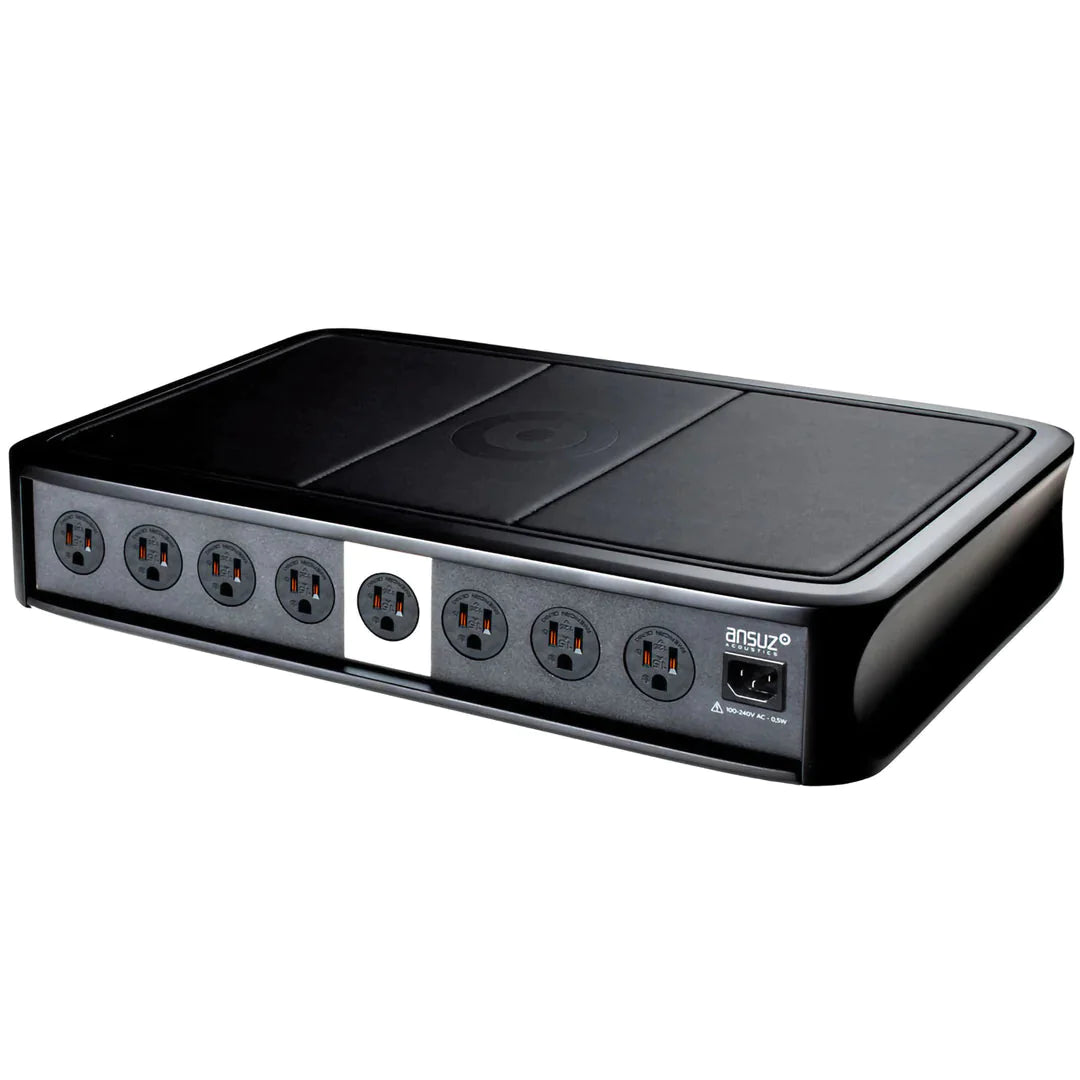

Mainz8 D·TC3 SUPREME Power Distributor
Pickup available at Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
Usually ready in 2-4 days
Mainz8 D·TC3 SUPREME Power Distributor
Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
14 Trafalgar Street
202
Woolloongabba QLD 4102
Australia
Ansuz Mainz8 D·TC SUPREME Power distributor
Specifications
- Best grounding in the market
- Noise reduced 210/220V power supply with 8 outlets (EU or US)
- Design with extremely good mechanical grounding
- Heavily equipped with Ansuz technologies
- Highly efficient shielding
- 10V or 230V power
- Black lacquered composite wooden cabinet
- Non-magnetic steel chassis
Active Cable Tesla Coil
Ansuz Technology
An active coil type that is acting directly on the mains wires.
Active Tesla Coil
Ansuz Technology
This is an active noise suppressing element that rely on Mains spike noise cancellation
Active Square Tesla Coil
Ansuz Technology
This active type of coils is embedded on both sides of the double-sided circuitry board
Analog Dither
Ansuz Technology
This Ansuz technology is responsible for the analog dither we use in a wide range of our products. The dither is adding a very low-level random noise pattern and modulating the noise floor. With this technology, it is possible to hear what is below the noise-floor. Thus, it provides more transparency and a deeper insight into the full content of the recording.
Anti-Arial & Resonance Coil
Ansuz Technology
All cables and cable screens act like antennas. By fitting AARC in our cable structures, we reduce the cables’ ability to absorb airborne RF/EMI. The mechanism of the Ansuz AARC technology is to make sure that the cable has no definitive length. That way, the cable or internal wire cannot act as an antenna. Thus, no standing waves can be absorbed in the cable and infiltrate your audio system.
Internal Resonance Control
Ansuz Technology
With our Resonance control we offer the vibration a way out of the component by mechanically grounding. We call the solution Ansuz Darkz. They can be placed under nearly any component. The optimal result can be achieved by replacing standard feet with Ansuz Darkz Feet and then connection the Darkz Feet to Ansuz Darkz with Titanium or Ceramic balls
LOW IMPEDANCE STAR-GROUNDING SYSTEM
Ansuz Technology
All your components need one - and only one, star grounding point in which all components can exchange their different ground potential. Ansuz Star-grounding System is built into all our Mainz8 power/ground distributors.
THE STRONG HEART OF YOUR MUSIC SYSTEM
The Ansuz Mainz8 power distributors comes in more versions, they all are pinnacle products giving your HiFi-components the very best working conditions. Models differ in design and of caurse in the amount of built-in technologies in each quality level.
Either of the Ansuz Mainz8 power distributors will supply a steady flow of current to even the most demanding High End system. With an massive capacity of grounding through star grounding technology, all models deliver the perfect groundwork for High End performance.
The Ansuz Mainz8 each have 8 dedicated mains outlets and all features the same extremely low impedance star grounding system.
Ansuz Mainz8 power distributors basicly distributes mains power and the effective ground connection and the top levels are packed with technology and the experience we have gained from our work with Audio R&D.
A signature features to all Ansuz power distributors, the outlets are mounted sideways so that the connected cables do not tear up in all directions but can easily be arranged along the floor or behind a rack system. No efforts are spared to achieve a design with soft lines and organic shapes making the Mainz8 power distributors high performing, functional and beautiful at the same time.
Audio R&D work is not something you really can plan, because where is the button for more music…?? So, when we developed our mains cables we became very much aware that the technology package we developed for the cable line really had potential for being mounted inside a mains power distribution unit.
The technology discovered proved incredibly strong in conditioning then mains current to be best the possible for use in HiFi-equipment environments. So we simply had to explore further and develop this line of power distributors.
The Mainz8 unit exploits two different ways of conditioning the mains current, a passive and an active mechanism, the passive coil-based mechanism rounds of noise transients, so your Hifi equipment better deals with transient current noise and an active where the noise spike is sampled and a counter noise transient spike is added to further condition the current to an even lower noise floor for an unmatched clarity and spatial focus.
A counter noise transient spike is added to further conditioning the current.
Mains current noise is delicate matter, if you use too strong tools you also remove the music transients that keeps the music alive. The Mainz8 power distributors parallel way of filtering simply avoids the compression of inductive serial components and let you enjoy the live sensation of music.
ANSUZ NOISE SUPPRESSING TECHNOLOGIES
One of the key points that have been of main concern since the introduction of the first Ansuz Acoustics product have been to bring down the noise floor in any Audio/Video system – without harming the musicality, energy and dynamics. Something that cannot be done with traditional power conditioner designs.
At Ansuz we use different types of coil technologies to noise shape and suppress the noise by countermeasures. Those technologies are scalable, so the more of the different types of coils that are included in a system the lower the noise floor drops and the more darkness, dynamics and details you will experience. Another strong advantage of this technology is that it is also are able to “flow upstream”. For example, if you got an audio/video system with an Ansuz Mainz8 power/ground distributor and you add an Ansuz PowerBox to drive your active Ansuz cables, you will not only be able to get the best performance out of your cables -you will also improve the overall performance of the whole system because the noise cancellation on the mains side have improved a lot by the Mainz8 and the PowerBox working together to suppress noise.
In the Ansuz products you can find several different types of coils, depending on the type of noise that we want to suppress and how efficient we can make them when taking into account the physics and cost.
Ansuz Double Inverted Helix Coil Technology (DIHC)
The Ansuz DIHC technology is basically the way we wind and configure our cables. By making sure that + and - are closely wound in a double Helix pattern, we effectively reduce, by inverse cancellation, inductance to less than half of that of a conventional cable. When placing + and - at the exact same location, induction would be cancelled out completely, but unfortunately, the laws of physics do not allow this. But we bring the + and - wires as closely together as possible, and also wrap them in a double helix position where the two elongated coils tend to cancel out each other’s induction. The result is a cable with an internal wiring that boasts a vanishingly low induction.
Ansuz Passive Tesla Coil technology (P-TC)
This is a passive noise suppressing element that rely on Mains spike noise cancellation. The way they work is to have a double inverted coil connected to the power conductors, when the P-TC dual coil encounters a voltage spike a counter spike is developed in the counter wound section of the P-TC coil. As Noise spikes are pure voltage and carries virtually no charge, the cancelation is quite good, but not 100%. By adding more P-TC coils in parallel the performance increases. And with that the perceived Blackness in the music improves significantly.
Ansuz Active Tesla Coil technology (A-TC)
This is an active noise suppressing element that rely on Mains spike noise cancellation. The way they work is to have a double inverted coil connected to the power conductors, when the A-TC dual coil encounters a voltage spike a counter spike is developed in the counter wound section of the A-TC coil. As Noise spikes are pure voltage and carries virtually no charge, the cancelation is quite good but not a 100%. By adding more A-TC coils in parallel the performance increases. And with that the perceived Blackness in the music improves significantly. The active version is about three to four times more efficient then Passive Tesla Coils.
Ansuz Active Cable Tesla Coil technology (AC-TC)
This is an active noise suppressing element that rely on Mains spike noise cancellation. The way they work is to have a double inverted coil connected to the power conductors, when the AC-TC dual coil encounters a voltage spike a counter spike is developed in the counter wound section of the AC-TC coil. As Noise spikes are pure voltage and carries virtually no charge, the cancelation is quite good, but not 100%. By adding more AC-TC coils in parallel the performance increases. And with that the perceived Blackness in the music improves significantly. So, AC-TC is similar to A-TC. But where the A-TC technology is mounted on the circuitry boards the AC-TC coils are mounted directly around the mains conductors to increase the effect even further.
Ansuz Active Square Tesla Coil technology (AS-TC)
This is an active noise suppressing element that rely on spike noise cancellation. The way they work is to have a double inverted coil connected to the power conductors, when the AS-TC dual coil encounters a voltage spike a counter spike is developed in the counter wound section of the AS-TC coil. As Noise spikes are pure voltage and carries virtually no charge, the cancelation is quite good, but not 100%. By adding more AS-TC coils in parallel the performance increases. And with that the perceived Blackness in the music improves significantly So, AS-TC is similar to A-TC. But where the A-TC technology is mounted on the circuitry boards the AS-TC coils are imbedded in the circuitry board itself. They are not as efficient as the top mounted coils, but they are very compact and more cost efficient.
Ansuz Analog Dither Technology (AD)
The Ansuz AD technology is responsible for the analog dither we use in a wide range of our product, The technology origins in radars where results to most engineers astonishment was better in live situations (in planes, on boats) than in stationary land fixed systems, They concluded that the vibration of the planes and ships aided the aided the radar and sonar performance.. Thus, was the idea of analog dithering born. The dither is added a very low-level random noise, by modulating the noise floor it’s possible to see what’s below it, and thus get a clearer picture of the full content of the recording.
For further information on dither: https://pure.tue.nl/ws/files/3529229/728779.pdf
Ansuz Anti Arial Resonance Coil Technology (AARC)
All cables and cable screens act like antennas, by fitting AARC in our cable structures we reduce the cables ability to absorb Airborne RF/EMI. In the old generation of GSM telephones, we heard the effect of airborne RF being modulated the “dikke-dit dikke-dit” sounds just prior to receiving a phone call, today this noise is even more present. Today the noise is not modulated in the same way, instead it takes on the character of a white haze, reducing the blackness and dynamics in the presentation. The mechanism of the Ansuz AARC technology is to make sure that the cable has no definitive length, that way the cable or internal wire can’t act as an antenna, thus no standing waves can be absorbed in the cable and bleed into your system.
Star Grounding Technology
Most manufactures of High-End cables and accessories have now realized how important it is to have a strong ground network in your system. At Ansuz this is another thing that have hade our attention from the start. All your components need one -and only one, star grounding point in which all components can exchange their different ground potential. This is built into all our Mainz8 power/ground distributors. Naturally, we make sure that this work at its best when wired up with Ansuz power cords. So, all our power cords have heavy gage ground leads, actually up to 10 mm3 – the strongest conductor in any of our cables.
With Ansuz mains/ground distributors and power cords there are no reason or need for separate grounding boxes and network.
Internal Resonance Control
One of the most dept felt philosophies at Ansuz are about mechanical grounding. Every component in an audio/video system vibrates and are sensitive to resonances. Vibrations comes from even the smallest transistor on a circuitry board to the biggest bass drives in loudspeakers. Isolation with soft materials like rubber is a bad idea. The rubber will at first absorb the vibration, but instance later release the energy back into the component. Now out of phase and timing. The result is resonances in your component.
With our Resonance control we offer the vibration a way out of the component by mechanically grounding. We call the solution Ansuz Darkz. They can be placed under nearly any component. The optimal result can be achieved by replacing standard feet with Ansuz Darkz Feet and then connection the Darkz Feet to Ansuz Darkz with Titanium or Ceramic balls.
All Ansuz Mainz8’s, PowerBoxes and PowerSwitches are standard fitted with Ansuz Darkz Feet for easy upgrade. Our two best Mainz8 power/ground distributors – D-TC & D-TC Supreme, even have Darkz build into the chassis to separate the acoustically tuned High Pressure Fiber Boards from the cabinet.
