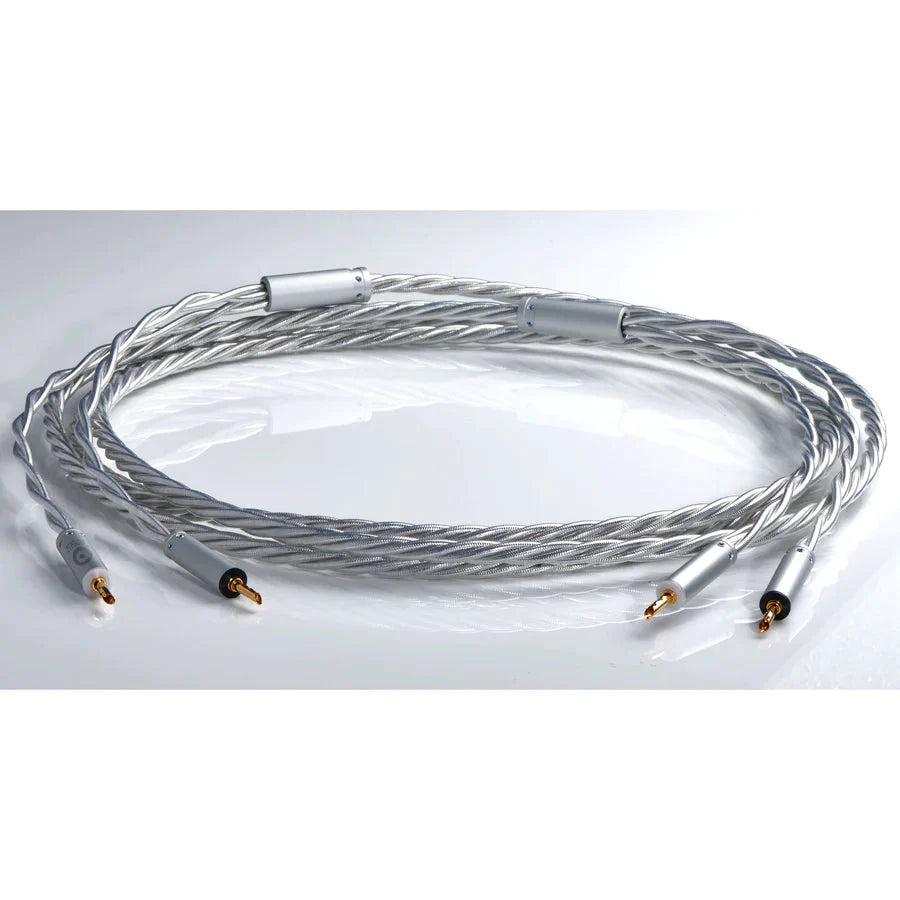

Ansuz X3 Speaker Cables

** Please specifiy spade or BFA termination

A BREATH OF FRESH NEW AIR

All cables in the X-series has been replaced with new upgraded X3 versions.
The new X3 series have the same high-quality aluminum plugs and connectors as the other Ansuz 3-series. Conductors, shielding and insulation materials remains the same, but with the better mechanics in the higher quality of plugs the performance takes a big step upwards.

With the X3 series, Ansuz Acoustics has met a great wish from music lovers and Hi-Fi enthusiasts, who have felt that an Ansuz set-up was a bigger investment than they were willing to make. Even with the strong price/performance ratio of the X3 cables, the compromises are next to non-existent.

The Ansuz X3 cables is made of twisted, shielded, silver-plated copper solid-cores in mechanically stable Teflon insulation.

ANSUZ GROUNDING

THE ESSENTIALS

One of the most important factors that is essential for a great result is to ensure that the your music system system is properly grounded. Ansuz cables include technologies that ensure the best possible grounding.

Ansuz Acoustics has developed a complete range of accessories that will create the ideal environment, beneficial for the performance of your high-end components.

ELECTRICAL GROUNDING

How to set up and optimize your Ansuz Mainz system.

SOUND INVESTMENTS
To get the full potential out of any audio/video system it is crucial that your supply of current is as good as possible. When your electronic components are demanding current from the grid, it is important that nothing is limiting or slowing down the delivery of instant power.
The Ansuz Mainz concept can be designed to match any Hi-Fi or High End system and are upgradable to satisfy even the highest demands.

CABLE LENGTHS MATTERS
Due to the construction of Ansuz cables, you will always get a more positive influence on the sound quality when using longer cables. Obviously, there are limitations to how long cables you want in your system. However, any Ansuz cable in two meter will clearly sound better than a one meter – a four-meter cable performs even better….

QUALITY LEVEL IS SUPERIOR TO CABLE LENGTHS
An Ansuz cable in a higher quality level will outperform any length of cable from a lower level. So, if you do not need the length a 4 meter Ansuz A2 you should rather go for a 2 meter Ansuz C2.

ELECTRICAL GROUNDING
All Ansuz Mainz cables feature DGC technology® (Direct Ground Connector). With all your components connected with Mainz cables to an Ansuz Mainz8 power distributor, you will minimize the ground potential between your devices and thus minimize ground current and signal induced fluctuations.
It can be an advantage to connect Ansuz Mainz cables to a grounded wall power socket. However, it is not crucial, if you use an Ansuz power distributor. The Ansuz Mainz8 features an extremely low impedance star-grounding configuration.

POWER HARMONIZATION
Beside efficient power and ground distribution noise suppression is one of the key features of the Ansuz Mainz8 power distributors. The Ansuz Sparkz noise cancellation system is very different from the technology used in power conditioners, as it works parallel to the current feed by adding countersignals to the detected noise signals. The effect is less smearing of the details, higher dynamic contrast on a darker background to the music - Without lowering the energy and musical liveliness that most power conductors has a tendency to do!

GET YOU PRIORITIES RIGHT

Not that many years ago, every audiophile would first focus on the speaker wires and then work his way backwards through the system. These days we know better. First you need to establish a solid basis – a good power structure with efficient electrical grounding. Then you can focus on speaker wires and interconnects.

PRIORITIES FOR THE POWER STRUCTURE:

1. Priority the first power cord -from the wall outlet to the distributor.
2. Priority the heart of the system. The power- & ground-distributor.
3. Priority the power cord for the main component – integrated- or pre-amplifier.
4. Priority power cord(s) for the power amplifiers.
5. Priority power cords for the sources – analog before digital.

PRIORITIZED UPGRADE PATH: X3 SYSTEM

Step:
1. Upgrade the main power cord to P2. Preferable 4.0 meter.
2. Upgrade the power distributor to Mainz8 X-TC
3. Upgrade the power cord for the amplifier to P2. Preferable 2.0 meter.
4. Upgrade the power cord for the source to P2. Preferable 2.0 meter
5. Add Ansuz Sparkz / Sparkz TC2’s to the power distributor

PRIORITIZED UPGRADE PATH: P2 SYSTEM

Step:
1. Upgrade the main power cord to A2. Preferable 4.0 meter.
2. Upgrade the power distributor to Mainz8 A2
3. Upgrade the power cord for the amplifier to A2. Preferable 2.0 meter.
4. Upgrade the power cords for the analog sources to A2. Preferable 2.0 meter
5. Upgrade the power cords for the digital sources to A2. Preferable 2.0 meter
6. Add Ansuz Sparkz / Sparkz TC2’s to the power distributor

PRIORITIZED UPGRADE PATH: A2 SYSTEM

Step:
1. Upgrade the main power cord to C2. Preferable 4.0 meter.
2. Upgrade the power distributor to Mainz8 C2
3. Upgrade the power cord for the pre. amplifier to C2. Preferable 2.0 meter.
4. Upgrade the power cord for the power amplifier to C2. Preferable 2.0 meter.
5. Upgrade the power cords for the analog sources to C2. Preferable 2.0 meter
6. Upgrade the power cords for the digital sources to C2. Preferable 2.0 meter
7. Add Ansuz Sparkz / Sparkz TC2’s to the power distributor

PRIORITIZED UPGRADE PATH: C2 SYSTEM

Step:
1. Upgrade the main power cord to D2. Preferable 4.0 meter.
2. Upgrade the power distributor to Mainz8 D2
3. Upgrade the power cord for the pre. amplifier to D2. Preferable 2.0 meter.
4. Upgrade the power cord for the power amplifier to D2. Preferable 2.0 meter.
5. Upgrade the power cords for the analog sources to D2. Preferable 2.0 meter
6. Upgrade the power cords for the digital sources to D2. Preferable 2.0 meter
7. Add an Ansuz PowerBox D2 to drive the analog- & digital interconnects actively.

PRIORITIZED UPGRADE PATH: D2 SYSTEM

Step:
1. Upgrade the main power cord to D-TC2. Preferable 4.0 meter.
2. Upgrade the power distributor to Mainz8 D-TC
3. Upgrade the power cord for the pre. amplifier to D-TC2. Preferable 2.0 meter.
4. Upgrade the power cord for the power amplifier to D-TC2. Preferable 2.0 meter.
5. Upgrade the power cords for the analog sources to D-TC2. Preferable 2.0 meter
6. Upgrade the power cords for the digital sources to D-TC2. Preferable 2.0 meter

D·TC SYSTEM

MECHANICAL GROUNDING

All components in an audio system vibrate and resonate. Analogue and digital transports generates heavy mechanical vibrations due to rotations in motors and platters. Amplifiers are subject to 50/60 Hz resonances coursed by the current driving the power supply. Power distributors and power conditioners also suffer from the mains frequencies. DAC’s, phono stages, streamers and other low current electronics also create internal vibrations and are even more sensitive to external tremors and pulsations. The loudspeakers are the source of the most profound vibrations.
Even the smallest vibration has a huge effect on the electronic components and circuitry boards thus it will generate new unwanted energy that will resonate backwards and forwards in the system.

The Ansuz Darkz are efficient devices to ground all components in a High End audio system. They are mechanically tuned to allow the vibrations a path out of the component and to keep varies components isolates individually. The sonically improvement is undeniably and addictive.

The Ansuz Darkz is available in tree versions and in four quality levels.

VERSIONS

Darkz
Mechanically tuned resonance control
3 discs separating 2 sets of 3 titanium balls

Darkz adjustable
Mechanically tuned resonance control
2 aluminium discs separating 1 set of 3 ceramic balls
Height adjustable + 6 mm

Darkz cable lifter
Mechanically tuned resonance control
2 aluminium discs separating 1 set of 3 ceramic balls
Fits all Ansuz Speakz and Mainz cables.

QUALITY LEVELS

Aluminium
Anodized mechanically tuned solid pieces of low-resonance aluminium.

Ceramic
Hard anodized mechanically tuned solid pieces of low- resonance aluminium.

D2
Mechanically tuned solid pieces of low-resonance aluminium cowered with a layers of Tantalum and Diamond for further damping of resonances.

D-TC
Mechanically tuned solid pieces of composite metal containing bronze and Tantalum, covered with layers of Tantalum and Diamond for further dampening of resonances.

DARKZ FEET

Darkz feet
Hard aluminium feet for loudspeakers and other equipment with threaded holes. Ideal for replacing spikes when upgrading to Darkz / Darkz Adjustable.

MECHANICAL GROUNDING: HI-FI SYSTEM

1. ANSUZ DARKZ FEET / DARKZ / DARKZ ADJUSTABLE.

The loudspeakers is the by far the most powerful creator of vibrations. So powerful, that they can set the whole room rocking. So naturally, you do not want to spike both you speakers and the electronics down into the same floorboard. You want to assure that vibrations from one speaker have as little feedback into the other speaker, the electronics and the cables as possible. The way to do that is to place the speakers/speaker stands on Darkz. If you speakers/stands are fitted with spikes or feet that are attached in threaded holes, you can replace those with Ansuz Darkz Feet that are available with screws in the same dimensions.

For the best up-grade you place the mounted Ansuz Darkz Feet on top of Ansuz Darkz with ceramic balls between. If adjustments are needed, to level out the speakers on an uneven floor, use Ansuz Darkz Adjustable. A set of 3 Darkz and 1 Darkz Adjustable underneath each speaker can be the right solution, if the floor is not too uneven.

2. ANSUZ DARKZ CABLE LIFTERS.

What most people fail to realize, is often that, what might be heard as room resonances, is actually vibrations picked up by cables.
When vibrations from the room is transferred into the cables, mainly the speaker cables, the vibrations create a new energy on the electrons in the cables. This energy is traveling in both directions in the cables. Some of it directly back into the speakers, and in the other direction, into the output of the amplifier where the feedback circuitry sees this added signal as a differential to the input signal and therefor tries to compensate against it, witch will be heard as resonances and distortion.

Obviously you want to stop vibrations in the cables so they will not act like microphones. That is what Ansuz Darkz Cable lifters can do, and this is where our cable lifters are very unlike most cable lifters, as Ansuz Cable Lifters are grounding vibrations and stopping the induction of the conductors.

Where most cable lifters are just suspending the cable off the floor – making them much more susceptible for vibrations.

One Ansuz Cable Lifter for each half meter of cable running on the floor is recommendable. The cable do not need to be lifted completely off the floor, if the cable is touching the floor between Lifters it do not have any negative effect. The most important Lifters are those where the cable first reach the floor, coming from the amplifier and from the loudspeakers.

3. ANSUZ DARKZ / DARKZ ADJUSTABLE

Unfortunately many equipment racks are standing on spikes. To us that do not make sense, as the spikes will act like a cartridge picking up vibrations from the floor. Instead you want to ground all the vibrations the rack is picking up from the room and from the equipment standing in it. With Ansuz Darkz Adjustable underneath the spikes of the rack you insure the best grounding and you are able to level the rack very precise, witch is important too.

4. ANSUZ DARKZ

As amplifiers are fitted with a powerful power supply they are under heavy influence of 50/60 Hz resonance origination from the mains system. At the same time amplifiers are sensible to the vibrations coming through the room from the loudspeakers. Obviously, grounding is important to drain out internal and external vibrations.

Most electronics are – to make them “user friendly”, fitted with rubber feet. We strongly advise against having any components standing on soft materials. A soft material does not just absorb vibrations. Rubber feet absorb vibrations and release the energy again back into the component coursing destructive resonances.

To create the best environment for your amplifier we recommend that you place it on three Ansuz Darkz. If it is possible, place one of the Darkz directly underneath the power supply / transformer and the other two so the amplifier is standing stable.
If the original feet underneath your amplifier are so high, that the Ansuz Darkz does not lift the feet free of the shelf, we can recommend stacking more Darkz with ceramic balls between them. This will always be a strong upgrade in any case.

Notice; never place components directly on top of each other! Separate shelves and Darkz for each component.

5. ANSUZ DARKZ

The CD-player/-transport are emitting so many vibrations due to the fast spinning disc that it is not only harmful for the player itself, but also for other components in the system. Draining vibrations through proper grounding is crucial for the CD-player/-transport.
To ground the CD mechanism most efficient place one of three darks directly underneath the centre of the mechanism. In a few cases this is not possible because the chassis of some players are not strong enough. Then you must place the Ansuz Darkz closer to the corners.

Read more about Ansuz Darkz underneath electronics in section 4.

6. ANSUZ DARKZ

In resent years we have become much more focused on the mains supply. Setting up the mains system is extremely important. In a way pretty obvious as it is from here the raw material flows to recreate the music. Also the power distributor needs full attention and for that reason – effective grounding. The influence of 50/60 Hz resonances is very strong here so the efficiency of the Ansuz Darkz is very audible.

If you are using an Ansuz Mainz8 distributor you will find that it is already fitted with Ansuz Darkz Feet that fits ideally on four Darkz with ceramic balls between.
