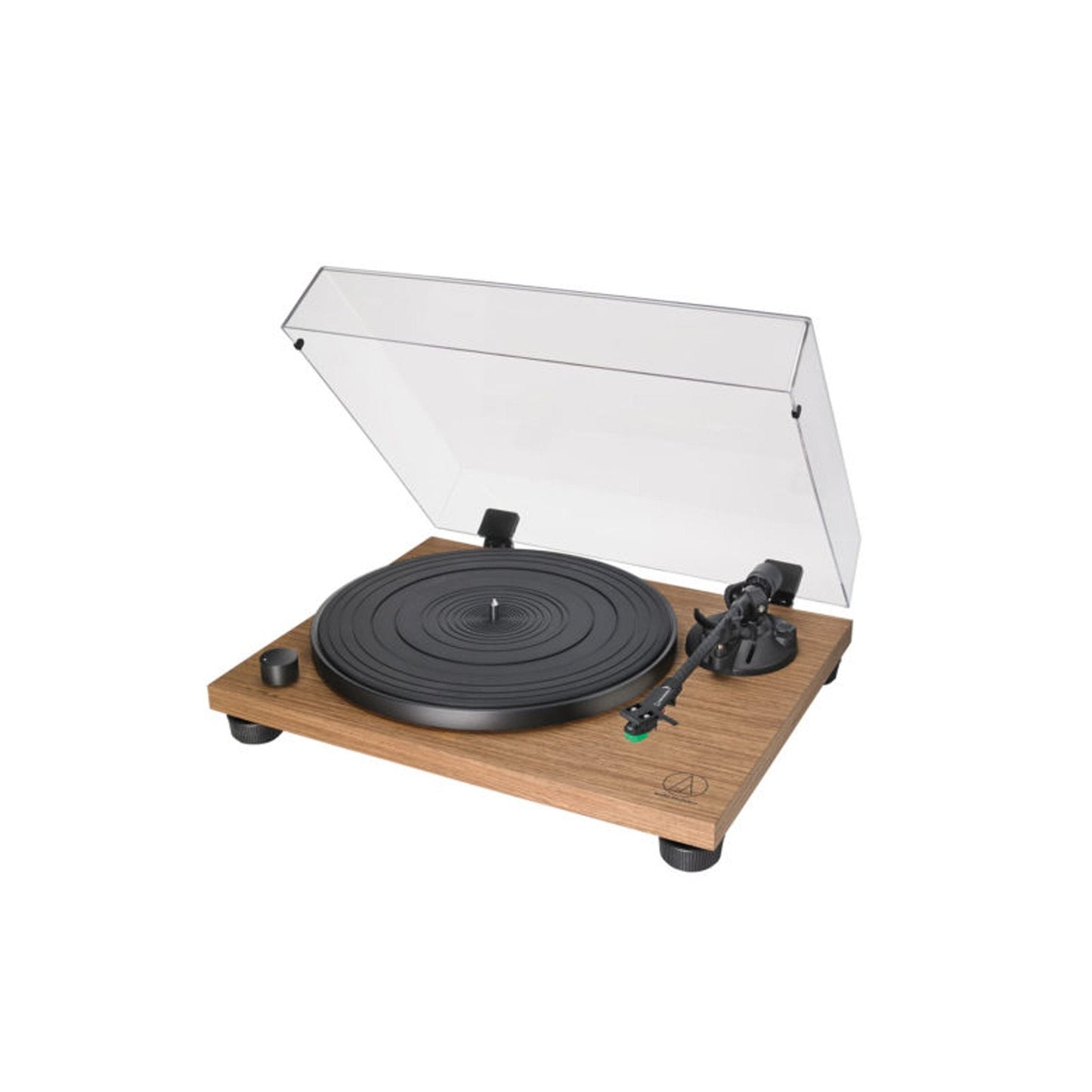

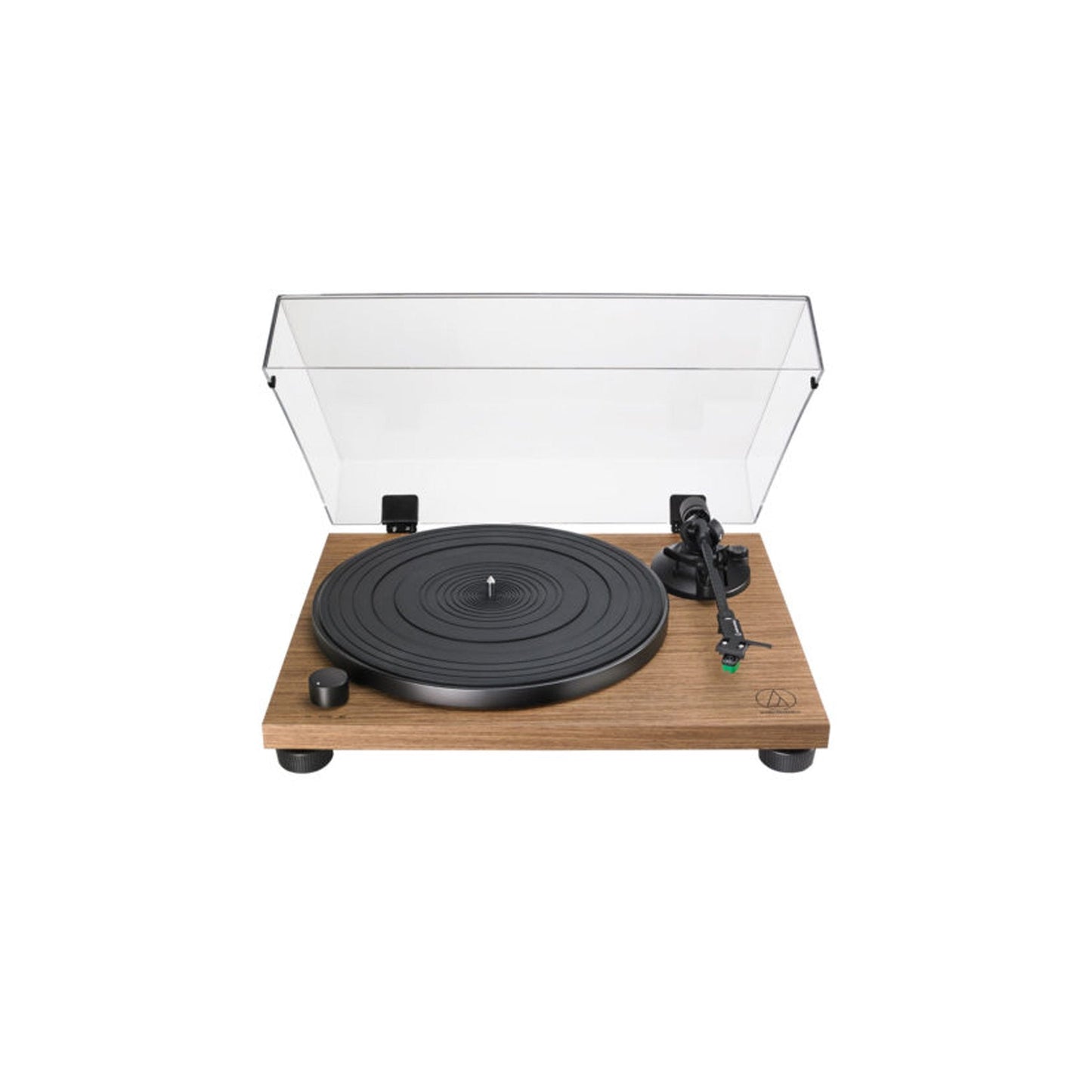

AT-LPW40WN Turntable

Audio Technica



Fully Manual Belt-Drive Turntable

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½”-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

  • Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
  • Motor features a speed-sensor system to maintain accurate platter rotation speed
  • Fully manual operation
  • Adjustable dynamic anti-skate control
  • Professional anti-resonance, die-cast aluminium platter with rubber mat
  • AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
  • AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
  • Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
  • Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
  • Built-in switchable phono pre-amplifier for phono or line-level output
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

Our team at Brisbane HiFi offers installation and guidance services.

For Brisbane = $145 For Gold Coast = $185
For Sunshine Coast = $185

Upon completion of purchase, our staff will organise a time with you for installation etc.
Type

2-speed, fully manual operation

Motor

DC servo motor w/speed stability control

Drive Method

Belt drive

Speeds

33-1/3 RPM, 45 RPM

Turntable Platter

Die-cast aluminium

Wow and Flutter

0.15% (WTD) @ 3 kHz (JIS)

Signal-to-Noise Ratio

>60dB

Output Level

Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain

35 dB nominal, RIAA equalized

Power Supply Requirements

100-240V AC, 60 Hz

Power Consumption

1 W

Dimensions

420.0mm W x 340.0mm D x 116.9mm H

Weight

4.7kg

Accessories Included

AT-VM95E phono cartridge; AT-HS4 headshell; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; rubber mat; dust cover; 45 RPM adapter

Tonearm type

Balanced straight tonearm with detachable headshell

Effective arm length

223.6mm

Overhang

18.6mm

Tracking error angle

<2 degrees

Applicable cartridge weight

12-17g

Anti-skating range

0-3g

Replacement Stylus

AT-VMN95E
