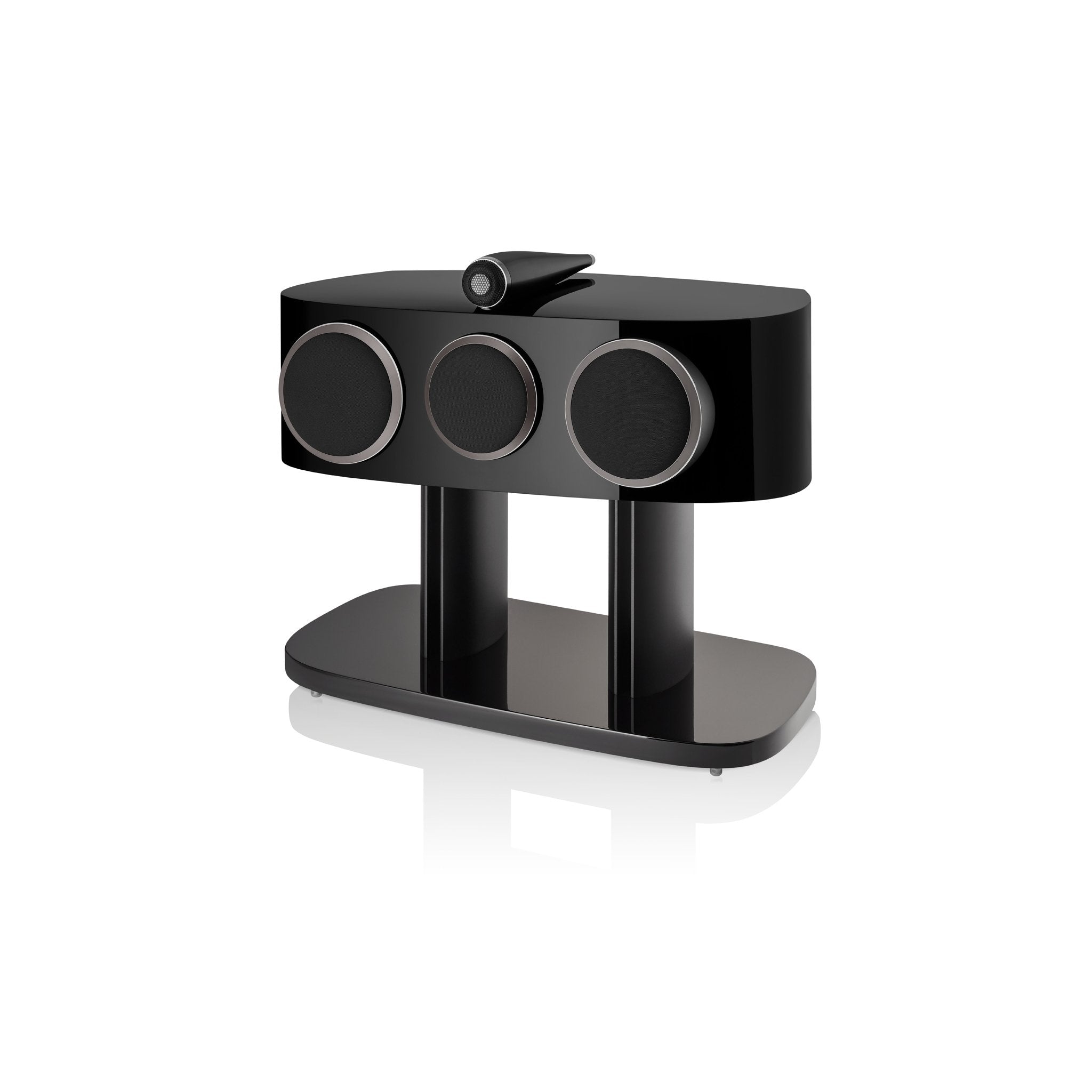

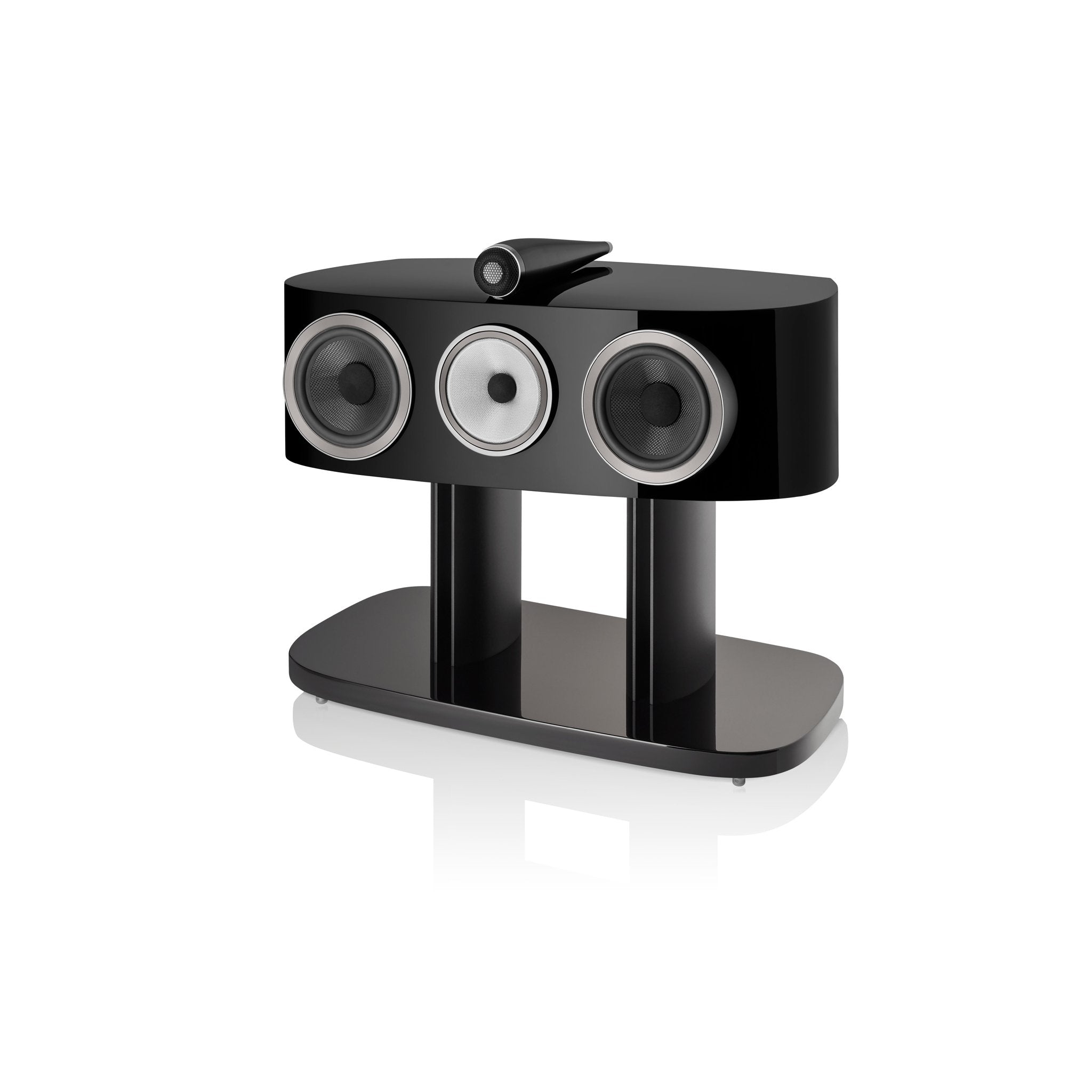

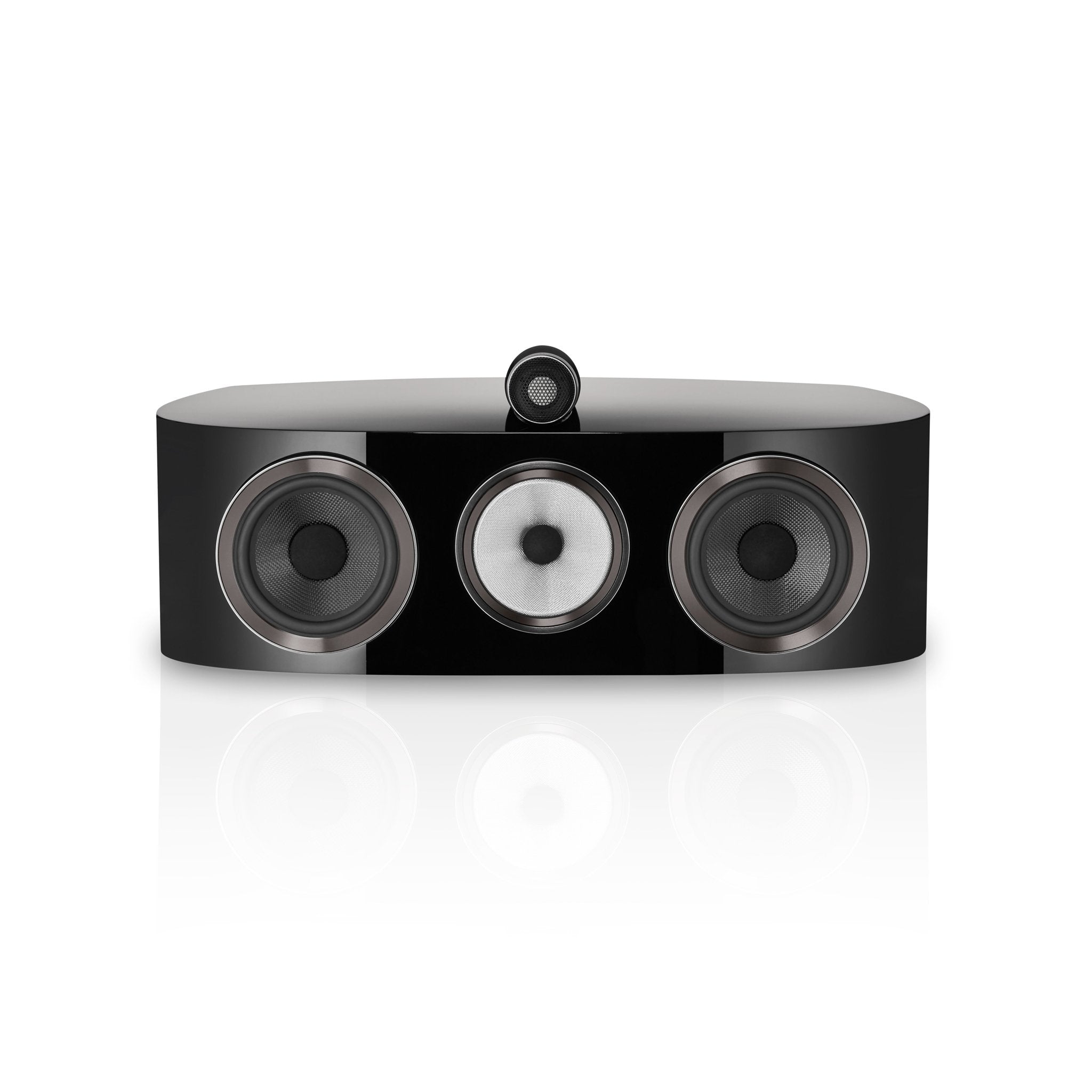

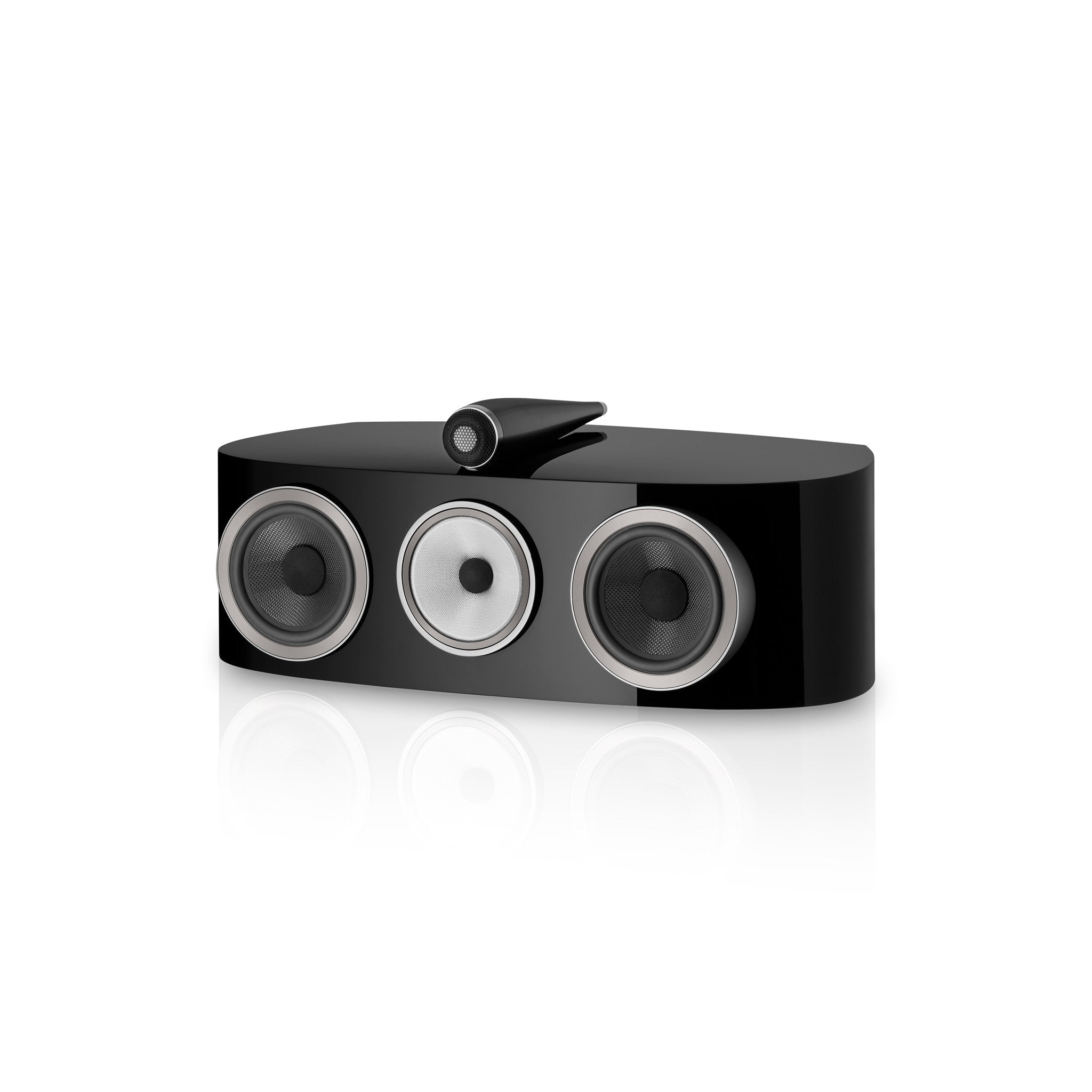

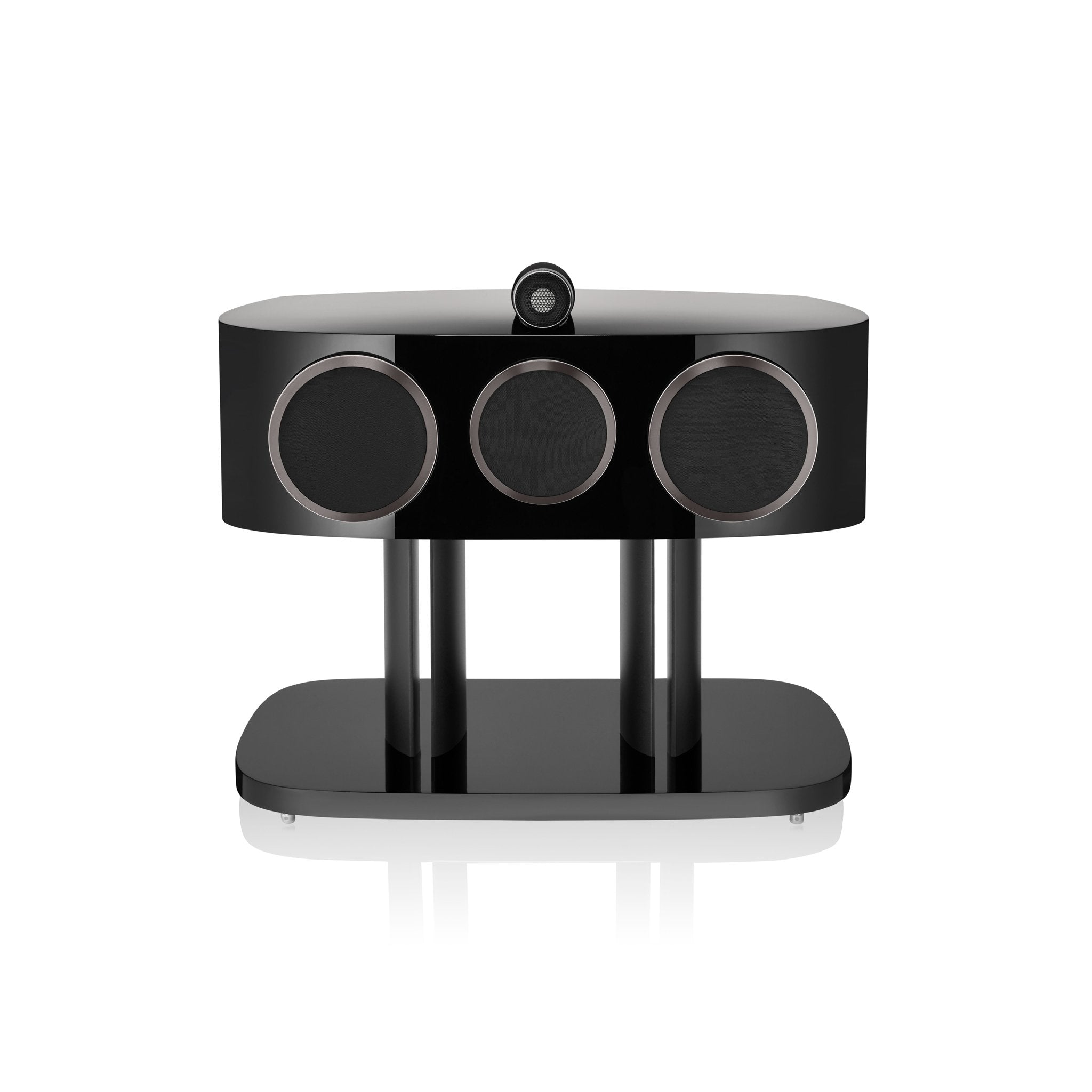

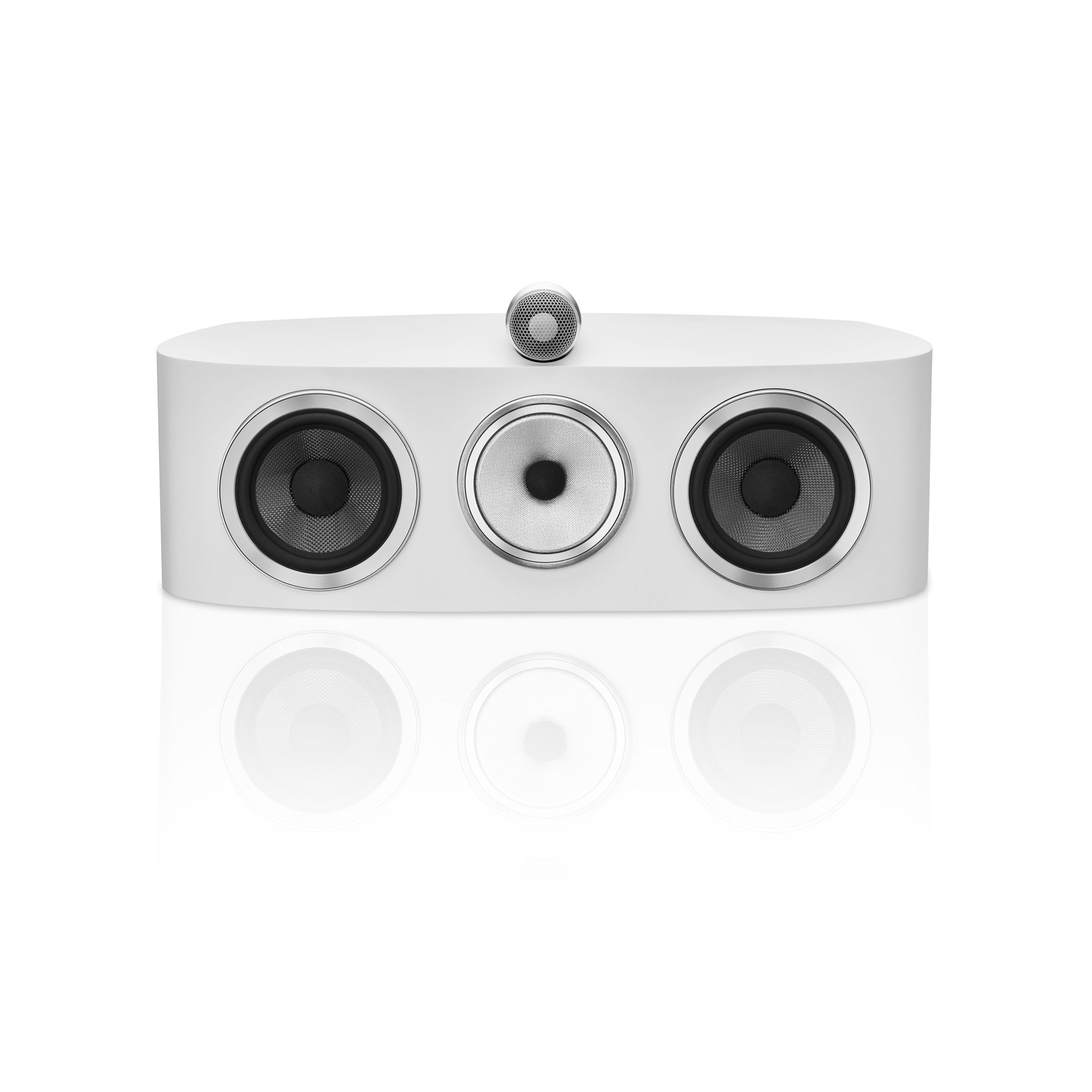

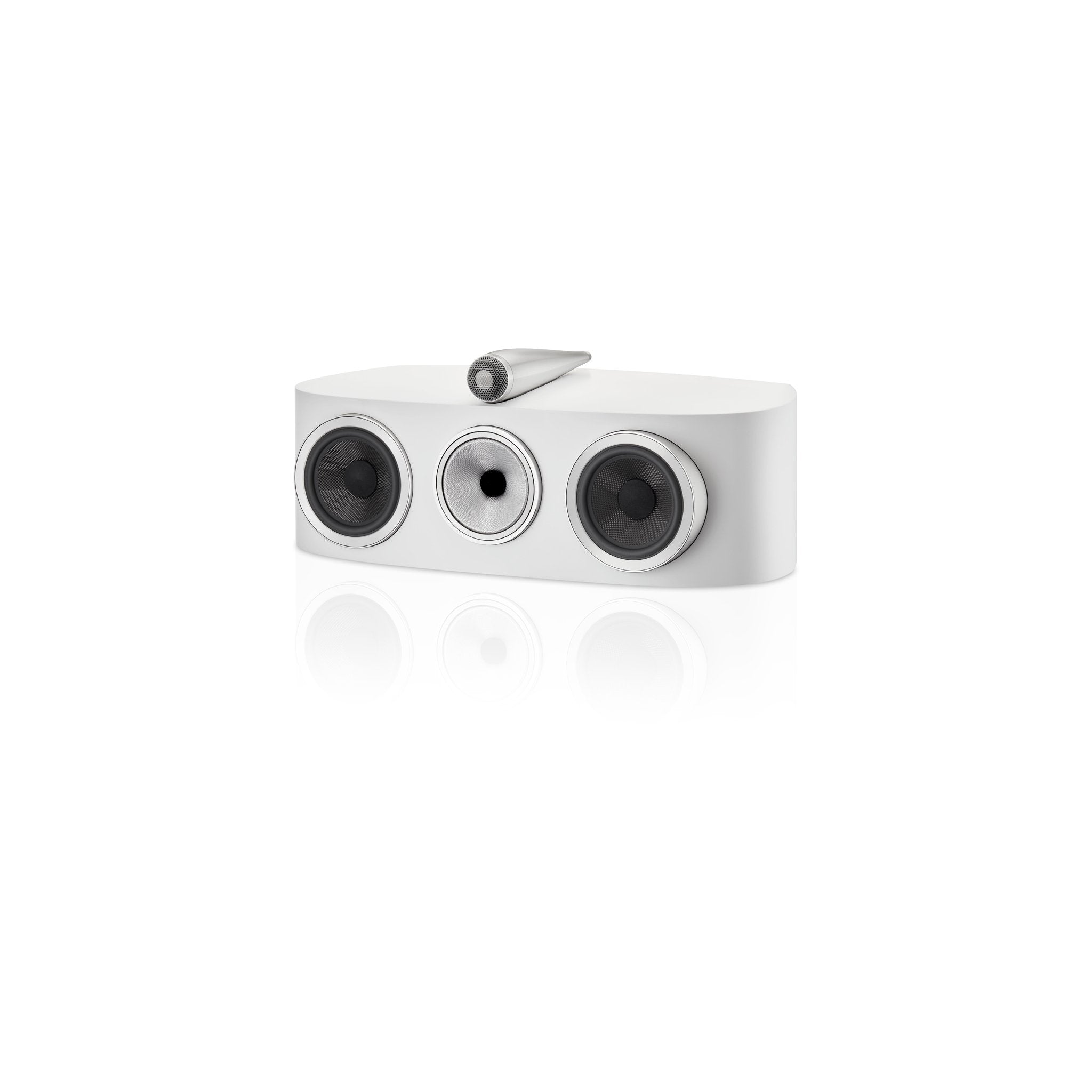

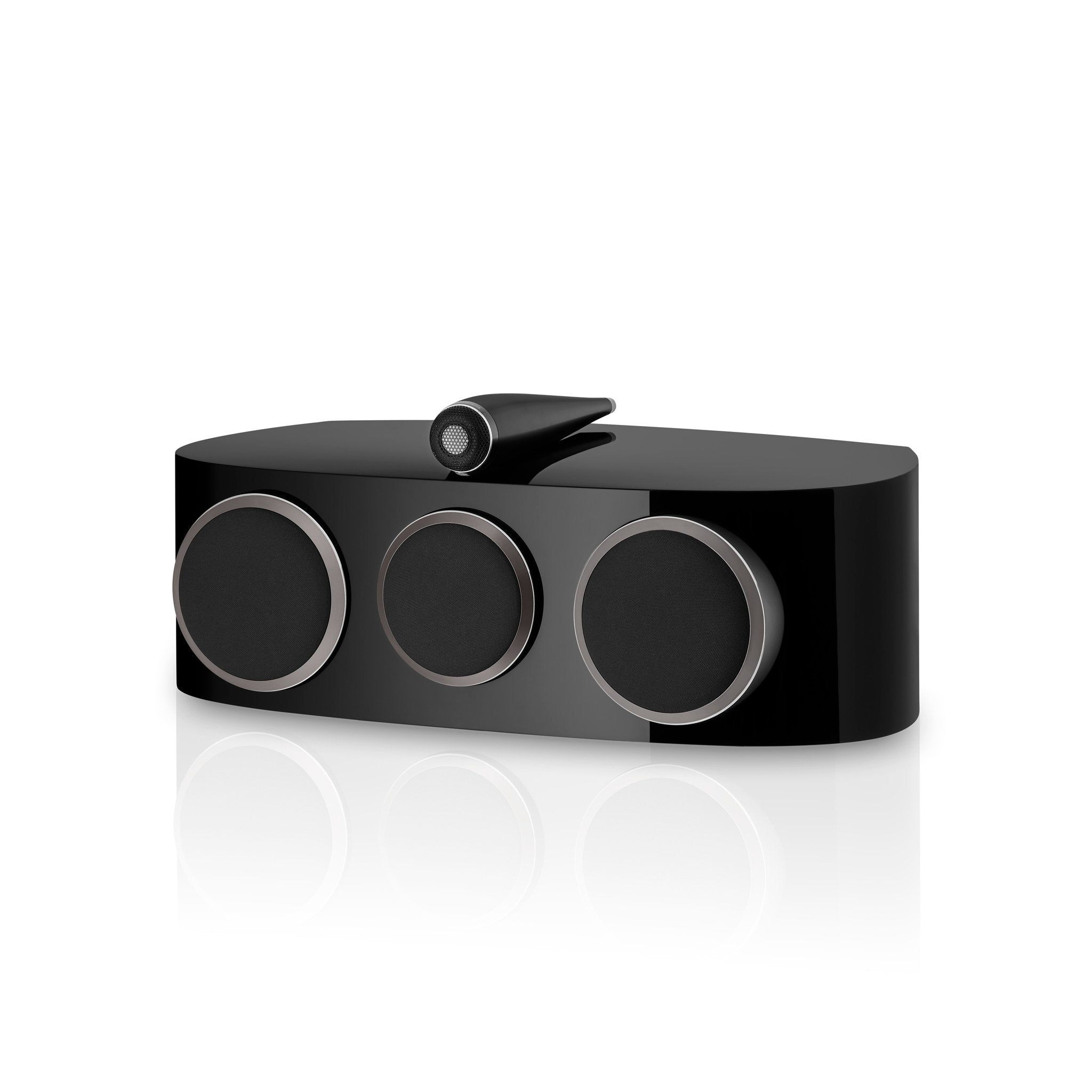

Bowers & Wilkins HTM82D4 Centre Channel Speaker
For Theatre systems based on the more compact 803 D4 or 804 D4, the HTM82 D4 centre-channel speaker is the perfect solution. Its more compact midrange drive unit is ideally sized to match those of its siblings.
It’s a Wrap
The new HTM82 D4 may be our most compact centre-channel speaker, but it shares the design DNA of its larger siblings, including the Reverse Wrap cabinet and Matrix™ bracing. The combination of the two technologies ensures a quieter, more acoustically efficient and better-sounding speaker than ever.
Reverse Wrap cabinet
Instead of a conventional loudspeaker box, our cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.
Continuum™ cone midrange
Introduced as a huge evolutionary change for us in 2015, the Continuum cone midrange drive has swiftly become a fundamental element in every Bowers & Wilkins loudspeaker. With exceptionally low noise, it ensures outstanding resolution without coloration or masking of detail.
Decoupled midrange assembly
HTM82 D4 has a dedicated midrange cone using three key Bowers & Wilkins technologies: the Continuum cone, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers. The result is outstanding clarity.
The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design. Learn more about all the technologies that combine to make 800 Series Diamond™ so special here.
Specification
Technical features
Diamond tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ cone bass units
Flowport
Description
3-way vented-box system
Drive units
1x ø25mm (1in) diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil cone bass units
Frequency range
33Hz to 35kHz
Frequency response
45Hz to 28kHz (+/-3dB from reference axis)
Sensitivity
89dB (on axis at 2.83Vrms at 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB,1m on axis)
<1% 100Hz – 20kHz
<0.3% 100Hz – 20kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 200W into 8Ω on unclipped programme
Max. recommended cable impedance
0.1Ω
Dimensions
Height: 289mm
Width: 715mm
Depth: 369mm
Net weight
25.15kg
Finishes
Cabinet:
Gloss Black

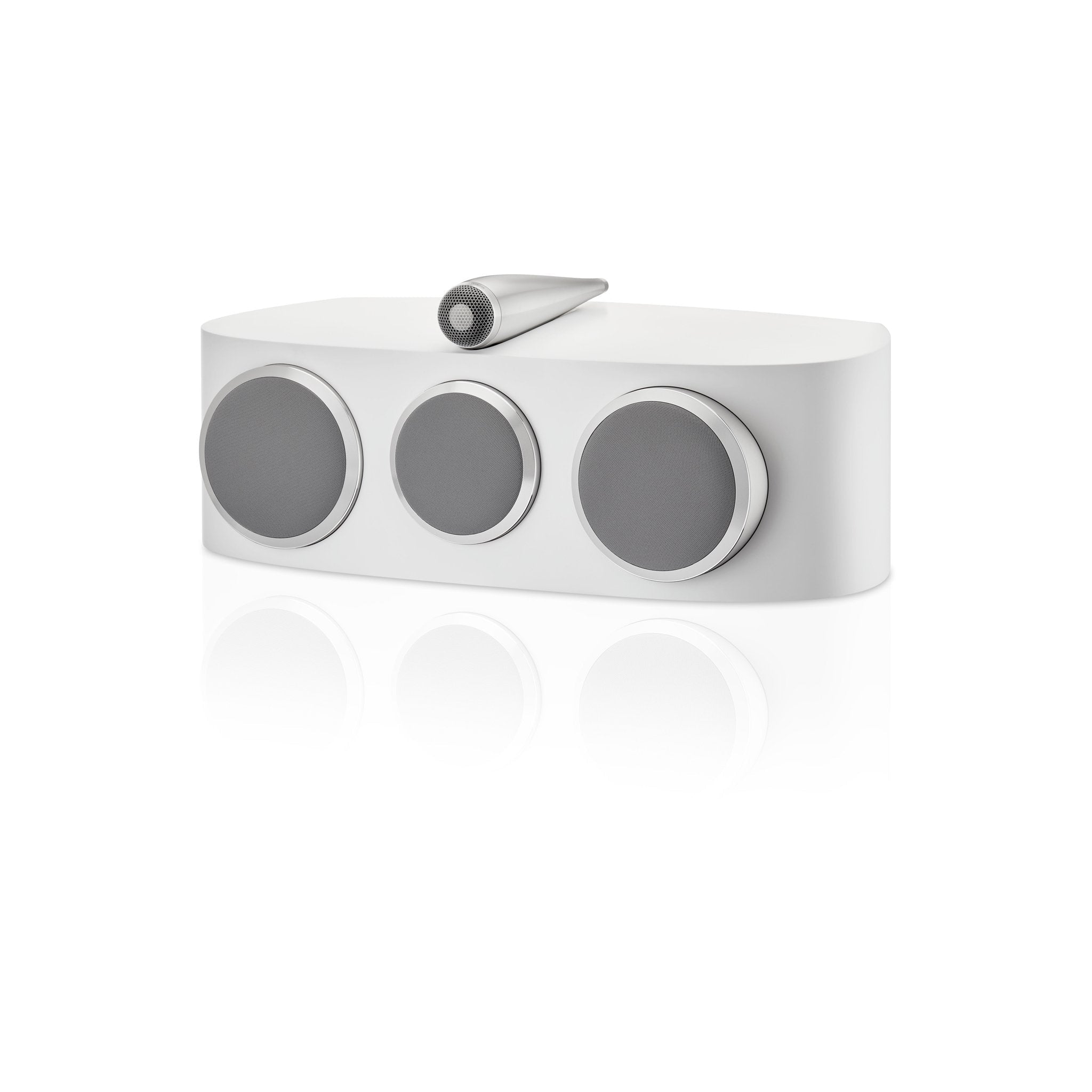

White

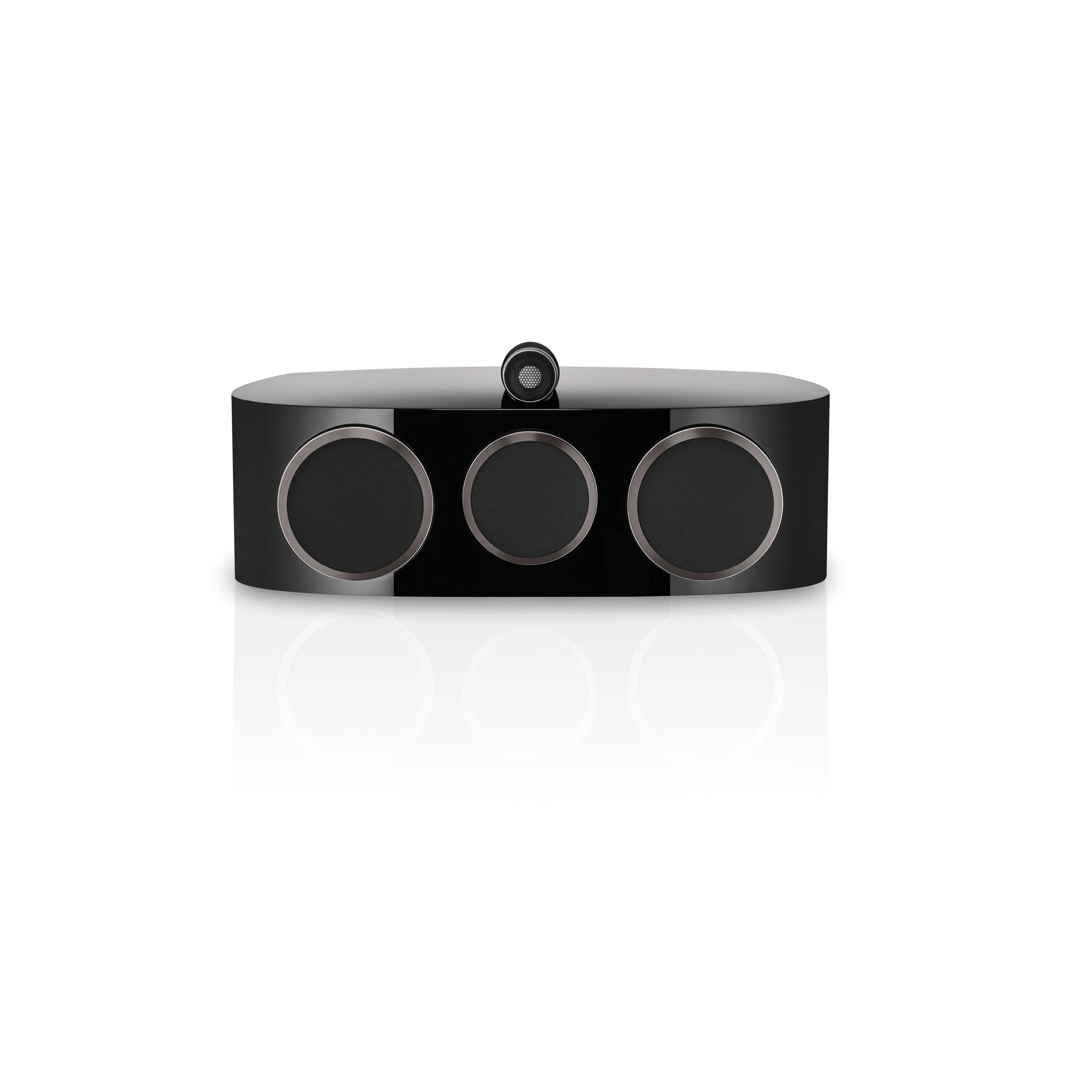

Grille:
Black
Grey
