Accuphase

DF-65 Digital Frequency Dividing Network

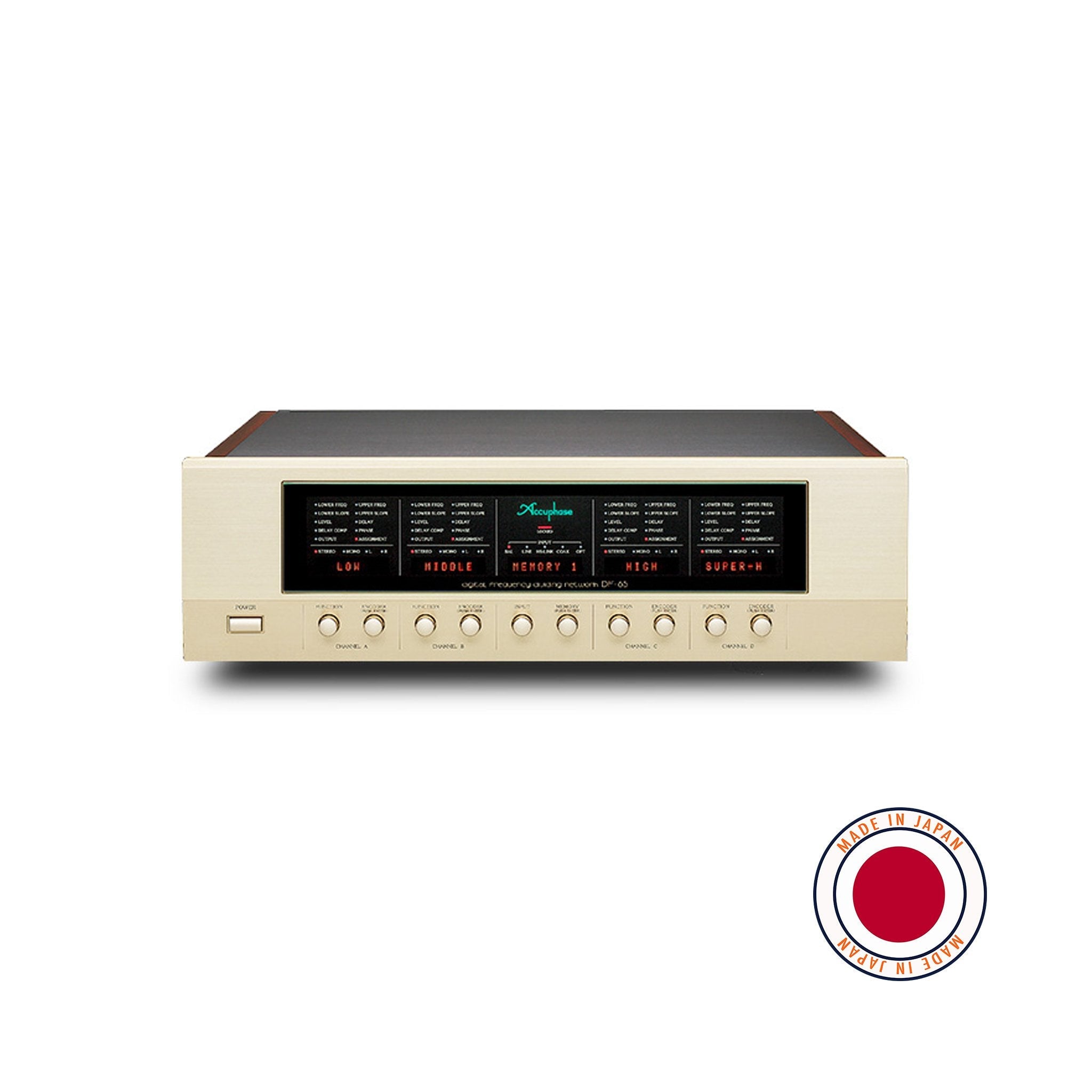

Name: DF-65 Digital Frequency Dividing Network
Brand: Accuphase
Availability: InStock

Inquire for Price

Accuphase

DF-65 Digital Frequency Dividing Network

The Digital Frequency Dividing Network DF-65 harnesses the very best of digital technology in
every aspect, including a high-speed 40-bit floating point DSP. The standard unit configuration
supports signal processing for up to four-way systems. Highly accurate digital filters offer a choice
of 59 cutoff frequency points and up to 96 dB/octave attenuation. Integrated time alignment
function adjustable in 0.5-cm steps, and delay compensator for automatically offsetting any filter
circuit delays. Monophonic output mode provides high versatility for various configurations.

High-speed DSP realizes fully digital signal processing in channel divider units
Standard configuration allows 4-channel (4-way) system setup
59 selectable cutoff frequency points
Highly accurate 96 dB/oct attenuation slope
Time alignment function allows delay time setting in 0.5-cm steps
Delay compensator offsets signal delays in filter circuitry
Further refined MDS++ D/A converter
Selectable monophonic output mode for further enhanced specifications

Specification

Digital Inputs

COAXIAL

Format: IEC 60958/AES3 compliant

Sampling frequencies 32 kHz to 192 kHz (16 to 24 bits, 2-channel PCM)

OPTICAL

Format: JEITA CP-1212 　　　　　

Sampling frequencies 32 kHz to 96 kHz (16 to 24 bits, 2-channel PCM)

HS-LINK

Connector: RJ-45, HS-LINK cable

Ver. 1 Sampling frequencies 32 kHz to 192 kHz (24 bits, 2-channel PCM)

Ver. 2 Sampling frequencies 32 kHz to 384 kHz (32 bits, 2-channel PCM)
(352.8 kHz and 384 kHz are converted to 176.4 kHz and 192 kHz respectively.)

Analog Input

Maximum Input Level

3.7 V (1 kHz, 2.5 V output)

Input Impedance

BALANCED: 40 kilohms

LINE: 20 kilohms

A/D converter

Principle	1-bit delta sigma modulation
Sample Frequency	176.4kHz
Quantization	24bitz

Digital Output

HS-LINK

Connector: RJ-45, dedicated HS-LINK cable

Frequency Response

2.0 to 50,000 Hz +0 –3 dB

D/A Converter

Quantization	32 bits
STEREO Operation	4MDS++ type
MONO Operation	8MDS++ type

THD

0.0007% (20 to 20,000 Hz)

S/N Ratio

	STEREO Operation	MONO Operation
COAXIAL / OPTICAL	121 dB	123 dB
HS-LINK	121 dB	123 dB
Analog Input	116 dB	117 dB

Dynamic Range

118 dB

Channel Separation

108 dB (20 to 20,000 Hz)

Slope Characteristics

6 dB/octave, 12 dB/octave, 18 dB/octave

24 dB/octave, 48 dB/octave, 96 dB/octave 　　　　　　　　　

＊When cutoff frequency is 10 Hz: 48 dB/octave, 96 dB/octave not available

20 Hz: 96 dB/octave not available

Delay (converted into distance)

0 to ±3,000 cm (0.5-cm steps)

＊ Independent settings for left and right possible.
＊ Delay value range limit (absolute value) for all channels is 3,000 cm

Level Adjustment Range

"Analog ATT" OFF: –40 to + 12.0 dB (0.1-dB steps)

"Analog ATT" ON: –50 to + 2.0 dB (0.1-dB steps)

＊Independent settings for left and right possible.

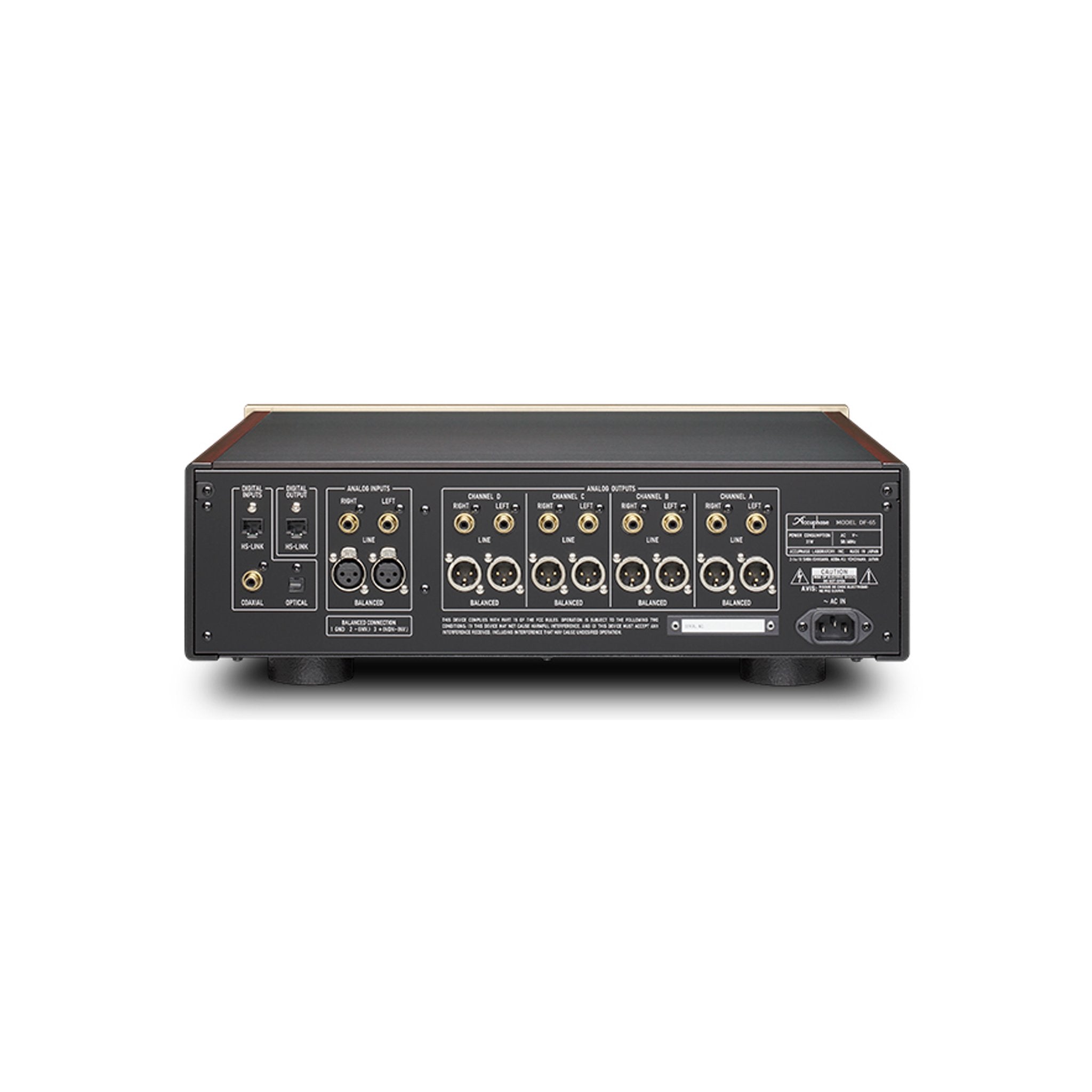

Output
Voltage/
Output Impedance

BALANCED:
2.5 V, 50 ohms, balanced XLR connector

LINE:
2.5 V, 50 ohms, RCA-type phono connector

Minimum Load Impedance

BALANCED/LINE

600 ohms

Power Requirements

120/220/230 V AC, 50/60 Hz

Power Consumption

31 watts

Maximum Dimensions

Width 465 mm (18.31˝)

Height 151 mm (15.95˝)

Depth 396 mm (15.59˝)

Mass

15.1 kg (33.3 lbs) net

21.0 kg (46.3 lbs) in shipping carton
