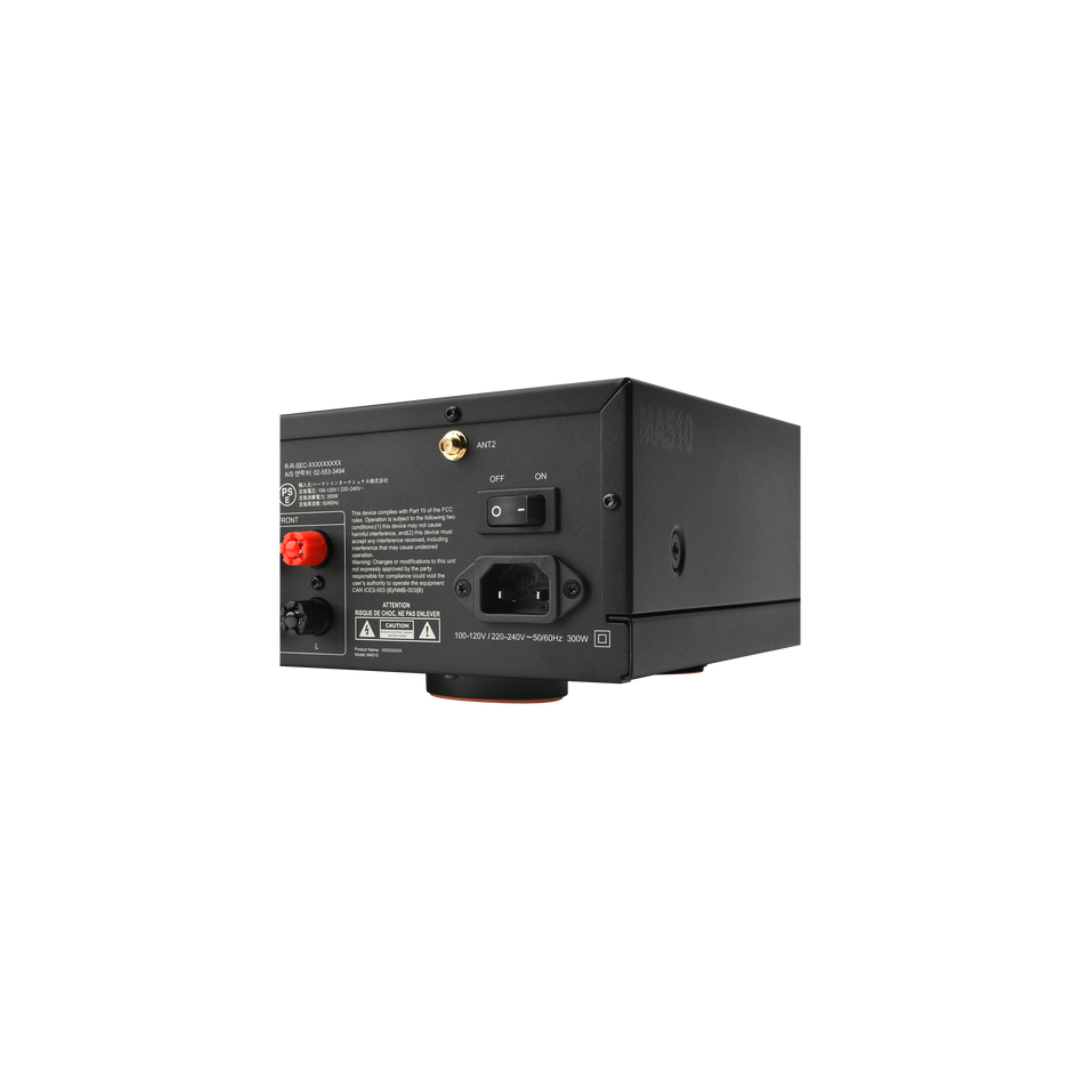

JBL

MA 510 Net AV

Get a FREE Binary™ B4 Series 4K Ultra HD High Speed HDMI® Cable with Ethernet - 3m (worth $96.00) when you purchase a JBL MA510 Receiver

Please Note: We didn’t invent the HDMI cable—we just made our high-speed B4 Series even better. Transmitting at up to 4K@60 4:4:4, and compatible with HDR, HDCP 2.2, Dolby TrueHD, DTS HD-Master, Ethernet, and more, our B4 cables are an affordable solution for any job that needs a bandwidth boost. To prevent “headaches” when hanging flat panels or sliding a DVD player into a cabinet, our famous connectors are up to 50% shorter than the competition. Plus, our proprietary jackets are as flexible as ever, making your flat-panel install a whole lot easier.

Product Overview

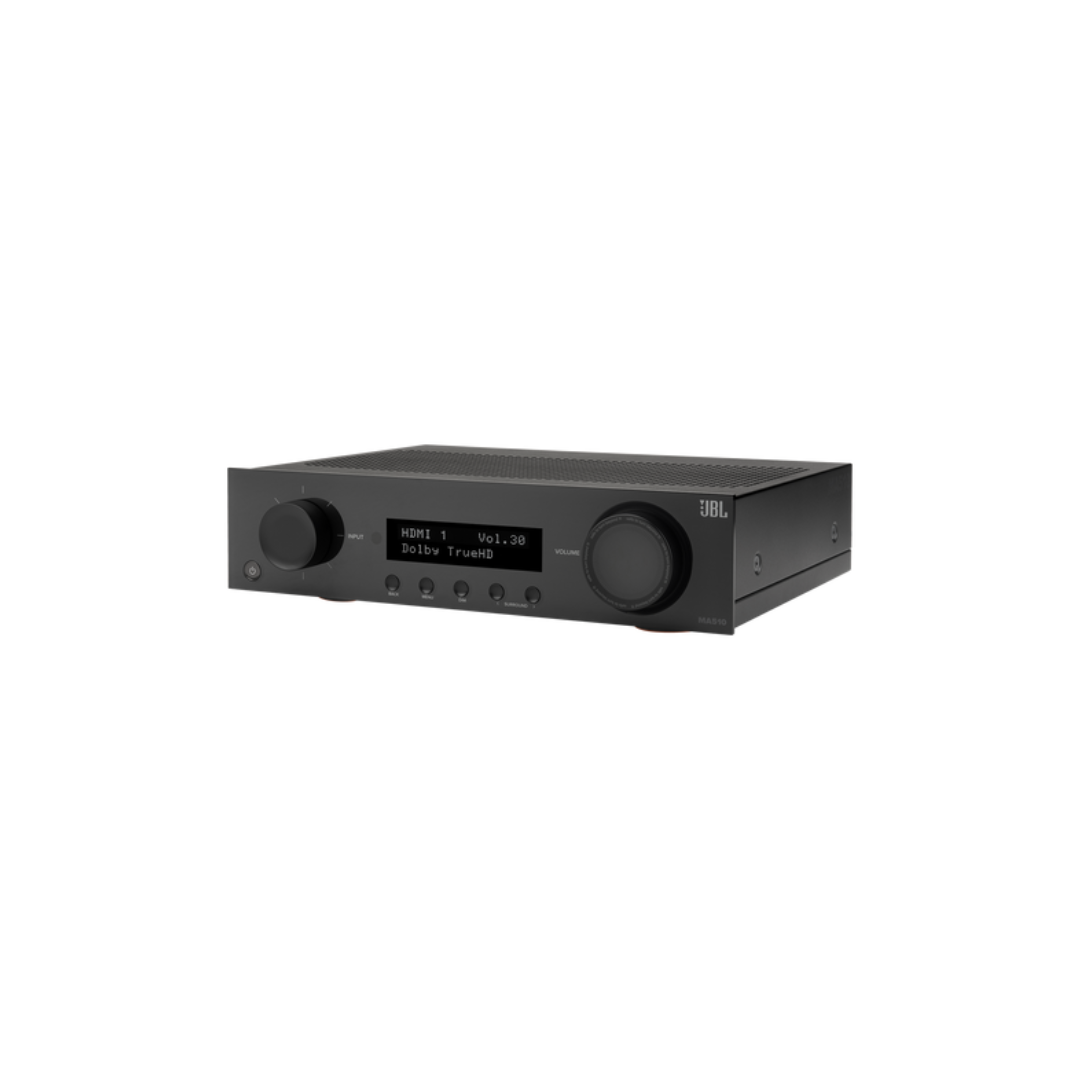

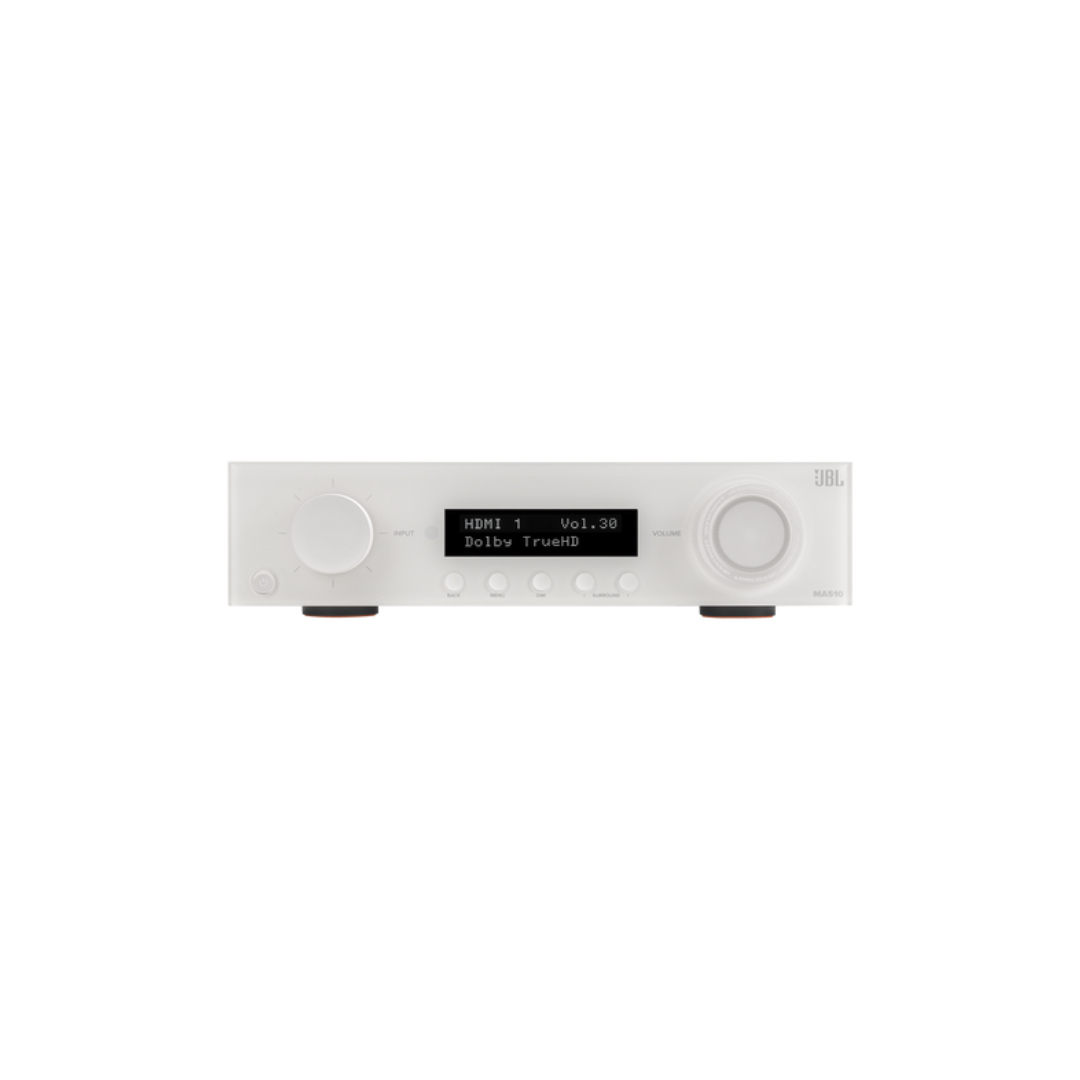

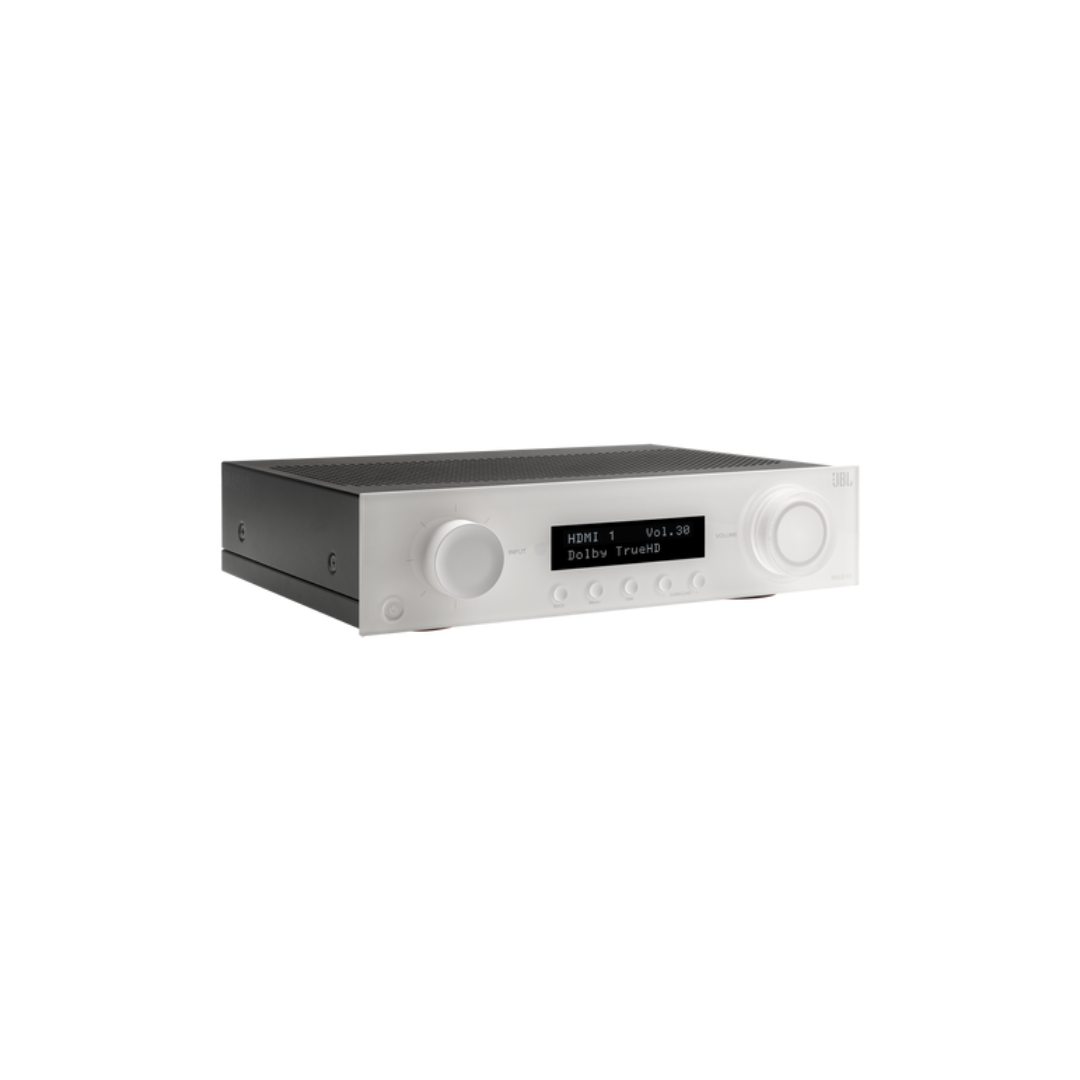

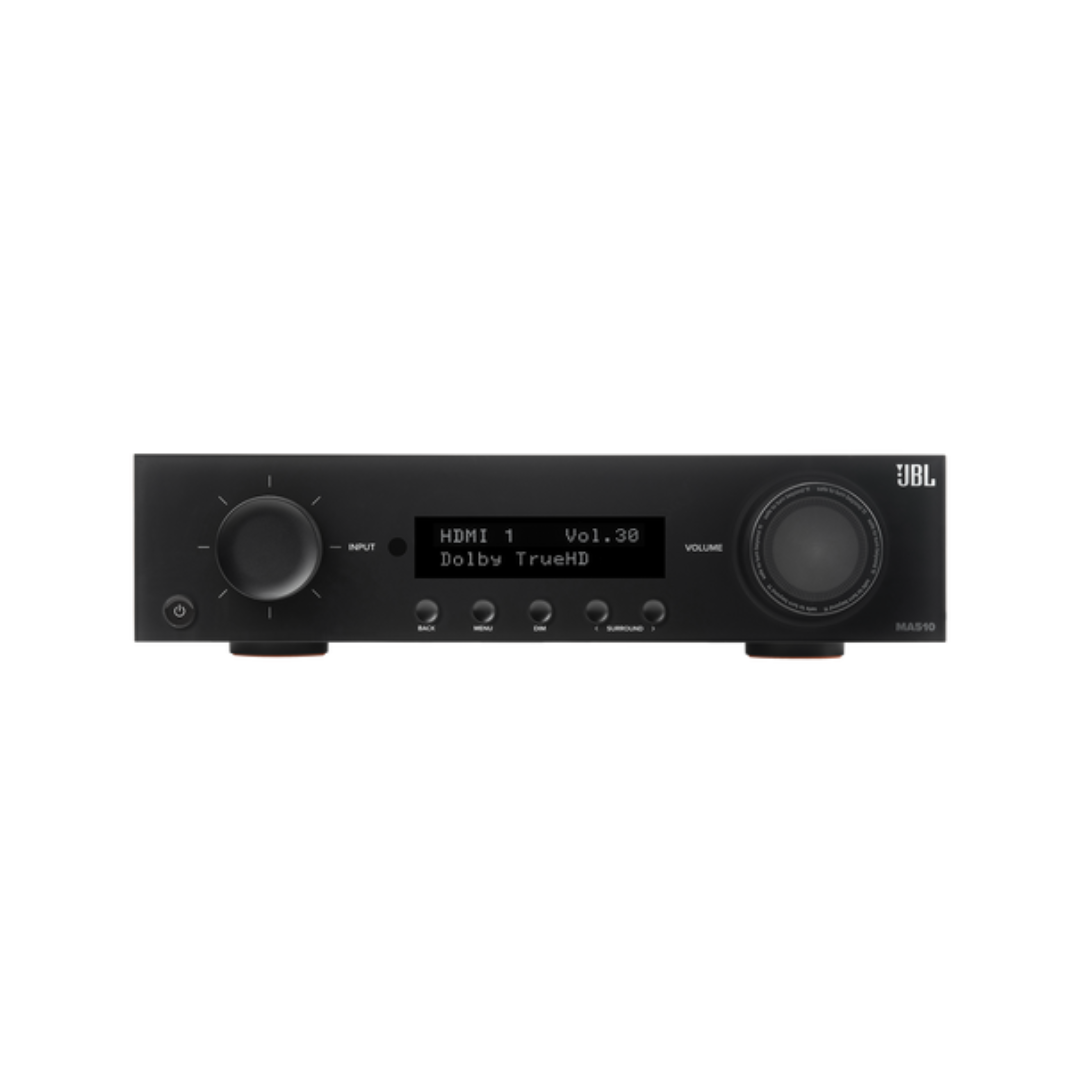

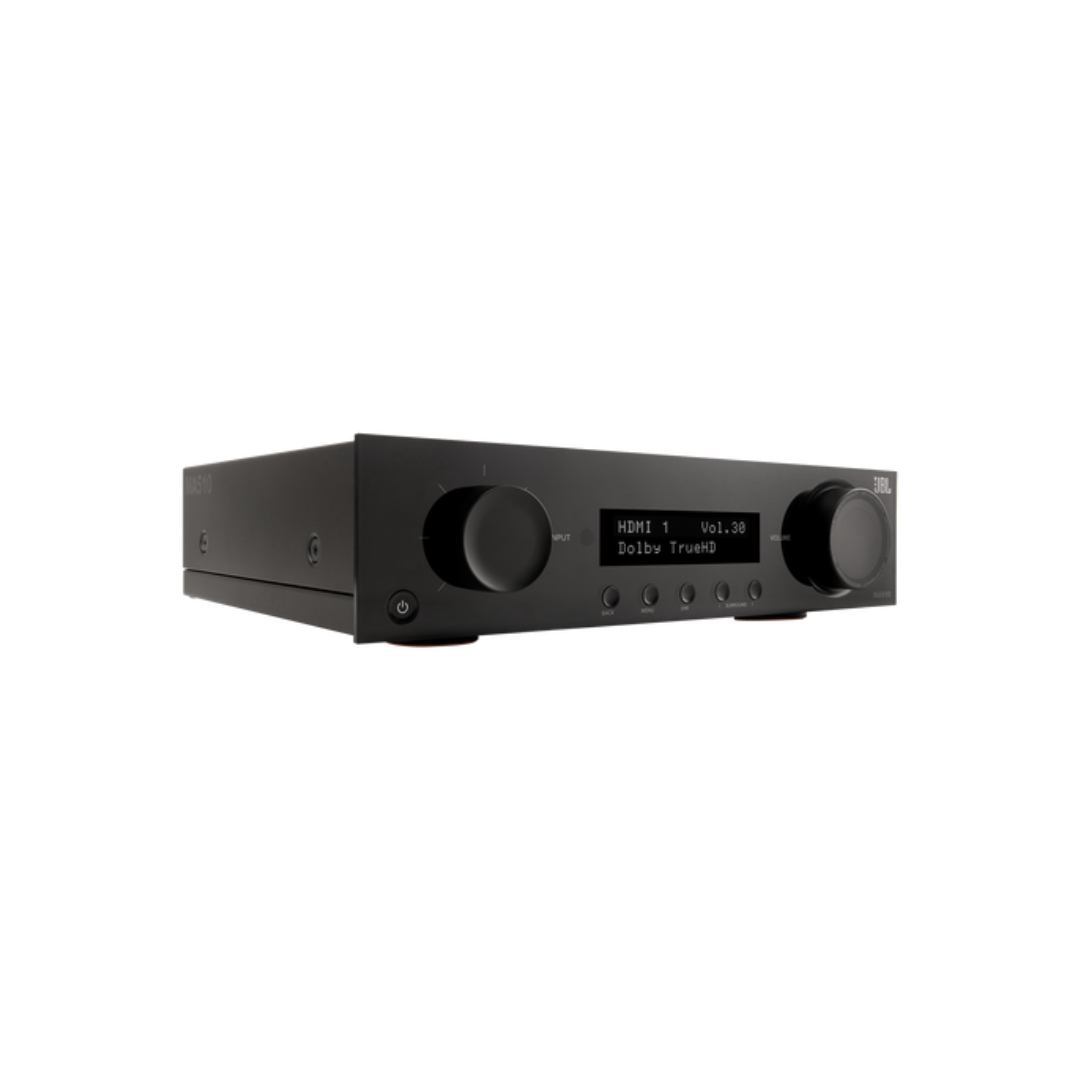

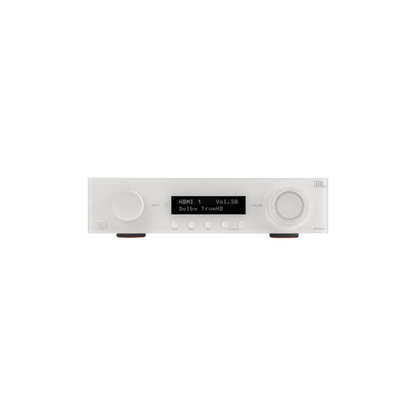

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.

Highlights

• 5.2-channel AV receiver that delivers extraordinary audio performance with 8K video for the ultimate home cinema experience

• Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC

• Native 5-channel decoding of Dolby and DTS formats

• Designed with a passion for music and movies, bringing both to life with true high fidelity

• Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)

• On-screen display for easy system setup and operation (via HDMI)

• Five channels of low noise Class D amplification for real world power to all channels

• EZ Set EQ provides easy-to-use room equalization for optimized sound quality

Specifications

• Channels: 5.2

• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 75 W RMS

• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 100 W RMS

• Video Features

• HDMI eARC: Yes

• HDMI Audio Return Channel: Yes

• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 4

• HDMI 2.1 enhanced gaming features: Gaming-VRR,

• ALLM, QFT, HFR (4K@120Hz)

• HDR 10+, Dolby Vision: Yes , Yes

• Audio Features

• Pure Direct: Yes

• EZ/Set EQ: Yes

• DA converter: 192kHz/24-bit

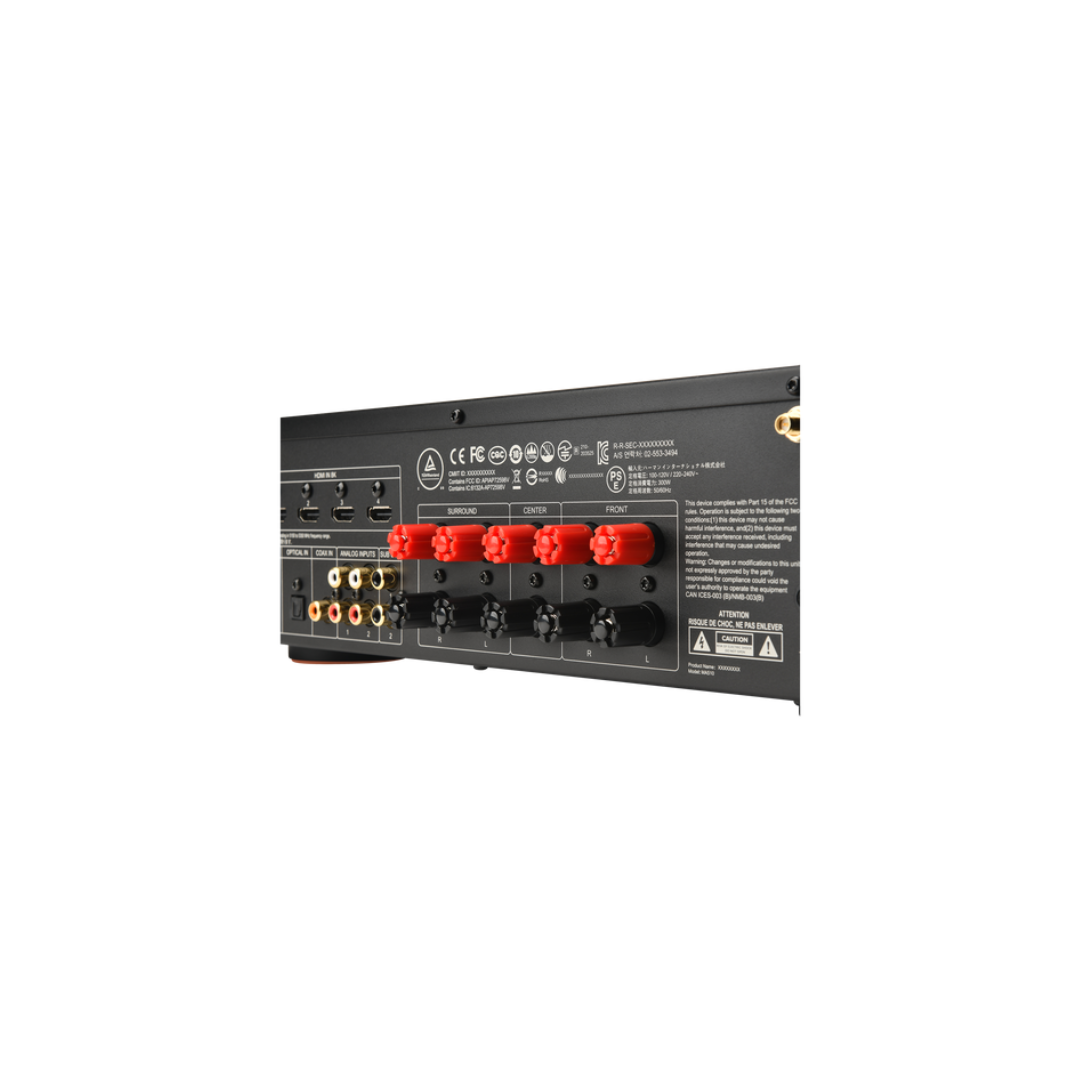

• Connectivity

• HDMI Input/Output: 4 / 1

• Wi-Fi: Yes (2.4 / 5GHz)

• Bluetooth receive: Yes (v4.1, Low Energy)

• Digital Audio Input: 1 Coax, 1 Optical

• Stereo analog input: 2 single-ended RCA

• Pre-Out (single ended RCA): Subwoofer 1,

• Subwoofer 2

• General

• Mains voltage: 240V, 50Hz

• Max. power consumption: 300W

• Standby power consumption: <0.5W

• Dimensions incl. feet and speaker terminals (H x

• W x D): 109.9mm x 432.0mm x 347.6mm

• Weight: 5.4kg

Review

"The JBL MA510 enhances performance through its 8K HDMI specifications, five-channel decoding for immersive sound, low noise class D amplification, and various streaming options, ensuring a high-quality home cinema experience."

Watch full review by TechATop

"The key feature is the room correction capability, allowing users to calibrate their setup using a smartphone"

Watch full review by Hxos Plus
