JBL

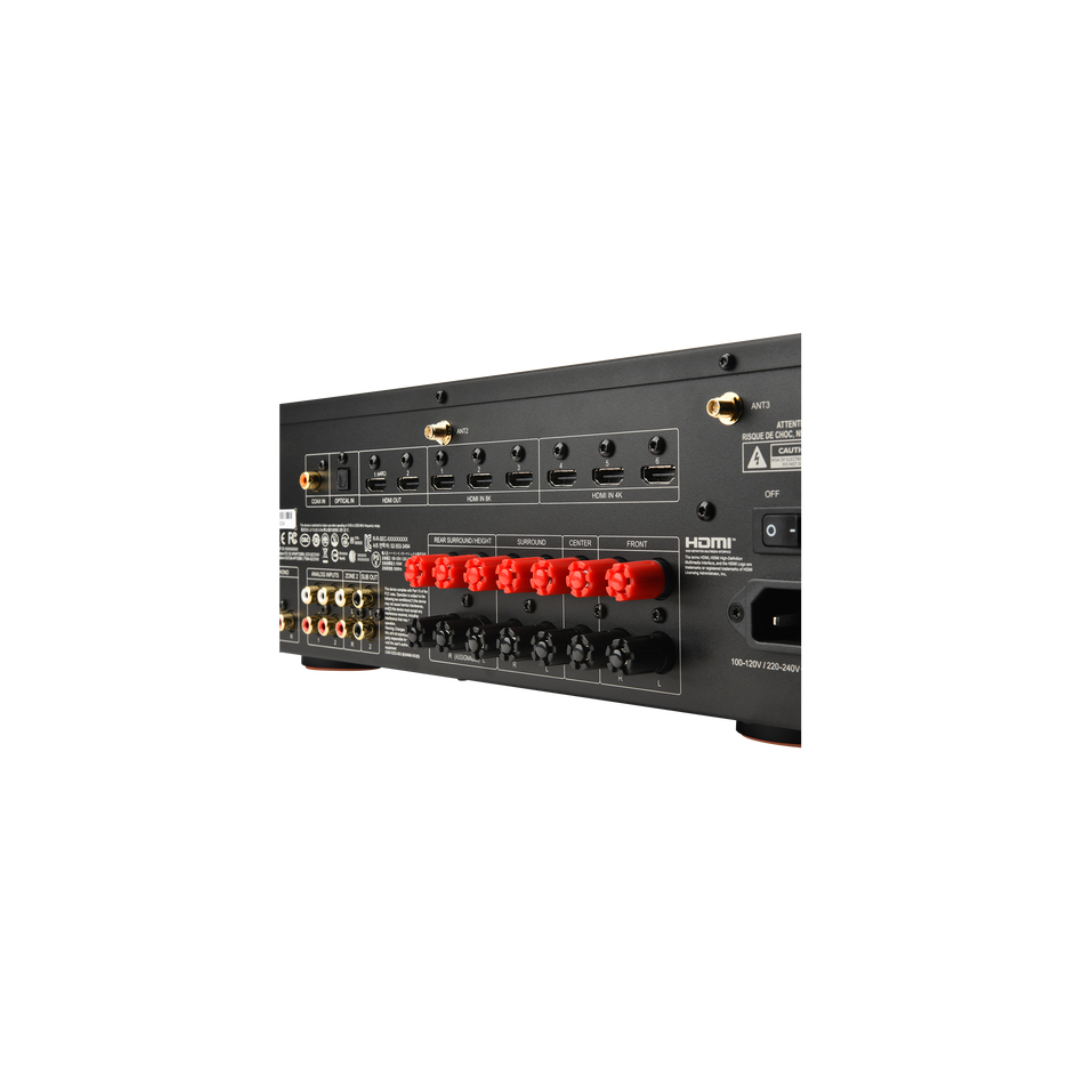

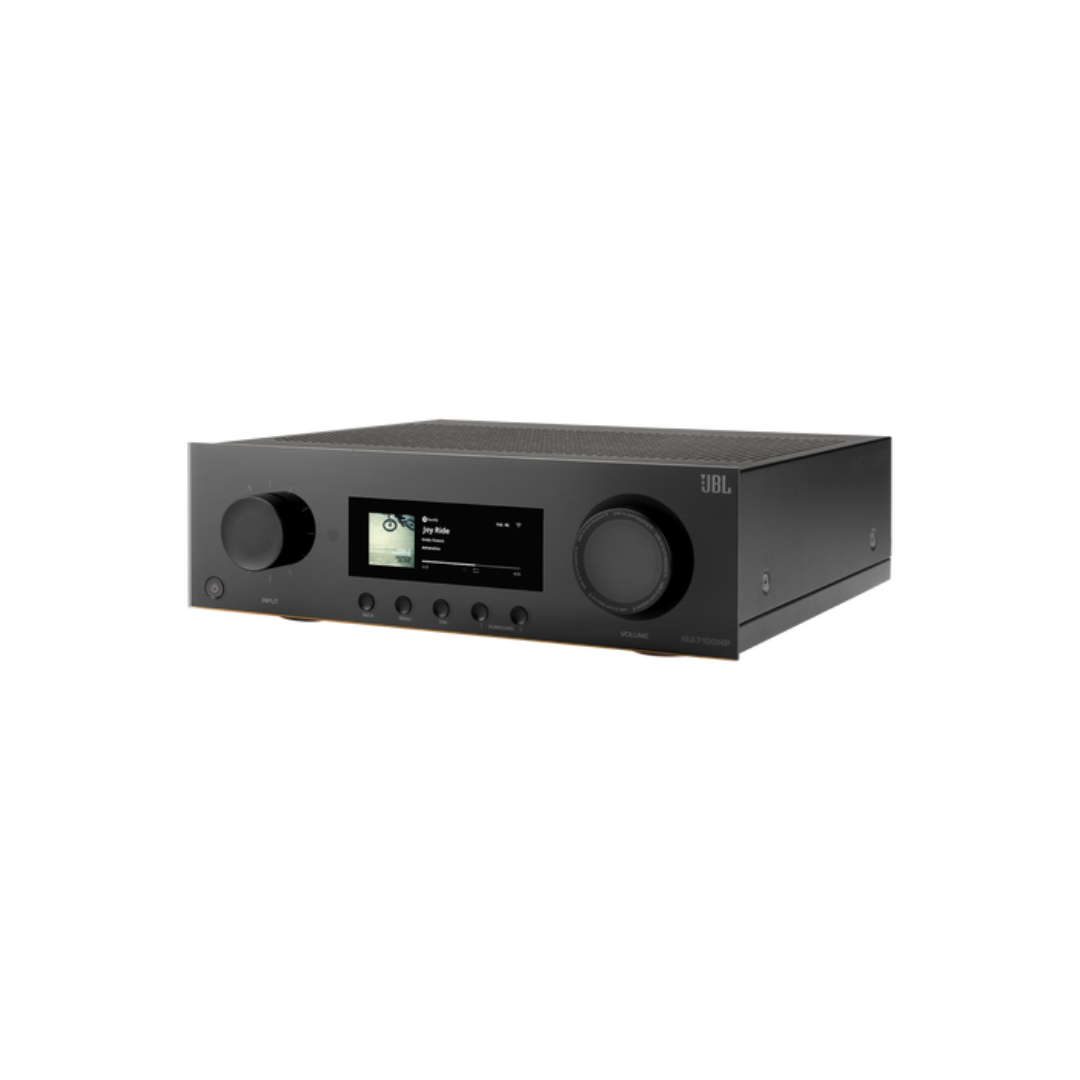

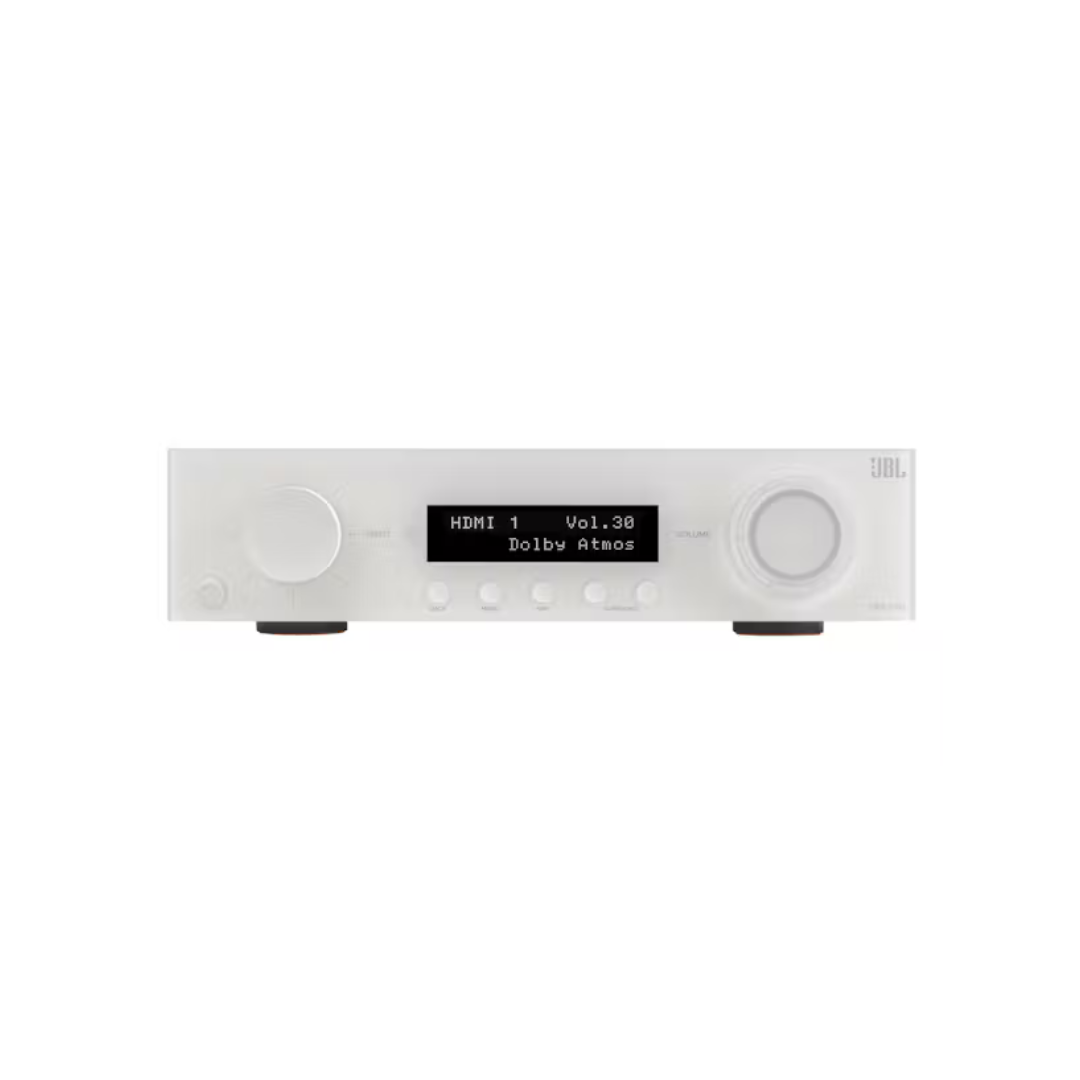

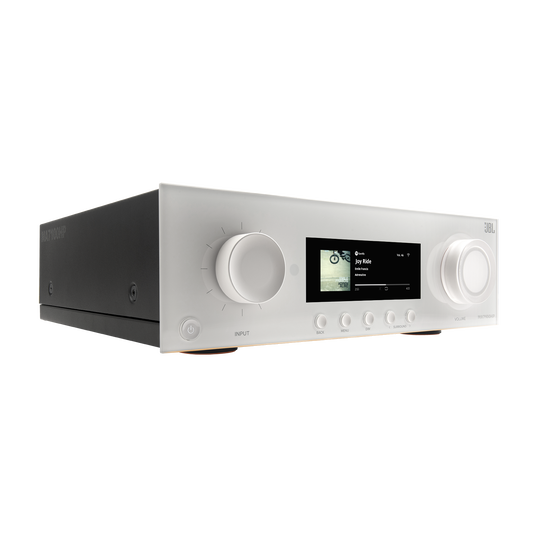

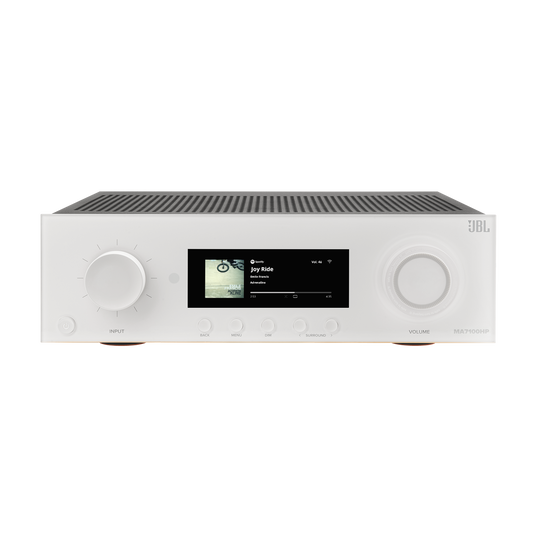

MA 7100HP Net AV Receiver

Get a FREE Binary™ B4 Series 4K Ultra HD High Speed HDMI® Cable with Ethernet - 3m (worth $96.00) when you purchase a JBL MA7100HP Receiver

Please Note: We didn’t invent the HDMI cable—we just made our high-speed B4 Series even better. Transmitting at up to 4K@60 4:4:4, and compatible with HDR, HDCP 2.2, Dolby TrueHD, DTS HD-Master, Ethernet, and more, our B4 cables are an affordable solution for any job that needs a bandwidth boost. To prevent “headaches” when hanging flat panels or sliding a DVD player into a cabinet, our famous connectors are up to 50% shorter than the competition. Plus, our proprietary jackets are as flexible as ever, making your flat-panel install a whole lot easier.

Product Overview

The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC.

Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.

Highlights

• High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

• Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

• Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

• Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)

• Seven channels of powerful low noise

• Class D amplification for real world power to all channels

• EZ Set EQ provides easy-to-use room equalization for optimized sound quality

• Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software

Specifications

• Channels: 7.2

• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 125 W RMS

• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 175 W RMS

• Video Features

• HDMI eARC: Yes

• HDMI Audio Return Channel: Yes

• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3

• HDMI 2.1 enhanced gaming features: Gaming-VRR,

• ALLM, QFT, HFR (4K@120Hz)

• HDR 10+, Dolby Vision: Yes , Yes

• Audio Features

• Dirac Live Ready*: *License purchased separately

• Front channel bi-amp: Yes

• DA converter: 192kHz/24-bit

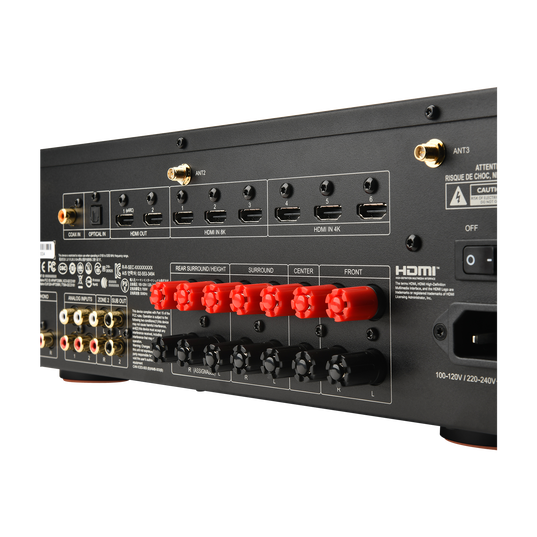

• Connectivity

• HDMI Input/Output: 6 / 2

• Wi-Fi: Yes (2.4 / 5GHz)

• Bluetooth receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

• Bluetooth transmit: Yes (For headphone use)

• Digital Audio Input: 1 Coax, 1 Optical

• Stereo analogue input: 2 single-ended RCA

• Pre-Out (single ended RCA): Stereo Zone 2,

• Subwoofer 1, Subwoofer 2

• General

• Mains voltage: 240V, 50Hz

• Max. power consumption: 700W

• Standby power consumption: <0.5W

• Dimensions incl. feet and speaker terminals (H x

• W x D): 135.0mm x 432.0mm x 396.4mm

• Weight: 7.4kg
