JBL

MA 9100HP Net AV Receiver

Get a FREE Binary™ B4 Series 4K Ultra HD High Speed HDMI® Cable with Ethernet - 3m (worth $96.00) when you purchase a JBL MA9100HP Receiver

Please Note: We didn’t invent the HDMI cable—we just made our high-speed B4 Series even better. Transmitting at up to 4K@60 4:4:4, and compatible with HDR, HDCP 2.2, Dolby TrueHD, DTS HD-Master, Ethernet, and more, our B4 cables are an affordable solution for any job that needs a bandwidth boost. To prevent “headaches” when hanging flat panels or sliding a DVD player into a cabinet, our famous connectors are up to 50% shorter than the competition. Plus, our proprietary jackets are as flexible as ever, making your flat-panel install a whole lot easier.

Product Overview

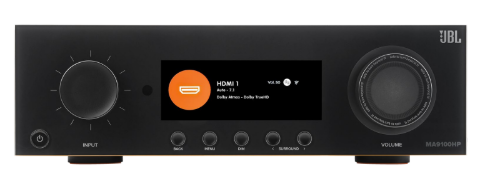

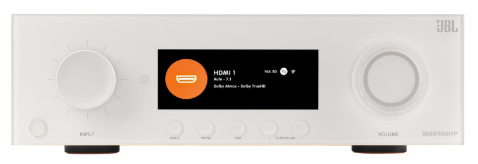

The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive.

Highlights

• High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

• Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

• Dolby Atmos and DTS:X decoding, supports up to 9.1 or 5.1.4 channel configurations

• Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)

• Seven channels of powerful low noise

• Class D amplification for real world power to all channels

• EZ Set EQ provides easy-to-use room equalization for optimized sound quality

• Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software

Specifications

• Channels: 9.2

• Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 140 W RMS

• Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max): 240 W RMS

• Video Features

• HDMI eARC: Yes

• HDMI Audio Return Channel: Yes

• 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz): 3

• HDMI 2.1 enhanced gaming features: Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

• HDR 10+, Dolby Vision: Yes , Yes

• Audio Features

• Dirac Live Ready*: *License purchased separately

• Front channel bi-amp: Yes

• DA converter: 192kHz/24-bit

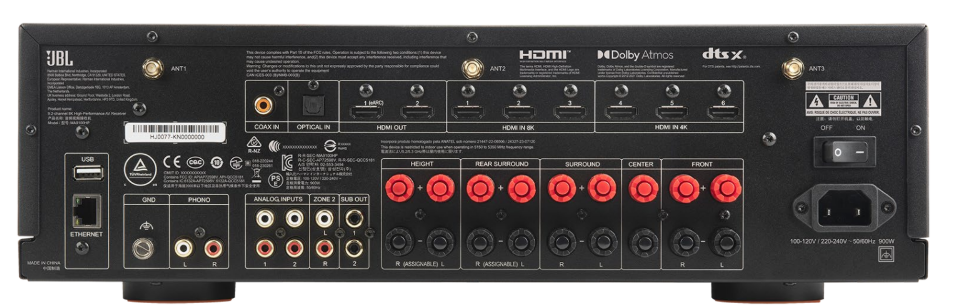

• Connectivity

• HDMI Input/Output: 6 / 2

• Wi-Fi: Yes (2.4 / 5GHz)

• Bluetooth receive: Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

• Bluetooth transmit: Yes (For headphone use)

• Digital Audio Input: 1 Coax, 1 Optical

• Stereo analogue input: 2 single-ended RCA

• Pre-Out (single ended RCA): Stereo Zone 2, Subwoofer 1, Subwoofer 2

• General

• Mains voltage: 240V, 50Hz

• Max. power consumption: 900W

• Standby power consumption: <0.5W

• Dimensions incl. feet and speaker terminals (H x

• W x D): 135.0mm x 432.0mm x 396.4mm

• Weight: 7.6kg

Review

"JBL MA 9100HP is a model I would choose because of its power and key features. One being it's direct live ready."

Watch full review by Pursuit Perfect System

"All models feature high performance sound including 5, 7, & 9-channels of amplification, 4K and 8K video compatibility, Dolby and DTS decoding, high resolution 192kHz 24-bit audio, and easy-to-use room equalization."

Read full review here by IF Design
