JBL

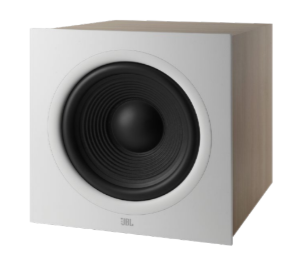

Stage 2 200P 10” Active Subwoofer

Highlights

• 10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer

• 150W RMS (300W Dynamic)

• Dual Rear-Firing Tuned Ports

• Crossover, Level and Phase Control

Product Overview
Designed and engineered in our world-famous Acoustic Engineering Center of
Excellence in Northridge, California, Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series.

This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.

Specifications

• Low Frequency Driver: 10-inch Polycellulose Ribbed High Excursion

• Amplifier Power: 150W RMS (300W Dynamic)

• Frequency Response ± 6dB: 28Hz-150Hz

• Crossover Frequencies: 50Hz-150Hz (variable) 24dB/octave

• Controls: 35Hz-150Hz

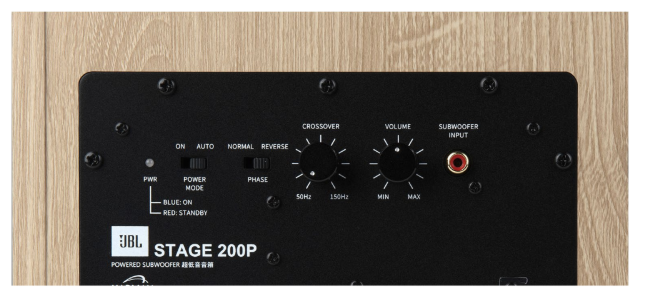

• Controls: Auto Power, Crossover, Level, Phase

• Inputs: One (1) Line-Level LFE Input

• Enclosure Tuning: Bass-Reflex via Dual Rear-Firing Tuned Ports

• Power Requirements: 230V, 50Hz

• Power Consumption: <0.5W (standby) / 205W/1.6A (max – 230V)

• Finish: Espresso or Latte

• Dimensions (HxWxD): 361mm x 350mm x 385mm

• Product Weight: 14.4 kg

• Shipping Weight: 18.3kg
