JBL

Stage 2 260W 6.5 inch In Wall Speaker

2-way 6.5in (166mm) In-Wall Loudspeaker

Features

• 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide

• 6.5" (165mm) Polycellulose cone woofer

• Premium air-core inductors and mylar cap capacitor crossover network components ensure that sound remains dynamic at all listening levels.

• Rigid baffle design with acoustic smoothing for improved transducer integration

• XL-2 Installation System compatible with up to 2" (50mm) thick wall / ceiling material.

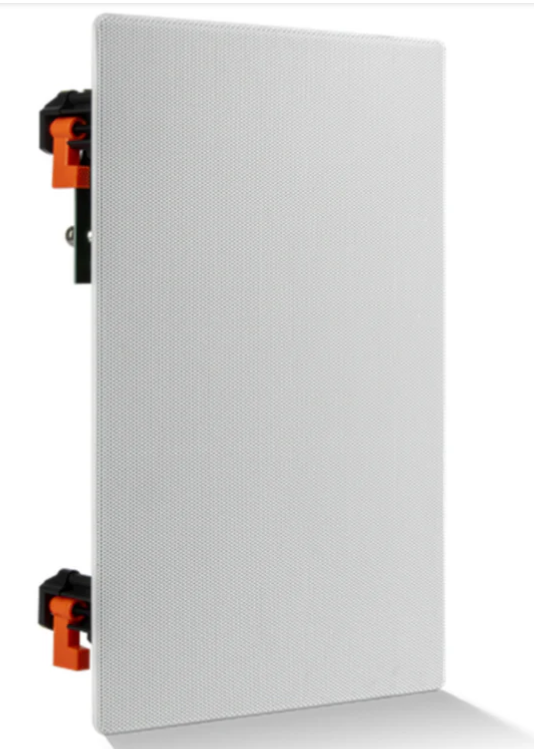

• Zero Bezel metal grille installs flush to wall or ceiling for a clean, inconspicuous appearance

The Stage 260W has a 6.5" (165mm) Polycellulose cone woofer and 1" (25mm) Aluminum dome tweeter with an acoustic lens and HDI™ waveguide. A visually discrete zero bezel grille and easy installation allow these speakers to be heard and not seen.

Elements including baffles with acoustic smoothing, acoustic lens tweeters, and patented High-Definition Imaging (HDItm) waveguide geometry have been incorporated into the design to ensure that the sound is clear and accurate.

Specifications

• High Frequency Transducer: 1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) Waveguide
• Low Frequency Transducer: 6.5" (165mm) Polycellulose cone woofer
• Recommended Amplifier Power (Full Range): 20-100W RMS
• Frequency Response: 50Hz-25kHz (-6dB on-axis)
• Sensitivity (2.83V@1m): 87dB
• Nominal Impedance: 8ohm
• Crossover Frequency: 1900Hz
• Inputs: Nickel-plated spring-loaded connectors
• Grille Dimensions: H 13.3in (339mm) x W 8.5in (217mm)
• Cutout Dimensions: H 12.2in (311mm) x W 7.2in (184mm)
• Mounting Depth: 3.6in (92mm)
• Product Weight (Kg): 2.2Kg
• Shipping Carton Dimensions: L 15.6in (396mm) x W 10.8in (274mm) x H 5.1in (130mm)
• Shipping Carton Weight: 6.48lbs (2.94Kg)
