JBL

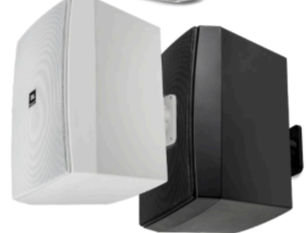

Stage XD6 Outdoor Speakers

Features

•  IP67 Waterproof rating provides protection from the harshest of outdoor conditions

• Aluminium Dome Tweeters with Acoustic Lens for smooth on and off axis frequency response

• High-Definition Imaging (HDI ) waveguides with optimized geometry for smooth dispersion and low distortion

• Included wall-mount bracket allows for easy installation and angle adjustment

• Zero bezel magnetically attached grilles

• Rotatable logo for horizontal and vertical applications

• Sustainably designed packaging and product – the first repairable IP67 outdoor loudspeaker

Stage XD Series loudspeakers are designed to work in a wide variety of applications both indoors and outdoors. Their unique combination of features and patented acoustic technology instills them with extreme durability while delivering the highest level of audio.

Elements including acoustic lens Aluminum dome tweeters, and patented High-Definition Imaging (HDI ) waveguides have been incorporated into the design to ensure that the sound is clear and accurate. Stage XD Series loudspeakers are available in 2 sizes featuring 5.25" (130mm) or 6.5" (165mm) Polypropylene Graphite Filled Cone Woofer.

The IP67-rated waterproof enclosures are available in black or white finishes and wall-mount brackets are included to support a variety of installation options.

Specifications

• Product Type: 2-way 6.5" (165mm) Indoor/Outdoor All Weather Loudspeaker
• Weatherproof Rating: IP67
• High Frequency Transducer: 1" (25mm) Aluminium dome with High-Definition Imaging (HDI ) waveguide
• Low Frequency Transducer: 6.5" (165mm) Polypropylene Cone Woofer
• Nominal Impedance: 6 ohms
• Sensitivity (2.83V@1m): 88dB
• Recommended Amplifier Power: 20-100W RMS
• Frequency Response (-6dB On-Axis): 55Hz-25kHz
• Crossover Frequency: 2,500K
• Operating Temperature: -35° C to 75° C
• Product Dimensions (HxWxD): 299mm x 221.8mm X 194mm
• Product Weight: 6.5kg
• Wall Mount Extension: 71mm
• Beauty Carton Dimensions (HxWxD): 373mm x 496mm X 276mm
• Beauty Carton Weight: 7kg
• Beauty Carton Quantity: 1pr
