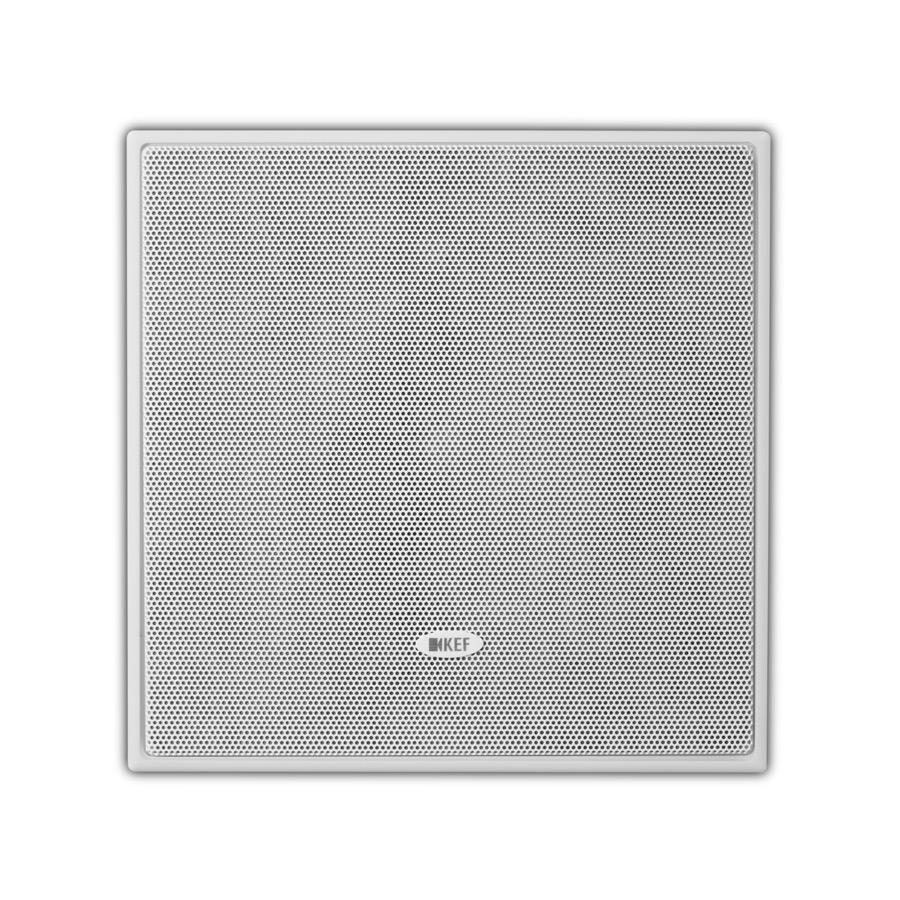

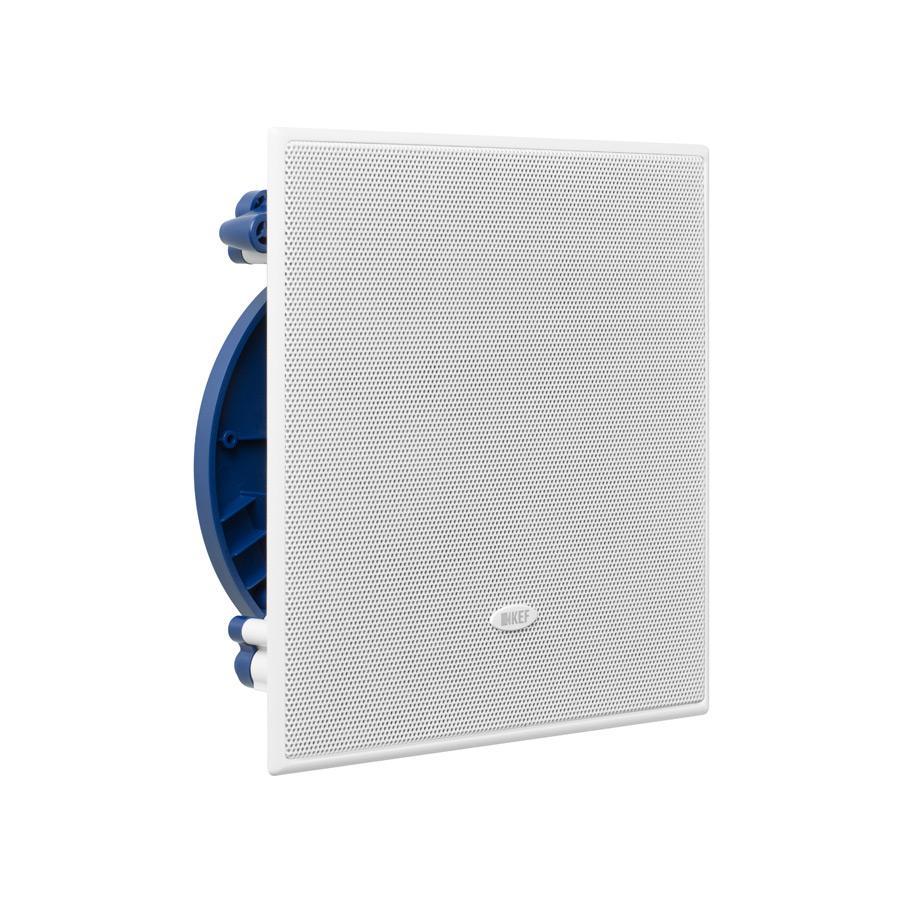

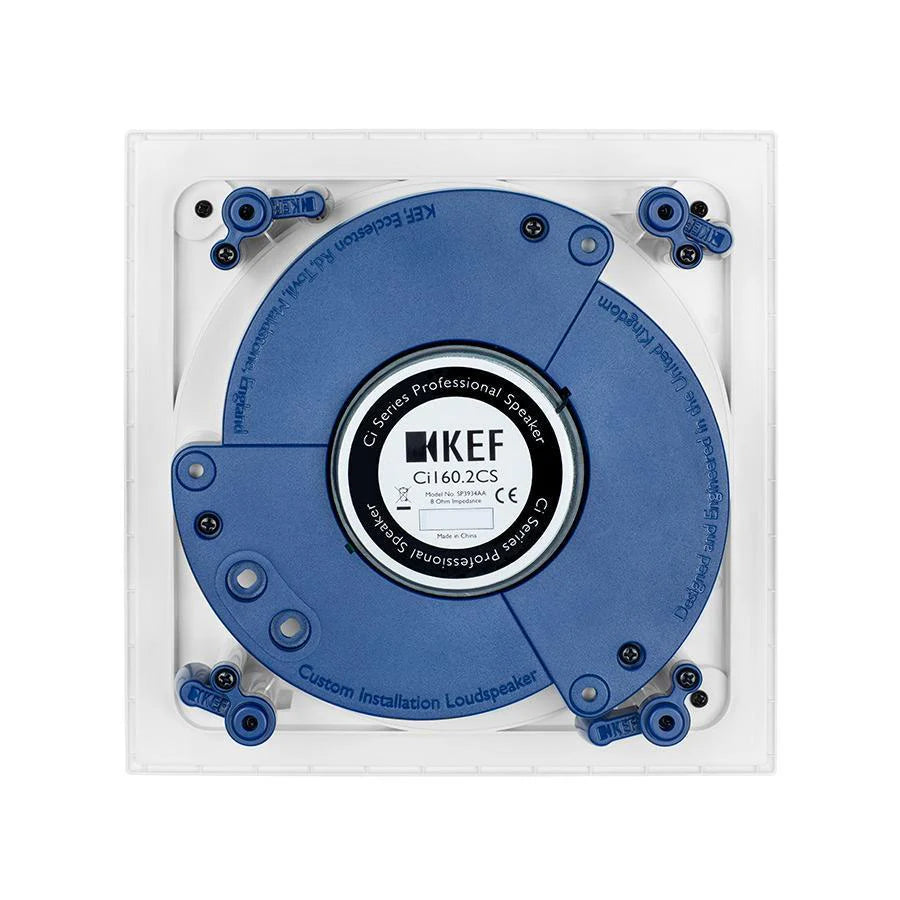

KEF CI160.2CS In-Wall Speaker

KEF



KEF CI160.2CS

Features KEF’s patented Uni-Q driver array

Ci160.2CS in-wall speaker allows sound to disperse more evenly throughout the room. The extremely shallow mounting depth allows you to install the Ci160.2CS where other speakers in its class won’t fit.
Ci-C Series offers an ideal introduction to the world of custom installation speakers. Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Weather resistant treatment protects the speakers from moisture and UV light. Ultra-Thin Bezels that are barely visible at the edge of exceptionally flat grilles mean the C Series fits unobtrusively into your home.


Fast and Easy to Install

KEF's Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.

Key Features

  • UTB™ Ultra-Thin Bezel

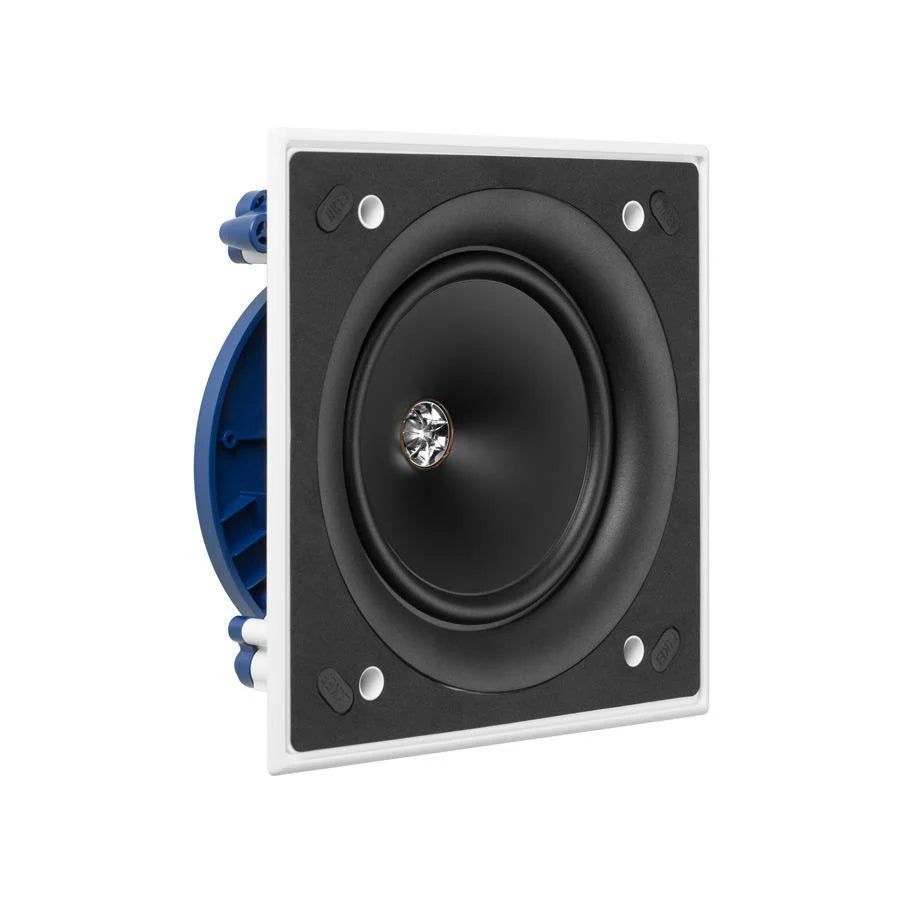

  • 160mm (6.5in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille and bezel
  • Weather Resistant
  • IP64 certified

NOMINAL IMPEDANCE

8 Ohms

SENSITIVITY

89dB (2.83V/ 1m)

FREQUENCY RESPONSE

52Hz-20kHz (+/-6dB) open-backed

CROSSOVER RESPONSE

2.5kHz

DRIVE UNITS

LF: 160mm (6.5in.) Uni-Q
HF: 16mm (0.6in.)

RECOMMENDED AMPLIFIER POWER

10-100W

PRODUCT EXTERNAL DIMENSIONS (H X W X D)

223 x 223 x 88.7 mm (8.78 x 8.78 x 3.49 in.)

CUT-OUT DIMENSIONS (H X W)

94 x 194 mm (7.64 x 7.64 in.)

MOUNTING THICKNESS

Ceiling Thickness (Maximum): 30mm (1.19 in.)
Ceiling Thickness (Minimum): 3mm (0.12 in.)

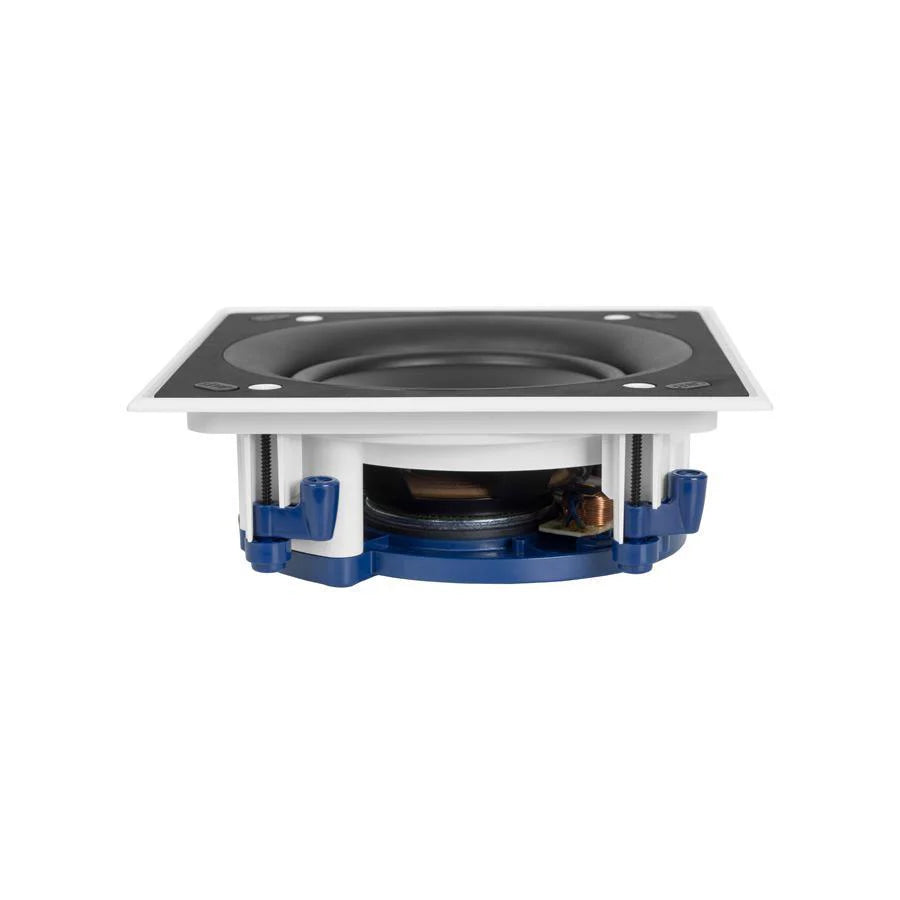

MOUNTING DEPTH FROM SURFACE

84.5mm (3.33in.)

OPTIONAL ROUGH IN FRAME

RIF160S

OPTIONAL REAR ENCLOSURE

RNC160S

NET WEIGHT

1.5kg (3.3lbs)

UNIT MEASUREMENT

Piece
