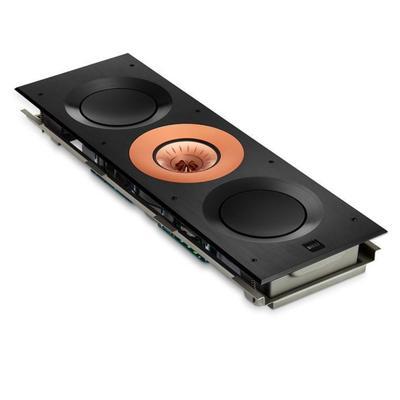

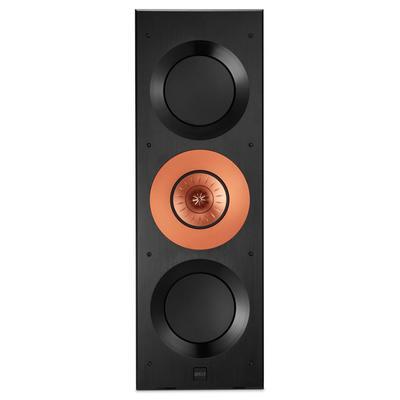

KEF CI3160REF - THX In-Wall Speaker

KEF



KEF CI3160REF - THX

Ci3160REF-THX takes in-wall performance to new heights. Whether used as a two-channel pair or as part of a complete home theatre system in any combination of KEF Architectural and traditional speakers, Ci3160REF-THX delivers countless possibilities for REFERENCE performance.

Flawless Sound

Ci3160REF-THX utilises the latest Uni-Q point source driver array. A 25mm vented aluminium dome tweeter sits at the exact acoustic centre of a 125mm mid-range driver. Together they act as a single source, flooding the listening space evenly with flawlessly natural sound.

Brilliant Bass

Ci3160REF-THX’s bespoke 160mm bass driver is optimised for in-wall performance. With a massive vented magnet assembly and a large aluminium wire voice coil driving an exceptionally light, stiff and strong alloy cone, the dynamics and power handling are exceptional.

Auditioning perfection

Ci3160REF-THX’s crossover combines the science of computer-modelling with the rigours of exhaustive auditioning and refinement of each high-grade component. Only components with the lowest distortion and the smoothest response make the grade for this exceptional loudspeaker.

NOMINAL IMPEDANCE

4 Ohms

SENSITIVITY

90dB (2.83V/ 1m)

FREQUENCY RESPONSE (±6DB)
OPEN-BACKED

40Hz - 28kHz (±6dB)

FREQUENCY RANGE (-10DB)

32Hz-30kHz

NOMINAL COVERAGE (DEGREES)

115

CROSSOVER FREQUENCIES

350Hz, 2.7kHz



DRIVE UNITS

LF: 2 x 160mm (6.5 in.)
MF: 125mm (5.25 in.) Uni-Q
HF: 25mm (1 in.)



RECOMMENDED AMPLIFIER POWER

40 - 350W

RECOMMENDED HIGH-PASS FILTER (HZ)

40Hz PRODUCT EXTERNAL DIMENSION (H X W X D) 680 x 230 x 105.7 mm (26.77 x 9.06 x 4.16 in.)

CUT-OUT DIMENSIONS (H X W)

660 x 209 mm (25.98 x 8.23 in.)



MOUNTING THICKNESS (MAXIMUM)

40mm

MOUNTING THICKNESS (MINIMUM)

6mm

MOUNTING DEPTH FROM SURFACE

99mm (3.9 in.)

OPTIONAL ROUGH IN FRAME

RIF3160L

IDEAL REAR VOLUME(L)

60

MINIMUM REAR VOLUME(L)

30

MAX SPL (DB)

110

CERTIFICATION

THX Ultra



SAFETY AND REGULATORY COMPLIANCE

NA

NET WEIGHT

13.4Kg (29.54Ibs.)


UNIT MEASUREMENT

Piece
