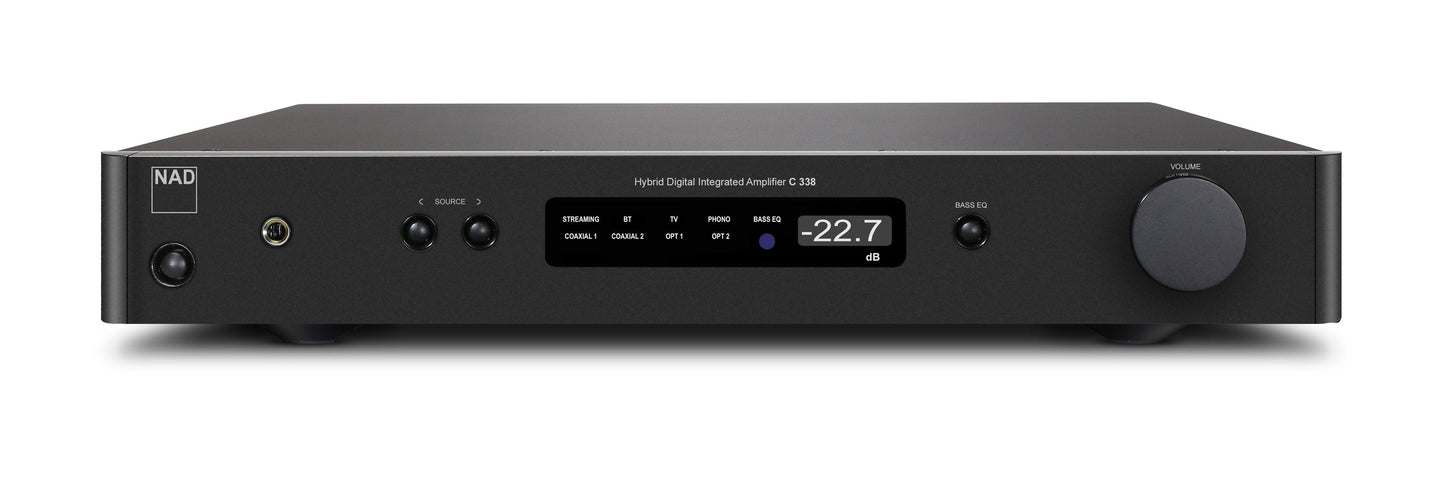

NAD Classic C338 stereo integrated amplifier
When it comes time to build your home audio system, knowing which products to include can be tricky. If you’re looking for something that is powerful, durable, versatile, and affordable, then the C 338 is the integrated amp for you. Tying together all the crucial elements of a top performing music system, the C 338 allows your speakers to reveal every musical detail of your favourite tracks. Although the C 338 may look unassuming, this particular amplifier includes many cutting-edge technologies that build on our legendary technologies of the past but with a futuristic view. Thanks to Bluetooth®, you can instantly connect to the C 338, giving you the power to stream music wirelessly from any Bluetooth-enabled device. It also has Wi-Fi and Network Streaming, supports Spotify Connect, Tidal, Internet Radio, and is also a UPnP Client. The C 338 even includes a special MM Phono input for connection of a turntable so you can enjoy your favourite vinyl releases. Where music was once trapped on a device, the C 338 sets it free.
NAD'S NEW CLASSIC AMPLIFIERS. INTELLIGENT. POWERFUL. EFFICIENT.
Introducing the NAD C338
Getting it Right
When it comes time to create a product, we never overlook the most crucial of requirements. From low noise circuits to precise volume control action, to accurate channel balance and proper input and output impedance characteristics, we here at NAD do everything we can to get these things exactly right. We also include an MM Phono stage with precisely accurate RIAA equalization, high overload margins, extremely low noise, and an innovative circuit to suppress infrasonic noise that is present on all LPs – all without affecting bass response. Our line inputs can accommodate all kinds of analogue source components by offering ideal input impedance characteristics with linear ultra-low-noise buffer amplifiers to prevent any sonic degradation caused by inappropriate loading of the source device. We include a separate headphone amplifier with low output impedance and very high output voltage capability – enough to drive even high impedance studio monitor headphones. Low impedance line outputs that can connect to subwoofers extend the versatility of this well thought out amplifier. These are all details you can hear.
As previously stated, you can connect instantly to the C 338 with Bluetooth®, allowing you to stream music wirelessly from any Bluetooth-enabled device. Bluetooth can also be used to listen to other sources connected to the C 338 via wireless headphones. There is also a control app that allows your smartphone or tablet to control all functions of your NAD.
In recent years, NAD has moved away from the old-fashioned linear power supplies and Class AB output stages that waste energy, and have instead developed even better performing circuits based on switch mode power supplies and Class D output stages. Once thought to be inferior to traditional topologies, NAD’s advanced work in this area has created some of the best performing amplifiers regardless of basic design principle. These new designs are very linear over a wide bandwidth and provide consistent performance into all speaker loads, providing a dramatic advance over previous models.
Furthermore, the power supply is capable of 160 watts continuously and over 300 watts instantaneously to allow for short-term musical transients. It can operate with any AC mains voltage from 100 to 240 volts and provides pure DC power to all the various stages of the C 338. This highly efficient supply also provides near perfect regulation of voltage across a wide range of conditions and provides a solid noise-free foundation for the amplifying stages.
Using a customized version of the proven Hypex UcD output stage, the C 338 allows for massive power with nearly unmeasurable distortion and noise in the audible range. Every detail of this amplifier has been carefully designed and perfectly executed to deliver every last drop of performance.
50W x 2 Continuous Power into 8 or 4 Ohms
Wi-Fi enabled with network streaming of music services, internet radio,and UPnP
MM Phono input
TV audio input
SPDIF coax and optical inputs
Mobile Control App for smartphone and tablet
Continuous Output Power into 4 Ω and 8 Ω (Stereo)
>50W (at rated THD, 20-20kHz, both channels driven)
IHF Dynamic Power
2 Ω 210W
4 Ω 150W
8 Ω 80W
<0.o3% (250mW to 50, 8 Ω and 4 Ω
>98dB (A-weighted, 500mV input ref. 1W out in 8 Ω)
>60W (at 1kHz 0.1% THD)
Peak output current
>18A (in 1 Ω, 1 ms)
>300 (ref. 8 Ω, 20Hz and 6.5kHz)
±0.3 dB (20Hz-20kHz)
Input Sensitivity (For 50W in 8Ω)
Line In: 380mV, Digital In: 18%FS
Up to 192kHz/24bit
Dimensions (W x H x D)
435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)”
