Ortofon

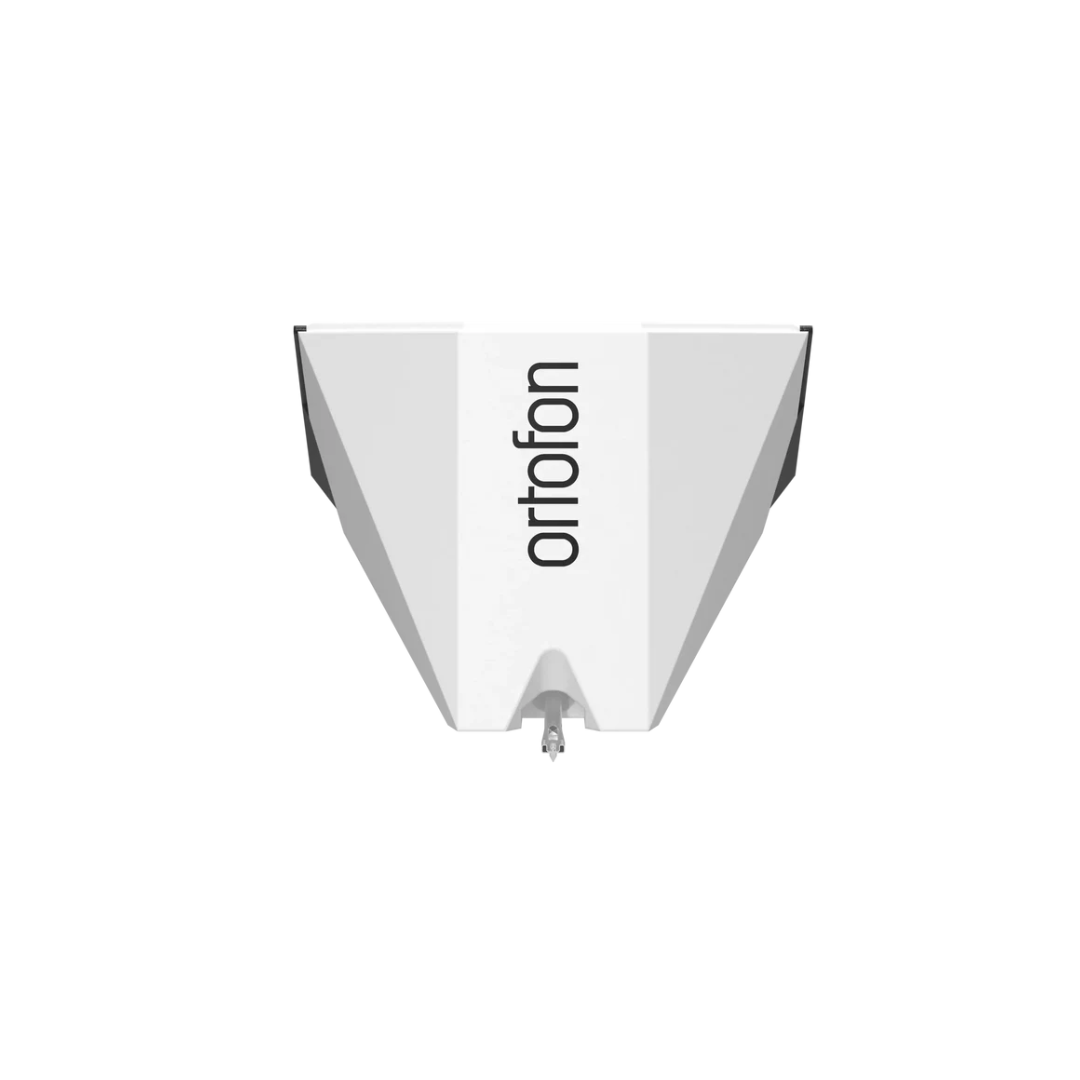

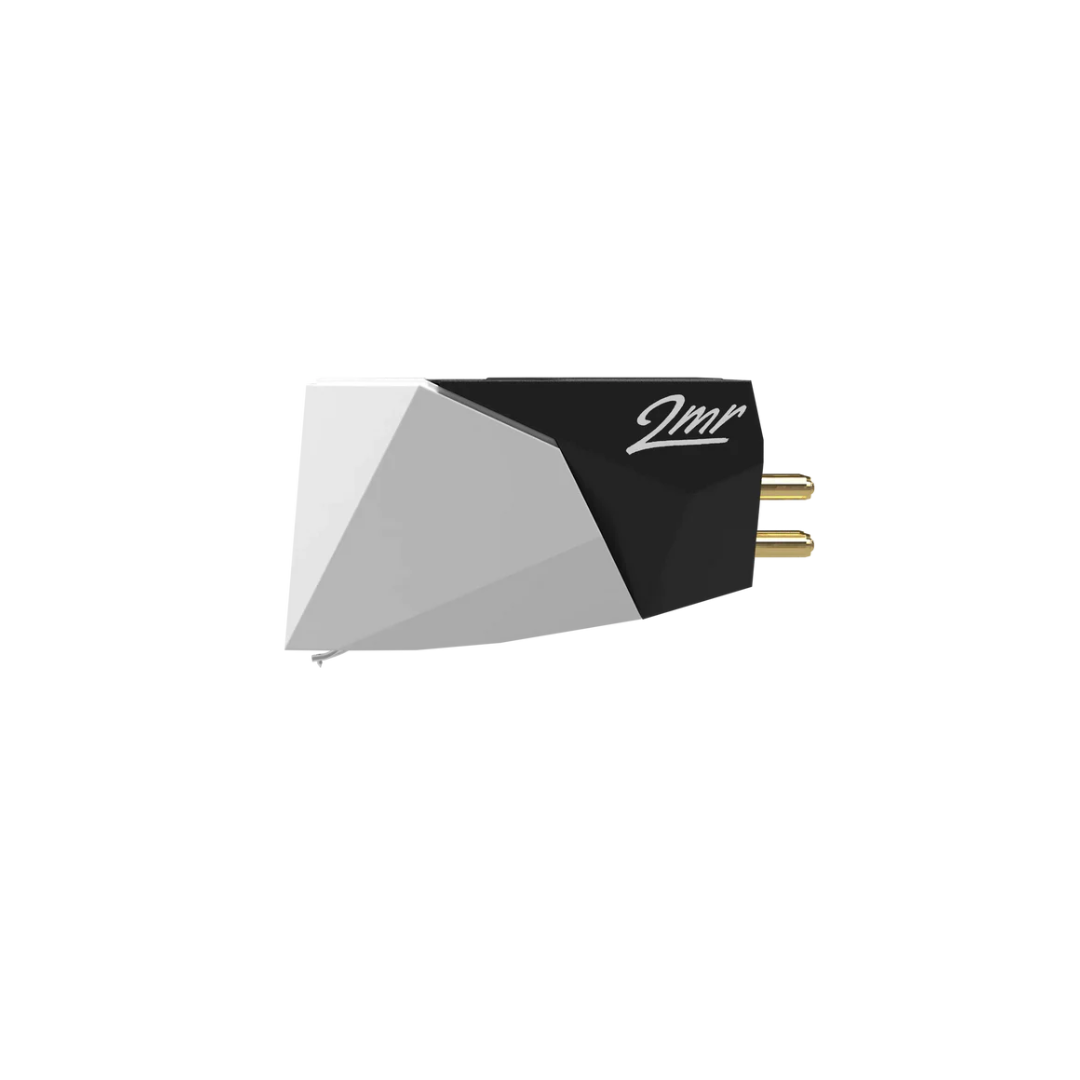

Ortofon 2MR Mono Moving Magnet Cartridge

Ortofon 2MR Mono Moving Magnet Cartridge

NOW AVAILABLE
$655.00
RRP
$655.00
Save $0.00
Sale Sold out
Shipping calculated at checkout.

Ortofon

2MR Mono Moving Magnet Cartridge

Step into an Era of Authenticity with the 2MR Mono Cartridge, thoughtfully crafted with a stylus' tip that features an R 18µm Nude Spherical diamond to perfectly suit the intricacies of playing mono microgroove LP vinyl records. Immerse yourself in the authentic nostalgia of mono vinyl records brought to life with the 2M Mono.

Ortofon - 2MR Mono - Moving Magnet Cartridge

Ortofon 2MR Mono features a specially designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.
With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Stylus

Embark on an Elevated Mono Experience with the 2M Mono Cartridge. Designed to bring out the best in your mono microgroove LP vinyl records, it features a stylus tipped with an R 18µm Nude Spherical diamond. This engineered feature is an optimal solution for playing mono microgroove LP vinyl records and is ideal for achieving exceptional playback quality and capturing the essence of vintage mono soundscapes.

Enjoy true mono

Output

The 2MR Mono features a high-performance motor system with quad coils and Ortofon’s very own invention: the split pole pins. The 2MR Mono uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

Compatibility

The 2MR Mono 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws.

Specification
Specification Value
Output Voltage at 1 kHz, 5cm/sec 4 mV
Frequency Response 20 Hz - 10 kHz (+3 dB / -1 dB)
Tracking Ability at 315Hz 70 µm
Compliance, Dynamic, Lateral 18 µm/mN
Stylus Tip Radius R18 µm
Tracking Force Range 1.6-2.0 g (16-20 mN)
Tracking Force, Recommended 1.8 g (18 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 700 Ohm
Cartridge Colour Black/White
Cartridge Weight 6 g
Recommended Load Resistance 47 kOhm
Internal Inductance 350 mH
Stylus Colour White
