Klipsch

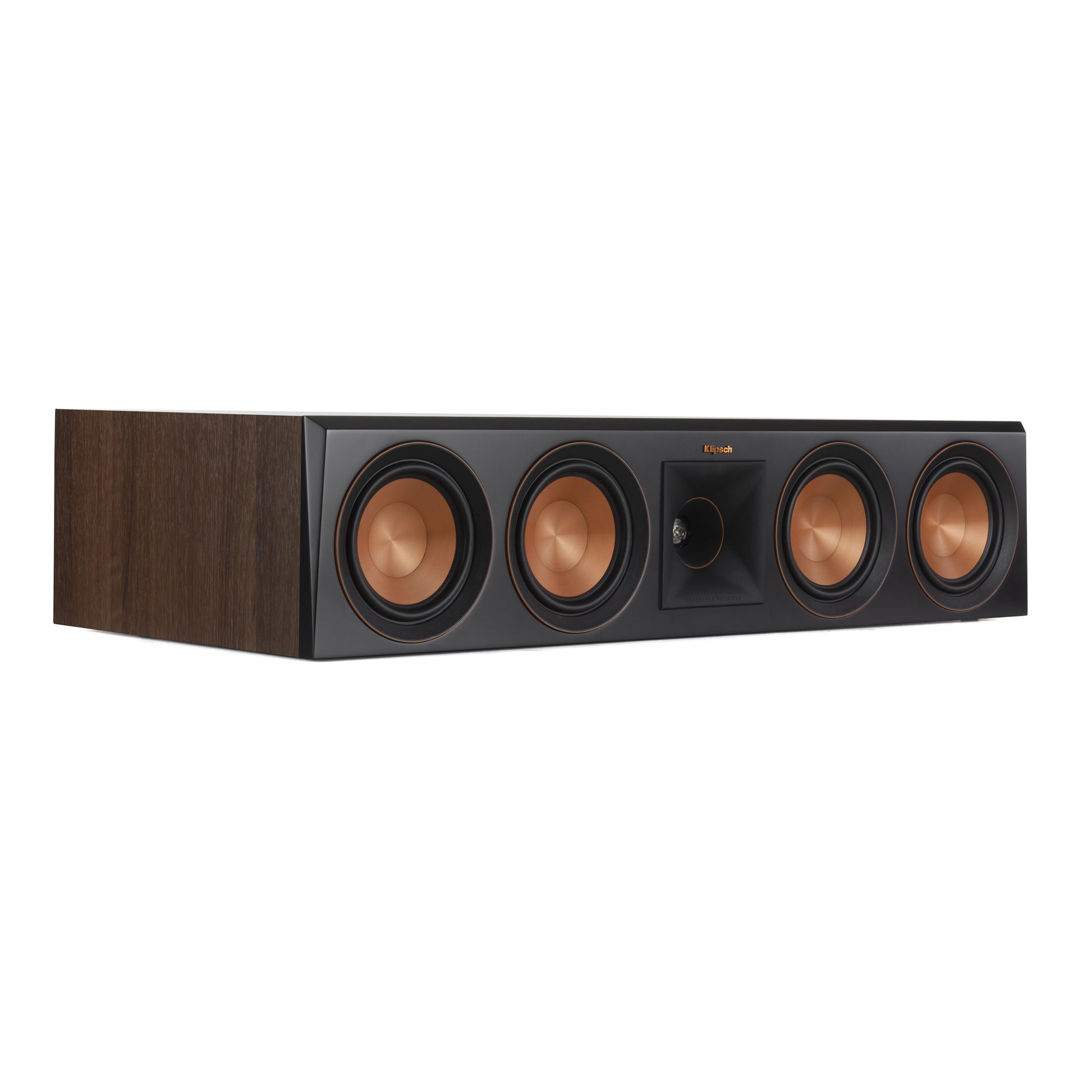

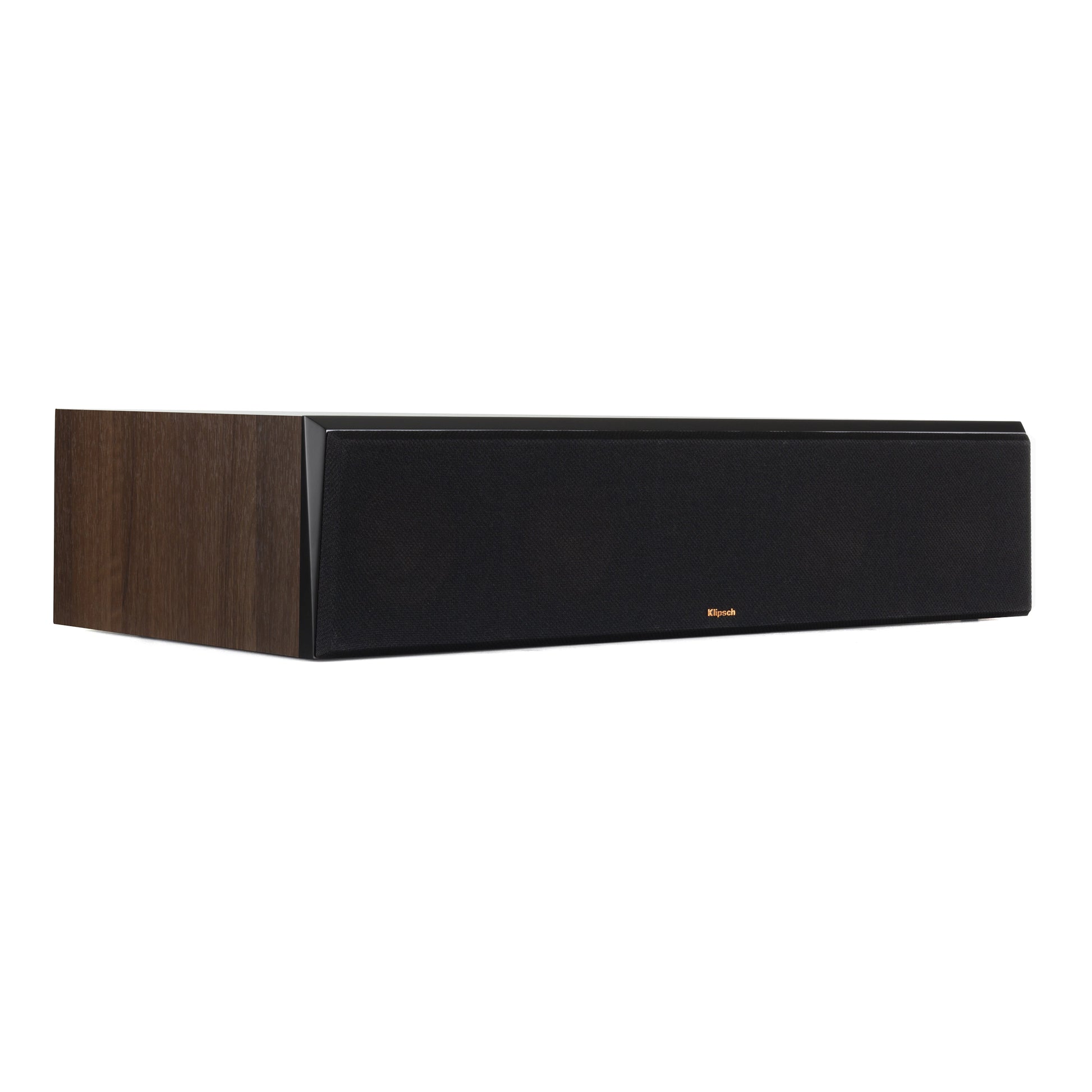

RP-504C Center Channel Speaker

The Klipsch Reference Premiere RP-504C center channel speaker brings movie dialogue and music lyrics to life. Four 5.25" Cerametallic™ woofers and a hybrid Tractrix^® horn emit lifelike, front row sound.

Features

HORN ANATOMY

Klipsch Reference Premiere series speakers feature a compressed molded silicon face that is matted to the 90° x 90° Tractrix horn to reduces horn resonance for smoother frequency response. Klipsch computer modeled phase plugs act as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.

VENTED TWEETER

A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction.

The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters.

Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound.

A ceramic magnet housing provides premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.

WOOFER ANATOMY

Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.

Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.

Specifications:

• FREQUENCY RESPONSE: 58-25kHz +/- 3dB
• SENSITIVITY: 97dB @ 2.83V / 1m
• POWER HANDLING: (CONT/PEAK) 150W/600W
• NOMINAL IMPEDANCE: 8 ohms compatible
• CROSSOVER FREQUENCY: 500Hz/1500Hz
• HIGH FREQUENCY DRIVER: 1” Titanium LTS Vented Tweeter with Hybrid
  Cross-Section Tractrix® Horn
• LOW FREQUENCY DRIVER: Quad 5.25” Cerametallic Cone Woofers
• ENCLOSURE MATERIAL: MDF
• ENCLOSURE TYPE: Bass Reflex via rear-firing Tractrix® Port
• INPUTS: Single Binding Posts
• HEIGHT: 6.81” (17.3 cm)
• WIDTH: 31.13” (79.1 cm)
• DEPTH: 14.46 (36.7 cm)WEIGHT: 34 lb (15.4 kg)
• FINISH: Ebony, Walnut, Piano Black
• ACCESSORIES: Rubber Feet (4)
• BUILT FROM: 2018
