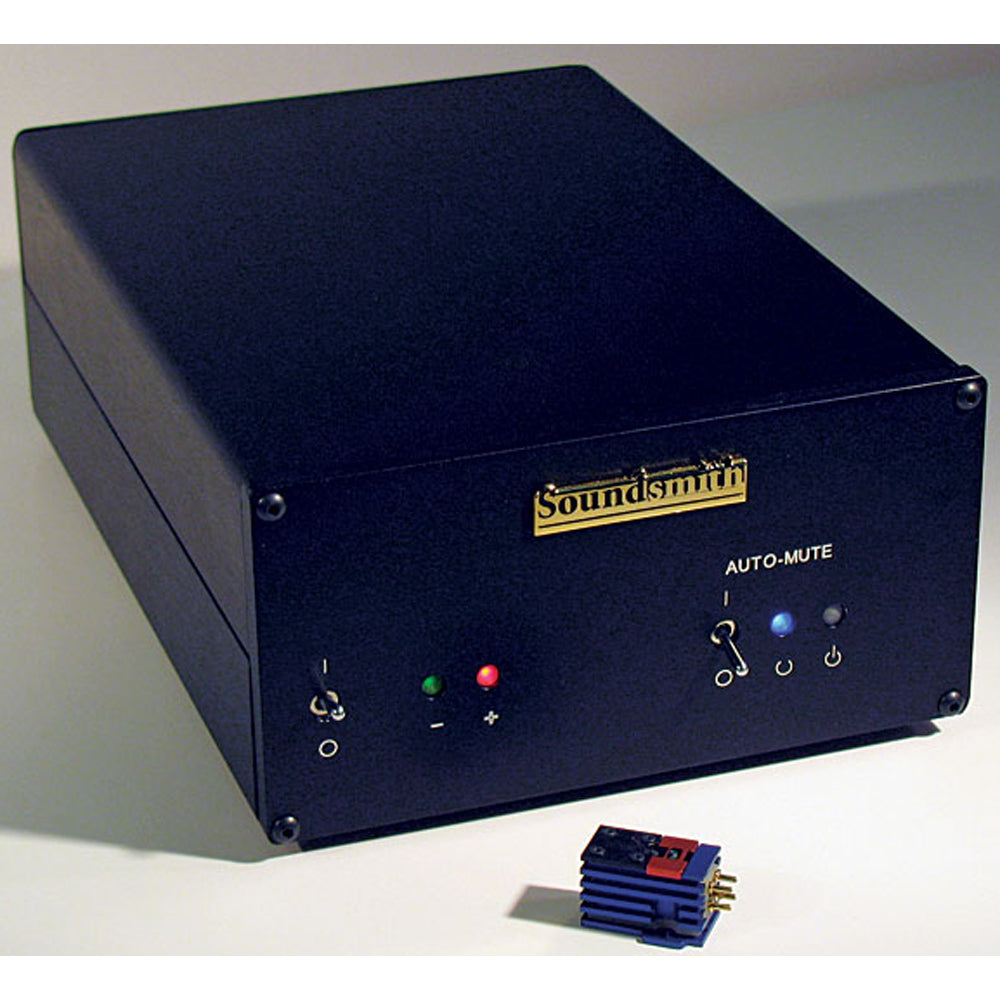

SG 200 STRAIN GAUGE Cartridge System

SG 200 STRAIN GAUGE Cartridge System

Regular price $25,000.00
Regular price Sale price $25,000.00
Sale Sold out
Shipping calculated at checkout.

The entry into the Strain Gauge system features fixed-level line outputs suited for line-level inputs on your system pre-amplifier.

The supplied SG cartridge comes with the SGS-5 stylus assembly as standard, however, you may purchase the system with the SGS-6 stylus for an extra surcharge at the time of ordering.

The SG-200 features an auto-mute circuit that protects your system and speakers from transients due to an accidentally dropped styli. The front panel auto-mute also allows quiet introductions to play or record your vinyl.

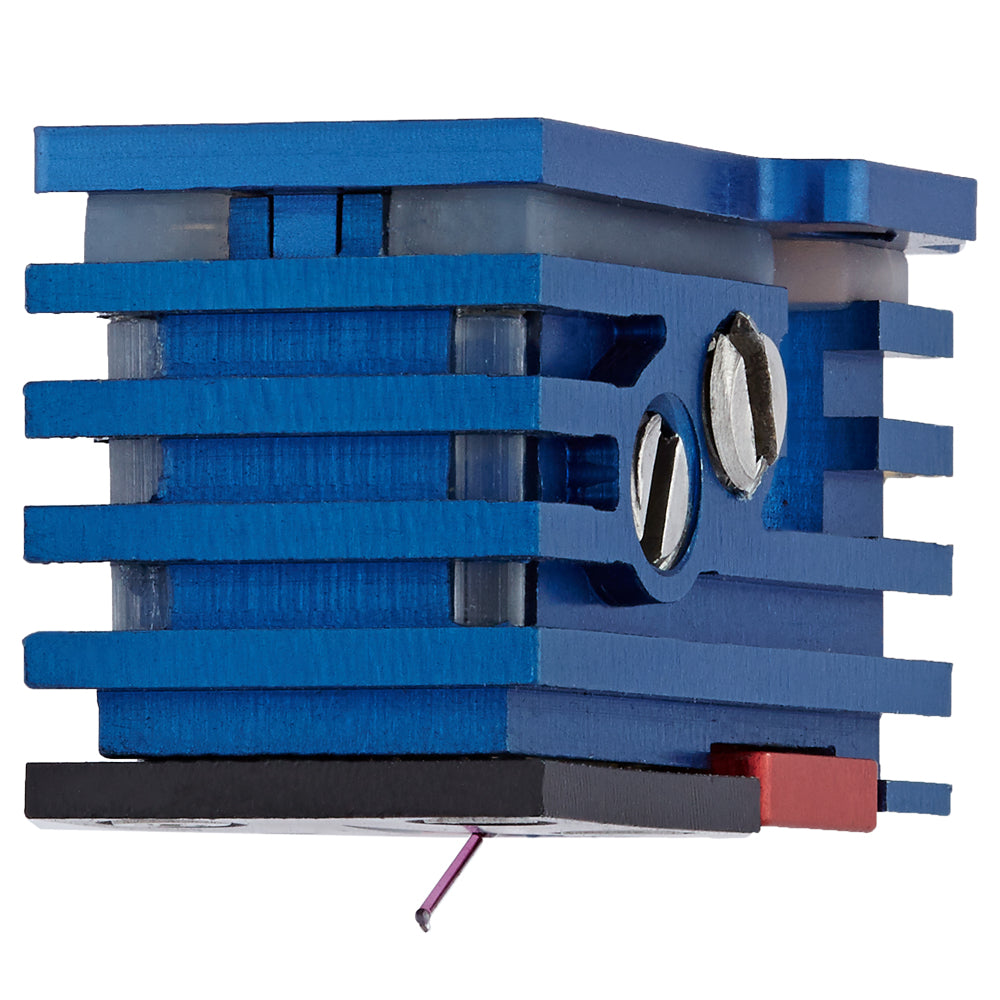

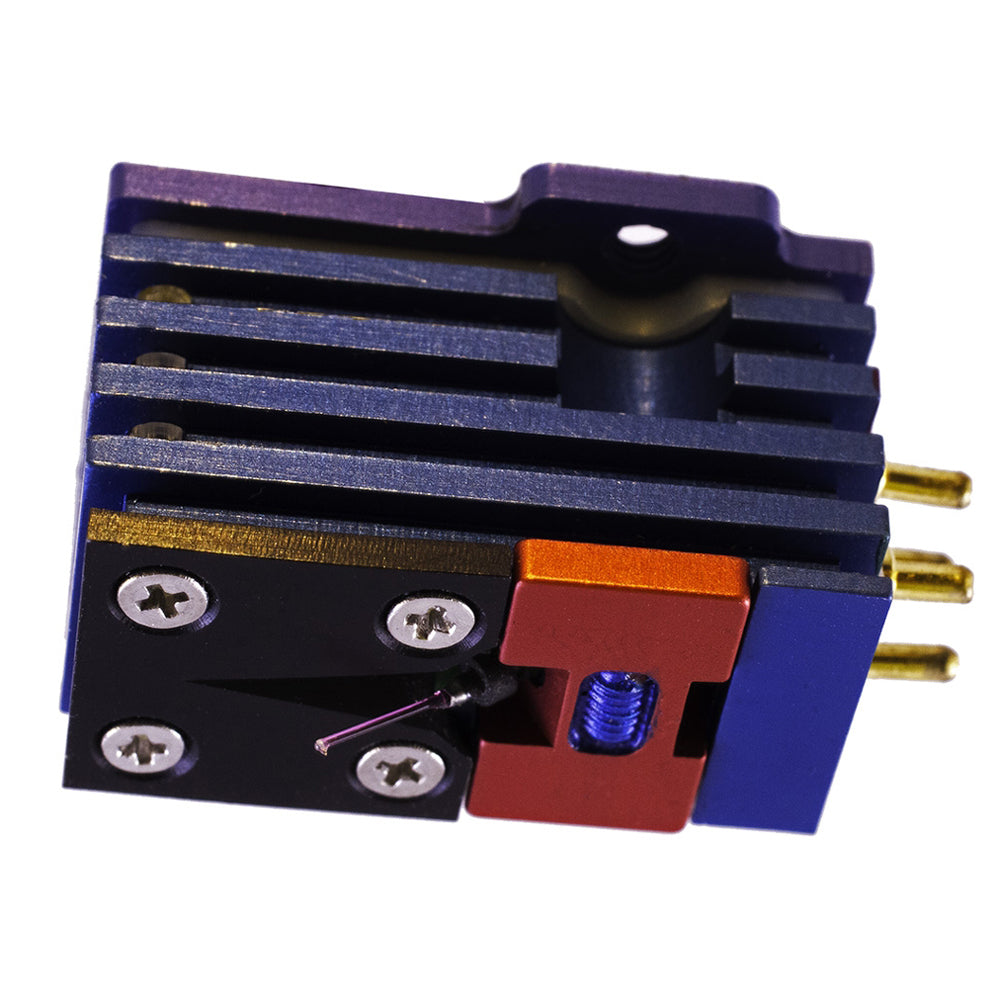

All the SG systems feature user replaceable styli, however, due to the nature of the cartridge design, styli are individually matched to each cartridge. If additional styli are desired, it is highly advisable to order them with your system order. The SG-200 is supplied in a black anodized case, however, custom wooden cases in black or mahogany are also available as accessory items.


Cartridge Type = Strain Gauge

Stylus Type = Conical Elliptical Shibata Contact Line O.C. Contact Line

Output = Specialty

Available As Dual Coil Mono = No

SG-200 Dimensions:

Width = 159mm

Hight = 89mm

Depth = 248mm

Weight = 1.36kg

Replacement Styli Options

SGS-1 Bonded Shibata/Aluminum Cantilever ~ inquire for pricing
SGS-2 Nude Elliptical, Aluminum cantilever ~ inquire for pricing
SGS-3 Special 1 mil radius conical (for vintage 48-49 records) ~ inquire for pricing
SGS-4 78 RPM stylus special Soundsmith EQ inline circuit must be used ~ inquire for pricing
SGS-5 Nude Contact Line/Ruby Cantilever (standard design supplied with SG cartridge)
~ If Purchased separately ~ inquire for pricing
SGS-6 Nude “Optimized Contour” Contact Line/Ruby Cantilever ~ inquire for pricing
