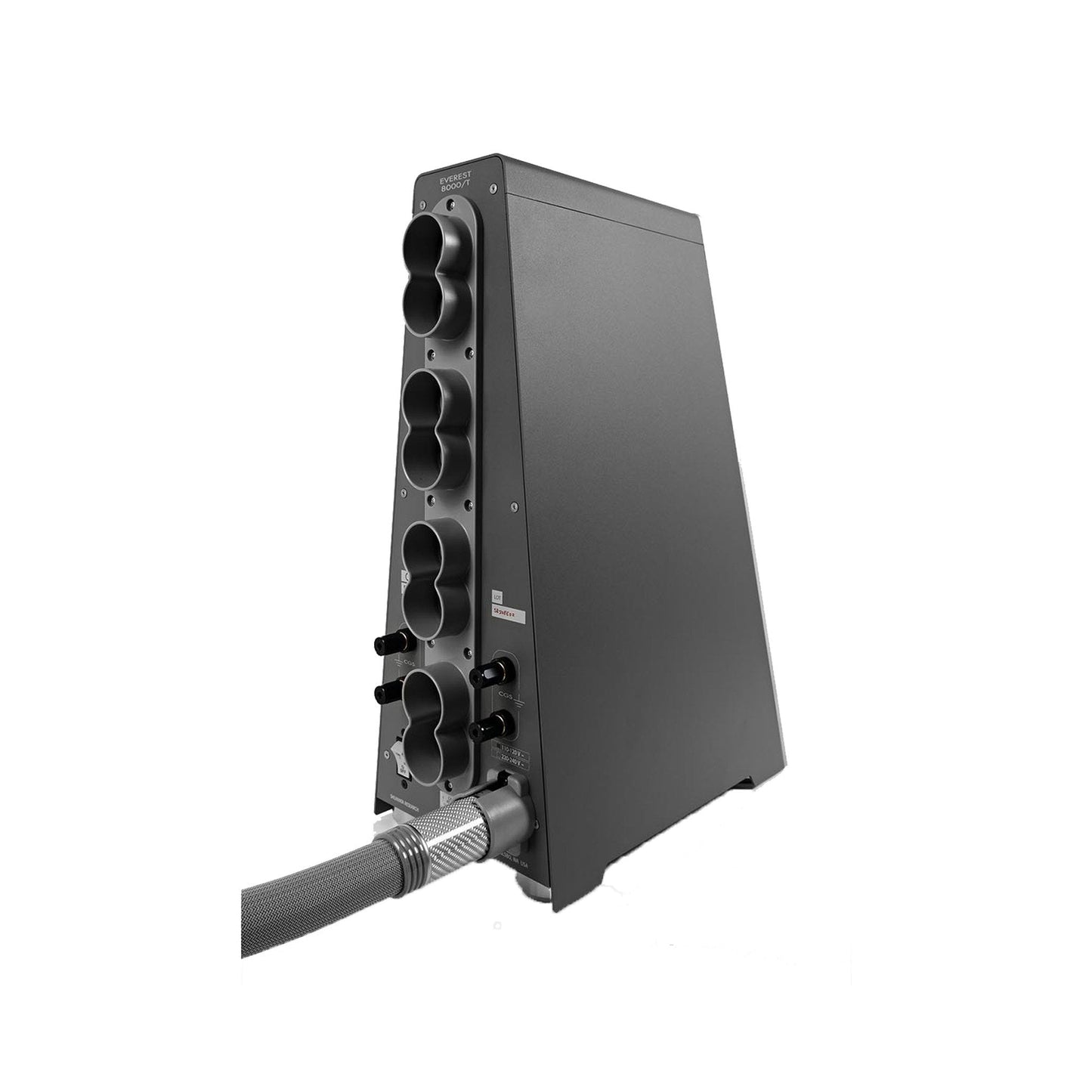

Shunyata Everest 8000

SHUNYATA



The Everest 8000 merges patented science from Shunyata Research’s critically acclaimed Hydra Triton and Typhon designs with the transformative technologies applied within its heralded medical division products.

From the stunning form-follows-function tower design to its inside-out engineering, the Everest represents the pinnacle of development and achievement in multiple industries.

Discover for yourself why designer Caelin Gabriel refers to the Everest as the greatest engineering accomplishment of a career spent designing silent electrical systems for military, medical, mastering, recording, and high-performance entertainment systems.

Download the brochure here.

FEATURES & TECHNOLOGY

The Everest 8000 features patented technologies and proprietary components that are unavailable in any other competitive product.  The Everest supplies unrestricted peak current to multiple components while dramatically reducing noise from the power line and intercepting noise from component-to-component interactions, isolating each component in the system.

QR/BB™ TECHNOLOGY

Shunyata Research’s patented QR/BB™ technology, originally developed for the Typhon, provides instantaneous on-demand electrical charge to dynamic draw electronics.  The QR/BB™ device in the Everest is three times the size of the Hydra Denali’s and provides unprecedented spatial and three-dimensional imaging qualities.

CCI™ NOISE REDUCTION

The Everest 8000 provides unprecedented noise reduction derived from Shunyata Research’s CIS® medical division.  Over 60 dB of noise reduction and six zones of isolation contribute to remarkable improvements in imaging and radical improvements in audio performance when used in professional recording or home audio entertainment systems.

CMODE NOISE FILTER

The Everest’s new CMode noise filter is a functional breakthrough, removing common-mode noise without introducing undesirable compression of dynamic range.

CHASSIS GROUND SYSTEM (CGS)

The Chassis Ground System (CGS), originally deployed in the Triton v3, now achieves new levels of ground-plane noise reduction in the Everest.  Four CGS terminals support the connection of up to 12 audio components.

CABLE CRADLE SYSTEM

The Everest utilizes a tower design and cable cradle system inspired by the ground-breaking and award-winning Denali 6000/T.

APPLICATIONS

The Everest 8000 is Shunyata Research’s state-of-the-art eight-outlet power distributor.

With six independent zones of noise isolation, Everest 8000 can be used in a system composed of digital, analog, and high-current electronics.

All outlets deliver both exceptional high current performance and standard-setting noise isolation that virtually eliminates component-to-component interference.

There are no current delivery restrictions of any kind within the Everest. Instead, DTCD® (dynamic transient current delivery) is markedly improved across all outlets.

From the industry’s most demanding amps to the most nuanced noise-sensitive source components, the Everest 8000 delivers previously unattainable performance.



Maximum Voltage
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (EU, AS, AU)

Input Current Ratings
Maximum Continuous Current: 30A (US, AS)
Maximum Continuous Current: 16A (EU, AU)

Output Current Ratings
Max Current/Outlet: 15A (US, AS)
Max Current/Socket: 16A (EU, AU)

Transient Suppression
Maximum Transient Protection: 40,000 A @ 8/50 μs

Over-Current Protection
Hydraulic Electromagnetic Breaker

Wiring System
8 gauge ArNi® VTX™ Buss system
10 gauge ArNi® VTX™ wiring

Ratings: 600 V 105° C

Noise Suppression
Input to Output (100 kHz – 30 MHz): > 50 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 60 dB reduction

Outlets & Connectors
Zones of Isolation: 6 Zones
Inlet: IEC C19R

US Outlets: 8 NEMA5-20R
AS Outlets: 8 NEMA 5-20R
EU Sockets: 8 CEE 7/3
AU Sockets: 8 AS/NZS 31123

Vibration Control
Vibration dampening panels (internal)
AC outlet dampening gaskets
Shunyata Isolation SSF-50 Footer

Construction
Aluminum and steel chassis
Anodized, brushed aluminum faceplate

GPNR
Length: 127 mm
Diameter: 38 mm

Dimensions
Width: 8.0 inches at base (20.32 cm)
Depth: 14.75 inches with cable cradle (37.47 cm)
Height: 20.75 inches (52.71 cm)
Weight: 34 lbs (16 kg)
