Solidsteel Hyperspike HF Series 4 Shelf Rack
Pickup available at Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
Usually ready in 2-4 days
Solidsteel Hyperspike HF Series 4 Shelf Rack
Flat Black
Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
14 Trafalgar Street
202
Woolloongabba QLD 4102
Australia
Four-Tier Flagship Hyperspike Decoupled Audio Rack | Brisbane HiFi Audio Specialist

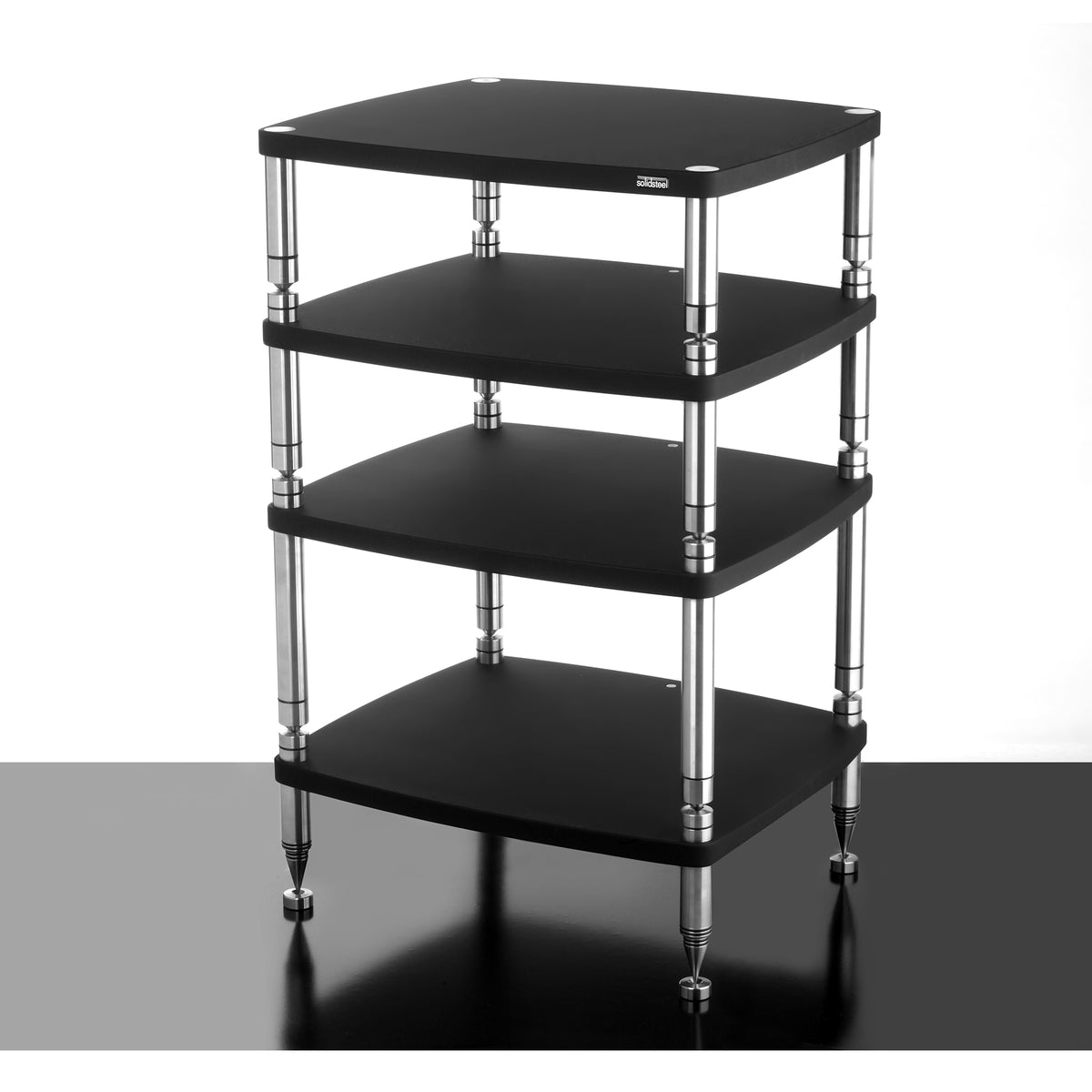

The Solidsteel HF-4 is a four-tier reference equipment rack from Solidsteel's flagship Hyperspike High-End (HF) Series, designed for extensive high-end audio systems requiring substantial equipment capacity and advanced mechanical support.
Handcrafted in Italy, the HF Series combines 39 mm solid stainless-steel structural pillars, substantial 30 mm MDF platforms, and precision mechanical-support hardware to provide a rigid foundation for sophisticated analogue and digital systems.
With a specified 80 kg load capacity per shelf, 320 kg total shelf capacity, and generous 535 × 500 mm usable shelf dimensions, the HF-4 provides four substantial platforms for turntables, DACs, network streamers, preamplifiers, phono stages, amplifiers, and power supplies.
At Brisbane HiFi, we recommend the HF-4 for extensive reference systems requiring four dedicated equipment levels while retaining the substantial construction and mechanical architecture of the flagship HF Series.
Key Features & Mechanical Engineering Highlights
- Hyperspike Decoupling Architecture: Incorporates solid stainless-steel structural elements, precision mechanical interfaces, and decoupling hardware derived from Solidsteel's Hyperspike design philosophy.
- 39 mm Solid Stainless-Steel Pillars: CNC-machined 39 mm INOX structural pillars provide a substantial rigid framework for the four-tier rack.
- 30 mm Heavy-Duty MDF Shelves: Dense MDF platforms provide substantial mounting surfaces with premium polymer laminate or real-wood veneer finishes.
- 80 kg Load Capacity Per Shelf: Each level is rated for up to 80 kg, giving the complete rack a specified combined shelf capacity of 320 kg.
- 535 × 500 mm Usable Platforms: Generous shelf dimensions provide substantial space for large source components, amplification, and power supplies.
- 305 mm Lower-Level Clearance: The lowest equipment level provides additional room for large power amplifiers, valve electronics, and substantial power supplies.
- 205 mm Upper-Level Clearances: The three upper equipment levels provide useful space for DACs, streamers, preamplifiers, phono stages, and other source components.
- Adjustable Stainless-Steel Spikes: Precision-adjustable floor spikes allow accurate levelling and establish a defined mechanical interface with the supporting floor.
- Protective S Series Floor Pads: Included floor discs help protect timber, laminate, tile, and other finished flooring from spike contact.
- Fully Modular Construction: Compatible HF Series shelf kits allow the rack to be expanded or reconfigured as the system develops.
Product Specifications
| Specification | Technical Detail |
|---|---|
| Rack Configuration | 4-Shelf Flagship Hyperspike Decoupled Hi-Fi Audio Rack |
| Load Capacity | 80 kg / 176 lbs per shelf |
| Total Shelf Capacity | 320 kg / 705 lbs |
| Overall Dimensions (W × D × H) | 645 × 561 × 1010 mm / 25.4 × 22.1 × 39.7" |
| Usable Shelf Dimensions | 535 × 500 mm / 21.0 × 19.6" |
| Lower-Level Clearance | 305 mm / 12.0" |
| Middle & Upper Clearances | 205 mm / 8.0" each |
| Shelf Thickness | 30 mm / 1.18" |
| Shelf Material | High-Density Ennobled MDF Wood, CARB 2 |
| Frame & Pillars | 39 mm Solid Stainless Steel (INOX) Terminations & CNC Pillars |
| Available Finishes | Flat Black / Gloss Black / Gloss White / Walnut / Macassar |
| Floor Coupling | Adjustable Stainless-Steel Spikes + S Series Floor Pads |
| Expandability | Compatible with Optional Modular HF Series Shelf Kits |
Ideal Four-Tier Reference System
The HF-4 provides four substantial equipment platforms for extensive analogue and digital systems.
A possible configuration could be:
Top Shelf: Reference Turntable / Digital Transport
Second Shelf: Preamplifier / Network Streamer
Third Shelf: DAC / Phono Stage
Bottom Shelf: Power Amplifier / Power Supply
The 305 mm lower-level clearance provides additional space for larger amplification, while the 205 mm upper levels accommodate many conventional source and control components.
Individual equipment dimensions and manufacturer-specified ventilation requirements should always be checked.
Designed for Heavy Reference Components
With an 80 kg capacity per shelf, the HF-4 can accommodate substantial high-end electronics within its specified limits.
Potential applications include:
- Large turntables
- Heavy integrated amplifiers
- Stereo power amplifiers
- Monoblock amplifiers
- Valve electronics
- External power supplies
- DACs and digital sources
- Preamplifiers
- Phono stages
Brisbane HiFi can assist with:
- Equipment weight assessment
- Shelf allocation
- Component dimensions
- Amplifier ventilation
- Turntable positioning
- Cable routing
- Floor protection
Turntable Integration
The 535 × 500 mm usable shelf area provides a substantial platform for many large-format turntables and associated analogue equipment.
Brisbane HiFi can assist with:
- Rack levelling
- Turntable positioning
- Mechanical isolation
- Tonearm cable routing
- Cartridge-system planning
- Floor-vibration considerations
Modular Expansion
The HF-4 is built around Solidsteel's modular architecture and can be expanded using compatible HF Series shelf kits.
This allows the furniture system to evolve alongside a growing audio system while retaining the HF Series structural architecture.
HF-4 vs HY-4
The HF-4 provides a more substantial flagship construction than the standard HY-4:
| HY-4 | HF-4 | |
|---|---|---|
| Usable Shelf Width | 500 mm | 535 mm |
| Usable Shelf Depth | 500 mm | 500 mm |
| Load Capacity | 70 kg/shelf | 80 kg/shelf |
| Total Shelf Capacity | 280 kg | 320 kg |
| Lower Clearance | 285 mm | 305 mm |
| Upper Clearances | 185 mm | 205 mm |
| Structural Pillars | Solid Stainless Steel | 39 mm Solid Stainless Steel |
| Series | Hyperspike HY | Hyperspike High-End HF |
The HF-4 provides additional shelf capacity, usable width, clearance, and substantial structural architecture for demanding reference systems.
Why Choose Brisbane HiFi for Solidsteel Hyperspike Racks?
Brisbane HiFi Showroom Display:
Visit the Brisbane HiFi showroom to inspect the HF Series' substantial stainless-steel construction, premium finishes, shelf architecture, and mechanical interfaces.
System Layout Guidance:
Our specialists can help plan equipment loading, tier spacing, ventilation, cable management, and future expansion.
Australian Support:
Brisbane HiFi supplies genuine Italian Solidsteel equipment furniture throughout Queensland and Australia with specialist support and nationwide delivery.
What's Included in the Box?
- 1 × Solidsteel HF-4 stainless-steel frame
- 4 × 30 mm MDF shelf assemblies
- 4 × Solid stainless-steel decoupling spike sets
- 4 × Solidsteel protective floor discs
- Assembly hardware
- Instruction manual
Consult with the Brisbane HiFi Audio Specialists
The Solidsteel HF-4 combines 39 mm solid stainless-steel pillars, four 30 mm MDF platforms, 80 kg-per-shelf capacity, 320 kg total specified shelf capacity, 535 × 500 mm usable shelves, 305/205 mm tier clearances, adjustable stainless-steel spikes, and modular expansion capability in a flagship Italian reference-rack platform.
Contact Brisbane HiFi to discuss equipment loading, turntable positioning, amplifier ventilation, tier configuration, mechanical isolation, or future HF Series expansion.
