THOR Technologies Smart Board A12BF Surge Protector  | Brisbane HiFi

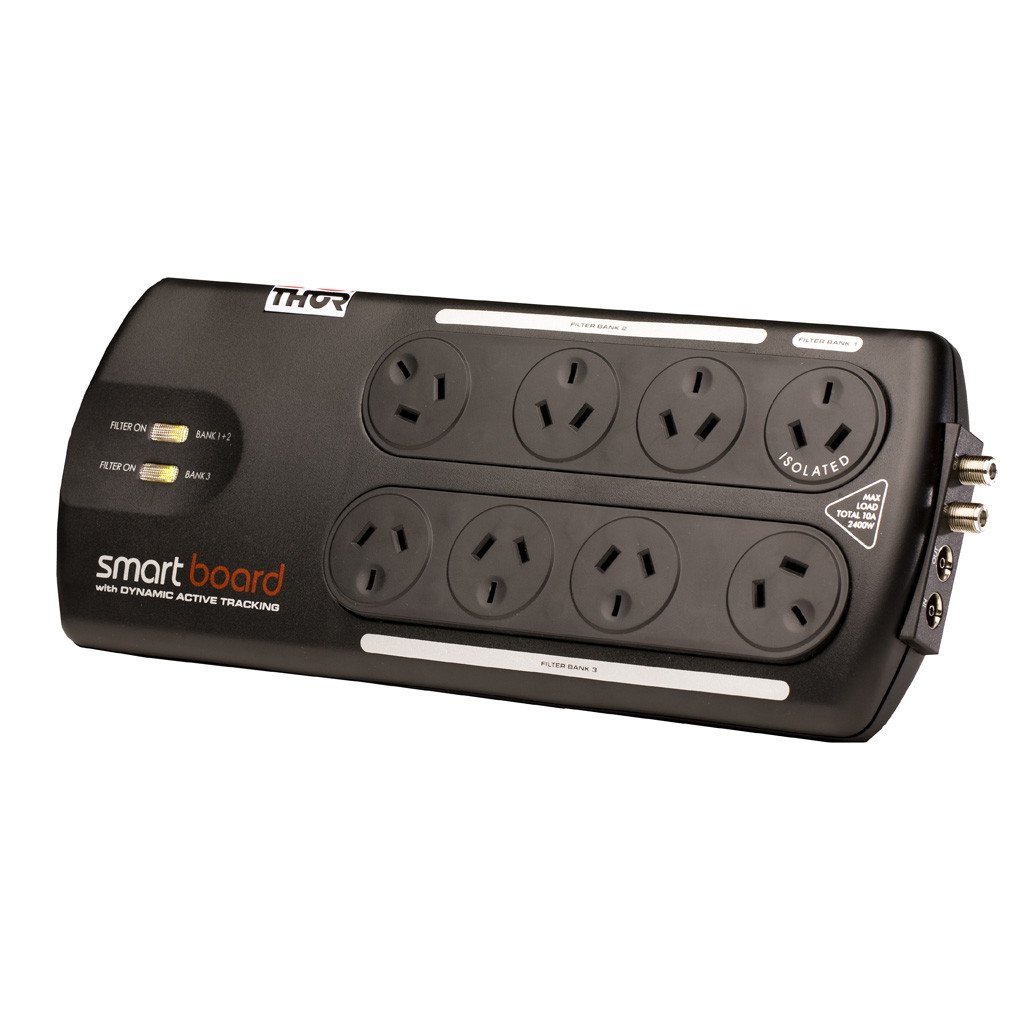

THOR Technologies Smart Board A12BF Surge Protector

THOR Technologies


0 in store.

Usually ships within 3-7 days.


Overview

Smart Board Smart Series with its unique Dynamic Active Tracking™ protection (pat. pending) strategy is without question the most comprehensive solution to defend your electronic equipment. 38 separate and discrete components working in both series and parallel provide a failsafe barrier against virtually all categories of electrical disturbances, so common with today’s power grids. When it comes to minimising your equipment risk, we make no wild or glossy promises. Our products do what we say they do. The team at THOR Technologies have individually engineered each product to be the best in its class. Best price. Best performance. Best value.



About THOR Technologies

Thor Technologies Pty Ltd manufactures a premium range of power protection and power filtration products that clean the sine wave, prevent line interference and protect against damaging voltages. In any digitally sensitive equipment this translates into product performance and longevity - getting the most out of your equipment for a long time.

The premium protection offered in THOR products is typically 7 times higher than the industry standard. Perhaps the biggest example is ‘Clamping Voltage’. If power should be 240V, 280V upwards blows components, fries circuitboards, power supplies etc. THOR has a clamping voltage of 275V, the industry standard is 710V, this means the industry standard will not do anything until 710V comes down the line – well and truly after the damage is done.

Examples of inconsistent and 'dirty' power include flickering lights, hums and hisses in speakers and system hangs and lockups. In the home and business environment, air conditioners, washing machines (changing cycles), kettles and florescent lights all contribute to damaging spikes and surges.



Features

  • Intelligent Power Conditioning Filter
  • Dynamic Active Tracking Circuitry
  • 3 In 1 Isolation
  • Bank 1 = 1 outlet Bank 2 = 3 outlets Bank 3 = 4 outlets
  • 8 Outlets
  • All in the one compact board
  • Data & Aerial Protection With Cable TV connection
  • Fibre Optic And Broadband Compatible
  • Multiple Application Identity Tags
  • 6 Year Free Replacement Warranty
  • Designed and Engineered in Australia
  • 100% Australian Owned And Compliant



Specifications

Supply Voltage 240/Vac 50/Hz
Maximum Current Rating 10amps/2400 W (Va)
Clamping Voltage 275Vac
Reaction Time Less than 1 Nano Sec
Maximum Transient Spike Impulse Current (AMPS) 208,000 amps. Equivalent to 52,000 amps using UL1449 Std
Maximum Energy Dissipation (Joules) 6080 Joules. Equivalent to 2050 Joules using UL1449 Std
Protection Modes (all 8 outlets Protects on all 3 conductors) Active/Neutral, Active/Earth, Neutral/Earth
EMI/RFI Noise Reduction Filter Type Incorporating 38 separate protection components in 3 cascading circuits
Number of Multi-Stage Filter Banks 3
Number of Isolated Banks 3
Number of dedicated Outlets 4+3+1
Total Number of Protected AC Outlets 8 protected outlets
Incoming Telephone Line Protection (DC) with Inline Splitter (1 in - 2 out) RJ 1 Line in /2 lines out, RJ45 Broadband/Network ready
Incoming Television Aerial protection (DC) 1 Line in /1 lines out
Cable TV 'F' type connector yes
Earth Potential Rise Protection yes
Earth leakage Range Less than 1 milli amp
Operating conditions Indoor / AC Mains
Operating Temperatures - 10C/+60C
Safety Approval No Q01652
Model No A12
Cable length 1.8m
