THOR Technologies Smart Protector 4 E145B Surge Protector  | Brisbane HiFi

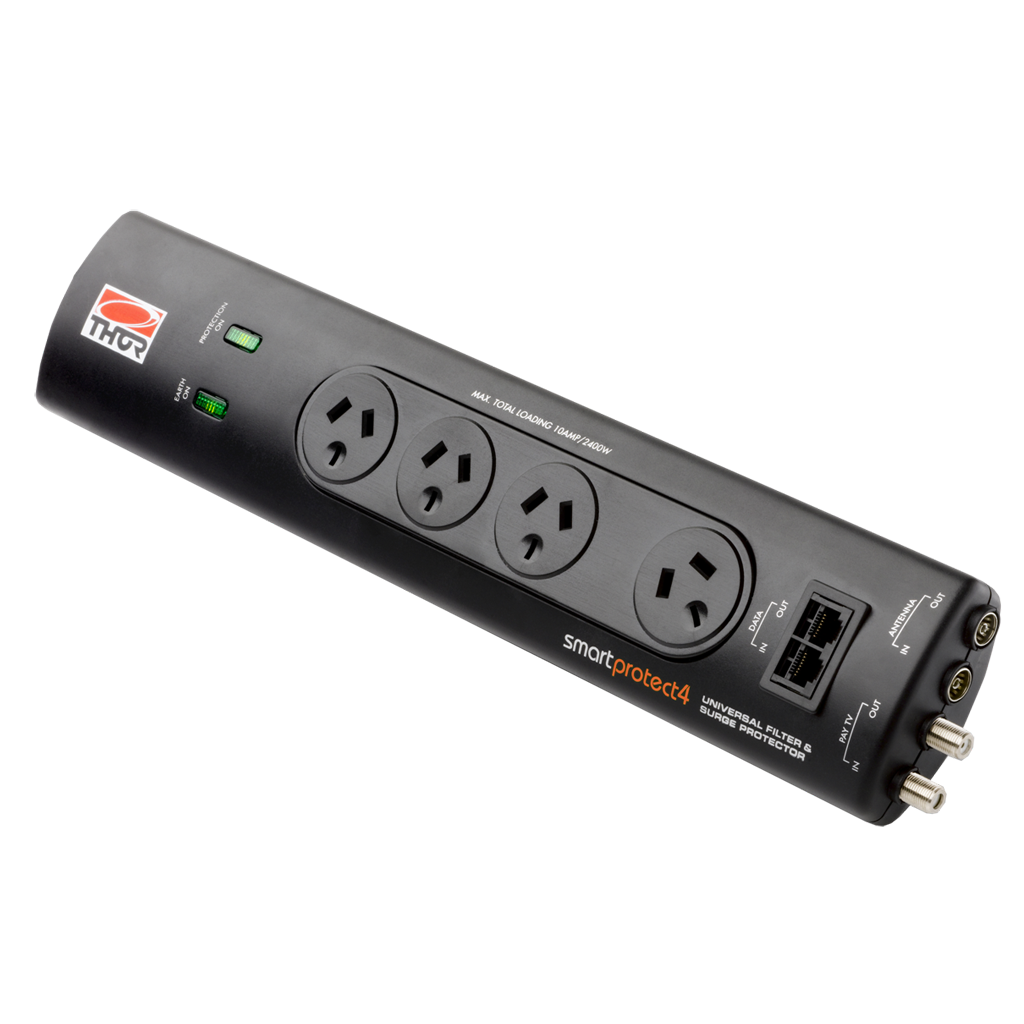

THOR Technologies Smart Protector 4 E145B Surge Protector

THOR Technologies


0 in store.

Usually ships within 3-7 days.


Overview

Ideal for home office equipment, computers, home theatre components, sewing machines, fridges, washing machines and for users wanting superior AC mains and telephone surge protection due to incoming disturbances whether inner city, suburban, industrial, rural or domestic situations.



About THOR Technologies

Thor Technologies Pty Ltd manufactures a premium range of power protection and power filtration products that clean the sine wave, prevent line interference and protect against damaging voltages. In any digitally sensitive equipment this translates into product performance and longevity - getting the most out of your equipment for a long time.

The premium protection offered in THOR products is typically 7 times higher than the industry standard. Perhaps the biggest example is ‘Clamping Voltage’. If power should be 240V, 280V upwards blows components, fries circuitboards, power supplies etc. THOR has a clamping voltage of 275V, the industry standard is 710V, this means the industry standard will not do anything until 710V comes down the line – well and truly after the damage is done.

Examples of inconsistent and 'dirty' power include flickering lights, hums and hisses in speakers and system hangs and lockups. In the home and business environment, air conditioners, washing machines (changing cycles), kettles and florescent lights all contribute to damaging spikes and surges.



Features

  • 4 OUTLETS
  • BROADBAND, PAY TV, ANTENNA & NETWORK
  • MAXIMUM FIRE SAFETY - ONLY MANUFACTURED WITH FLAME RETARDENT PLASTICS
  • 100% AUSTRALIAN OWNED AND COMPLIANT
  • MASSIVE 125,000 AMP, MAXIMUM SPIKES 3670 JOULES



Specifications

Supply Voltage 240/Vac 50/Hz
Maximum Current Rating 10amps/2400 W (Va)
Clamping Voltage 275Vac
Reaction Time Less than 1 Nano Sec
Maximum Transient Spike Impulse Current (AMPS) 125,000 amps. Equivalent to 31,200 Amps using UL1449 standard
Maximum Energy Dissipation (Joules) 3670 Joules.Equivalent to 1240 Joules using UL1449 standard
Protection Modes (all 4 outlets Protects on all 3 conductors) Active/Neutral, Active/Earth, Neutral/Earth
Noise Reduction Filter EMI/RFI
Total Number of Protected AC Outlets 4
Pay TV & "F" Type Connection 1 x IN - 1 x OUT
AV/TV Anntennae Coax Connection 1 x IN - 1 x OUT
RJ 45 Data Protection 1 x IN - 1 x OUT
Earth Potential Rise Protection
Earth leakage Range Less than 1 milli amp
Operating conditions Indoor / AC Mains
Operating Temperatures - 10C/+60C
Cable length 1.2m
Regulatory Compliance Mark RCM 5287
