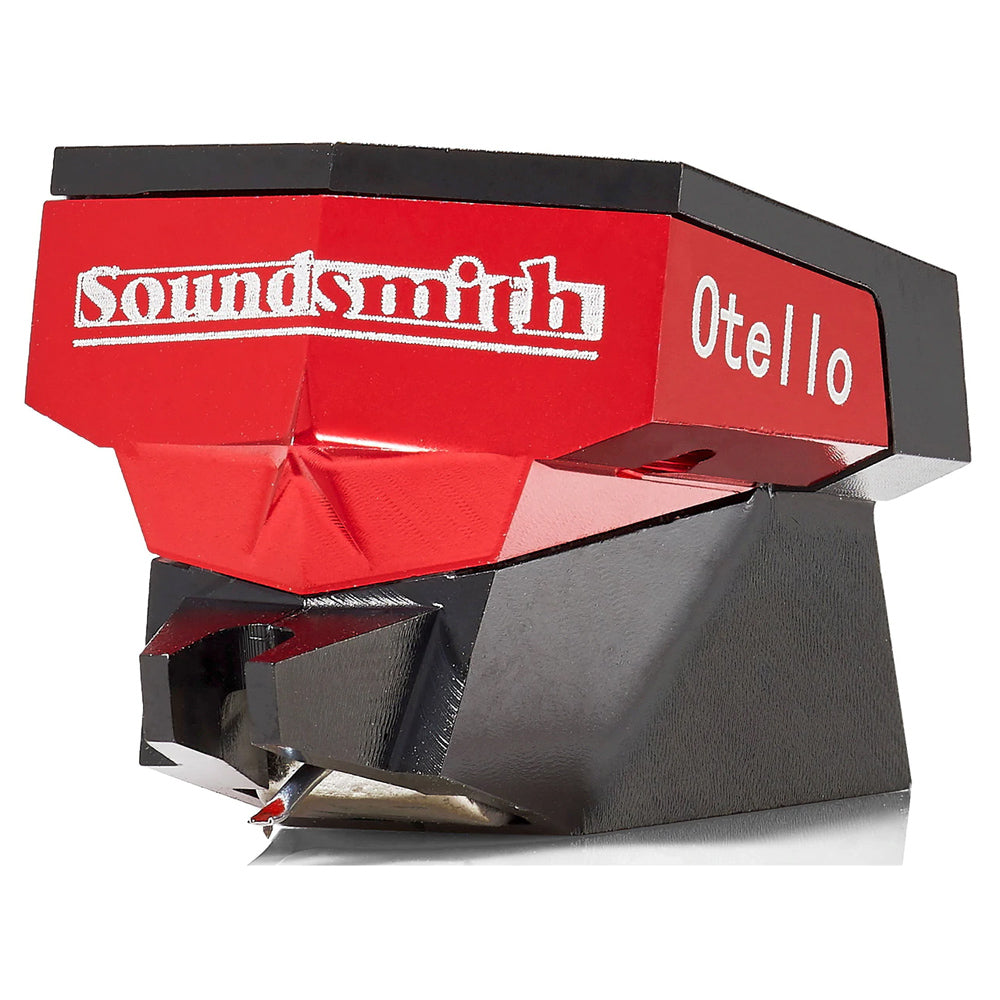

Otello Cartridge

The Soundsmith Otello is Soundsmith’s entry-level Moving Iron design, realizing an affordable pathway into the world of high-performance cartridges. Build by hand like all Soundsmith cartridges, the Otello provides a perfect balance of tone and resolution at a great price. The result is a cartridge that is at ease with any type of music. Just slightly warmer than other Soundsmith designs, Otello yields a richness of timbre that is utterly beguiling with a level of speed and dynamics not often found in cartridges at this price. The result? A wonderful design that gives the warmth of MM and the light footedness of Moving Iron design.

Specifications

HIGH OUTPUT

Stylus: Elliptical Titanium Bonded, 0.20mm Round
Radius of curvature: 6 x 17 μm
Cantilever: Aluminum Alloy
Recommended tracking force: 1.3-1.6 gm
Effective tip mass: 0.50 mg
Compliance: 22 μm/mN
Frequency response: 20-20,000 Hz ± 2.5 dB
Channel separation (stereo only): 1000 Hz >24 dB, 50-15,000 >20 dB
Channel difference: <1.8 dB (Stereo), <1.0 dB (Mono)
Output voltage: >2.12 mV
Cartridge weight: 9.2 grams
Loading: ≥ 47 kΩ

Also available in dual-coil mono.
