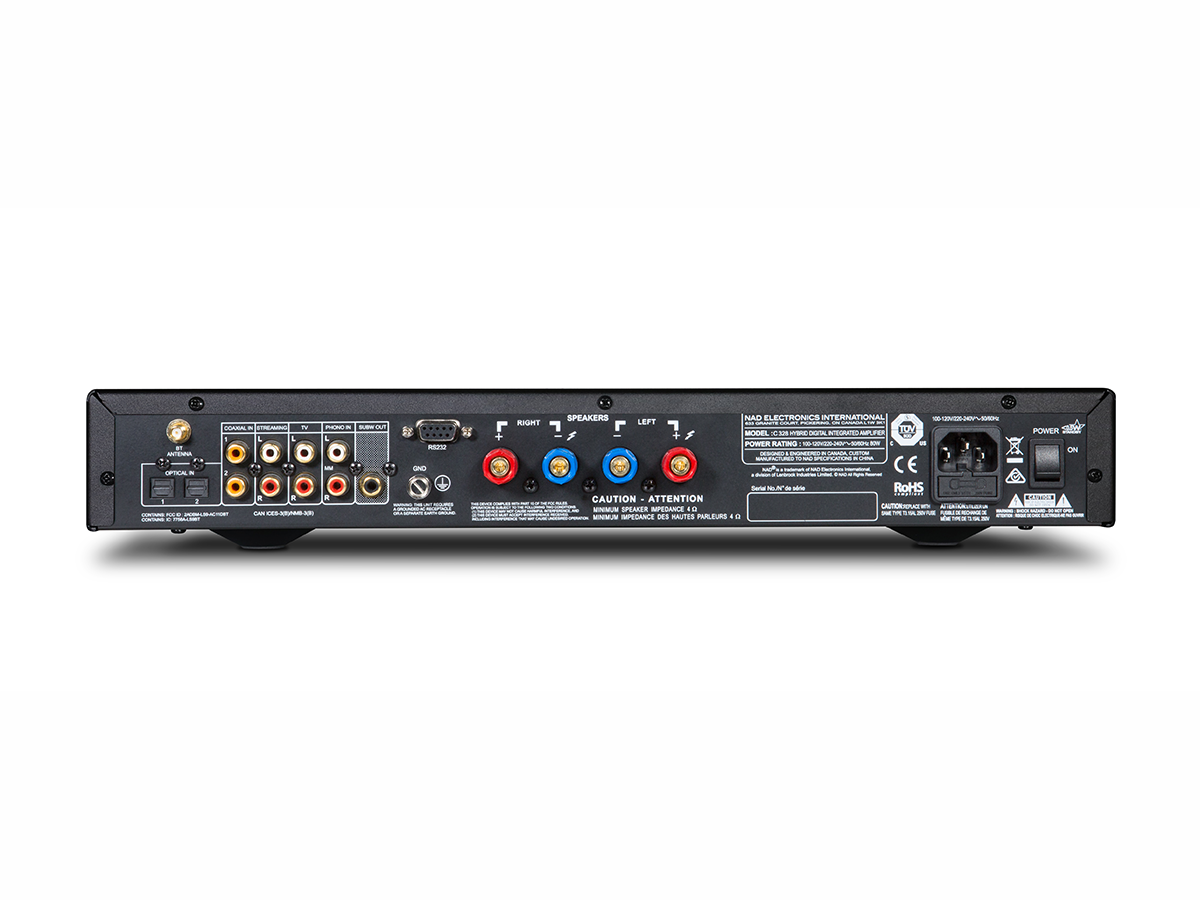

C328 Hybrid Digital DAC Amplifier
Ritiro disponibile presso la sede Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
Di solito pronto in 2-4 giorni
C328 Hybrid Digital DAC Amplifier
Brisbane HiFi 202/14 Trafalgar St, Woolloongabba, 4102
14 Trafalgar Street
202
Woolloongabba QLD 4102
Australia
For 45 years, NAD Electronics has introduced aspiring audiophiles to the vast world of hi-fi. From our flagship Masters Series, to our budget-friendly Classic Series, NAD has a component for everyone. Following in the footsteps of some of NAD’s greatest units, the NAD C 328 delivers the most fundamental of features, while firmly adhering to NAD’s unwavering commitment to exquisite sound. The C 328 can wirelessly connect to any smartphone, tablet, or Bluetooth®-enabled device within range, to give you a seamless listening experience. Featuring a MM phono input, the C 328 breathes new life into vinyl LPs, thanks in part to NAD’s innovative Hybrid Digital™ amp technology. The C 328 also features a headphone amplifier, letting you connect your favourite headphones and settle back into your own world of detailed sound. Although more modest in comparison to other Classic Series amplifiers, the C 328 will fit perfectly into your existing system and bring you the musical nirvana you’ve been searching for.
Specifications
ANALOGUE IN/HEADPHONE OUT
- THD (20 Hz – 20 kHz)
- <0.005 % at 1 V out
- Signal-to-Noise Ratio
- >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Output impedance
- 11 ohms
ANALOG IN/SUBWOOFER OUT
- THD (20 Hz – 20 kHz)
- <0.005 % at 1 V out
- Signal-to-Noise Ratio
- >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
- Frequency response
- ±0.2 dB (20 Hz – 20 kHz)
- Output impedance
- 200 ohms
ANALOG IN/SPEAKER OUT
- THD (20 Hz – 20 kHz)
- <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio
- >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
PHONO IN/SPEAKER OUT
-
- THD (20 Hz – 20 kHz)
- <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio
- >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
- Frequency response(RIAA deviation)
- ±0.3 dB (20 Hz – 20 kHz)
Note:The RIAA response is consistent with a pre-emphasis that is rolled off at 50kHz by a second order filter, such as used in Neumann cutting lathes.
DIMENSIONS & WEIGHT
- Gross dimensions (W x H x D)
- 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4″)
- Net weight
- 4.9 kg (10.8 lbs)
- Shipping weight
- 5.9 kg (13.0 lbs)
